MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-8

HOW TO PERFORM ACTUATOR TEST

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

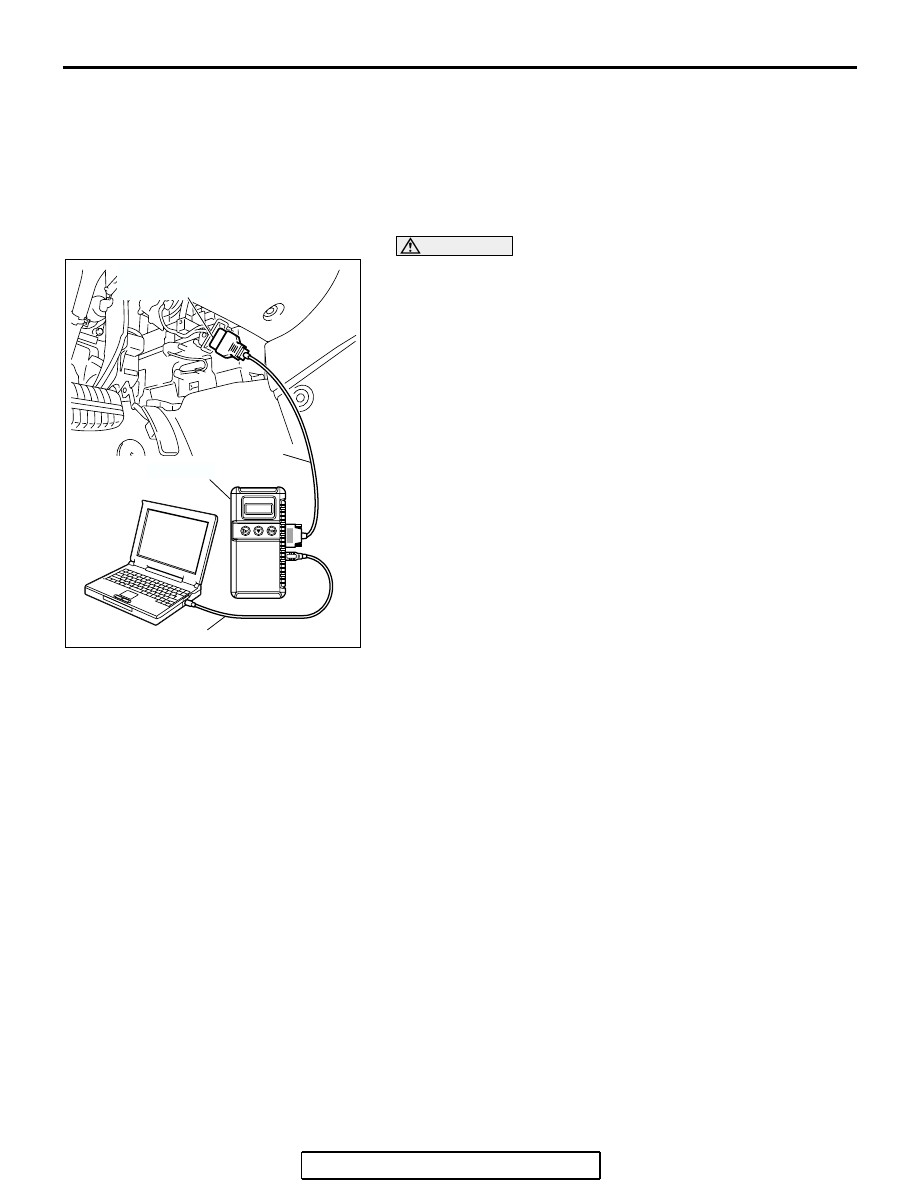

1. Connect the scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System Select."
5. Choose "Air Conditioner" from the "BODY" tab.
6. Select "MITSUBISHI."
7. Choose "Actuator Test" from "AUTO A/C" screen.
8. Choose an appropriate item and select the "OK" button.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-9

HOW TO DIAGNOSE THE CAN BUS LINE

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle whose CAN bus lines will be
diagnosed.

• If they matches, go to step 8.

• If not, go to step 5.

5. Select "view vehicle information" button.
6. When the vehicle information is displayed, confirm again

that it matches the vehicle which is diagnosed CAN bus line.

• If they match, go to step 8.

• If not, go to step 5.

7. Press the "OK" button.
8. When the options are displayed, choose the options (mark

the check) and then select "OK".

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-10

DIAGNOSTIC TROUBLE CODE CHART <LOW TYPE>

M1554004900203

CAUTION

During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion of repairs, confirm all systems for
DTC code(s). If DTC code(s) are set, erase them
all.

DIAGNOSTIC
TROUBLE CODE
NO.

DIAGNOSTIC ITEM

REFERENCE
PAGE

B1011

Ambient air temperature sensor system (short circuit)

P.55A-11

B1012

Ambient air temperature sensor system (open circuit)

P.55A-11

B1021

Air thermo sensor system (short circuit)

P.55A-17

B1022

Air thermo sensor system (open circuit)

P.55A-17

B1041

Air mixing damper control motor and potentiometer (potentiometer
system shorted to its power supply)

P.55A-23

B1042

Air mixing damper control motor and potentiometer (potentiometer
system shorted to its ground)

P.55A-23

B1045

Air mixing damper control motor and potentiometer (activating
system failure)

P.55A-28

B1061

Mode selection damper control motor and potentiometer
(potentiometer system shorted to its power supply)

P.55A-34

B1062

Mode selection damper control motor and potentiometer
(potentiometer system shorted to its ground)

P.55A-34

B1065

Mode selection damper control motor and potentiometer (activating
system failure)

P.55A-40

U1073

Bus off

P.55A-46

U1100

Powertrain control module time-out (related to engine)

P.55A-48

U1111

Multi-center display unit (middle grade type) time-out

P.55A-51

U1120

Failure information on powertrain control module (related to engine)

P.55A-55

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-11

DIAGNOSTIC TROUBLE CODE PROCEDURES <LOW TYPE>

DTC B1011, B1012: Ambient Air Temperature Sensor System

CAUTION

If DTC B1011 or B1012 has been set, multi-dis-
play related DTC U1130 is also set. After B1011 or
B1012 has been diagnosed, don't forget to erase
DTC U1130.

AMBIENT AIR
TEMPERATURE
SENSOR

JOINT
CONNECTOR (2)

A/C-ECU

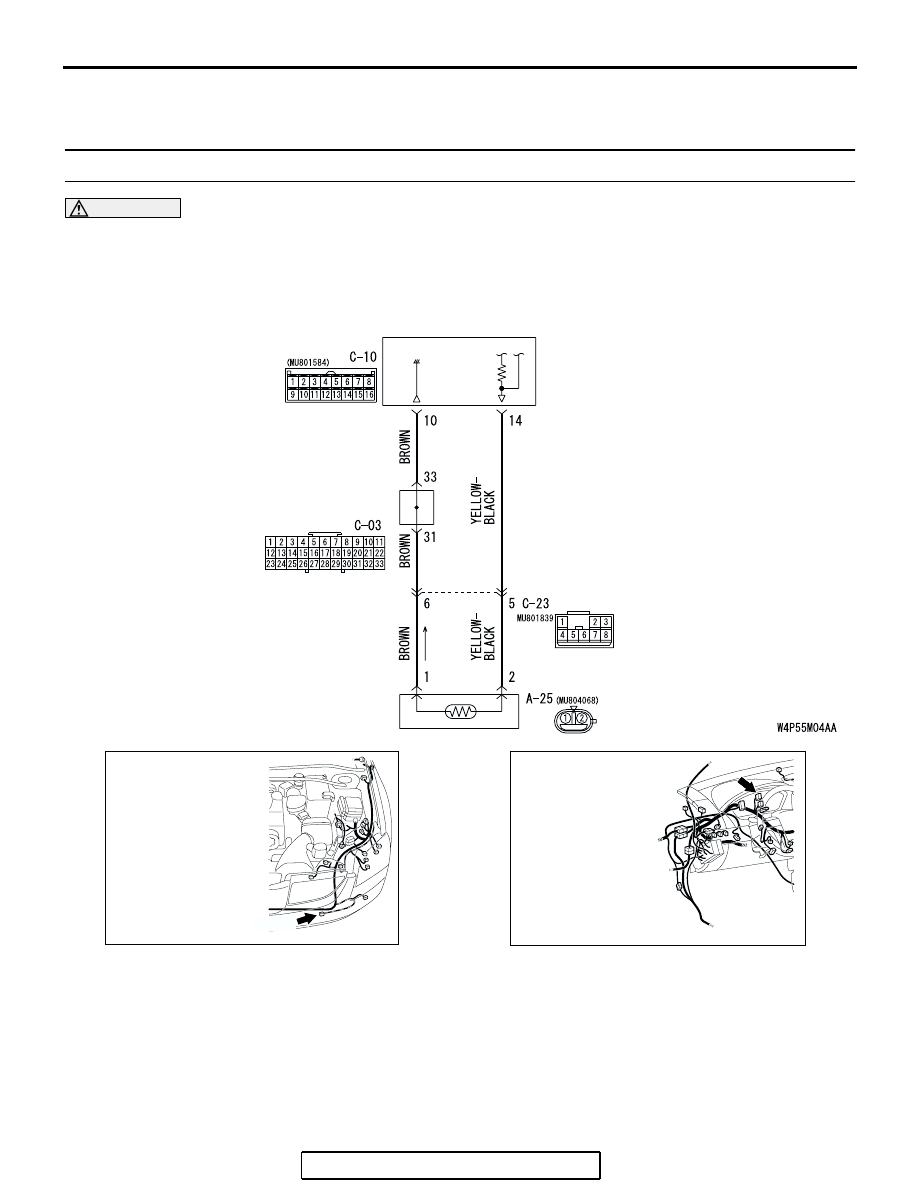

Ambient Temperature Sensor Circuit

AC305210

A-25 (BR)

AQ

CONNECTOR: A-25

AC305231AZ

CONNECTOR: C-03
