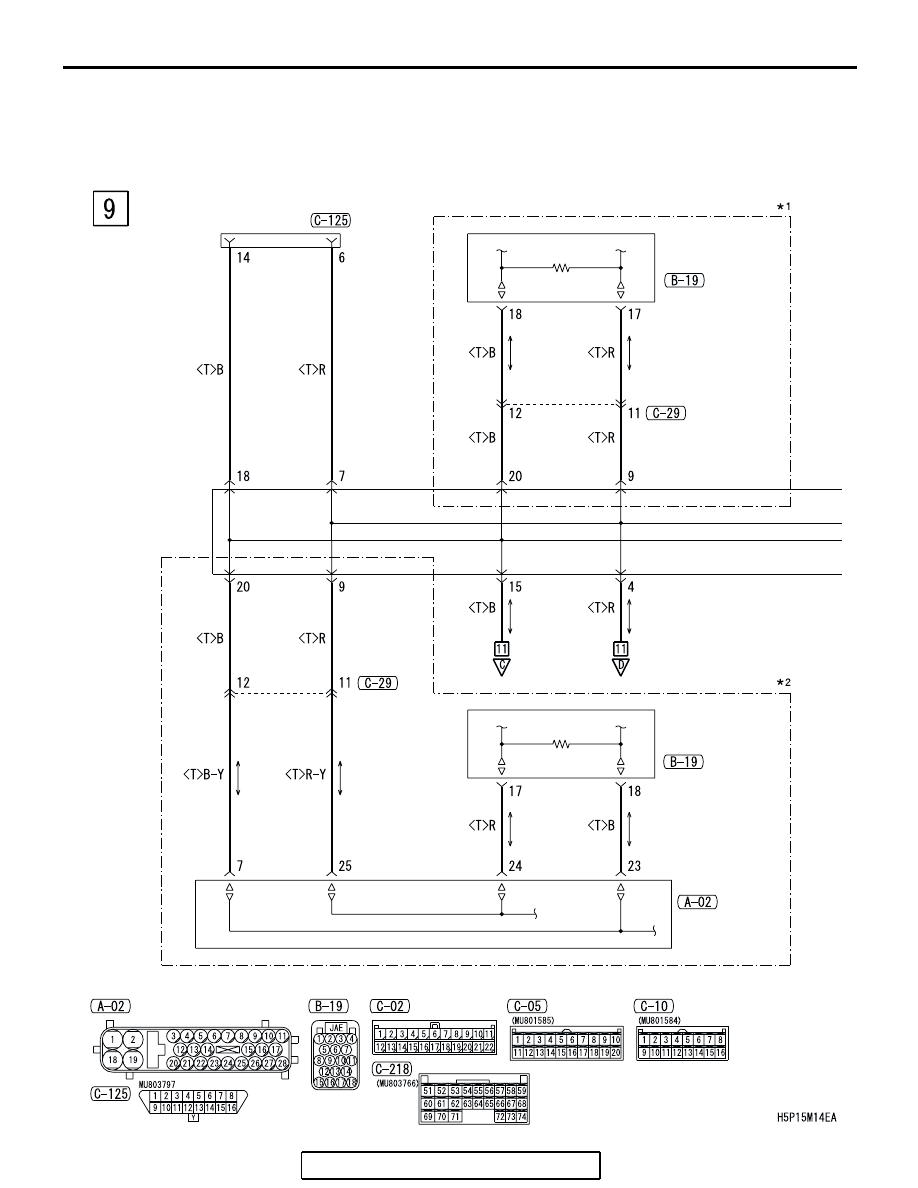

CONTROLLER AREA NETWORK  (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-282

CONTROLLER AREA NETWORK (CAN) (CONTINUED)

DATA LINK
CONNECTOR

POWERTRAIN
CONTROL
MODULE

POWERTRAIN
CONTROL
MODULE

ABS-ECU

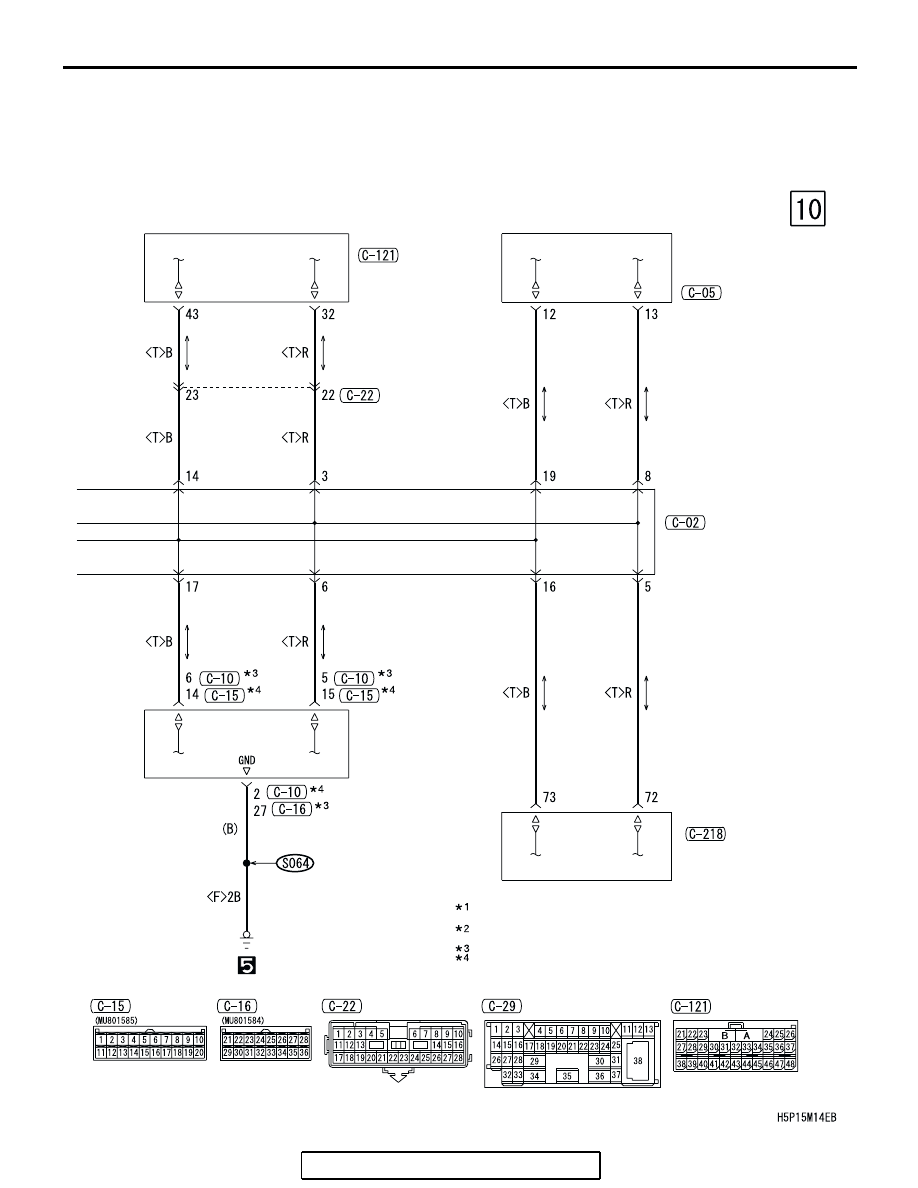

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-283

MULTI-
CENTER
DISPLAY
UNIT

JOINT
CONNECTOR (3)

A/C-ECU

ETACS-ECU

SRS-ECU

NOTE

: WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
  AND ANTI-LOCK BRAKING SYSTEM (ABS)
: WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
  AND ANTI-LOCK BRAKING SYSTEM (ABS)
: MANUAL AIR CONDITIONING SYSTEM <LOW>
: MANUAL AIR CONDITIONING SYSTEM <MIDDLE>
  OR AUTOMATIC AIR CONDITIONING SYSTEM

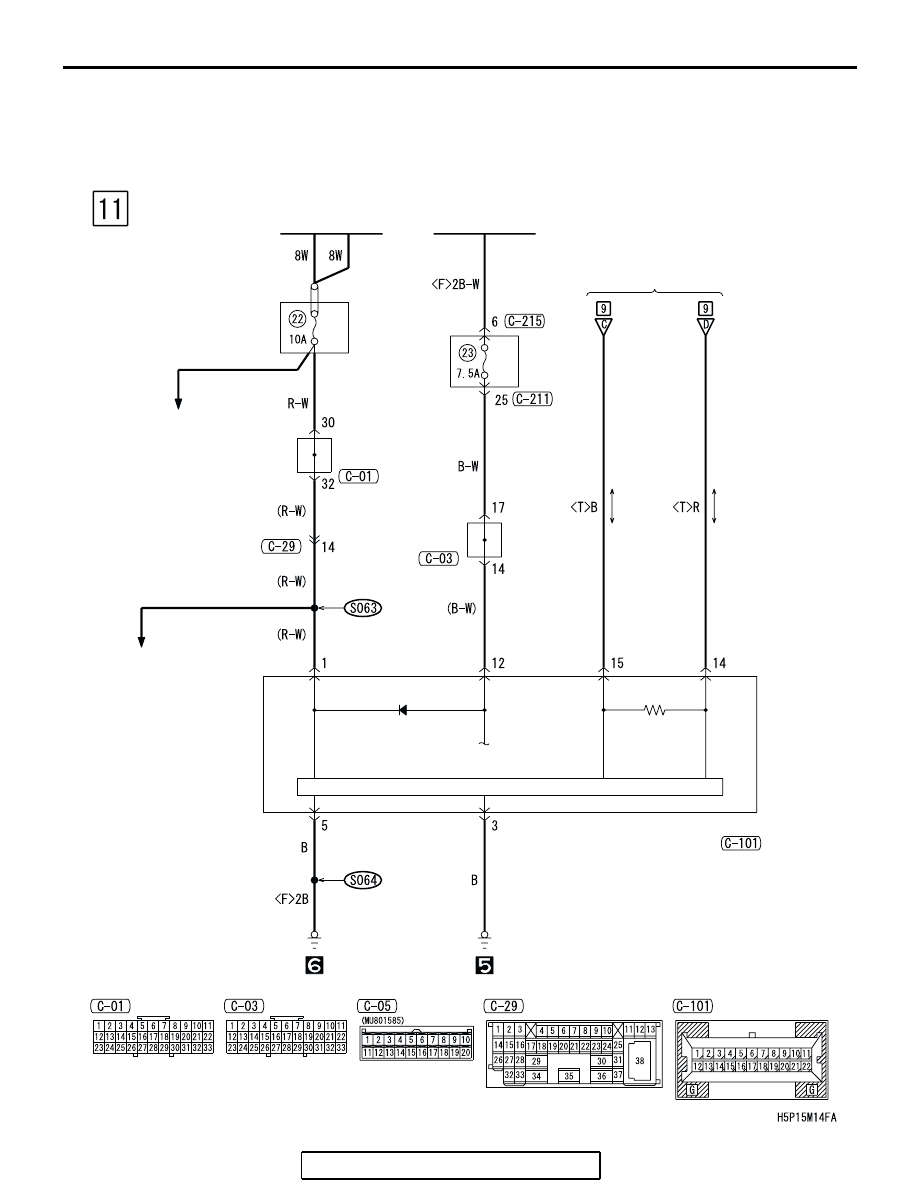

CONTROLLER AREA NETWORK  (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-284

CONTROLLER AREA NETWORK (CAN) (CONTINUED)

BATTERY

IGNITION
SWITCH (IG1)

JOINT
CONNECTOR (3)

RELAY
BOX

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (2)

COMBINATION
METER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·TAILLIGHT, POSITION LIGHT,
 FRONT SIDE  MARKER LIGHT
 AND LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

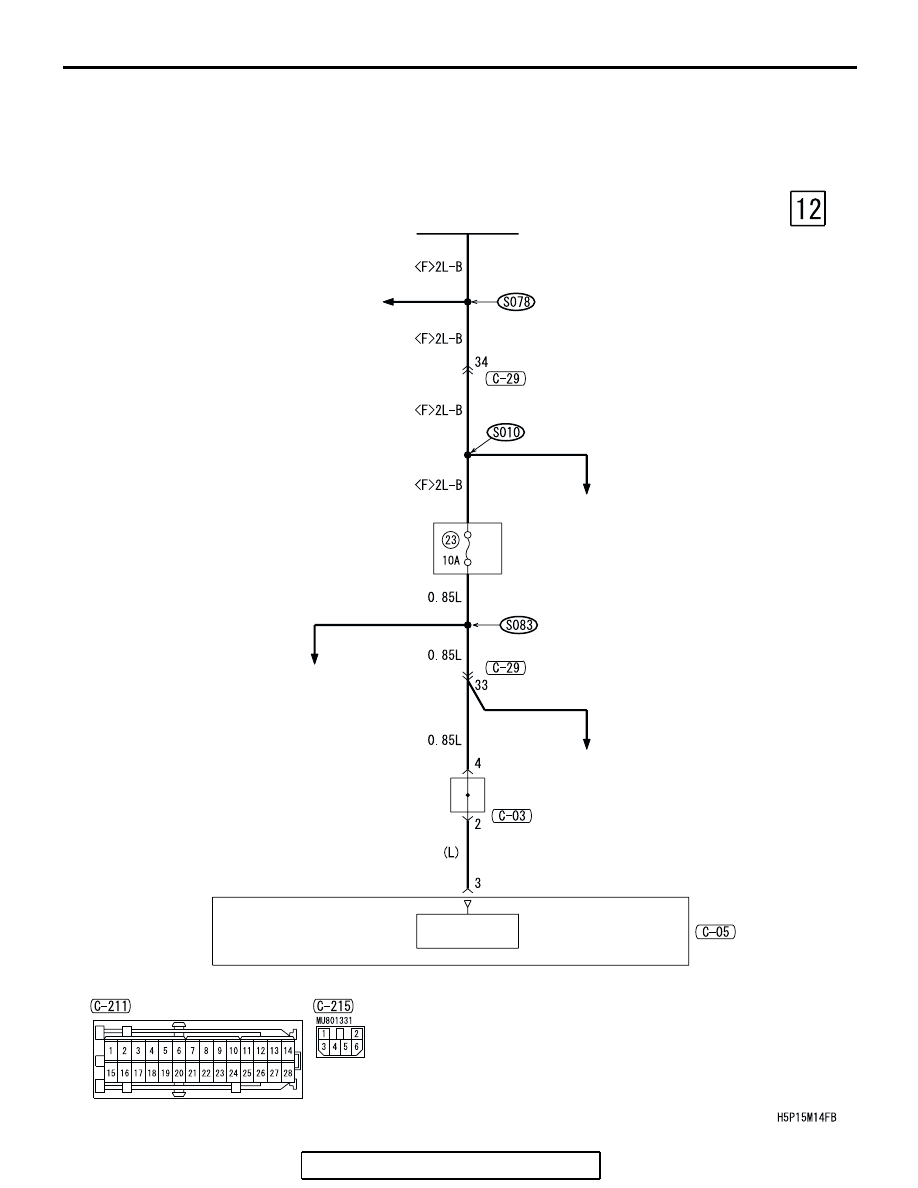

CONTROLLER AREA NETWORK (CAN)

TSB Revision

CIRCUIT DIAGRAMS

90-285

IGNITION
SWITCH (ACC)

WINDSHIELD WIPER
AND WASHER

AUDIO SYSTEM

RELAY
BOX

JOINT
CONNECTOR (2)

POWER
SUPPLY

MULTI-CENTER
DISPLAY UNIT

·CENTRAL DOOR
 LOCKING SYSTEM
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·WINDSHIELD WIPER
 AND WASHER

·CENTRAL DOOR
 LOCKING SYSTEM
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·MANUAL AIR
 CONDITIONING
 SYSTEM
·REMOTE CONTROLLED
 MIRROR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET
