CONTROLLER AREA NETWORK (CAN)
TSB Revision
CIRCUIT DIAGRAMS
90-278

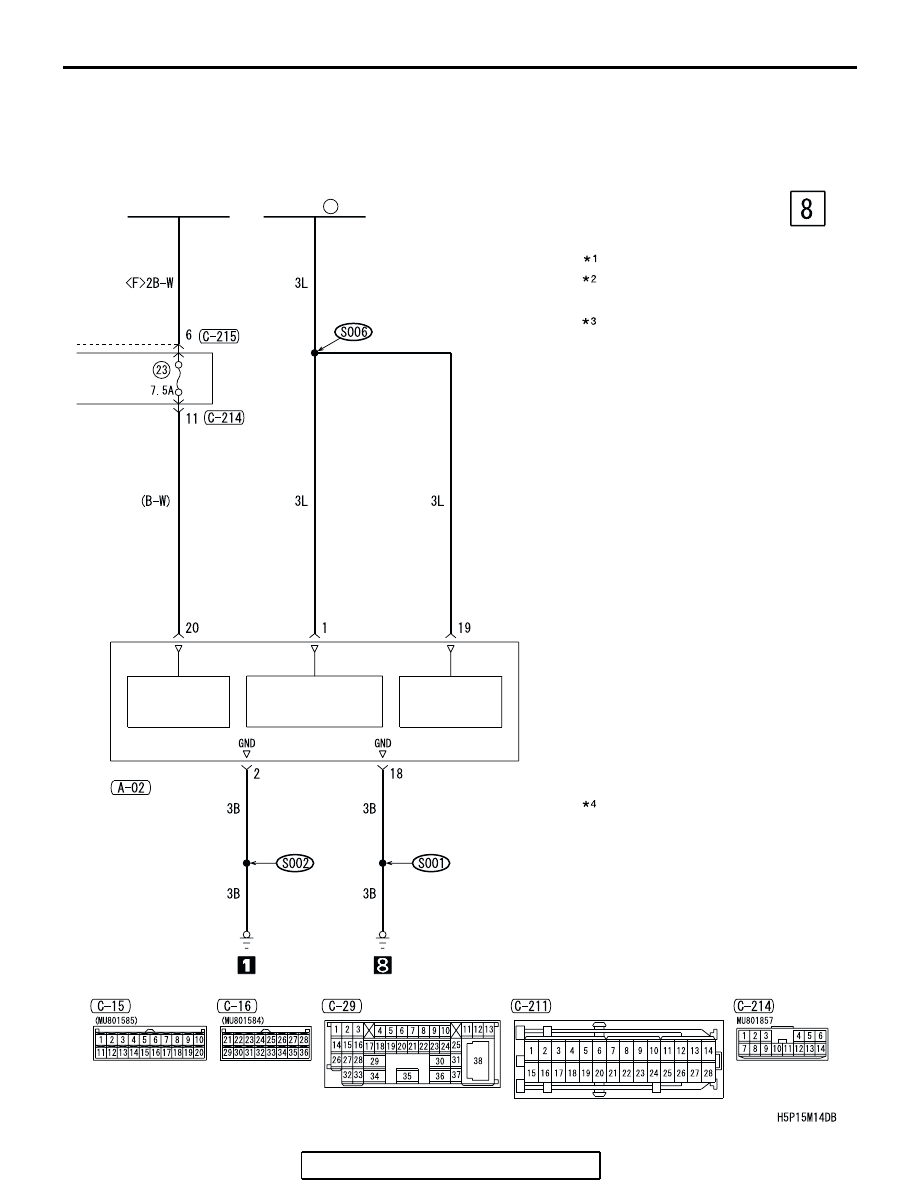

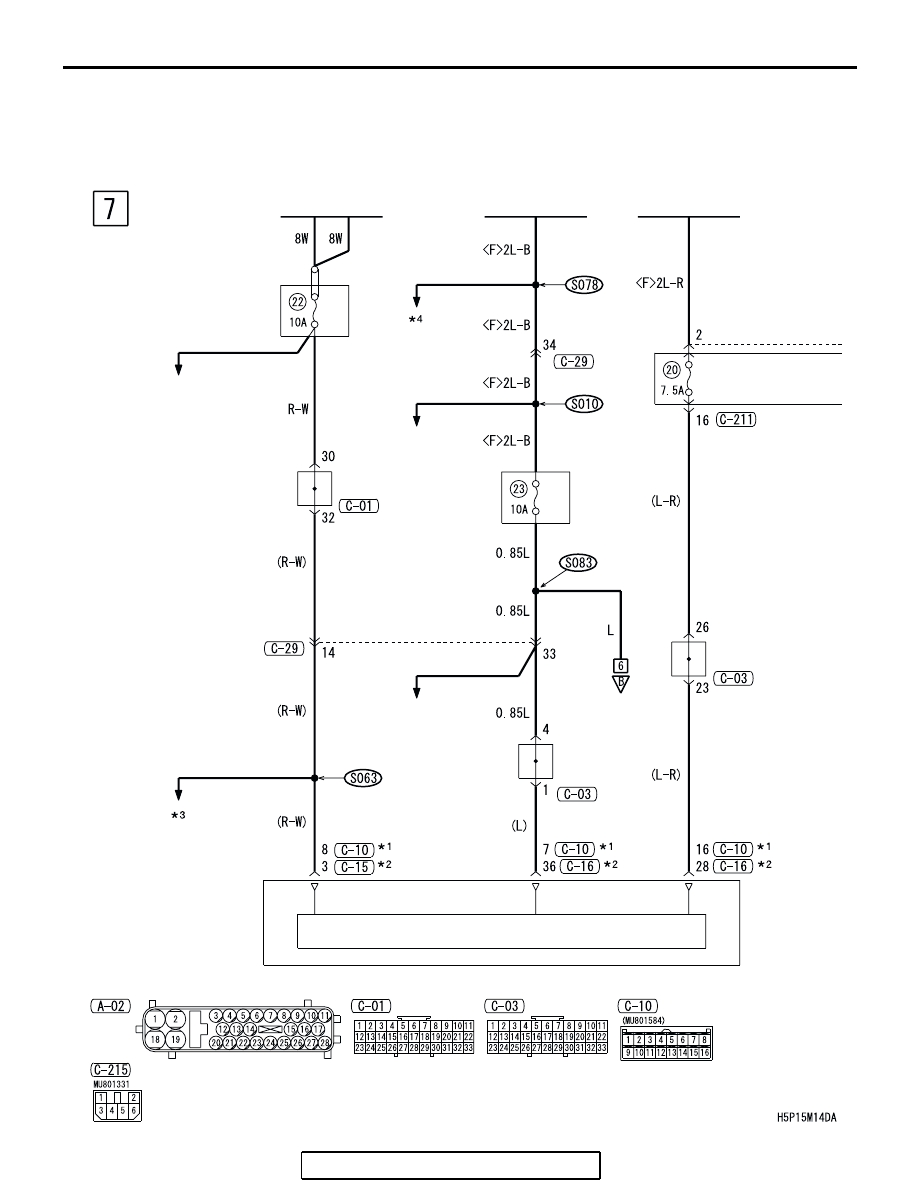

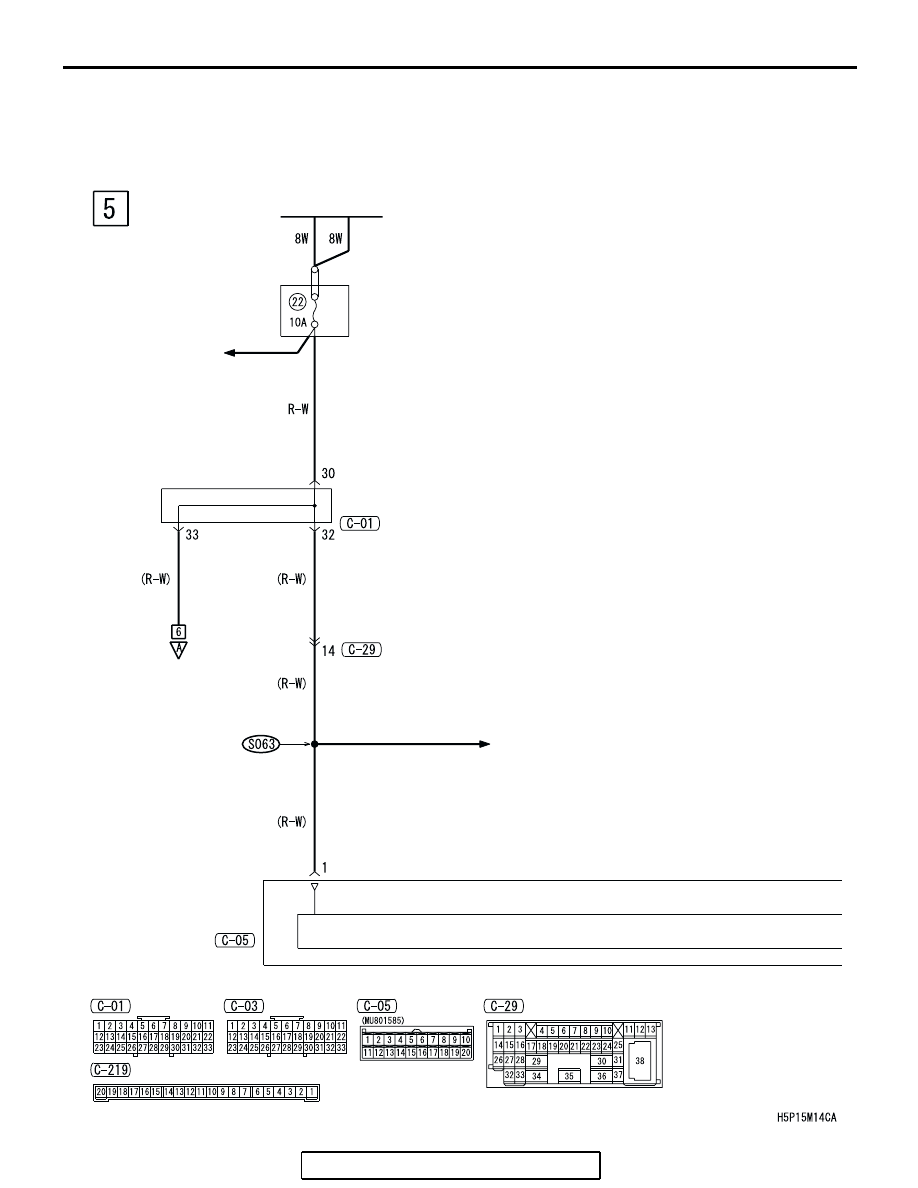

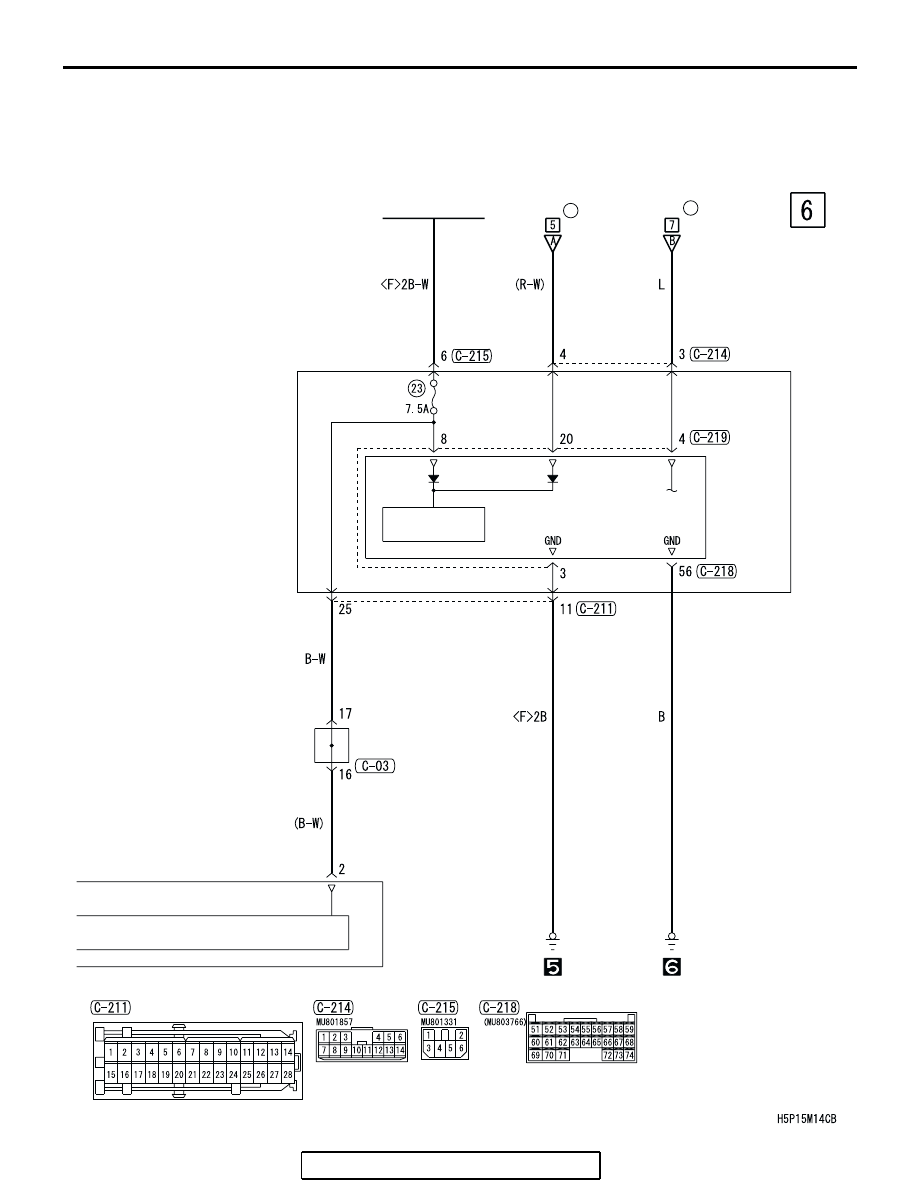

CONTROLLER AREA NETWORK (CAN) (CONTINUED)
BATTERY
RELAY
BOX
JOINT
CONNECTOR (1)
MULTI-
CENTER
DISPLAY
UNIT
POWER SUPPLY
JUNCTION BLOCK SIDE
·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
POSITION LIGHT,
FRONT SIDE
MARKER LIGHT
AND LICENSE
PLATE LIGHT
·TURN-SIGNAL
LIGHT AND
HAZARD
WARNING LIGHT
·WINDSHIELD
WIPER AND
WASHER
·AUDIO SYSTEM
·AUTO-CRUISE
CONTROL SYSTEM
·AUTOMATIC AIR
CONDITIONING
SYSTEM
·BRAKE WARNING
LIGHT, OIL PRESSURE
WARNING LIGHT,
FUEL WARNING LIGHT
·CENTRAL DOOR
LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING
TONE ALARM
·ELECTRONIC BRAKE-
FORCE DISTRIBUTION
(EBD) AND ANTI-LOCK
BRAKING SYSTEM (ABS)
·ENGINE IMMOBILIZER
SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
REAR DOME LIGHT,
TRUNK LIGHT AND
IGNITION KEY HOLE
ILLUMINATION LIGHT
·HEADLIGHT
·INVECS-II 4A/T
·LIGHTING MONITOR
TONE ALARM
·MANUAL AIR
CONDITIONING SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·SEAT BELT WARNING
TONE ALARM
·SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
FRONT SIDE MARKER LIGHT
AND LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
AND WASHER
