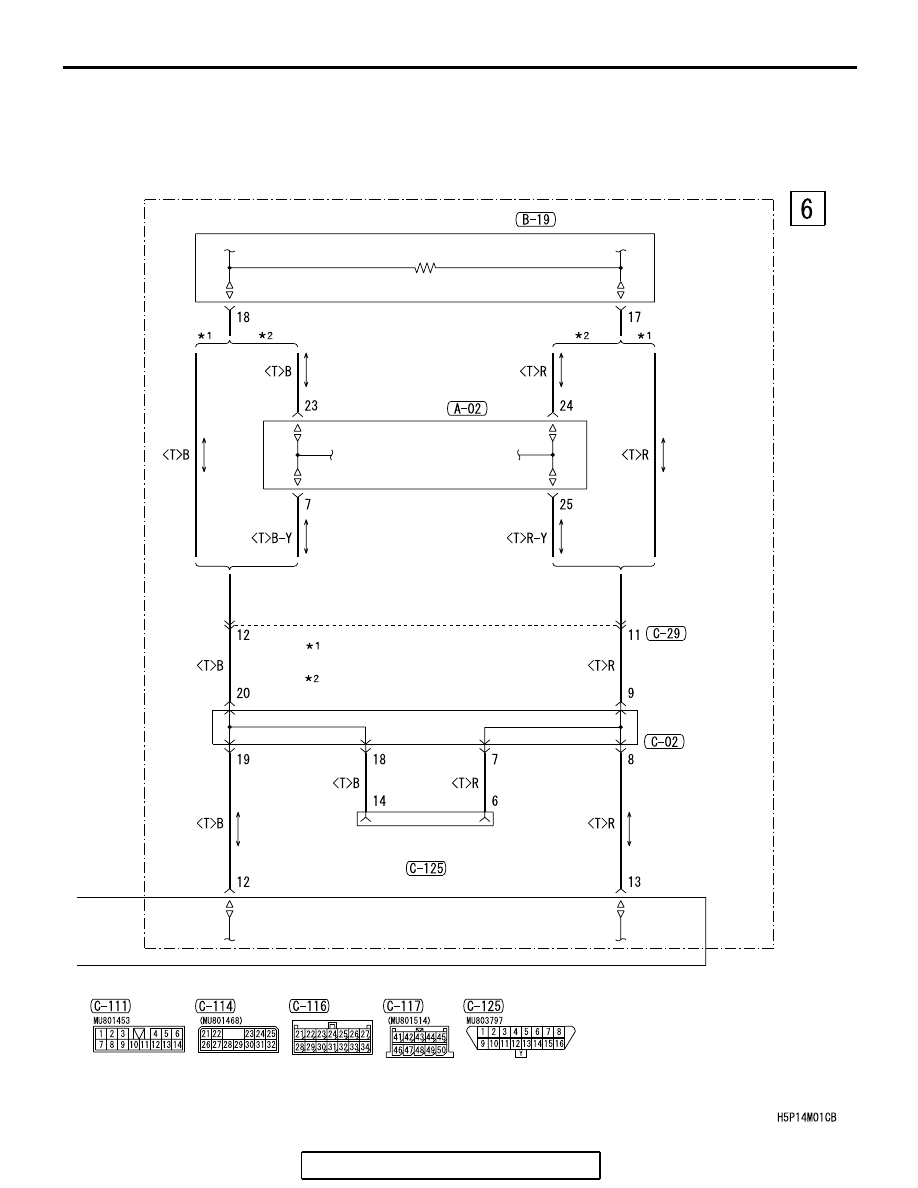

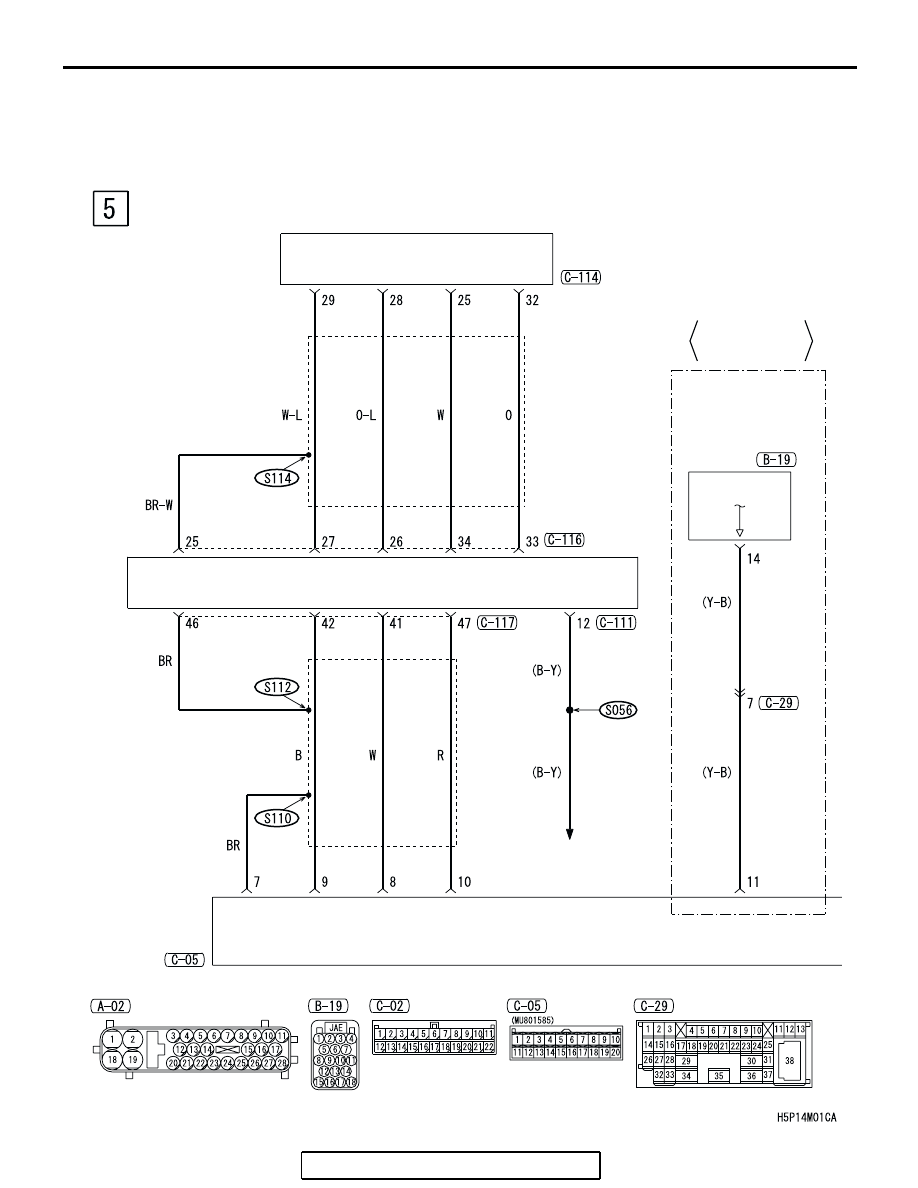

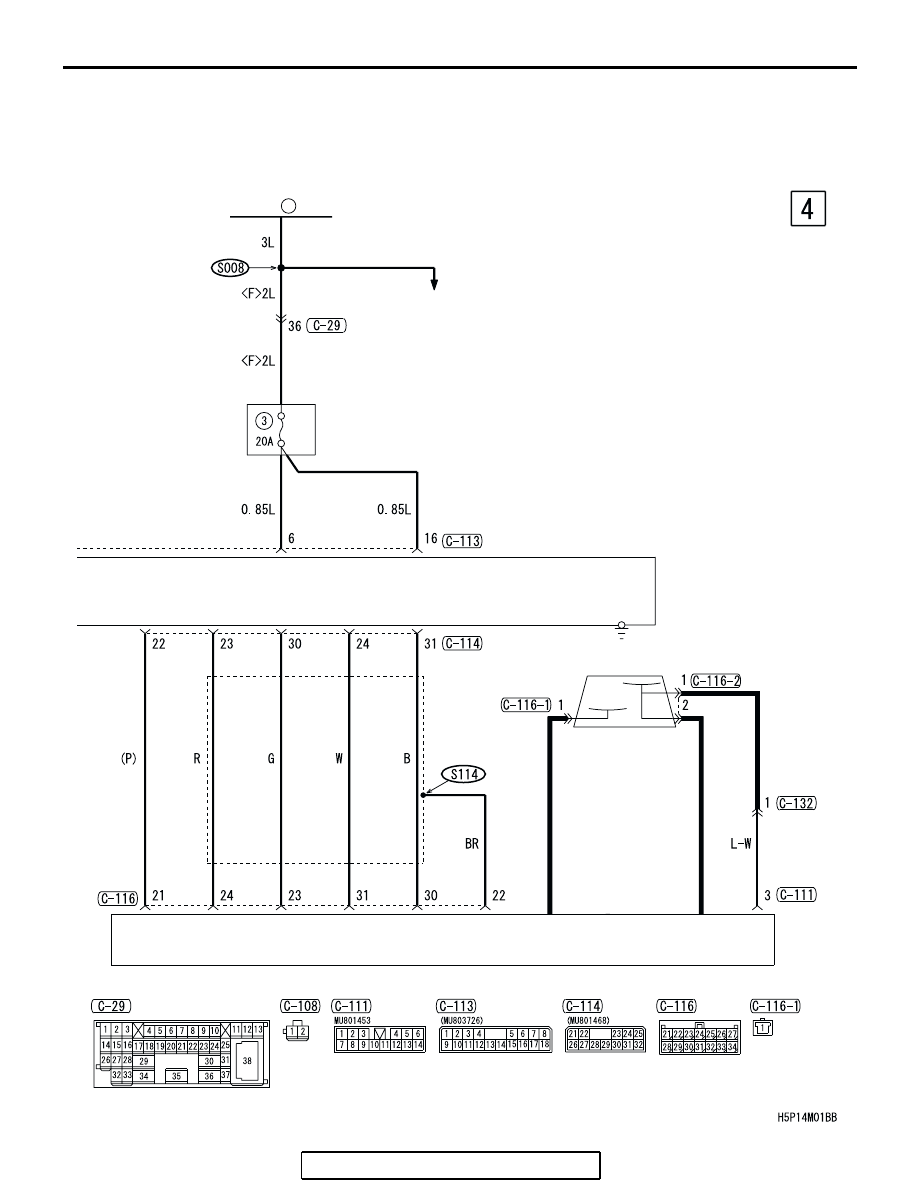

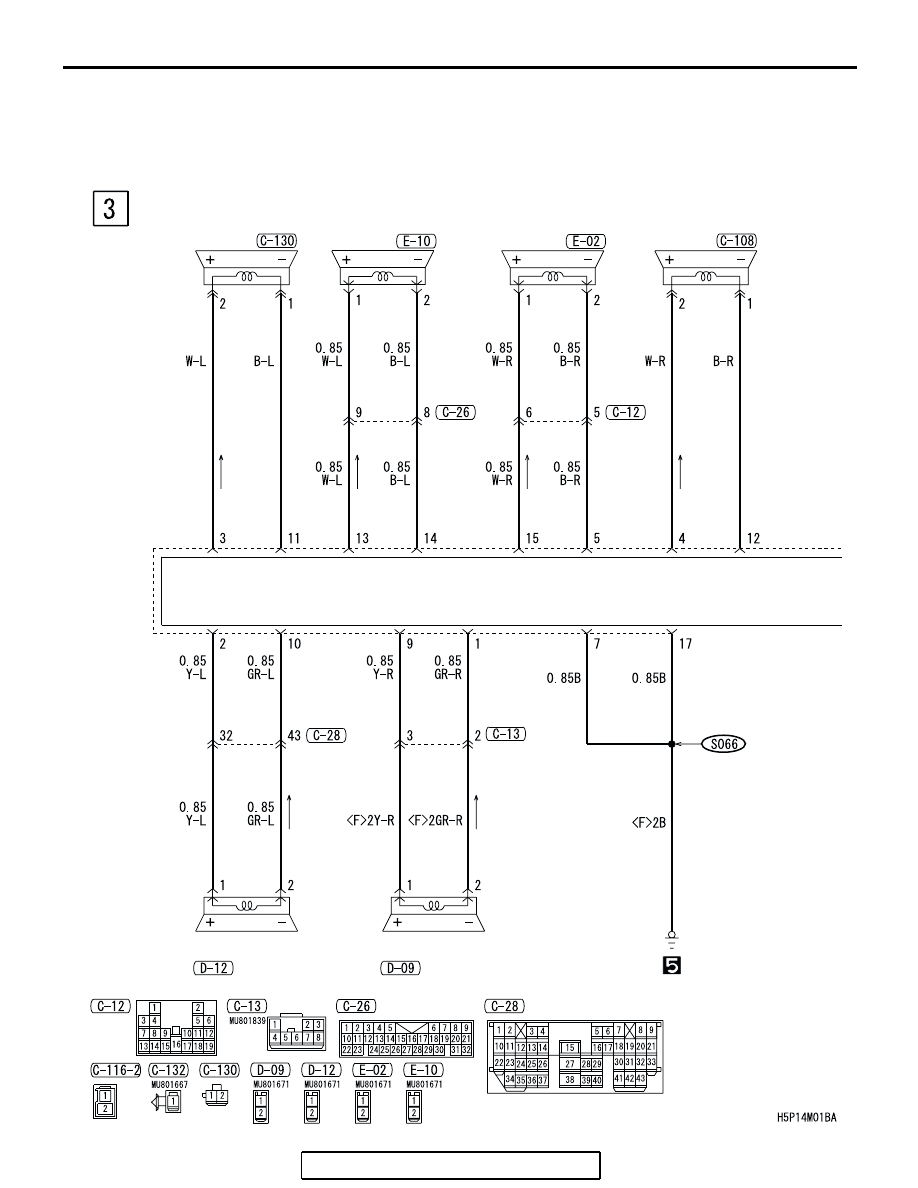

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-198

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

TWEETER
(LH)

FRONT DOOR
SPEAKER (LH)

FRONT DOOR
SPEAKER (RH)

TWEETER
(RH)

AUDIO AMPLIFIER

REAR
SPEAKER (LH)

REAR
SPEAKER (RH)

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-199

FUSIBLE
LINK

5

·POWER WINDOWS
·SUNROOF

·POWER SEAT

JUNCTION
BLOCK

RADIO, CD PLAYER AND CD CHANGER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

ANTENNA

FEEDER CABLE

ANTENNA

FEEDER

CABLE

DIVERSITY
ANTENNA

ANTENNA

FEEDER CABLE

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-200

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

AUDIO AMPLIFIER

RADIO, CD PLAYER AND CD CHANGER

RHEOSTAT

MULTI-
CENTER
DISPLAY
UNIT

WITH MULTI-
CENTER
DISPLAY (LOW)

POWERTRAIN
CONTROL
MODULE

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-201

POWERTRAIN CONTROL MODULE

ABS-ECU

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

<WITH MULTI-CENTER DISPLAY (MIDDLE)>

WITHOUT ELECTRONIC BRAKE-FORCE
DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING
SYSTEM (ABS)
WITH ELECTRONIC BRAKE-FORCE
DISTRIBUTION (EBD) AND ANTI-LOCK BRAKING
SYSTEM (ABS)

NOTE

:

:
