ACCESSORY SOCKET

TSB Revision

CIRCUIT DIAGRAMS

90-202

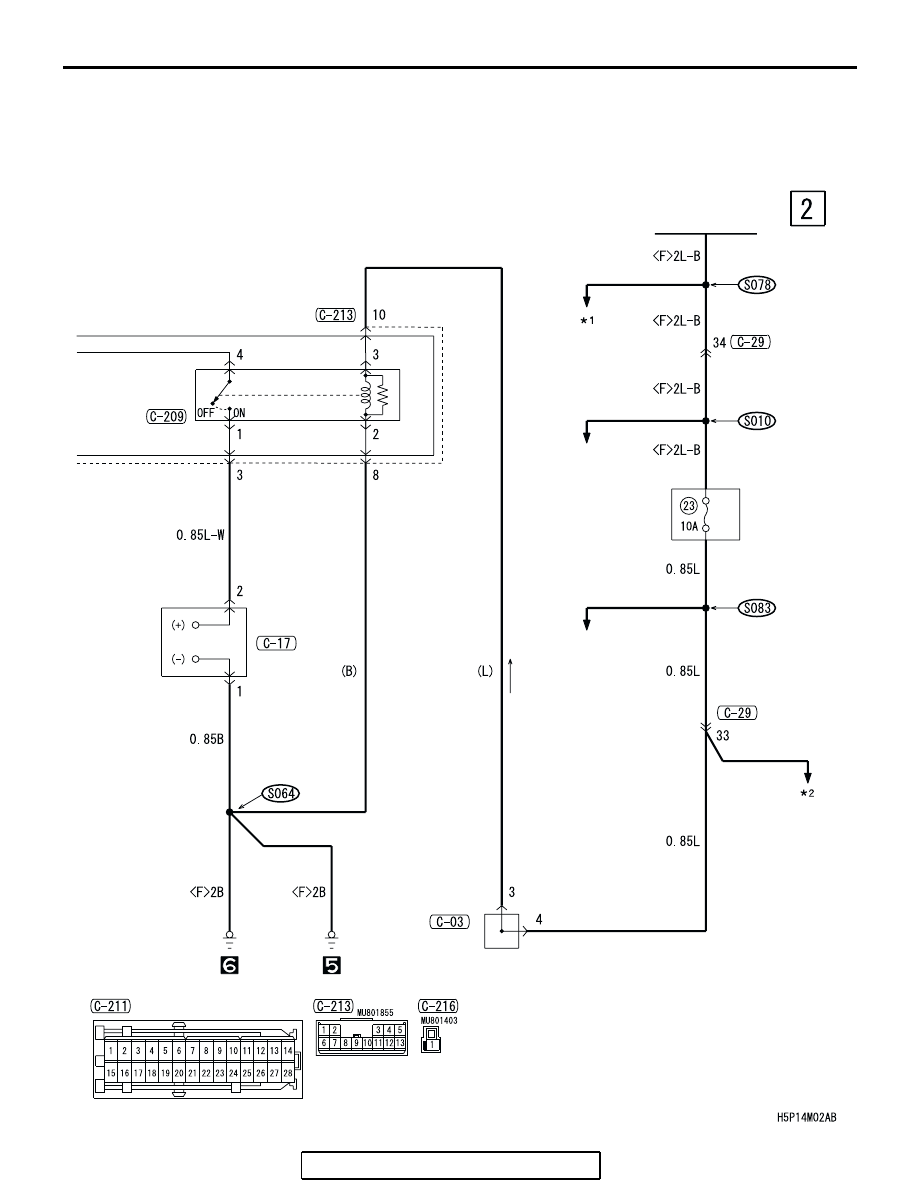

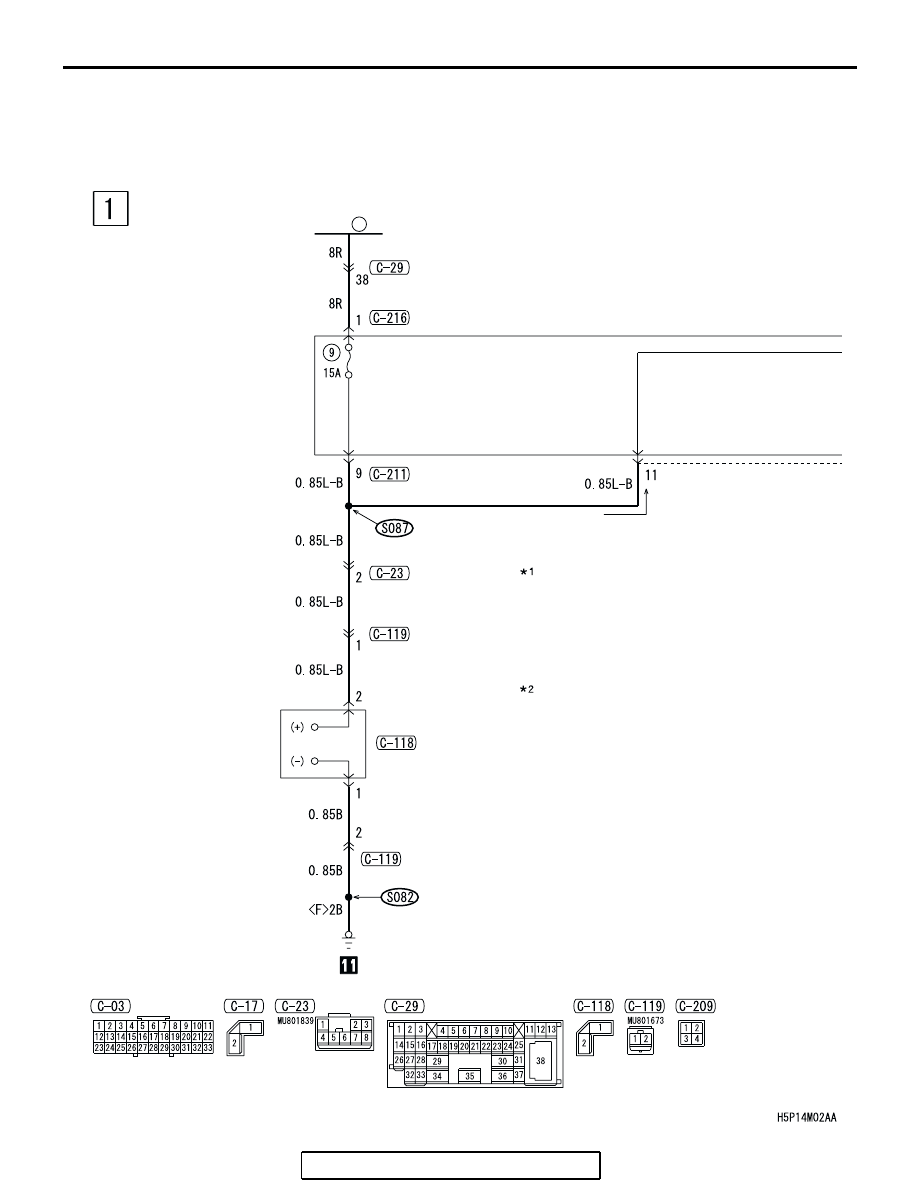

ACCESSORY SOCKET

M1901007900604

FUSIBLE
LINK

1

JUNCTION
BLOCK

ACCESSORY
SOCKET (2)

·AUTOMATIC AIR
 CONDITIONING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION- LIGHT
·REMOTE CONTROLLED
 MIRROR

NOTE

:

:

ACCESSORY SOCKET

TSB Revision

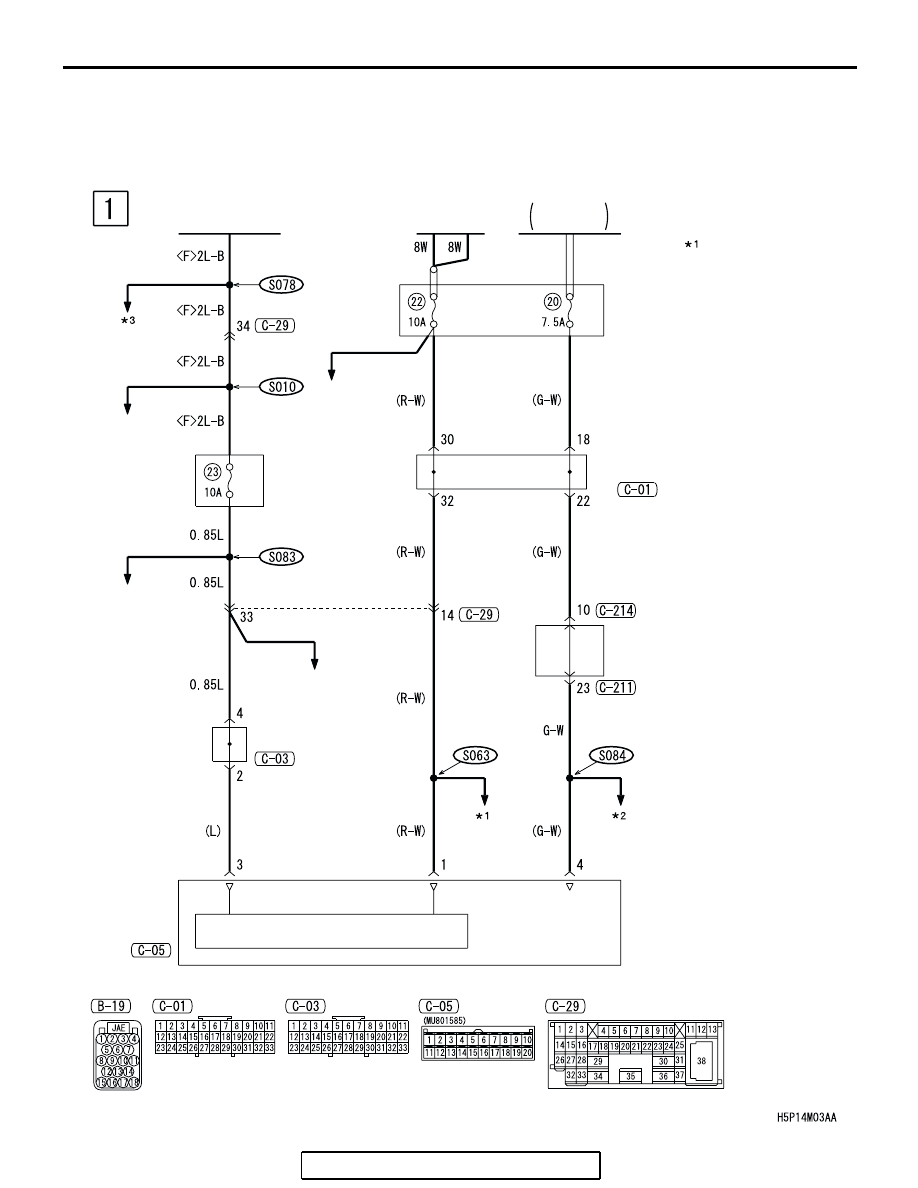

CIRCUIT DIAGRAMS

90-203

IGNITION
SWITCH (ACC)

ACCESSORY
SOCKET (1)

ACCESSORY
SOCKET
RELAY

JOINT
CONNECTOR (2)

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·WINDSHIELD WIPER
 AND WASHER

WINDSHIELD
WIPER AND
WASHER

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

RELAY
BOX

MULTI-CENTER DISPLAY <LOW>

TSB Revision

CIRCUIT DIAGRAMS

90-204

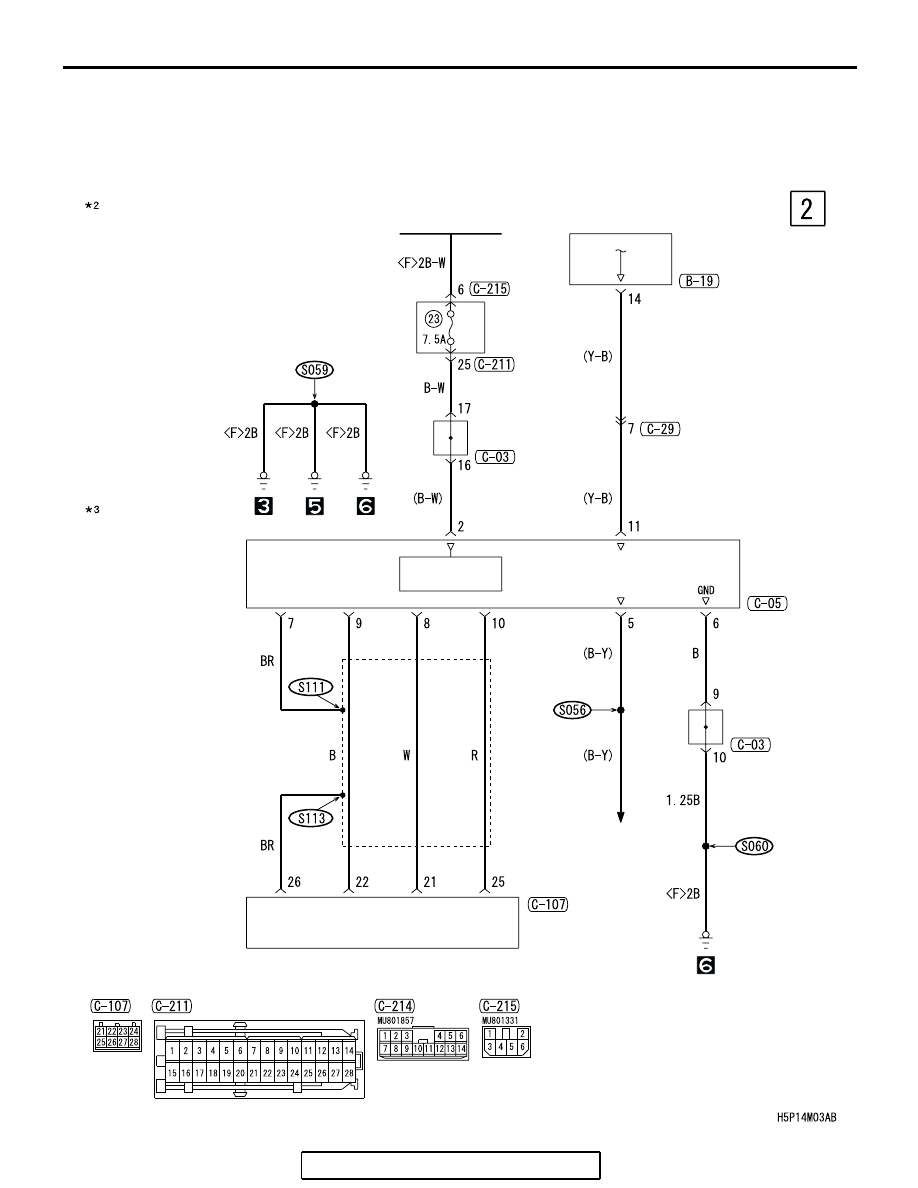

MULTI-CENTER DISPLAY <LOW>

M1901018000263

IGNITION
SWITCH (ACC)

BATTERY

FRONT-ECU

TAILLIGHT
RELAY

RELAY
BOX

JOINT
CONNECTOR (2)

JOINT
CONNECTOR
(1)

JUNCTION
BLOCK

POWER SUPPLY

MULTI-
CENTER
DISPLAY
UNIT

WINDSHIELD
WIPER AND
WASHER

RELAY
BOX

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER
 AREA NETWORK
 (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT
 AND IGNITION
 KEY HOLE
 ILLUMINATION LIGHT
·WINDSHIELD WIPER
 AND WASHER

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

NOTE

: ·AUDIO SYSTEM

·AUTO-CRUISE
 CONTROL SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·BRAKE WARNING
 LIGHT, OIL PRESSURE
 WARNING LIGHT,
 FUEL WARNING LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·DOOR AJAR WARNING
 TONE ALARM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
·ENGINE IMMOBILIZER
 SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·INVECS-II 4A/T
·LIGHTING MONITOR
 TONE ALARM
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·SEAT BELT WARNING
 TONE ALARM
·SUPPLEMENTAL
 RESTRAINT SYSTEM
 (SRS)
·TAILLIGHT, POSITION
 LIGHT, FRONT SIDE
 MARKER LIGHT AND
 LICENSE PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

AUDIO SYSTEM

MULTI-CENTER DISPLAY <LOW>

TSB Revision

CIRCUIT DIAGRAMS

90-205

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·HEATED SEAT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·REAR WINDOW
 DEFOGGER AND
 DOOR MIRROR
 HEATER
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY
 HOLE ILLUMINATION
 LIGHT
·REMOTE CONTROLLED
 MIRROR

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

JOINT
CONNECTOR (2)

POWERTRAIN
CONTROL
MODULE

MULTI-
CENTER
DISPLAY
UNIT

POWER
SUPPLY

RADIO AND CD PLAYER

RHEOSTAT

:

:

NOTE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET
