Mitsubishi Galant 9G. Manual - part 1620





ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-64

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, diagnose the CAN bus
lines.

.

CIRCUIT OPERATION

The meter ECU detects the brake fluid level switch
ON/OFF and controls the brake warning light
ON/OFF.

.

ABS DTC  SET CONDITIONS

This DTC is set when all of the following cases are
met.

• When the amount of the brake fluid is less than

lower limit.

• When the stop light switch is OFF.

• When the vehicle speed is 30km/h or more and

90km/h or less.

• The acceleration G is 0.03 G or more.

• The other DTCs is not set.

.

TROUBLESHOOTING HINTS (The most
likely causes for these DTCs are to set
are:)

Current trouble

• Damaged wiring harness or connector

• Malfunction of stop light switch

• Malfunction of parking brake switch

• Malfunction of the hydraulic unit (integrated with

ABS-ECU)

• Malfunction of the combination meter (integrated

with meter ECU)

.

Past trouble

• Carry out diagnosis with particular emphasis on

connector(s) or wiring harness between the com-
bination meter circuit (terminal 7) to the brake
fluid level switch or parking brake switch. For
diagnosis procedures, refer to "How to cope with
past trouble" (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-16

).

.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991970: ABS Check Harness

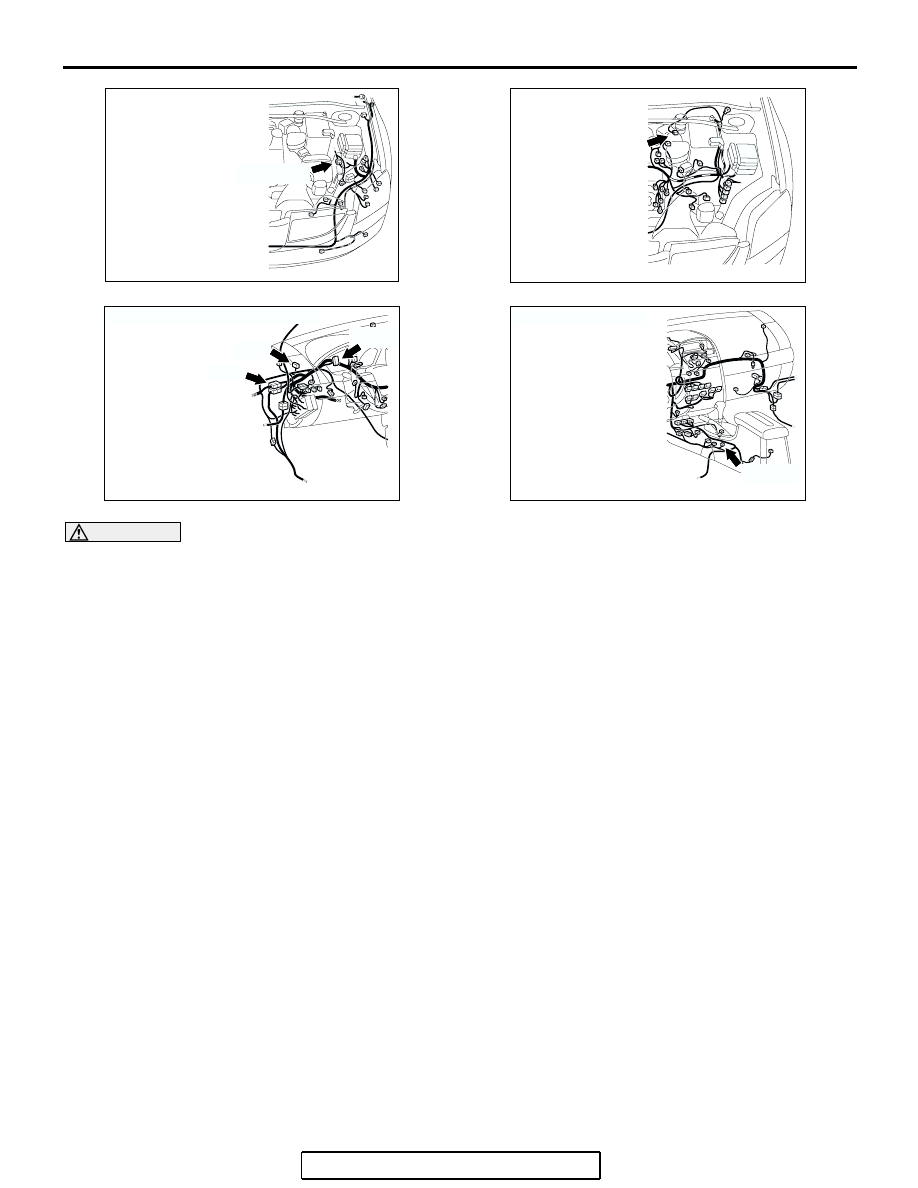

AC305210

CONNECTOR: A-13

AU

A-13 (GR)

AC305229AG

B-07 (GR)

CONNECTOR: B-07

AC305231

CONNECTORS: C-01, C-29, C-101

DF

C-101

C-01

C-29

AC305233

CONNECTOR: C-18

CS

C-18 (B)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-65

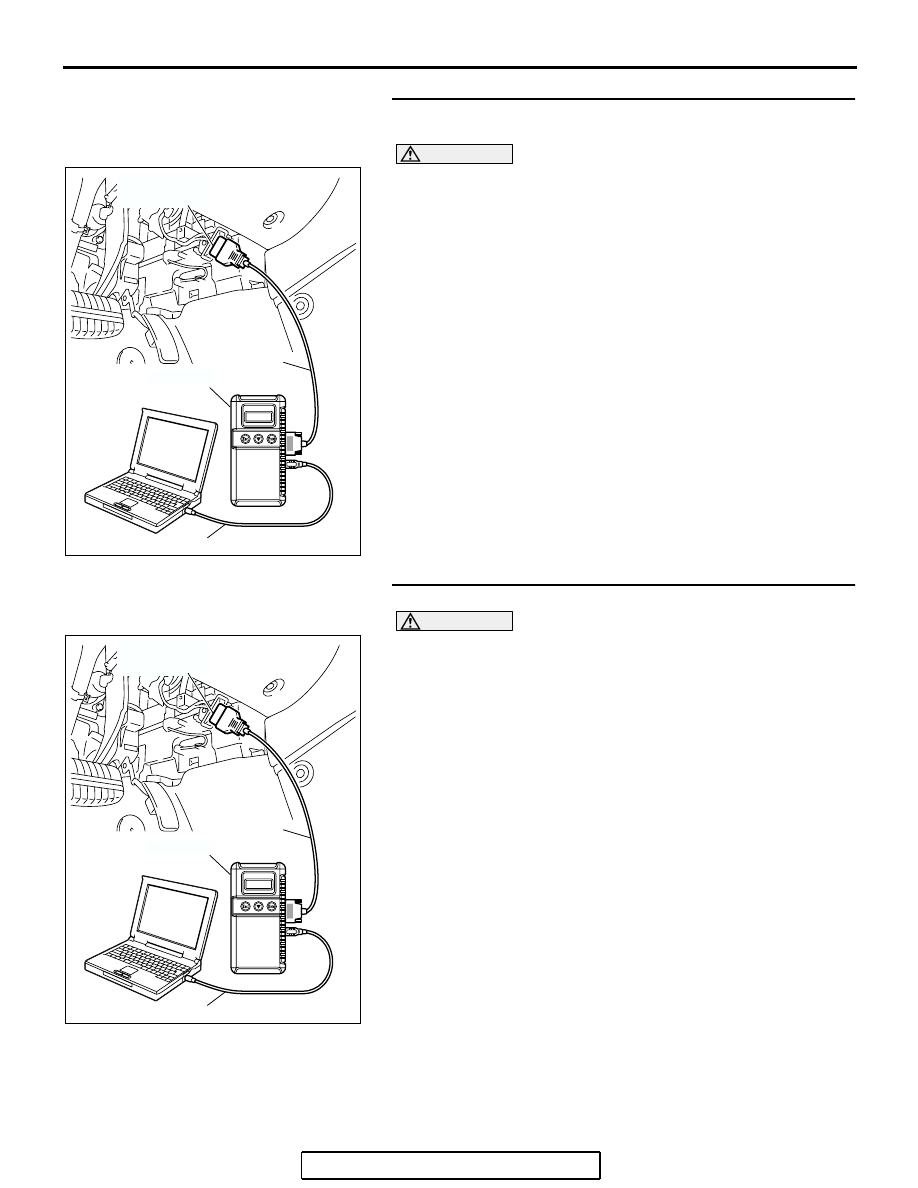

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

). Then go to Step 2.

STEP 2. Recheck for diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1395 set?

YES : Go to Step 3.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-66

STEP 3. Check the brake warning light.
Check that the brake warning light illuminates with the parking
brake lever pulled up.
Q: Does the brake warning light illuminate?

YES : Go to Step 4.
NO :  Replace the hydraulic unit (integrated with

ABS-ECU). Then go to Step 11.

STEP 4. Check the brake fluid amount.
Q: Is the brake fluid within lower and upper limits?

YES : Go to Step 5.
NO :  Set the brake fluid within lower and upper limits. Then

go to Step 11.

STEP 5. Check the brake warning light.
(1) Disconnect brake fluid level switch connector B-07 and

parking brake switch connector C-18.

(2) Turn the ignition switch to the "ON" position.
Q: Does the brake warning light illuminate?

YES : Go to Step 6.
NO :  Check the brake fluid level switch (Refer to GROUP

35A, On-vehicle service

− Brake fluid level switch

check

P.35A-18

) and parking brake switch (Refer to

GROUP 36, On-vehicle service

− Parking brake

switch chec

P.36-5

), and replace them if necessary.

Then go to Step 11.

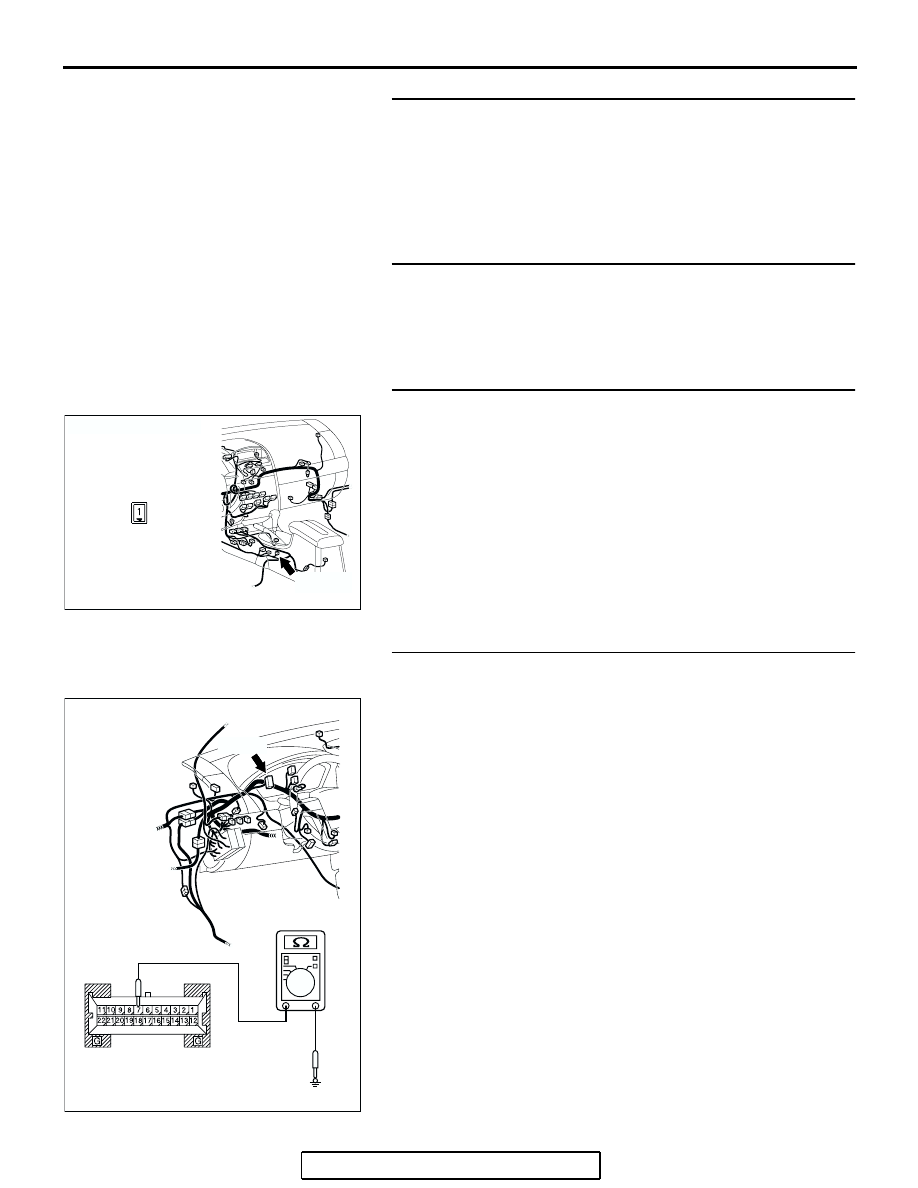

STEP 6. Measure the resistance at combination meter
connector C-101.
(1) Disconnect the connector C-101
(2) Measure the resistance between terminal 7 and ground.

Check that the continuity does not exist.

Q: Does the continuity exist?

YES : Go to Step 7.
NO :  Replace the combination meter (integrated with meter

ECU). Then go to Step 11     .

AC305233

CONNECTOR: C-18

CT

C-18 (B)

C-18 HARNESS
CONNECTOR

AC305232

CONNECTOR: C-101

BC

C-101

C-101 HARNESS
CONNECTOR
(HARNESS SIDE)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-67

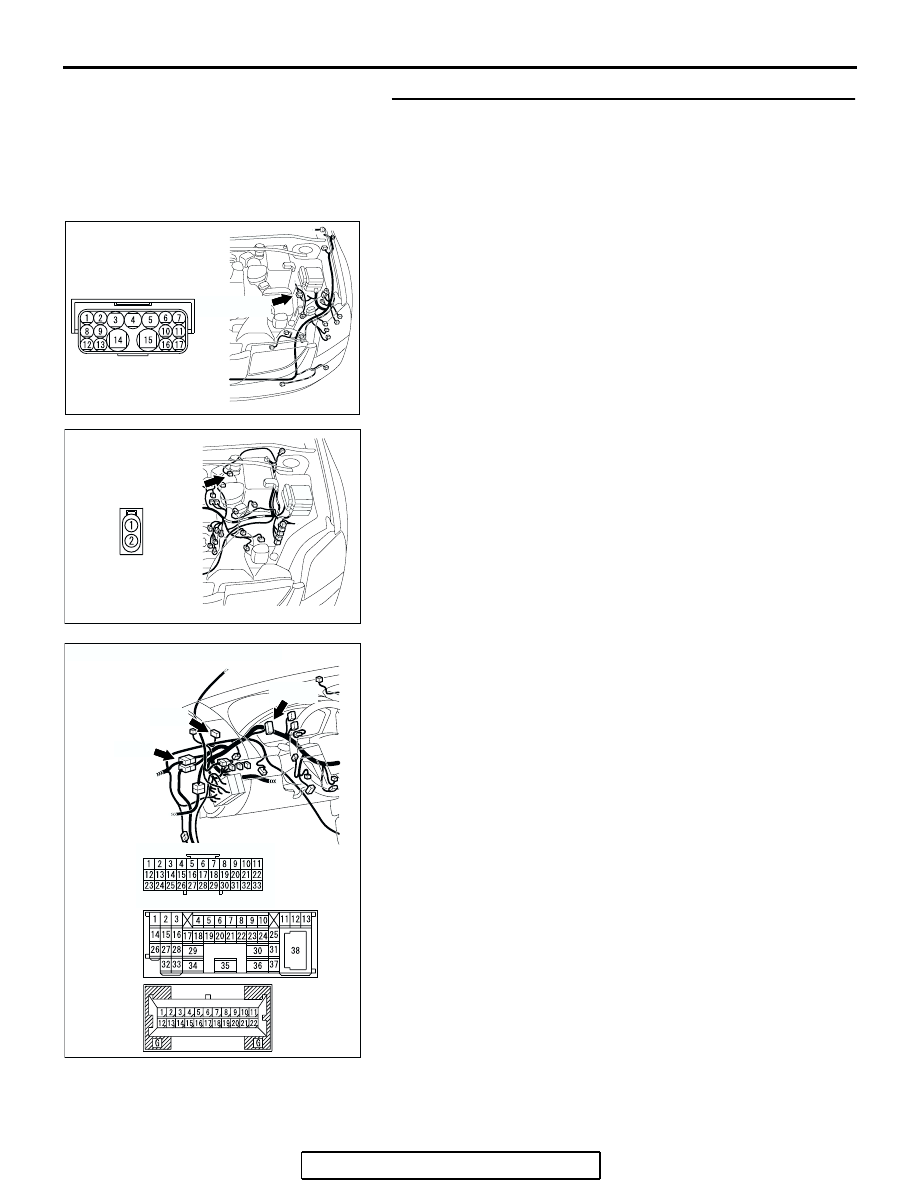

STEP 7. Check intermediate connector A-13 and C-29,
brake fluid level switch connector B-07, joint connector
C-01, combination meter connector C-101 and parking
brake switch connector C-18 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

AC305210

CONNECTOR: A-13

AV

A-13 (GR)

AC305229 AH

B-07 (GR)

CONNECTOR: B-07

AC305232

CONNECTORS: C-01, C-29, C-101

BD

C-101

C-01

C-29

C-01

C-29

C-101
