ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-60

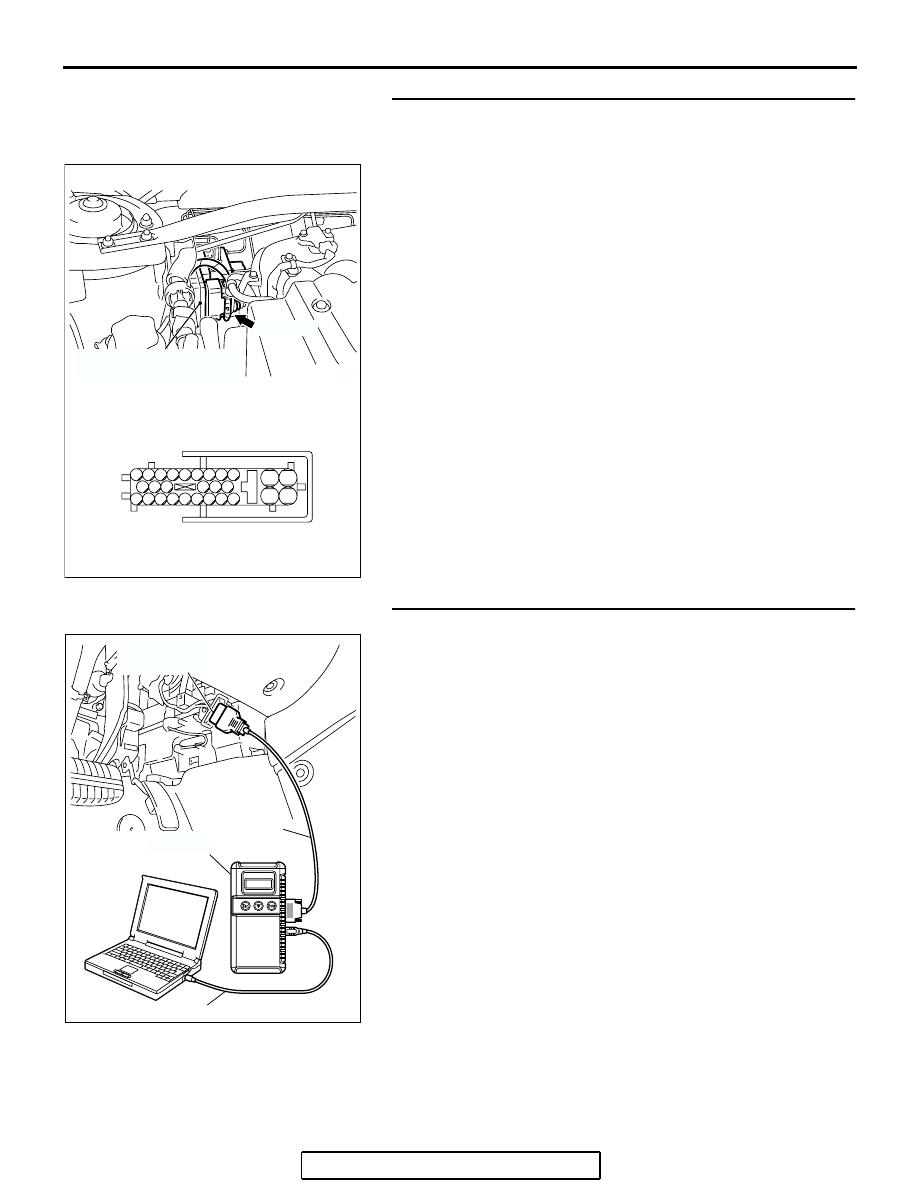

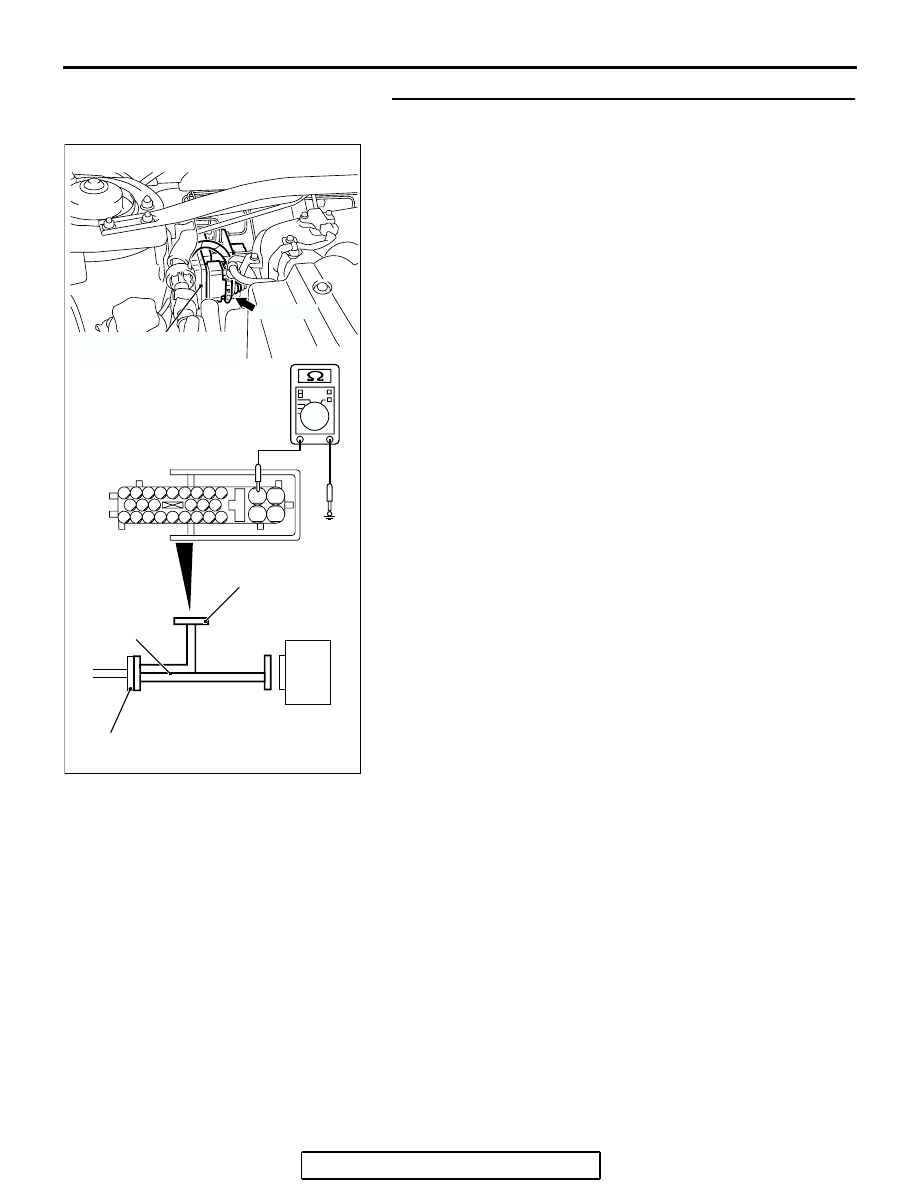

STEP 5. Measure the resistance at ABS-ECU connector
A-02.
(1) Disconnect the connector A-02, and connect special tool

ABS Check Harness (MB991970) to the wiring
harness-side connector.
NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

(2) Measure the resistance between terminal 2 and ground. It

should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 6.

AC306403

19

2

18

1

8

9

7

6

5

4

3

10

11

25

15

16

17

27

28

26

12

13

14

23

24

22 21 20

AF

ABS-ECU

MB991970

ABS CHECK
HARNESS

CHECK CONNECTOR

A-02 HARNESS CONNECTOR
(HARNESS SIDE)

A-02 (GR)

CONNECTOR: A-02

HYDRAULIC UNIT
(WITH BUILT-IN ABS-ECU)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-61

STEP 6. Check ABS-ECU connector A-02  for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ABS-ECU connector A-02 damaged?

YES : Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Then go to Step 8.

NO :  An open circuit may be present in the ground circuit.

Repair the wiring harness between ABS-ECU
connector A-02 terminal 2 and the body ground. Then
go to Step 8.

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1278 or C1279 set?

YES : Replace the hydraulic unit (integrated with

ABS-ECU). Then go to Step 8.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-14

.

AC306406

19

2

18

1

8

9

7

6

5

4

3

10

11

25

15

16

17

27

28

26

12

13

14

23

24

22 21 20

A-02 HARNESS CONNECTOR
(HARNESS SIDE)

AB

A-02 (GR)

CONNECTOR: A-02

HYDRAULIC UNIT
(WITH BUILT-IN ABS-ECU)

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-62

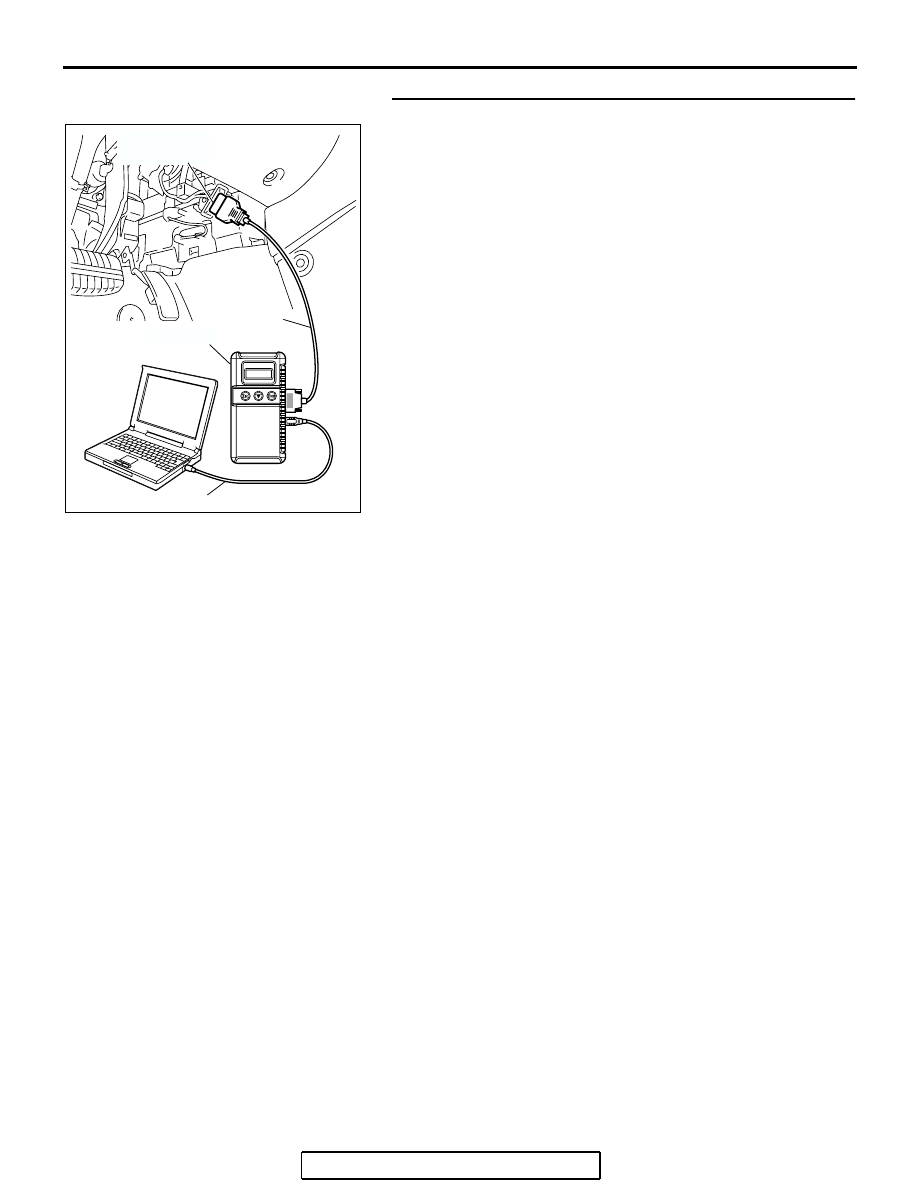

STEP 8. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Turn the ignition switch to the "ON" position.
(5) Check if the DTC is set.
(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1278 or C1279 set?

YES : Go to Step 1.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-63

DTC C1395: Brake fluid filling not completed

COMBINATION
METER

CPU

CAN-LINE

ABS-ECU
OR
ABS/TCL-ECU

JOINT
CONNECTOR
(1)

PARKING
BRAKE
SWITCH

BRAKE FLUID
LEVEL SWITCH

2.4L ENGINE

3.8L ENGINE

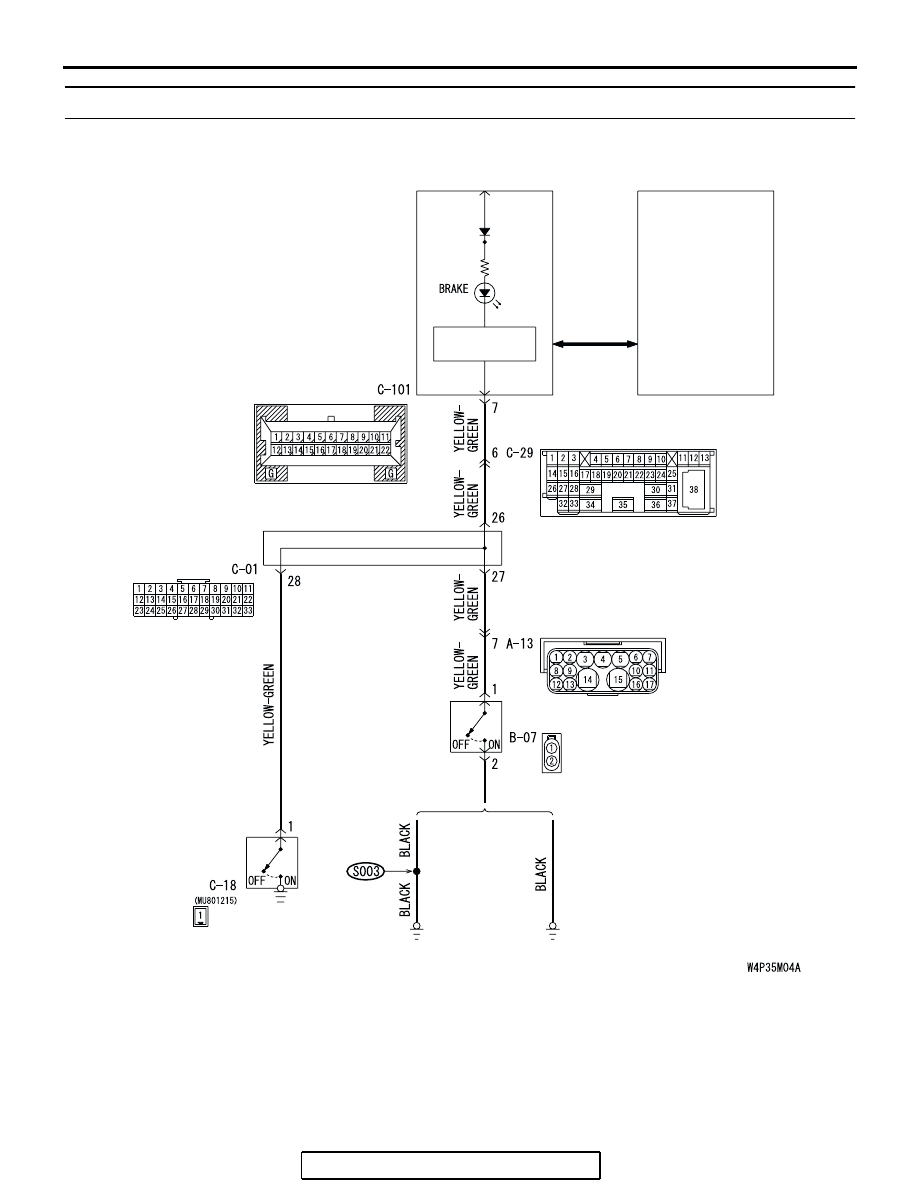

Brake Fluid Level Switch and Parking Brake Switch Circuit

AC309288
