COLUMN SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-128

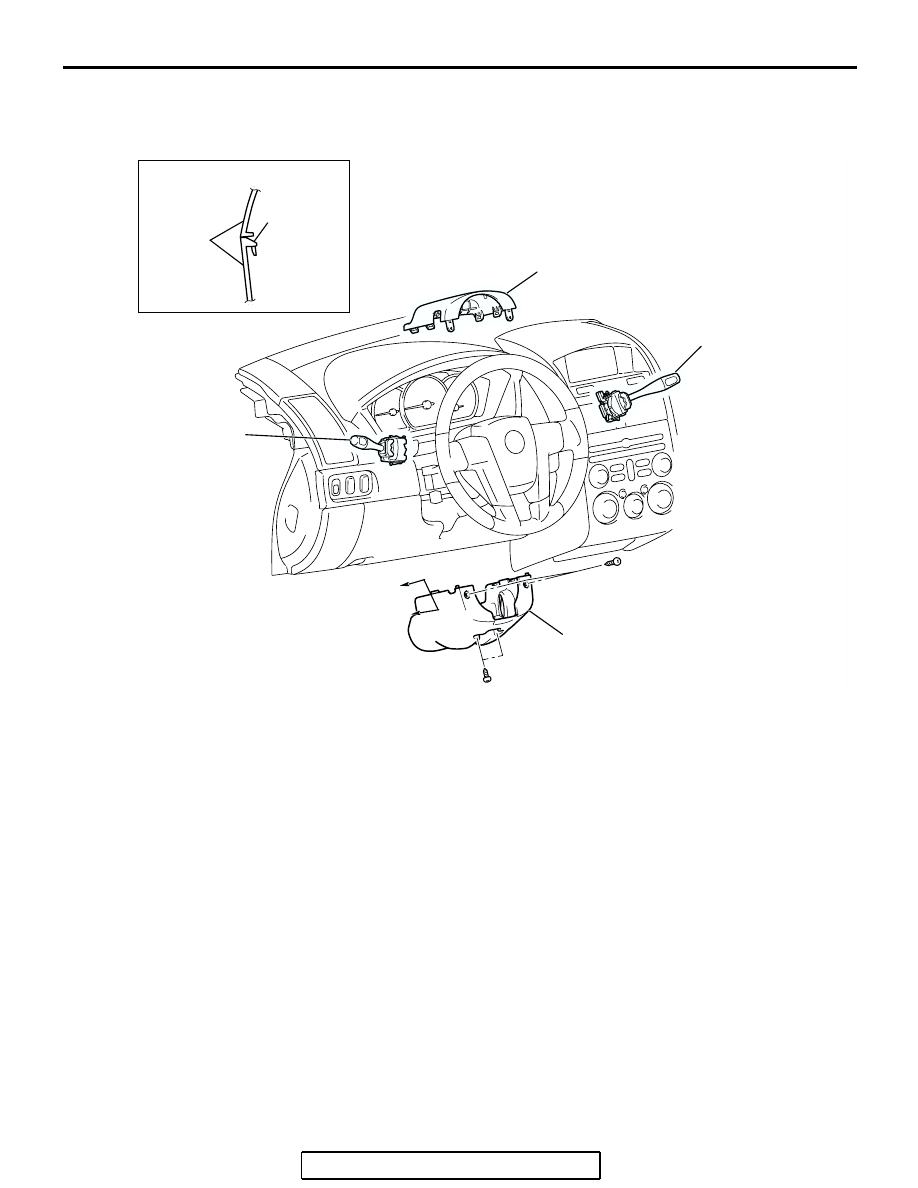

COLUMN SWITCH

REMOVAL AND INSTALLATION

M1543009100457

AC308092

1

3

1

2

A

A

AB

SECTION A – A

1

CLAW

REMOVAL STEPS

<<A>>

1. STEERING COLUMN COVER

(REFER TO GROUP 52A,
INSTRUMENT PANEL  ASSEMBLY

P.52A-3

.)

<<B>>

• COLUMN SWITCH CONNECTOR

2. TURN-SIGNAL LIGHT AND

LIGHTING SWITCH

3. WINDSHIELD WIPER AND

WINDSHIELD WASHER SWITCH

REMOVAL STEPS (Continued)

COLUMN SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-129

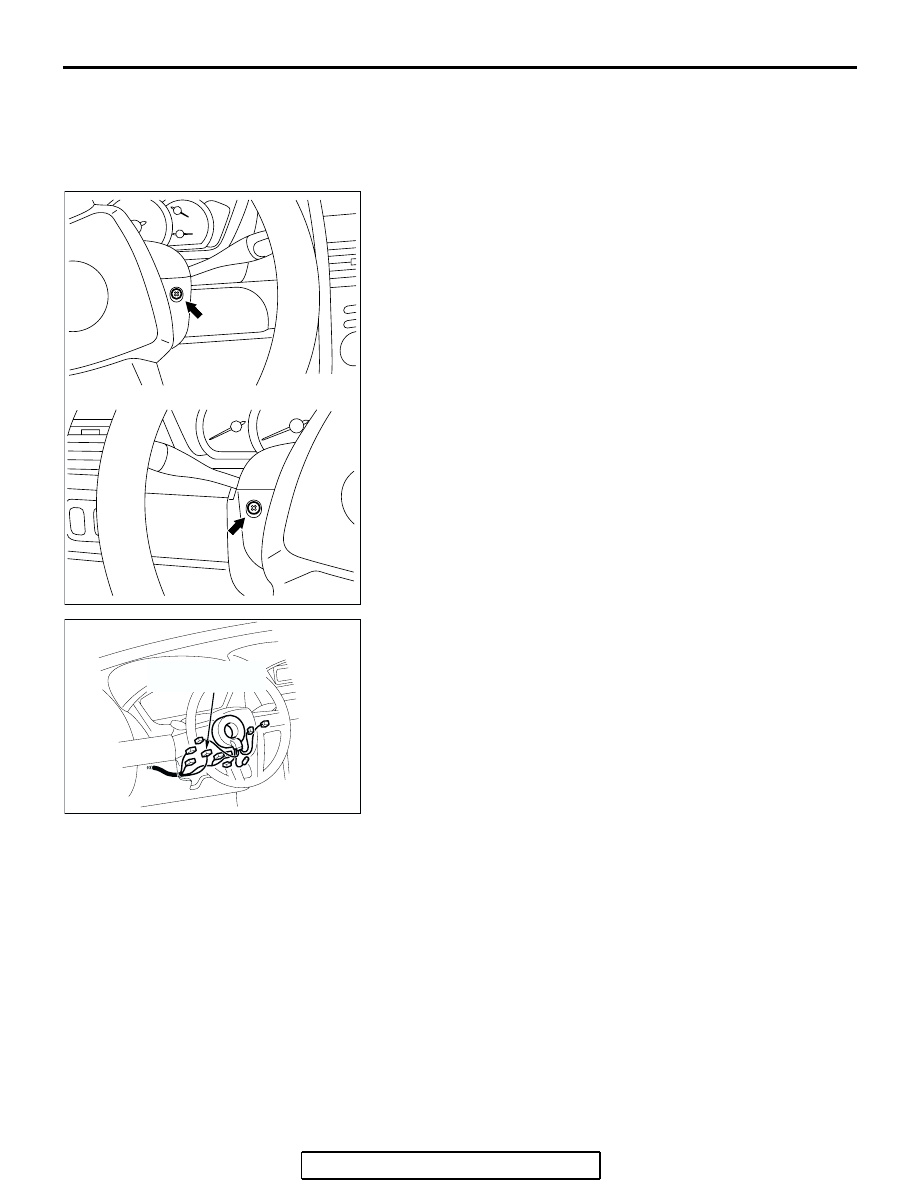

REMOVAL SERVICE POINT

.

<<A>> STEERING COLUMN UPPER
COVER/STEERING COLUMN LOWER COVER
REMOVAL

1. Rotate the steering wheel with a slightly side-to-side to

access and remove the mounting screws.

.

<<B>> COLUMN SWITCH CONNECTOR
REMOVAL

AC307459 AB

AC307136

COLUMN SWITCH
CONNECTOR

AC

HORN

TSB Revision

CHASSIS ELECTRICAL

54A-130

HORN

DIAGNOSIS <VEHICLE WITH KEYLESS ENTRY SYSTEM>

M1543000701057

The keyless entry system horn answerback are con-
trolled by the Simplified Wiring System (SWS). For
troubleshooting, refer to GROUP 54B, SWS Diagno-
sis

P.54B-59

.

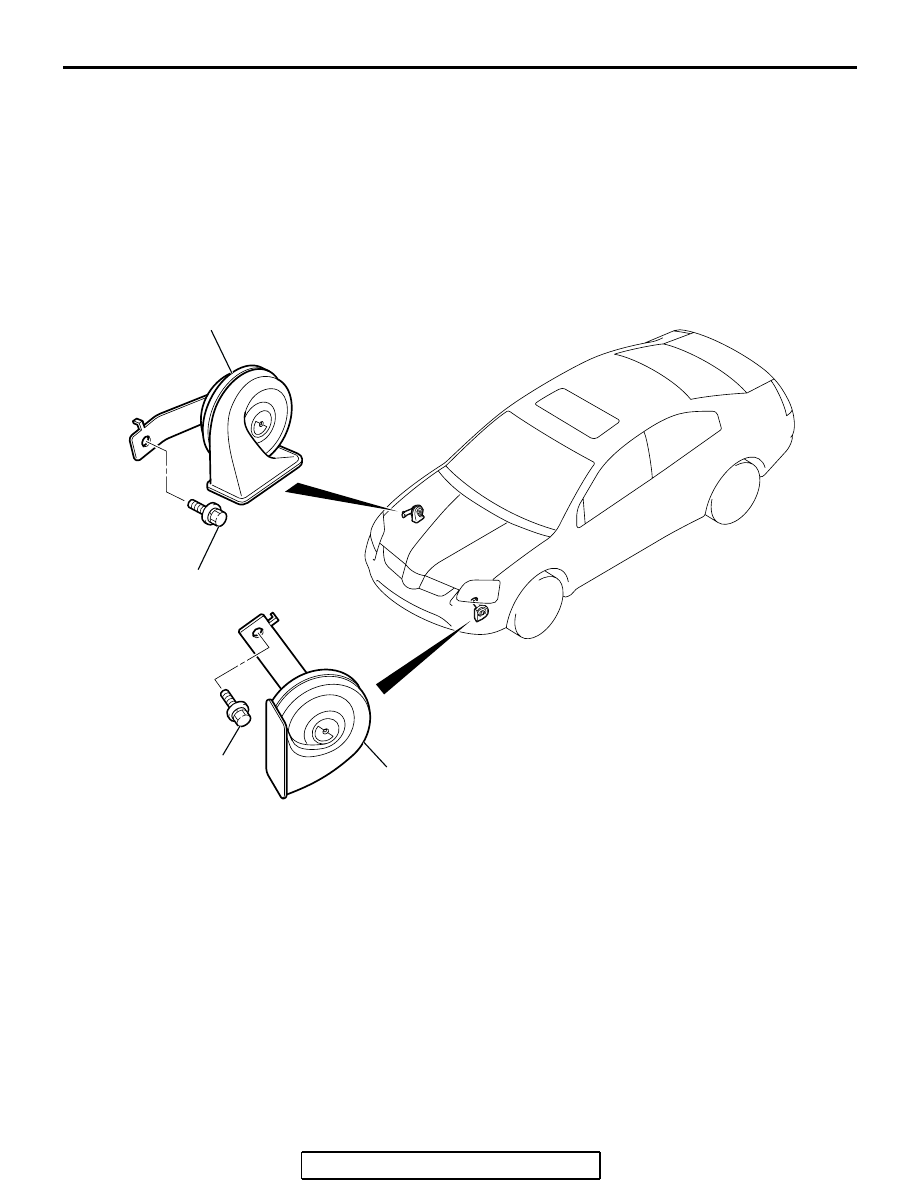

HORN

REMOVAL AND INSTALLATION

M1543007900491

AC401796

AB

21 ± 4 N·m
16 ± 2 ft-lb

2

21 ± 4 N·m
16 ± 2 ft-lb

1

REMOVAL STEPS

1.

HORN (LOW)

2.

HORN (HIGH)

ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54A-131

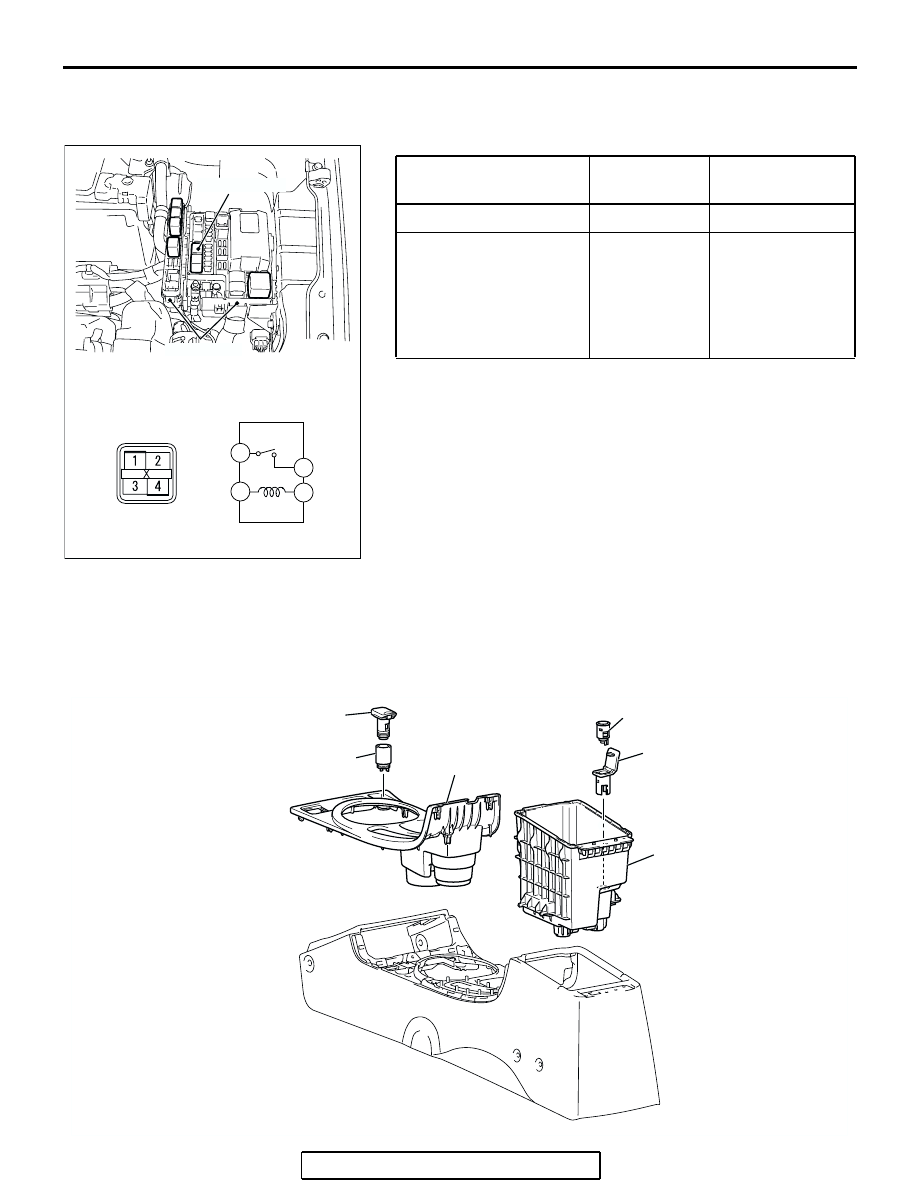

INSPECTION

M1543019502526

HORN RELAY CONTINUITY CHECK

ACCESSORY SOCKET

 REMOVAL AND INSTALLATION

M1543008900267

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1-4

Open circuit

• Connect terminal 2 to

the positive battery
terminal

• Connect terminal 3 to

the negative battery
terminal

1-4

Less than 2 ohms

1

4

3

2

AC306711AB

HORN RELAY

RELAY BOX

AC307188

3

2

1

4

5

6

AB
