DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-120

DOME LIGHT

DIAGNOSIS

M1542000701388

The dome light is controlled by the Simplified Wiring
System (SWS). For troubleshooting, refer to GROUP
54B, SWS Diagnosis

P.54B-59

.

SPECIAL TOOLS

M1542000601024

DOME LIGHT

REMOVAL AND INSTALLATION

M1542006300028

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784
Ornament remover

General service
tool

Removal of map light,
cover etc.

MB990784

AC307690

AB

1

2

3

4

5

6

7

9

8

A

A

A

A

A

A

NOTE
          : CLIP POSITION

SECTION A – A

1, 3

CLIP

HEADLINING

OVERHEAD
CONSOLE
BRACKET

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-121

REMOVAL SERVICE POINT

.

<<A>> COVER REMOVAL

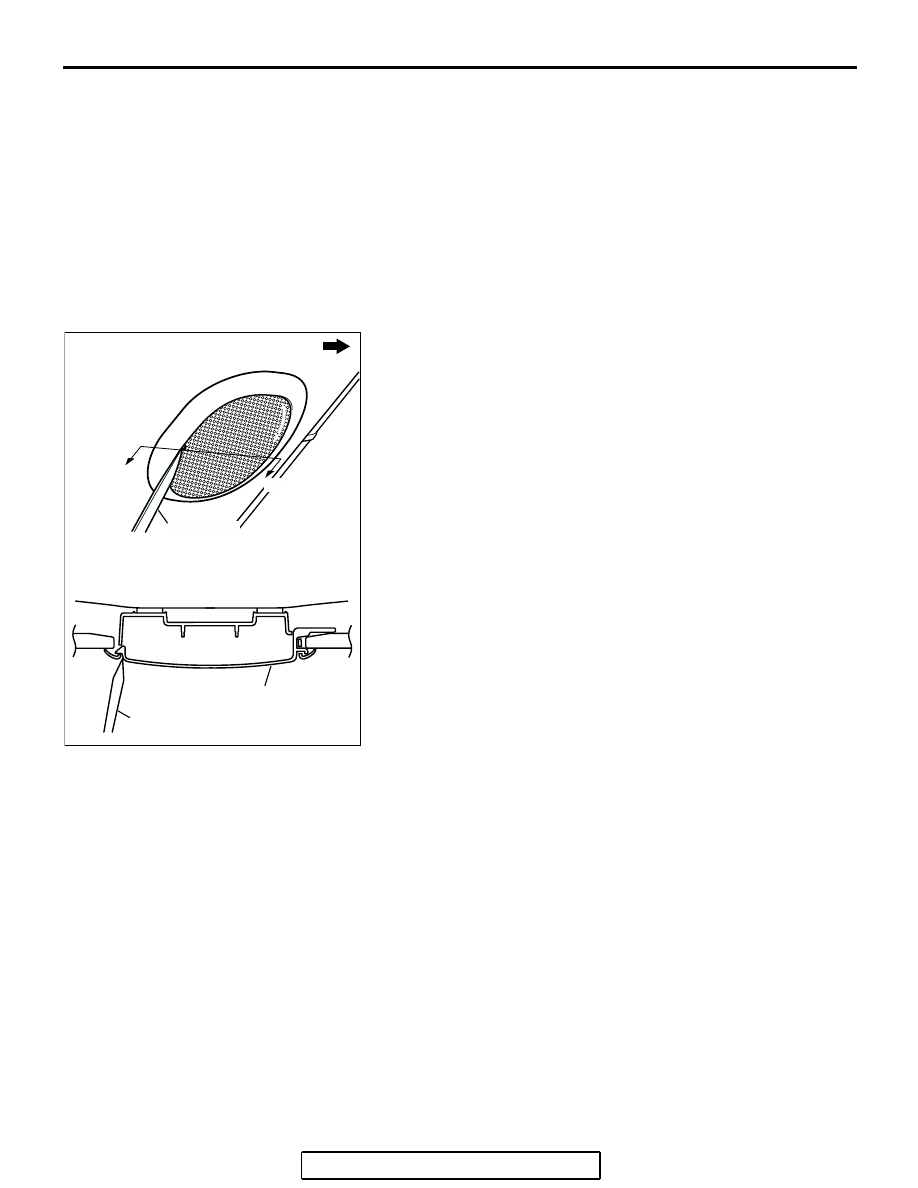

Use special tool MB990784 to remove the cover as shown in
the illustration.

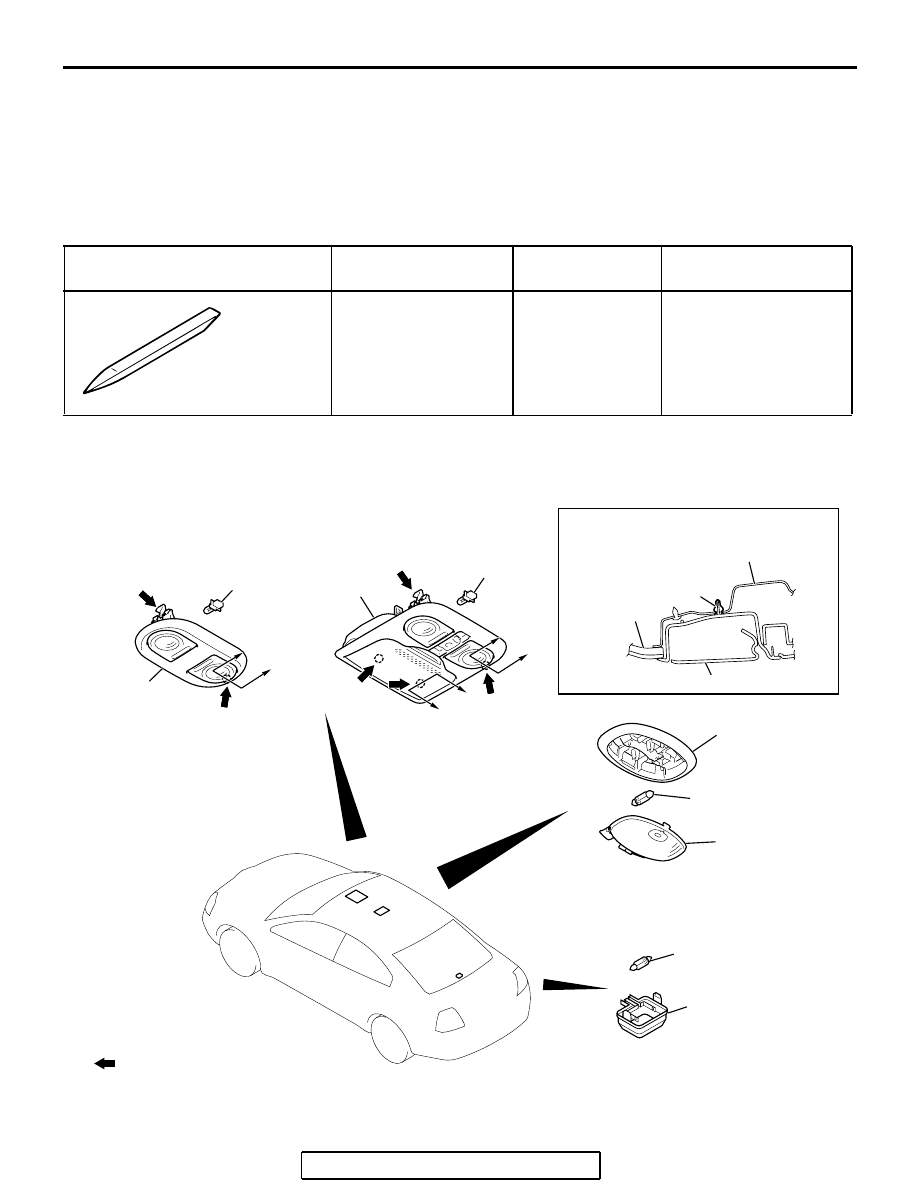

MAPLIGHT ASSEMBLY
REMOVAL STEPS

1.

MAP LIGHT ASSEMBLY

2.

BULB
OVERHEAD CONSOLE
ASSEMBLY REMOVAL STEPS

3.

OVERHEAD COSOLE ASSEMBLY

4.

BULB

REAR DOME LIGHT ASSEMBLY
REMOVAL STEPS

<<A>>

5.

COVER

6.

REAR DOME LIGHT

7.

BULB
TRUNK LIGHT REMOVAL STEPS

8.

TRUNK LIGHT

9.

BULB

AC307746 AB

A

A

MB990784

MB990784

COVER

SECTION A – A

FRONT OF VEHICLE

LICENSE PLATE LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-122

LICENSE PLATE LIGHT

REMOVAL AND INSTALLATION

M1542004200207

AC307186

2

3

1

AB

1.7 ± 0.3 N·m
15 ± 3 in-lb

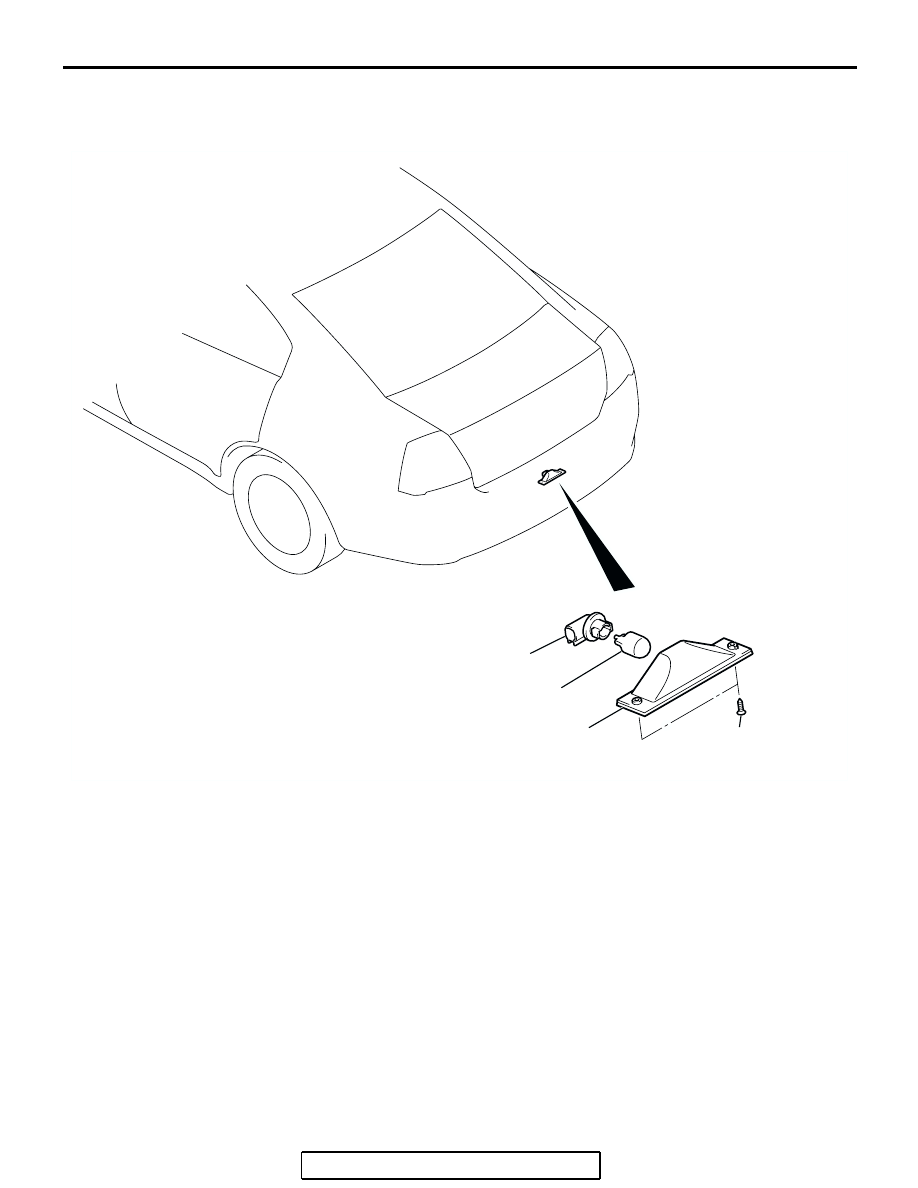

REMOVAL STEPS

1. LICENSE PLATE LIGHT ASSEMBLY
2. SOCKET
3. BULB

HIGH-MOUNTED STOPLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-123

HIGH-MOUNTED STOPLIGHT

REMOVAL AND INSTALLATION

M1542005100463

AC307185

2

3

4

4.9 ± 0.7 N·m
44 ± 6 in-lb

4.9 ± 0.7 N·m
44 ± 6 in-lb

AB

1

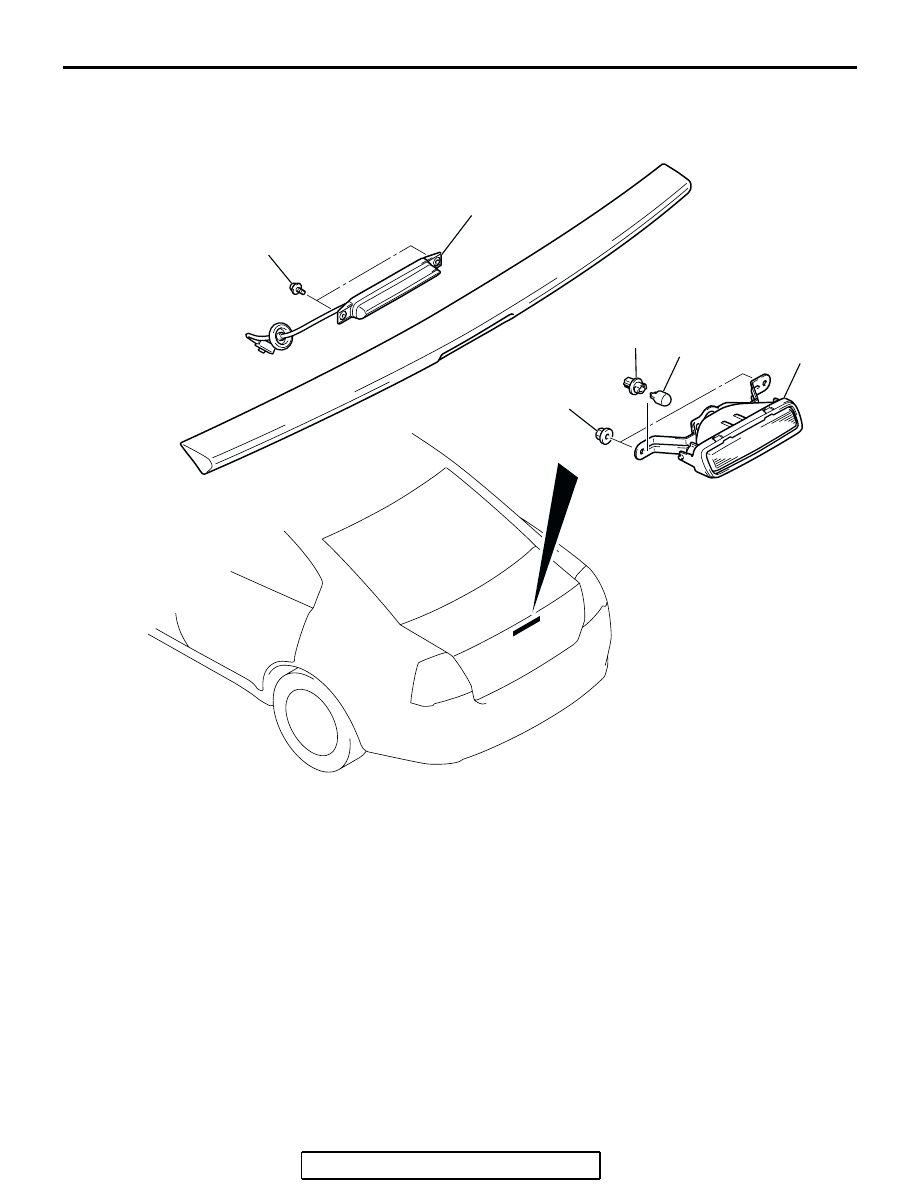

HIGH- MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>
REMOVAL STEP

1.

HIGH-MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>

2.

SOCKET <WITH TRUNK LID
TYPE>

3.

BULB <WITH TRUNK LID TYPE>

HIGH- MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>
REMOVAL STEP

•

REAR SPOILER  ASSEMBLY
(REFER TO GROUP 51, REAR
SPOILER

P.51-9

.)

4.

HIGH-MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>
