SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-452

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

STEP 1. Check the interior lights.
If the interior light switch is moved to the "door interlock posi-
tion", the interior lights should illuminate when either door is
opened.
Q: Do the interior light illuminate normally?

All the interior lights illuminate normally. : Go to Step 2.
None of the interior lights illuminate normally. : Refer to

Inspection Procedure K-1 "The dome light do not
illuminate and go out normally

P.54B-420

."

Some of the interior lights do not illuminate normally. :

Refer to Inspection Procedure K-2 "The front dome
light, rear dome light or trunk light do not illuminate or
go out normally

P.54B-427

."

STEP 2. Check the adjustment function.
Q: Has a setting other than "No auto-shutoff" been

selected for the interior light automatic shutdown
function by the adjustment function?
YES :
Go to Step 3.
NO :  Set the interior light automatic shutdown function to

another setting other than "No auto-shutoff".

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-453

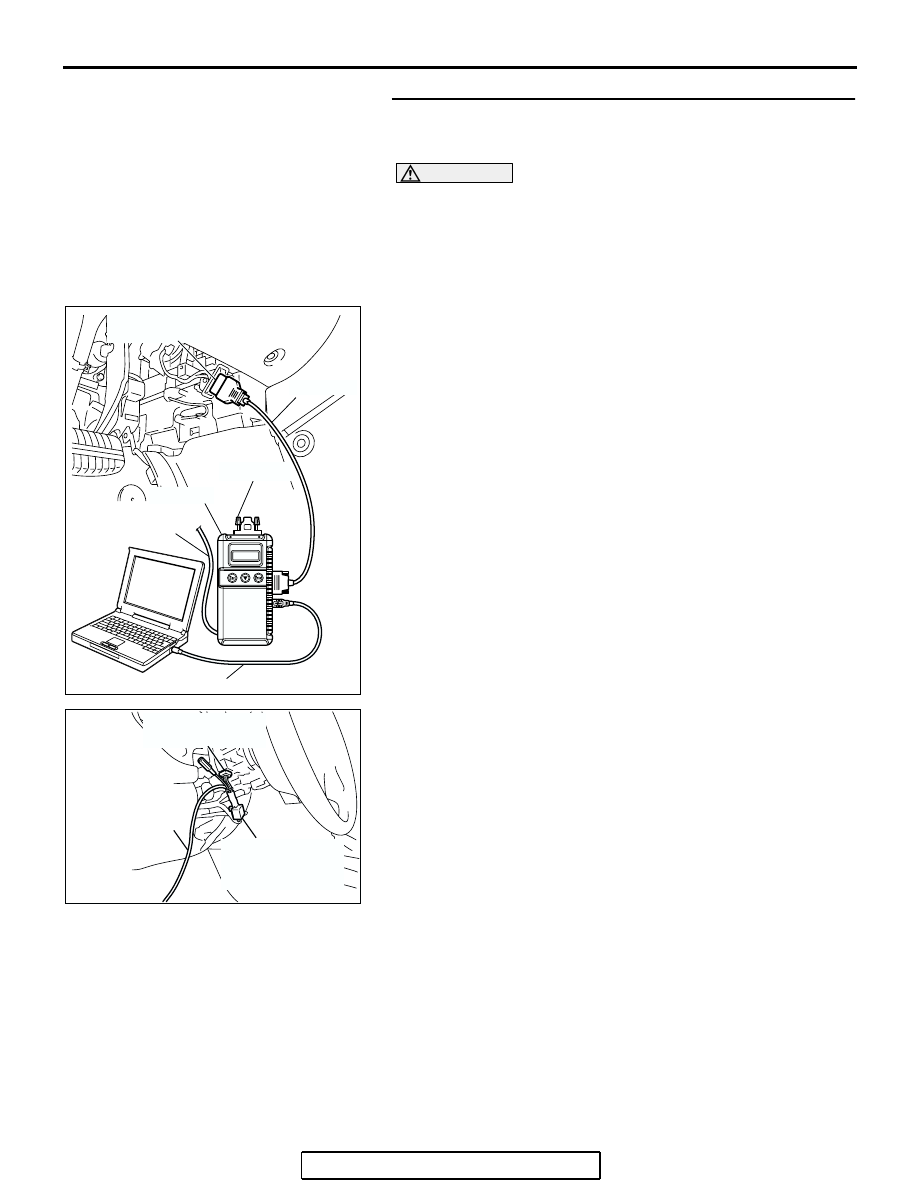

STEP 3. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed for the "ETACS ECU" menu?

YES : Go to Step4.
NO :  Refer to Inspection Procedure A-3 "Communication

with the ETACS-ECU is not possibl

P.54B-78

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-454

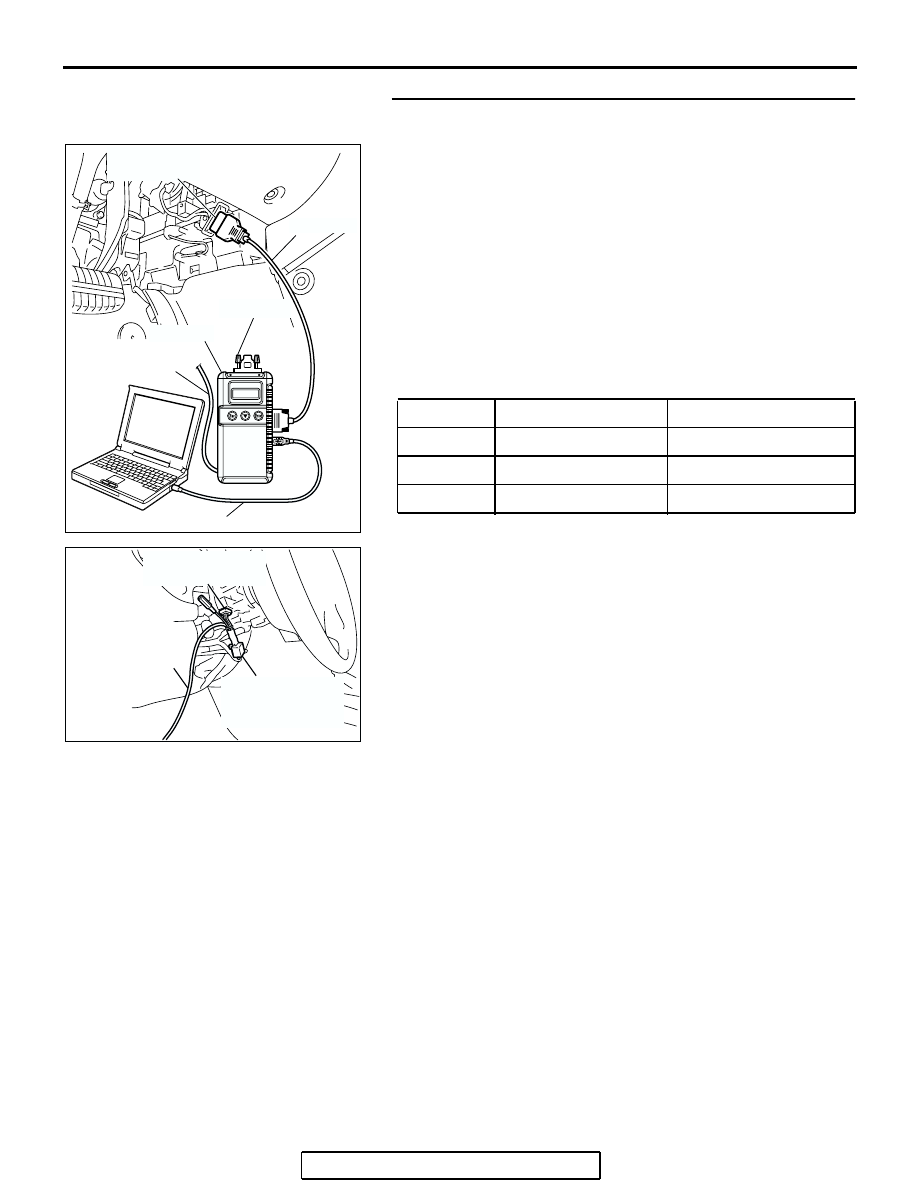

STEP 4. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Check the input signals from the following switches:

• Ignition switch: OFF

• Driver’s or front passenger’s door: open

(1) Operate scan tool MB991958 according to the procedure

below to display "ETACS ECU."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Data List."
f. Select "ETACS ECU."

(2) Check that normal conditions are displayed for the items

described in the table below.

Q: Does the scan tool MB991958 display the items "IG SW

(IG1)", "IG SW (ACC)" and "FRONT DOOR SW" as
normal condition?
Normal conditions are displayed for all the items :
Go to

Step 5.

Normal condition is not displayed for "IG SW (IG1)" :

Refer to Inspection Procedure M-2 "ETACS-ECU
does not receive any signal from the ignition switch
(IG1)

P.54B-470

."

Normal condition is not displayed for "IG SW (ACC)" :

Refer to Inspection Procedure M-1 "ETACS-ECU
does not receive any signal from the ignition switch
(ACC)

P.54B-467

."

Normal condition is not displayed for "FRONT DOOR
SW" :
Refer to Inspection Procedure M-4 "ETACS-ECU

does not receive any signal from the front door
switches

P.54B-477

."

ITEM NO.

ITEM NAME

NORMAL CONDITION

ITEM 30

IG SW (IG1)

OFF

ITEM 31

IG SW (ACC)

OFF

ITEM 32

FRONT DOOR SW

ON

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-455

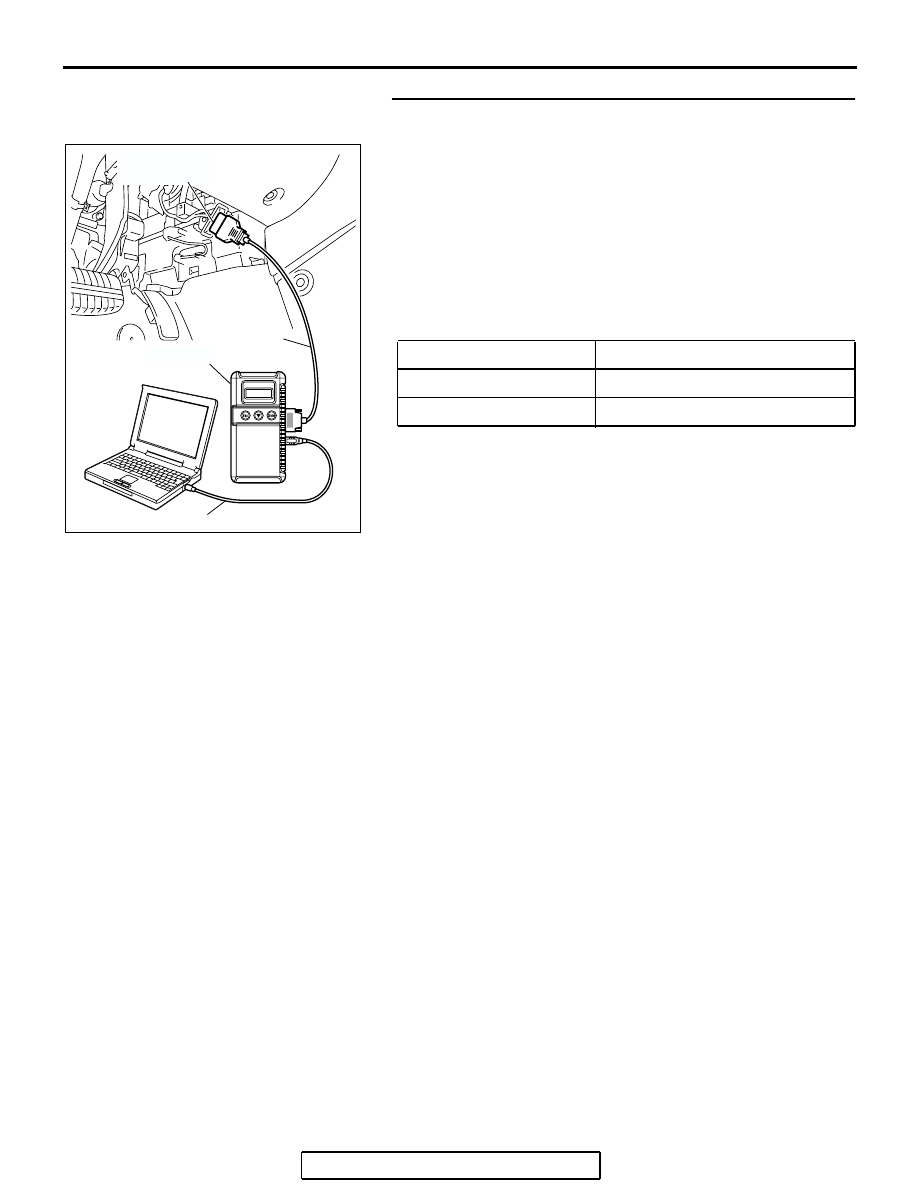

STEP 5. Check the input signal (by using the pulse check
mode of the monitor).
Check the following switches and input signals:

• Door switches

• Interior light loaded signal

(1) Operate scan tool MB991958 according to the procedure

below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

(2) Check if scan tool MB991958 sounds or not.

Q: When any door switch, interior light, the liftgate latch or

glass hatch latch is operated, does scan tool MB991958
sound?
Buzzer of scan tool MB991958 sounds normally. :

Replace the ETACS-ECU. Verify that the dome light
illuminates normally.

When one of the doors is opened and closed, scan tool
MB991958 does not sound :
Refer to Inspection

Procedure N-3 "ETACS-ECU does not receive any
signal from any of the door switches

P.54B-505

."

When one of the interior lights is illuminated, scan tool
MB991958 does not sound :
Refer to Inspection

Procedure N-9 "ETACS-ECU does not receive any
interior light loaded signal

P.54B-542

."

ITEM NAME

CONDITION

interior light loaded signal Turn on one of the interior lights

door switch

Open or close one of the doors

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
