HEATER, AIR CONDITIONER AND VENTILATION

 –

Condenser and Condenser
Fan Motor

55-31

REMOVAL SERVICE POINTS

A

A

"

DISCHARGE HOSE DISCONNECTION

Plug the nipples of the disconnected pipe, hose and condenser
assembly to prevent foreign materials from entering.

Caution
Plug the nipples with material that is not permeable to
air as compressor oil and the receiver absorb water vapour
easily.

A

B

"

CONDENSER ASSEMBLY REMOVAL

1.

Remove the mounting bolts from the front side of the
headlamp support member.

2.

Disengage the lower part of the radiator, and then move
the radiator slightly toward the engine.

3.

Raise the condenser assembly to remove from the engine
compartment.

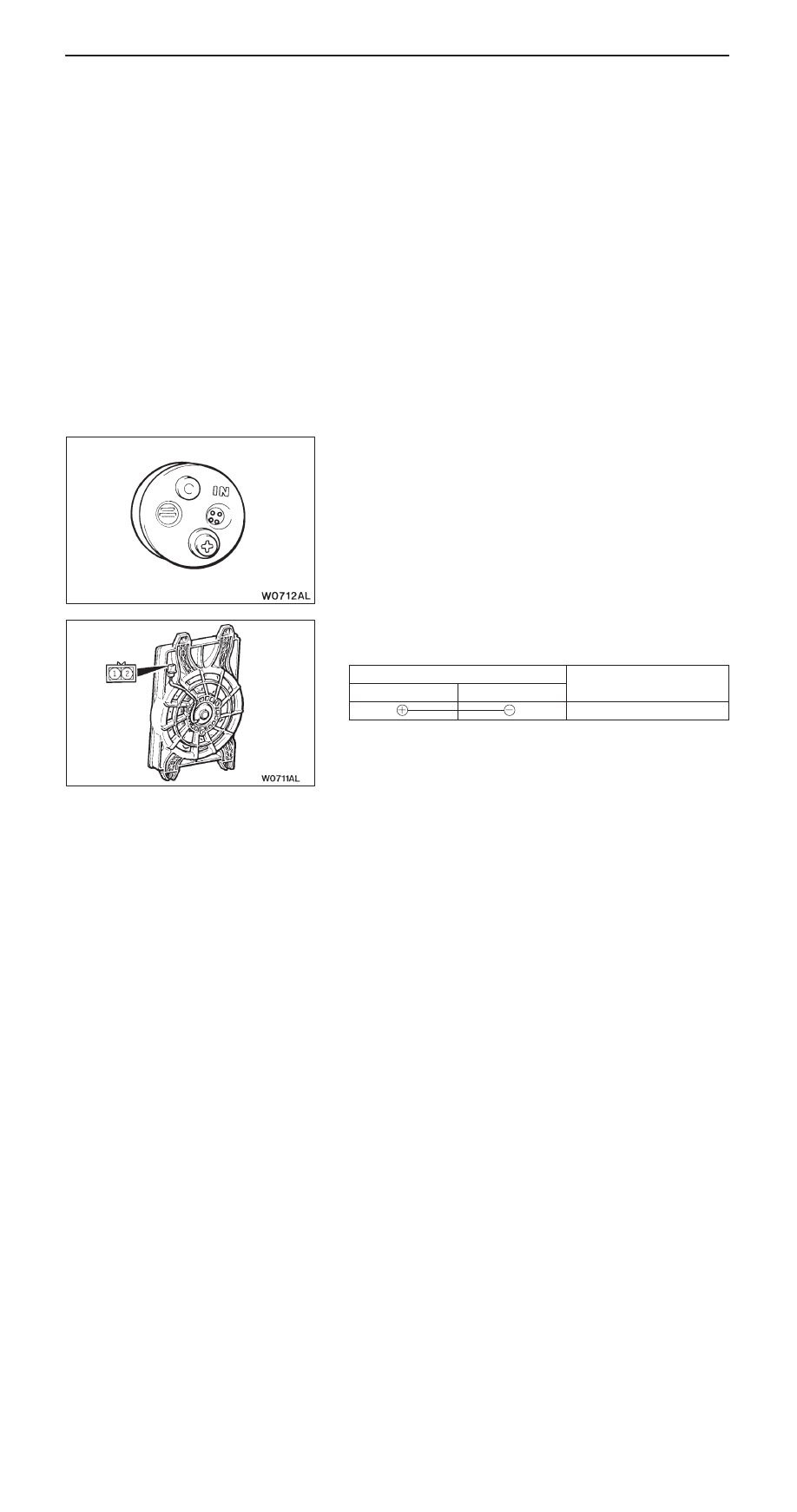

INSTALLATION SERVICE POINT

"

A

A

RECEIVER INSTALLATION

Install the pipe coming from the condenser to the side stamped
“IN”.

INSPECTION

CONDENSER FAN CHECK

Terminals connected to battery

Condenser fan condition

1

2

Operates

HEATER, AIR CONDITIONER AND VENTILATION



–

Refrigerant Line

55-32

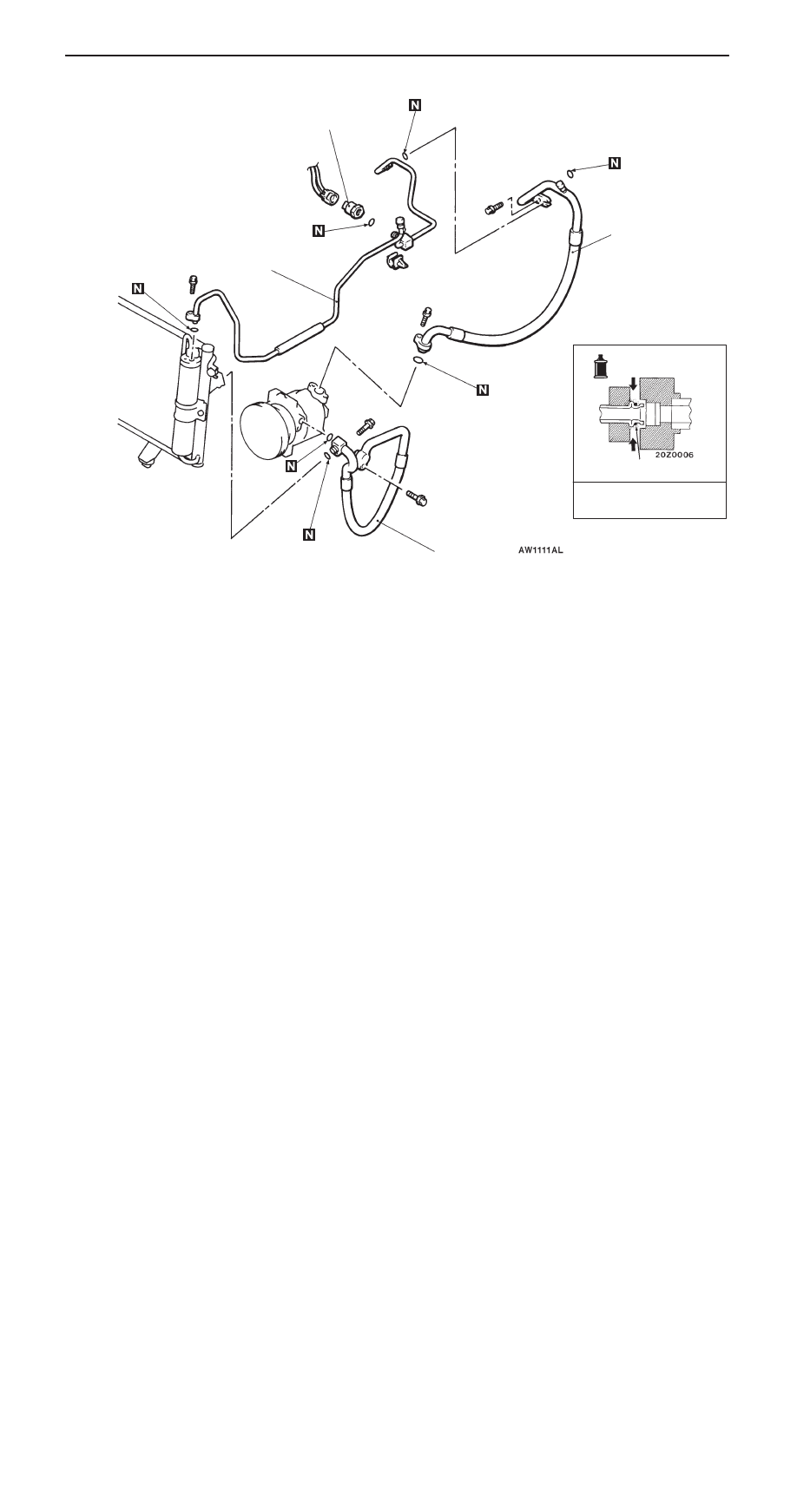

REFRIGERANT LINE

REMOVAL AND INSTALLATION

<L.H. DRIVE VEHICLES>

Pre-removal and Post-installation Operation

D

Discharging and Charging of Refrigerant
(Refer to P.55-10.)

D

Engine Cover Removal and Installation
(Refer to GROUP 11 – Engine Assembly.)

D

Air Cleaner Assembly Removal and Installation.

Compressor oil:

ZXL 200PG

3

4

5

Piping connection

OĆring

1

2

HEATER, AIR CONDITIONER AND VENTILATION



–

Refrigerant Line

55-33

<R.H. DRIVE VEHICLES>

Compressor oil:

ZXL 200PG

3

4

5

Piping connection

OĆring

2

Removal steps

A

A

"

1. Pipe assembly

A

A

"

2. Suction hose

A

A

"

3. Discharge hose

4. Liquid pipe

A

A

"

5. Dual pressure switch

REMOVAL SERVICE POINT

A

A

"

HOSE/PIPE DISCONNECTION

Plug the nipples of the disconnected hose, receiver, evaporator
and compressor to prevent foreign materials from entering.

Caution
Plug the nipples with material that is not permeable to
air as compressor oil and the receiver absorb water vapour
easily.

HEATER, AIR CONDITIONER AND VENTILATION



–

Ventilators

55-34

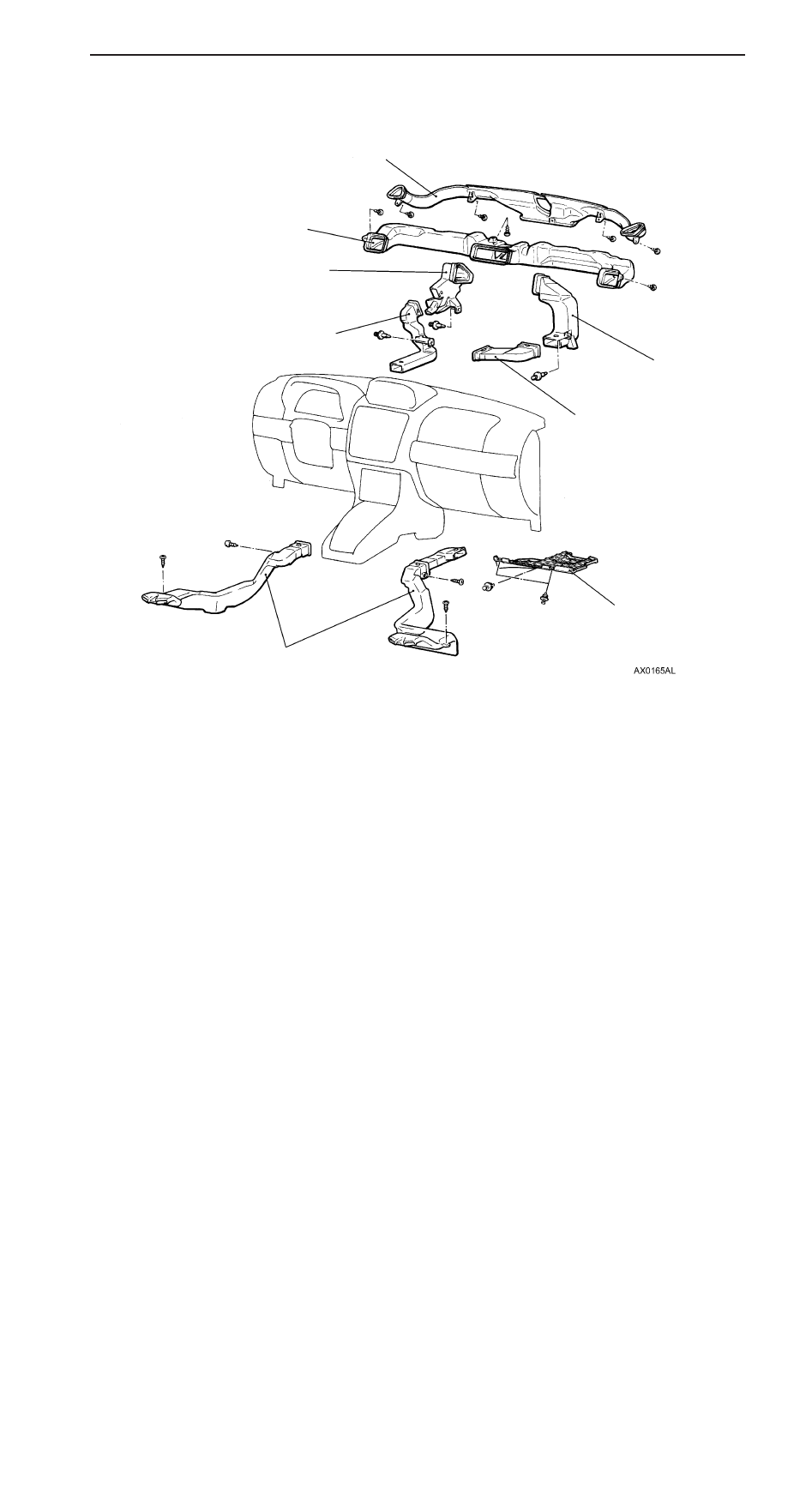

VENTILATORS

Caution: SRS
When removing and installing the floor console assembly from vehicles equipped with SRS, do
not let it bump against the SRS-ECU or the components.

2

3

4

5

6

5

6

1

Rear heater duct B removal steps

D

Front scuff plate, cowl side trim and
center console assembly (Refer to
GROUP 52A – Instrument Panel.)

D

Floor console assembly
(Refer to GROUP 52A.)

D

Front seat
(Refer to GROUP 52A.)

D

Floor carpet

1. Under cover
2. Rear heater duct B

Defroster nozzle and distribution
duct removal steps

D

Instrument panel
(Refer to GROUP 52A.)

3. Defroster nozzle assembly
4. Distribution duct assembly

Foot distribution duct and rear heater
duct A removal steps

D

Floor console assembly
(Refer to GROUP 52A.)

D

Instrument panel assembly
(Refer to GROUP 52A.)

D

Blower motor
(Refer to P.55-25.)

5. Rear heater duct A
6. Foot distribution duct

NOTE
For the center air outlet assembly and the side air outlet
assembly, refer to GROUP 52A – Instrument panel.
