HEATER, AIR CONDITIONER AND VENTILATION



–

Ventilators

55-35

7

8

9

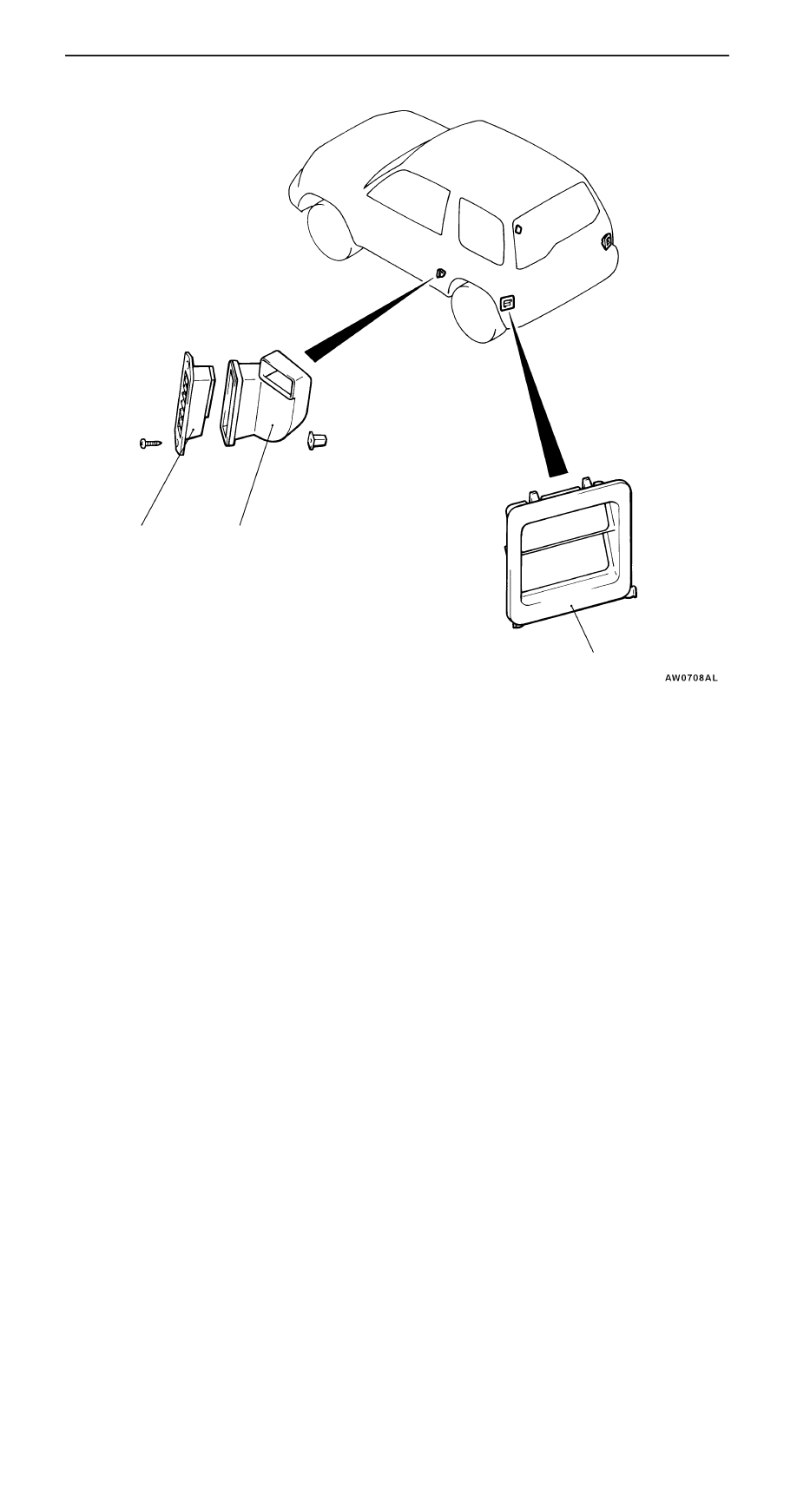

7. Rear ventilation garnish
8. Rear ventilation duct A

Rear vent duct removal steps

D

Rear bumper (Refer to GROUP 51.)

9. Rear ventilation duct

NOTE
For the front deck garnish, refer to GROUP 51 –
Windshield Wiper and Washer.

NOTES

  –

General/On-vehicle Service/Resister

HEATER, AIR CONDITIONER AND VENTILATION

55-1

GROUP 55

HEATER, AIR CONDITIONER AND VENTILATION

GENERAL

OUTLINE OF CHANGES

The following service procedure has been established due to the addition of condenser fan relay and
the changes on the resister. The other service procedures are the same as before.

ON-VEHICLE SERVICE

CONDENSER FAN RELAY CONTINUITY CHECK

System voltage

Terminal No.

y

g

1

3

4

5

When current is
not supplied

When current is
supplied

RESISTER

INSPECTION

Resister Check
Standard values:

Test terminals

Standard value (

Ω

)

HI – LO (between terminals 2 and 4)

2.3

HI – ML (between terminals 2 and 1)

1.0

HI – MH (between terminals 2 and 3)

0.3

Condenser fan relay
