HEATER, AIR CONDITIONER AND VENTILATION

 –

Heater Control Assembly and
A/C switch

55-19

HEATER CONTROL ASSEMBLY AND A/C SWITCH

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Center Air Outlet Assembly, Instrument Under Cover
Removal and Installation (Refer to GROUP 52A –
Instrument Panel.)

D

Radio, Tape Player Removal and Installation (Refer
to GROUP 54.)

3

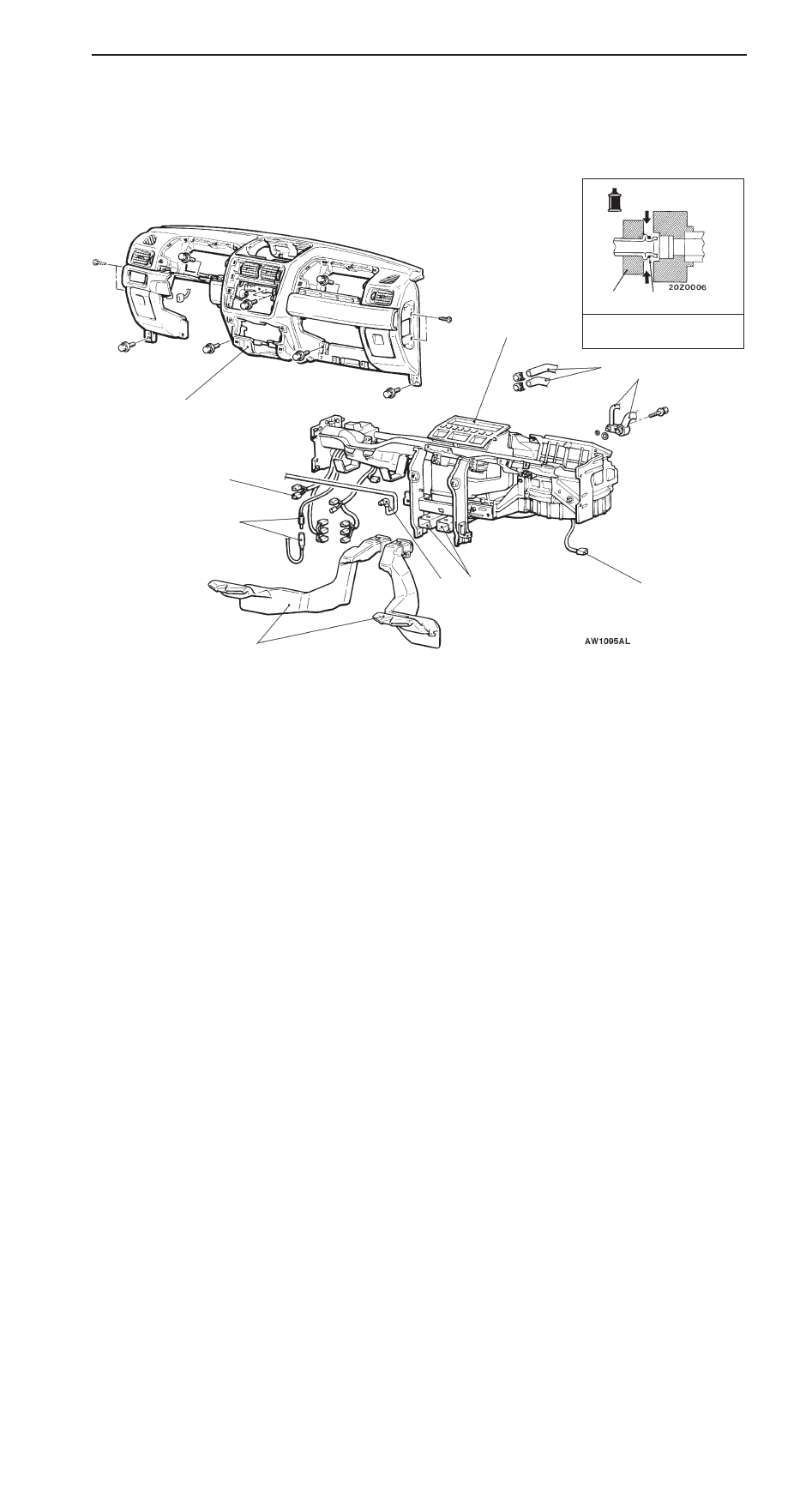

1

2

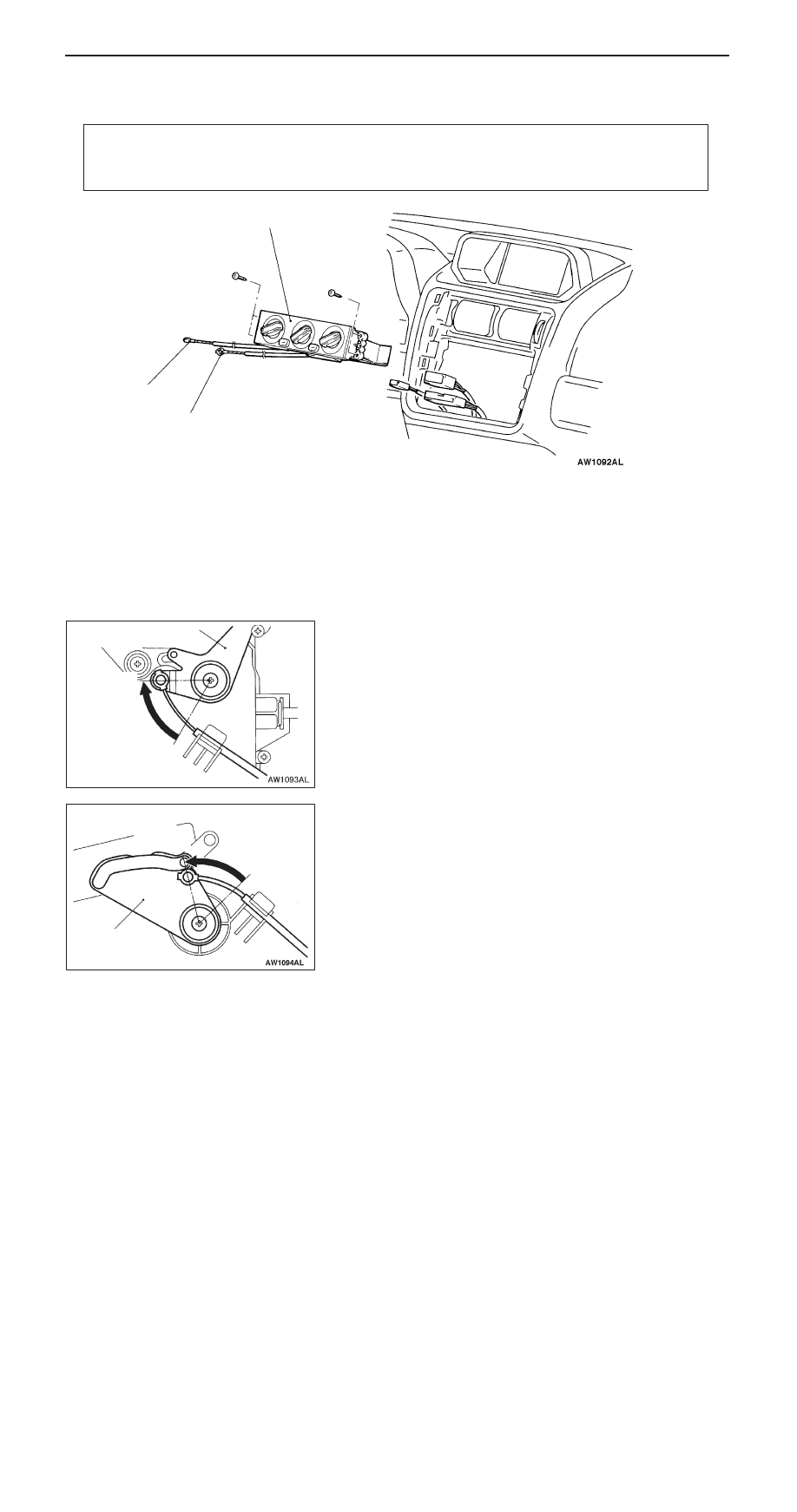

Removal steps

"

B

A

1. Air mix damper cable connection

"

A

A

2. Air outlet changeover damper cable

connection

3. Heater control assembly

INSTALLATION SERVICE POINTS

"

A

A

AIR OUTLET CHANGEOVER DAMPER CABLE
CONNECTION

1.

Set the air outlet changeover control knob on the heater
control assembly to the DEF position.

2.

Set the air outlet changeover damper lever of the heater
unit to the DEF position (turn clockwise the damper lever
unit it stops), and then connect the cable to the lever.

"

B

A

AIR MIX DAMPER CABLE CONNECTION

1.

Set the temperature control knob on the heater control
assembly to the MAX HOT position.

2.

Set the air mix damper lever of the heater unit to the
MAX HOT position (turn clockwise the damper lever until
it stops), and then connect the cable to the lever.

Air outlet changeover
damper lever

DEF position

Air mix damper
lever

MAX HOT
position

HEATER, AIR CONDITIONER AND VENTILATION

 –

Heater Control Assembly and
A/C switch

55-20

INSPECTION

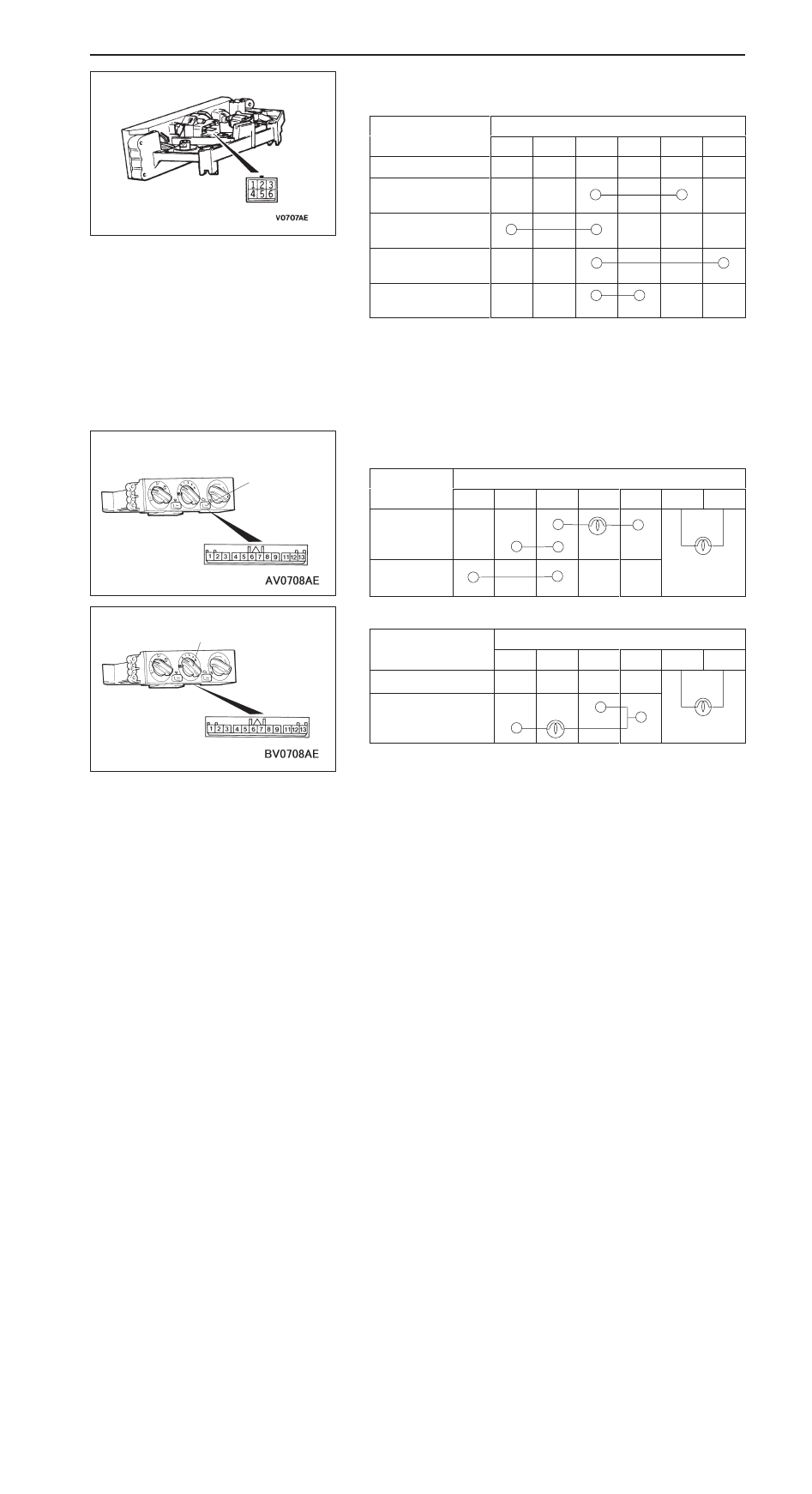

BLOWER SWITCH CONTINUITY CHECK

Switch position

Terminal No.

1

2

3

4

5

6

OFF

D

 (LO)

D

 (ML)

D

  (MH)

D

 (HI)

INSIDE/OUTSIDE AIR CHANGEOVER SWITCH
CONTINUITY CHECK

Switch

iti

Terminal No.

position

1

2

3

IND

4

8

9

RECIRC

FRESH

        ILL

A/C SWITCH CONTINUITY CHECK

Switch position

Terminal No.

5

IND

6

7

8

9

OFF

ON

        ILL

Inside/outside air-
changeover switch

A/C switch

HEATER, AIR CONDITIONER AND VENTILATION

 –

Heater Control Assembly and
A/C switch

55-21

DISASSEMBLY AND REASSEMBLY

3

1

2

4

5

6

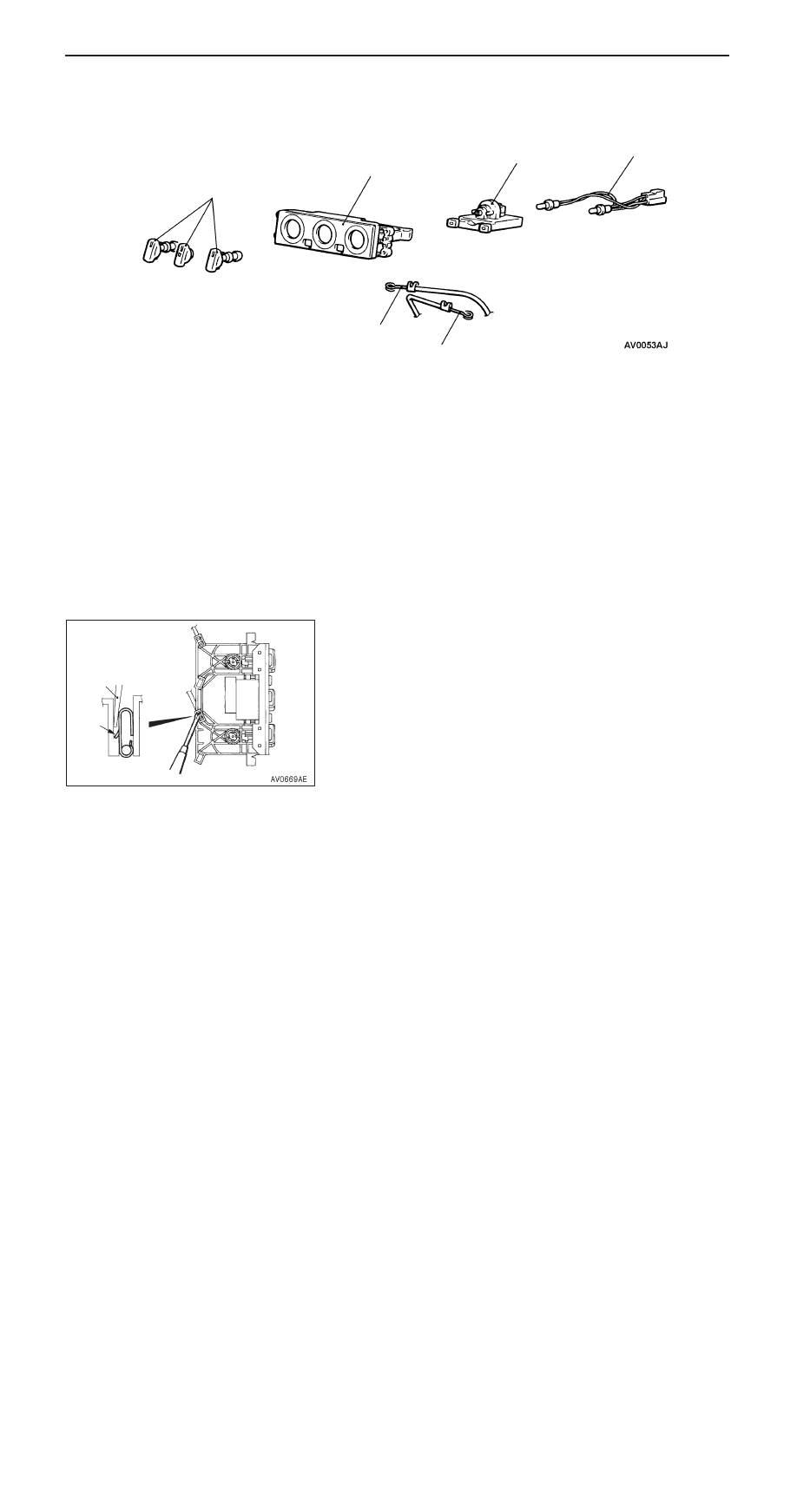

Disassembly steps

1. Knob assembly
2. Bulb harness

A

A

"

3. Air outlet changeover damper cable

A

A

"

4. Air mix damper cable
5. Heater control panel
6. Blower switch assembly

DISASSEMBLY SERVICE POINT

A

A

"

AIR OUTLET CHANGEOVER DAMPER
CABLE/AIR MIX DAMPER CABLE REMOVAL

Insert a flat-tipped screwdriver into the control base clip from
inner side, and then remove the cable by lifting the claw part
of the clip.

Claw
part

Flat-tipped
screwdriver

HEATER, AIR CONDITIONER AND VENTILATION

 –

Heater Unit, Blower Unit,
Resister and Evaporator

55-22

HEATER UNIT, BLOWER UNIT, RESISTER AND EVAPORATOR

REMOVAL AND INSTALLATION

Caution: SRS
When removing and installing the floor console assembly from vehicles equipped with SRS, do
not let it bump against the SRS-ECU or the components.

1

2

4

6

7

8

3

9

2

5

Piping connection

8

Compressor oil:

ZXL 200PG

OĆring

Heater unit and blower unit removal steps

D

Discharging and Charging of
Refrigerant (Refer to P.55-10.)

D

Discharging and Charging of Engine
Coolant (Refer to GROUP 14 –
On-vehicle Service.)

D

Engine Cover Removal and Installa-
tion (Refer to GROUP 11 – Engine
Assembly.)

D

Air Cleaner Assembly Removal and
Installation.

D

Front Scuff Plate, Rear Scuff Plate,
Cowl Side Trim and Glove Box
Removal and Installation (Refer to
GROUP 52A – Trims.)

D

Front Seat Assembly (Driver’s side)
Removal and Installation (Refer to
GROUP 52A – Seat.)

D

Shift Lever Assembly Removal and
Installation (Refer to GROUP 22 –
Transmission Control.) <M/T>

D

Selector Lever Assembly Removal
and Installation (Refer to GROUP 23
– Transmission Control.) <A/T>

D

SRS–ECU (Refer to GROUP 52B.)

D

Floor Carpet Removal and Installation.

1. Instrument panel assembly

(Refer to GROUP 52A.)

2. Intermediate connector

connections

3. Antenna feeder cable connection
4. DIN cable
5. Rear heater duct B
6. Rear heater duct A
7. Heater hoses connection
8. Refrigerant line connection
9. Blower unit, heater unit and deck

crossmember assembly
