CHASSIS ELECTRICAL –

Multi-Center Display <High Grade>

54A-108

MULTI-CENTER DISPLAY

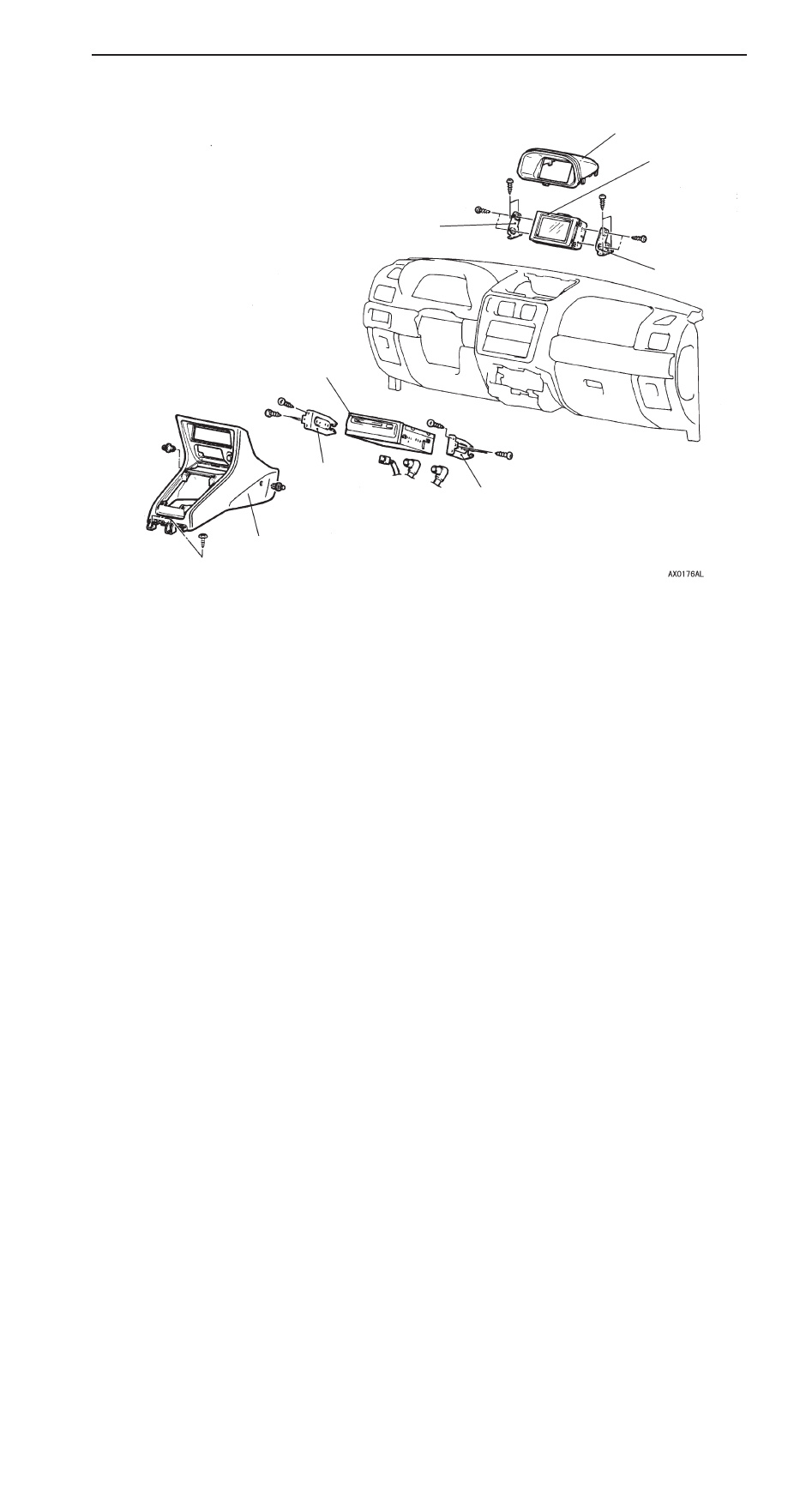

REMOVAL AND INSTALLATION

2

1

3

4

5

6

5

2

Navigation unit removal steps

1. Floor console (Refer to GROUP

52A – Floor console)

2. Radio bracket
3. Navigation unit

Multi-center display removal steps

4. Multi-center display hood

(Refer to P.54A-79.)

5. Multi-center display bracket
6. Multi-center display

CHASSIS ELECTRICAL –

General/Speaker

54-1

GROUP 54A

CHASSIS ELECTRICAL

GENERAL

OUTLINE OF CHANGE



Due to the introduction of 5-door models, the rear speaker service procedure has been changed.

SPEAKER

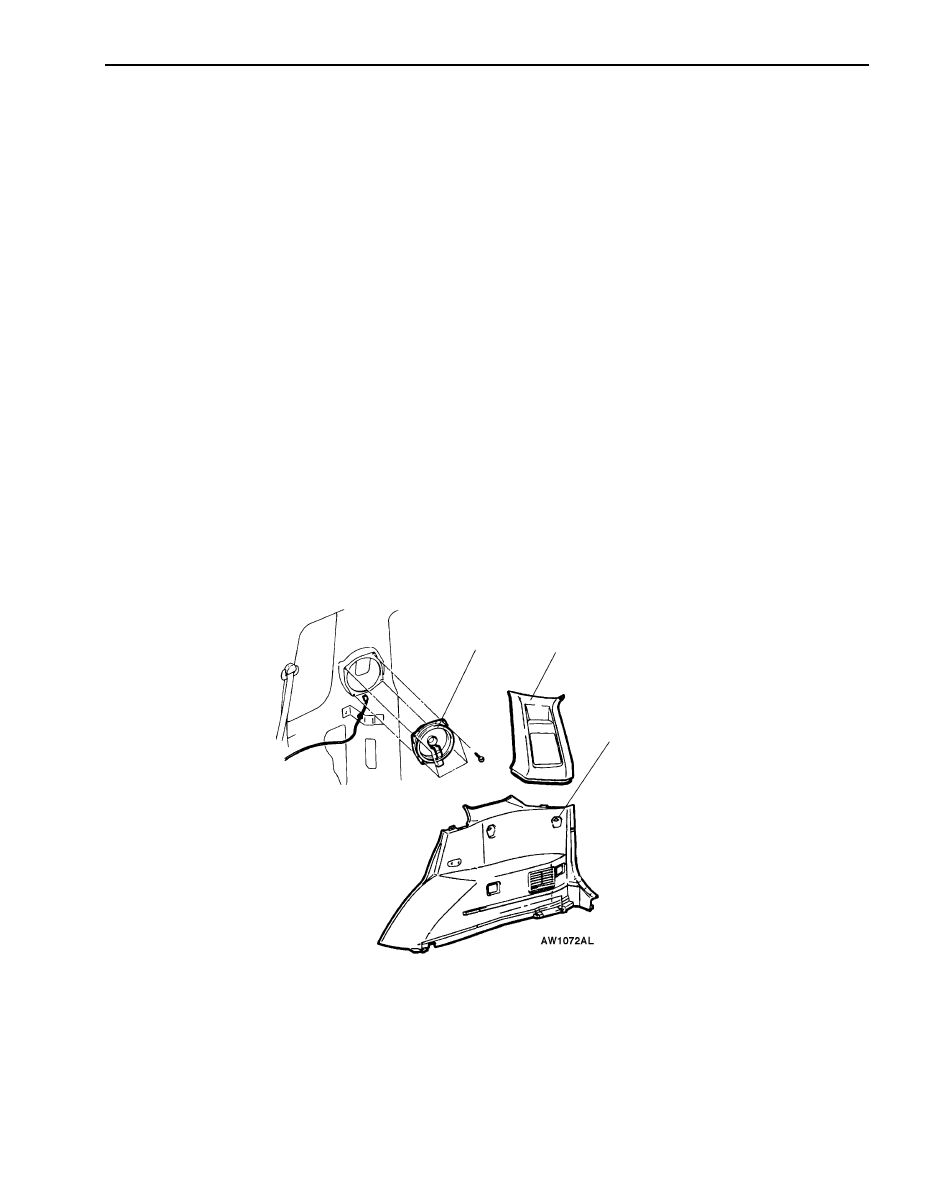

REMOVAL AND INSTALLATION

3

1

2

<Rear speaker>

5-door models

Rear speaker removal steps

1. Quarter trim, lower (Refer to GROUP 52A.)
2. Rear pillar trim (Refer to GROUP 52A.)
3. Speaker

SERVICE BULLETIN

PUBLICATION GROUP, AFTER SALES SERVICE DEP.

MITSUBISHI MOTOR SALES EUROPE BV

SERVICE BULLETIN

No.: ESB-00E54-502

Date

:

2000-07-30

<Model>

<M/Y>

Subject:

CORRECTION TO SERVICE MODE FOR MULTI-
CENTER DISPLAY

Group:

CHASSIS ELECTRICAL

Draftno.:99SY111917

INFORMATION/CORRECTION

O. Kai - E.V.P. & G.M.
After Sales Service Dept.

(EC)PAJERO
PININ/MONTERO io
(H60,H70)

00-10

1. Description:

This Service Bulletin ingorms you thet correction has been made to the service mode for the multi-
center display (middle grade)

2. Applicable Manuals:

Manual

Pub. No.

Language

Page(s)

‘00PAJERO PININ

CKRE00E1

(English) 54a-69

Workshop Manual chassis

CKRF00E1

(French)

CKRG00E1

(German)

CKRD00E1

(Dutch)

CKRI00E1

(Italian)

’00 MONTERO

CKRS00E1

(Spanish)

Workshop Manual chassis

3. Details:

CHASSIS ELECTRICAL – Multi-center Display <Middle Grade> (page 2,3 and 4)

2

4.  Service Mode For Multi-center Display
1.  Enter and terminate the service mode

(1)  To enter the service mode, turn the ignition switch to ACC
(2)  Press the “H” button twice.
(3)  Press the “SET” button and (A) button at the same time.
(4)  Then the audio unit will enter the service mode.

First of all, the service mode will show model identification for th multi center display and the vehicle
identification. Then the service mode proceeds to three checks. LCD segment check, Sensor check
and Unit check. To switch over these checks, press the “SET” button.

(5)

To terminate the service mode, press any button other than the “SET” button.

2.  Details of the service mode

The service mode checks the following in that order:
(1)  LCD segment check

This screen is divided into four areas. Each area will be active sequentially whenever the “SET”
button is pressed.
When the “SET” button is pressed four times in this screen, the service mode will proceed to the
Sensor check.

(2)  Sensor check

This screen shows voltage signals from the outside temperature sensor, the fuel gauge unit, and th
ignition switch as well as fuel economy.
When the “SET” button is pressed once in this screen, the service mode will proceed to the Unit
check.

(3)  Unit check connected into audio system

This screen shows an audio equipment, air conditioner or MUT-II connected in the system,
percentage of system voltage engine speed sent by the engine-ECU, and oscillation of internal clock.
When the “SET” button is pressed once in this screen, the service mode will return to the first scree
(model identification screen).

CHASSIS ELECTRICAL – Multi-center Display <Middle Grade>

54A-69

(2)  While pressing (A) button, turn the ignition

switch to ON. With (A) button depressed,
press “H” button twice.

(3)  Press “SET” button.

(4)

Then th multi-center display will enter th
service mode. Each mode will change eac
time “SET” button is pressed.

<Correct>

<Incorrect>

<Correct>

LOCK (OFF)

(A) Button

AX0100BN

<Incorrect>

Add pages 3-4 of
this bulletin here.

<Incorrect>
