CHASSIS ELECTRICAL –

Rheostat <Vehicles for
Australia and New Zealand>

54A-44

RHEOSTAT

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Removal of switch garnish

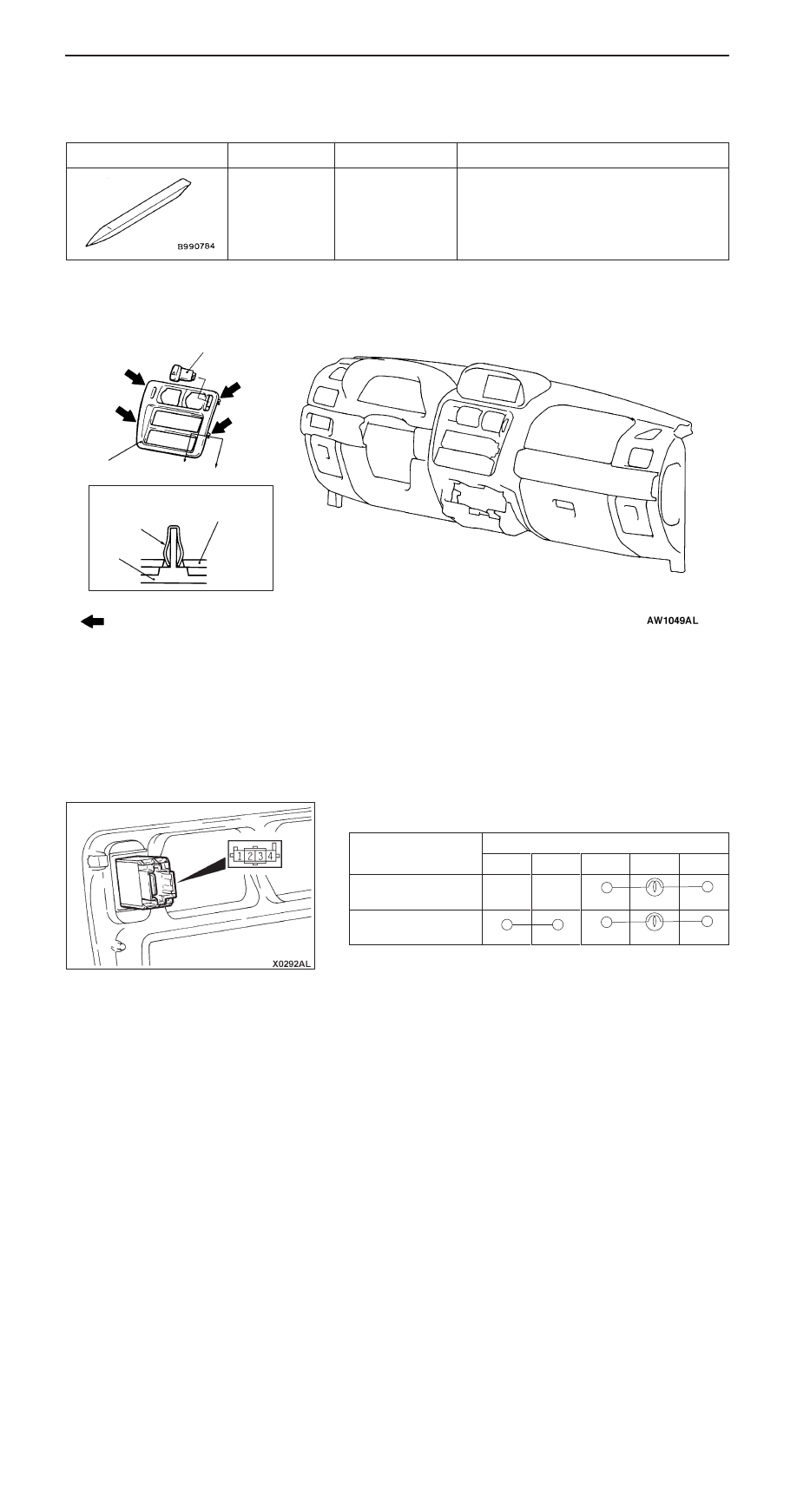

RHEOSTAT

REMOVAL AND INSTALLATION

2

1

A

A

Section A – A

Claw

Instrument
panel

1

A

A

Removal steps

1. Switch panel
2. Rheostat

INSPECTION

1.

Connect the battery and the test bulb (40W) as shown
in the illustration.

2.

Operate the rheostat, and if the brightness changes
smoothly without switching off, then the rheostat function
is normal.

40W

CHASSIS ELECTRICAL –

Hazard Warning Lamp Switch

ILL

ILL

54A-45

HAZARD WARNING LAMP SWITCH

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Removal of center panel

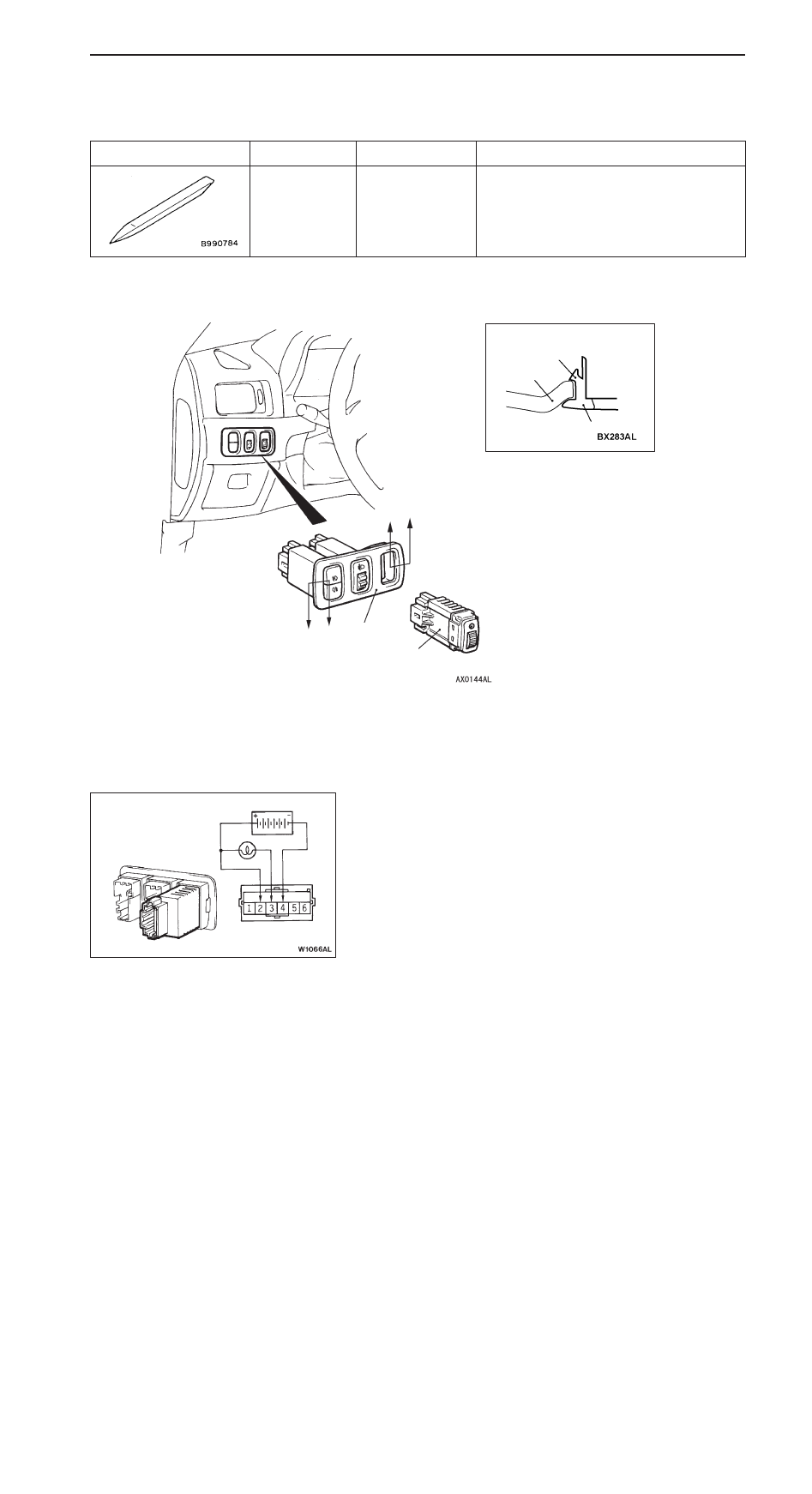

HAZARD WARNING LAMP SWITCH

REMOVAL AND INSTALLATION

Section A – A

Clip

Instrument panel

2

1

A

A

: shows clips.

1

Removal steps

1. Center panel
2. Hazard warning lamp switch

INSPECTION

Switch position

Terminal No.

1

2

3

4

OFF

ON

CHASSIS ELECTRICAL –

Horn/Cigarette Lighter

54A-46

HORN

INSPECTION

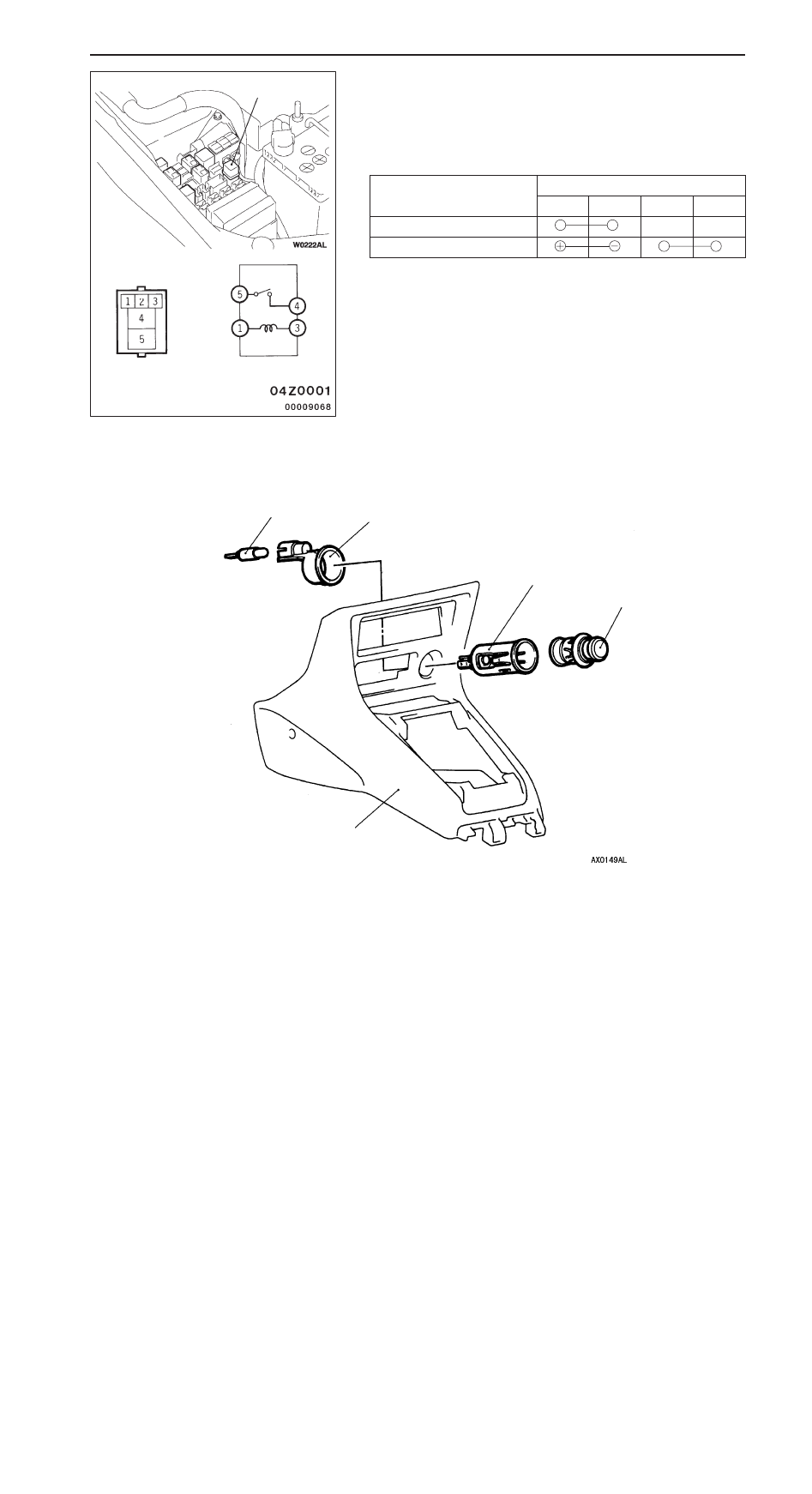

HORN RELAY CONTINUITY CHECK

Battery voltage

Terminal No.

y

g

1

3

4

5

Not supplied

Supplied

CIGARETTE LIGHTER

REMOVAL AND INSTALLATION

1

5

4

3

2

Removal steps

1. Plug
2. Floor console (Refer to GROUP

52A)

3. Bulb
4. Socket case
5. Socket

Horn relay

CHASSIS ELECTRICAL –

Cigarette Lighter/Accessory Socket

54A-47

INSPECTION

D

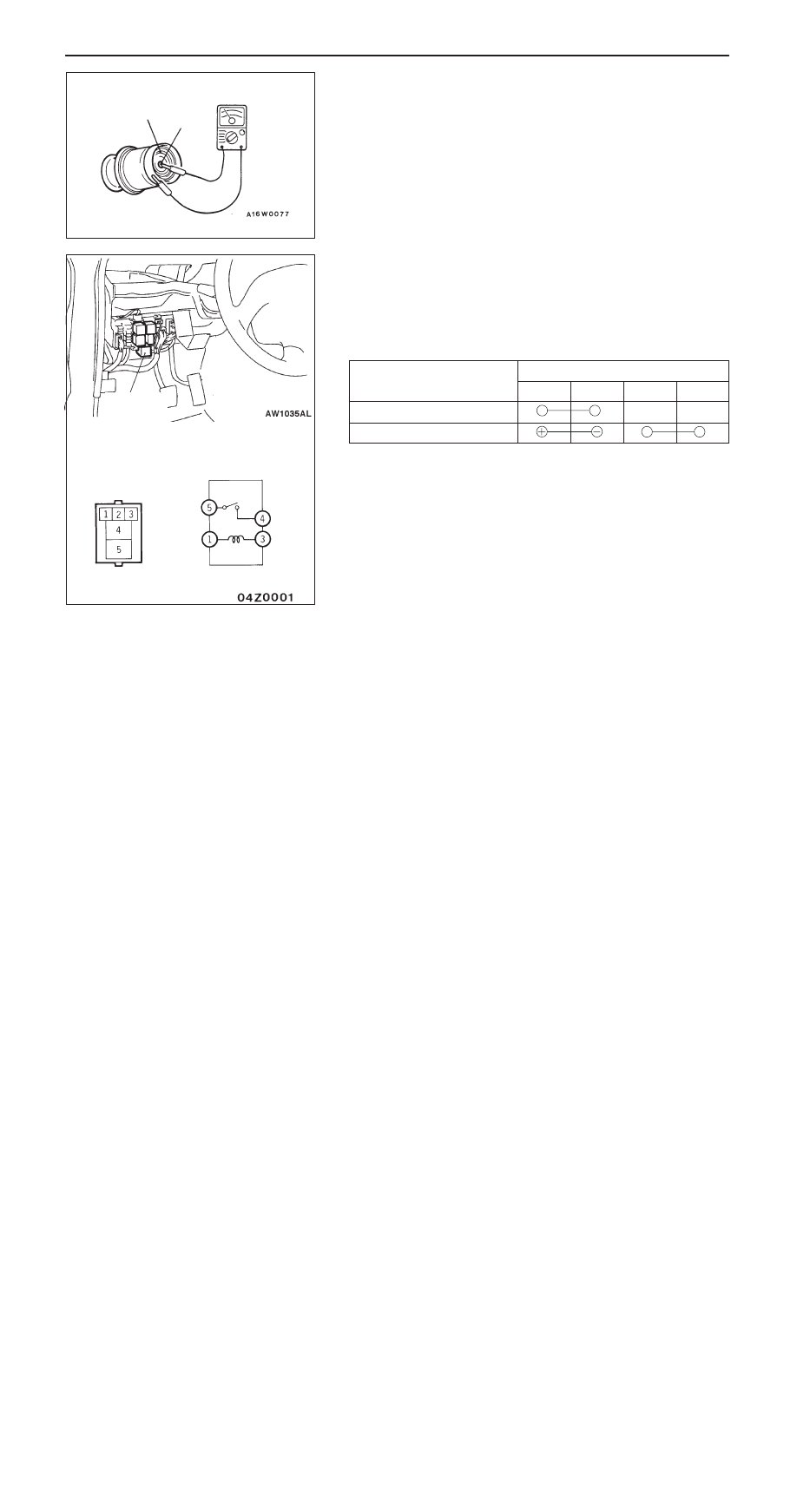

Take out the plug, and check for a worn edge on the
element spot connection, and for shreds of tobacco or
other material on the element.

D

Using a circuit tester, check the continuity of the element.

ACCESSORY SOCKET

INSPECTION

ACCESSORY SOCKET RELAY CONTINUITY CHECK

Battery voltage

Terminal No.

y

g

1

3

4

5

Not supplied

Supplied

Element

Spot

Accessory
socket
relay
