CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-32

4.

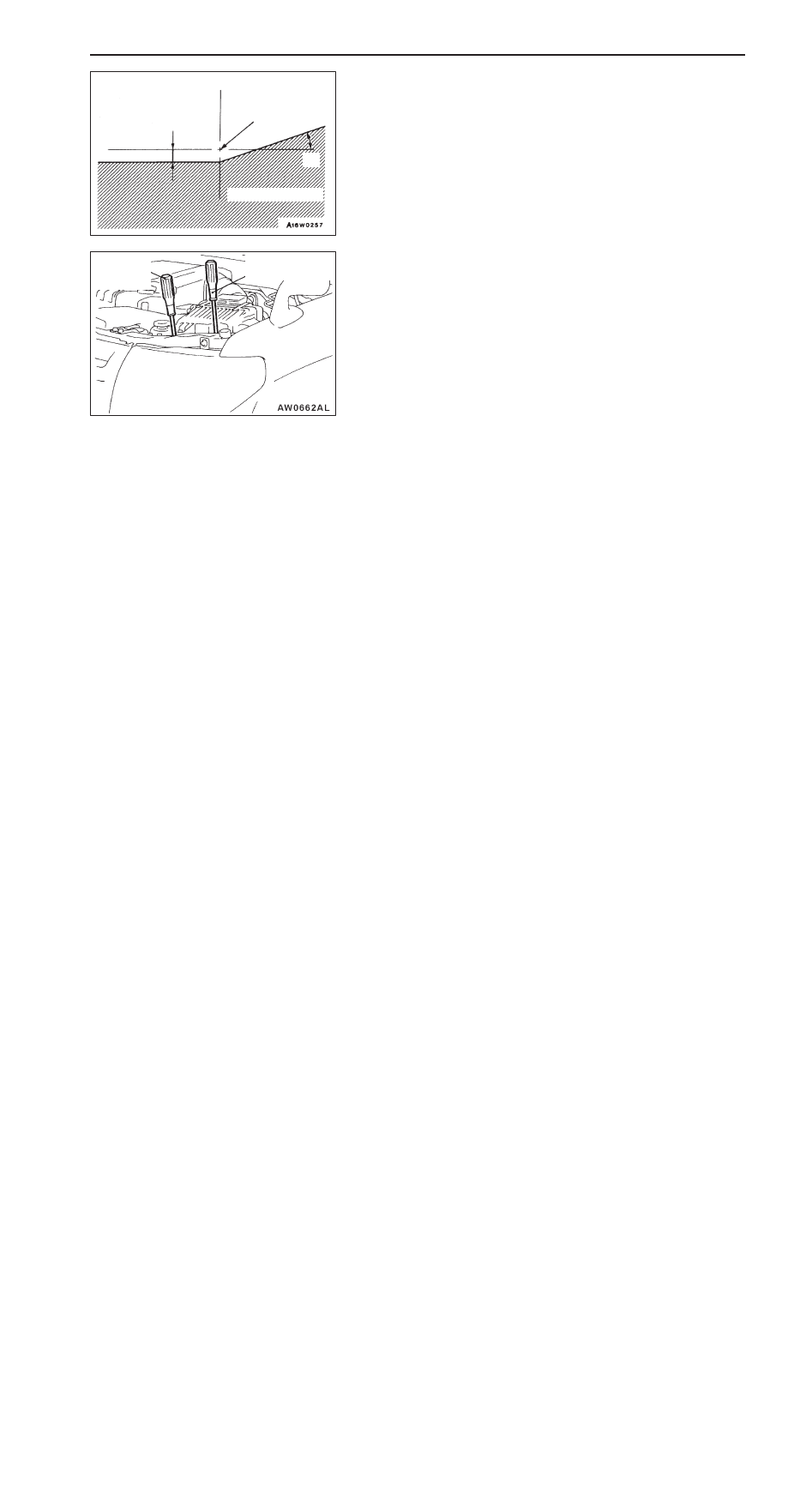

Check if the beam shining onto the screen is at the standard
value.

Standard value:

(Vertical direction)

60 mm below horizontal (H)

(Horizontal direction)

Position where the 15

_

 sloping section intersects

the vertical line (V)

NOTE
The illustration shows L.H. drive vehicles.  For R.H. drive
vehicles, it is symmetrical.

5.

Alternately turn the adjusting screw to adjust the headlamp
aiming.

Caution
Be sure to adjust the aiming adjustment screw in the
tightening direction.

HEADLAMP INTENSITY MEASUREMENT

Using a photometer, and following its manufacture’s instruction
manual, measure the headlamp intensity and check to be
sure that the limit value is satisfied.

Limit: 30,000 cd or more

NOTE
1.

When measuring the intensity, maintain an engine speed
of 2,000 r/min, with the battery in the charging condition.

2.

There may be special local regulations pertaining to
headlamp intensity, be sure to make any adjustments
necessary to satisfy such regulations.

3.

If an illuminometer is used to make the measurements,
convert its values to photometer values by using the
following formula.

I = Er

2

 Where:

I=intensity (cd)
E=illumination (lux)
r=distance (m) from headlamps to illuminometer

Distance of
vertical direction

Lamp centre

15

High intensity zone

(V)

(H)

Horizontal
direction
adjustment

Vertical direction
adjustment

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-33

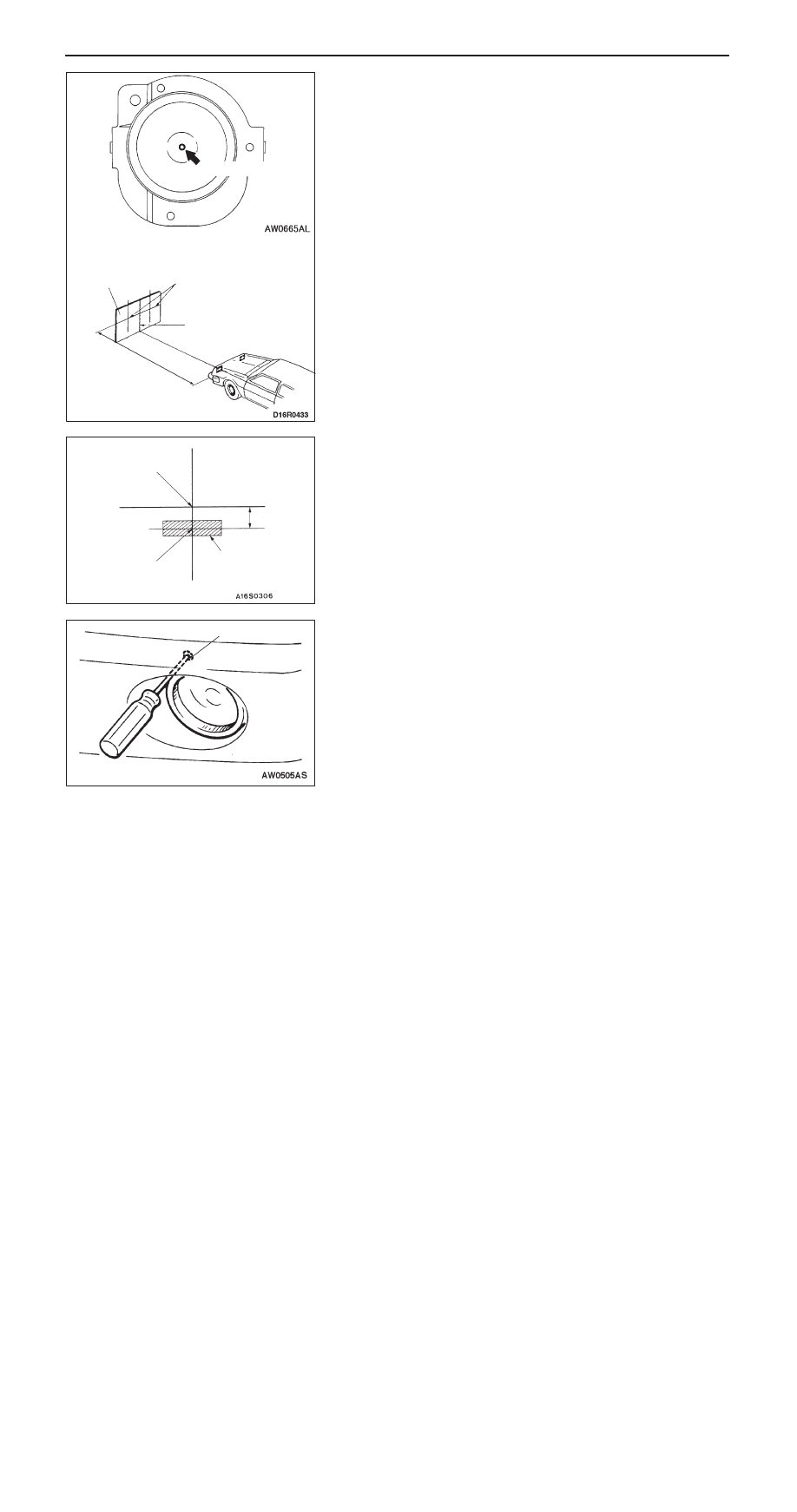

FRONT FOG LAMP AIMING

1.

Measure the centre of the front fog lamps, as shown in
the illustration.

2.

Set the distance between the screen and the centre of
the front fog lamps as shown in the illustration.

3.

Inflate the tyres to the specified pressures and there should
be no other load in the vehicles other than driver or
substituted weight of approximately 75 kg placed in the
driver’s position.

4.

With the engine running at 2,000 r/min, aim the front fog
lamp.

5.

Check if the beam shining onto the screen is at the standard
value.

Standard value:

(Vertical direction)

100 mm below horizontal (H)

(Horizontal direction)

Parallel to direction of vehicle travel

NOTE
The horizontal direction is non-adjustable. If the deviation
of the light beam axis exceeds the standard value, check
to be sure that the mounting location or some other point
is not defective.

Caution
When making the aiming adjustment, be sure to mask
those lamps which are not being adjusted.

Lamp centre

Screen

5 m

Fog lamp centre line

Vehicle centre line

Lamp centre

Distance of
vertical direction

Centre of high
intensity zone

High intensity zone

Adjusting screw

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-34

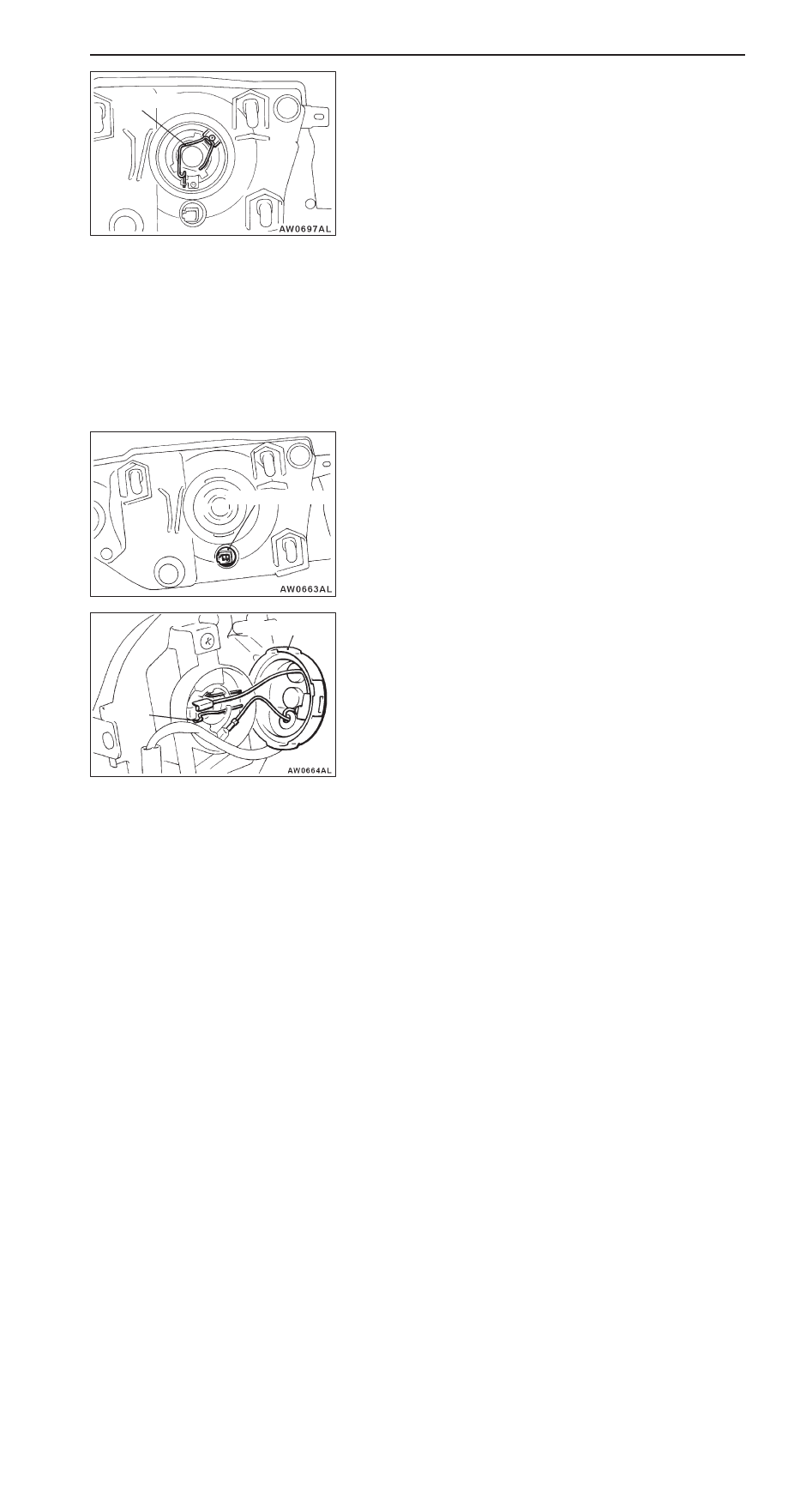

BULB REPLACEMENT

<Headlamp Bulb>

1.

Disconnect the connector.

2.

Remove the socket cover.

3.

Remove the bulb mounting spring, and then withdraw the
bulb.

4.

Install new bulb, and then connect the connector securely.

Caution
Do not touch the surface of the bulb with hands or dirty
gloves. If the surface does become dirty, clean it with
alcohol or thinner, and let it dry thoroughly before
installing.

<Position Lamp Bulb>

Remove the lamp socket by turning it anti-clockwise, then
pull out the bulb from the socket.

<Front fog lamp Bulb>

1.

Remove the front fog lamp.

2.

Remove the front fog lamp cover.

3.

Remove the front bulb mounting spring, and then withdraw
the bulb.

4.

Disconnect the connector, and then replace the bulb.

Caution
(1) Always use the genuine part for replacement.
(2) Do not touch the surface of the bulb with hands

or dirty gloves. If the surface does become dirty,
clean it with alcohol or thinner, and let it dry
thoroughly before installing.

(3) Be sure to install the socket cap. If the socket

cap is improperly installed, the lens will be fogged
or water may enter the lamp unit.

Spring

Position lamp bulb

Fog lamp cover

Spring

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-35

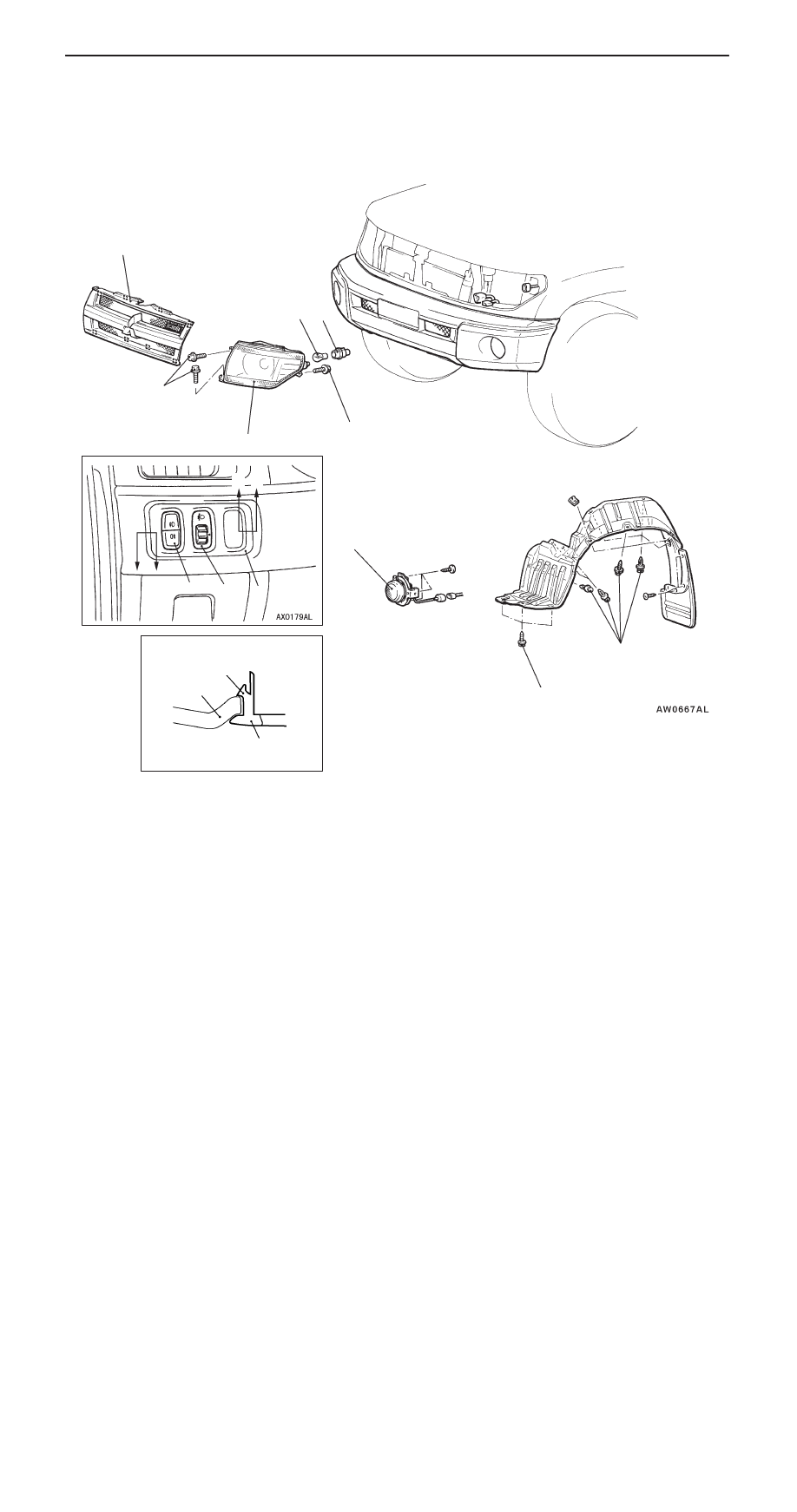

HEADLAMP, FRONT TURN-SIGNAL LAMP AND FRONT FOG
LAMP

REMOVAL AND INSTALLATION

5 Nm

5 Nm

4

5

6

7

8

9

8

1

3

2

A

A

Section A – A

Claw

Instrument
panel

A

A

1

BX0283AL

Fog lamp switch and headlamp
leveling switch removal steps

1. Switch panel
2. Fog lamp switch
3. Headlamp leveling switch

Headlamp removal steps

A

A

"

4. Radiator grille
5. Headlamp
6. Front turn-signal lamp socket
7. Front turn-signal lamp bulb

Front fog lamp removal steps

8. Splash shield front part mounting

clips and screws

9. Front fog lamp

NOTE
For removal and installation of the column switch (lighting
switch), refer to GROUP 37A – Steering Wheel and Shaft.
