CHASSIS ELECTRICAL –

Combination Meters

54A-28

FUEL GAUGE RESISTANCE CHECK

1.

Remove the power supply tightening screw.

2.

Use an ohmmeter to measure the resistance value between
the terminals.

Standard value:

Power supply – Earth: 233.3

Power supply – Fuel gauge: 108.3

Fuel gauge – Ground: 125.0

Caution
When inserting the testing probe into the power supply
terminal, be careful not to touch the printed board.

ENGINE COOLANT TEMPERATURE GAUGE
RESISTANCE CHECK

1.

Remove the power supply tightening screw.

2.

Use an ohmmeter to measure the resistance value between
the terminals.

Standard value:

Power supply – Earth: 178.9

Power supply – Engine coolant temperature gauge:

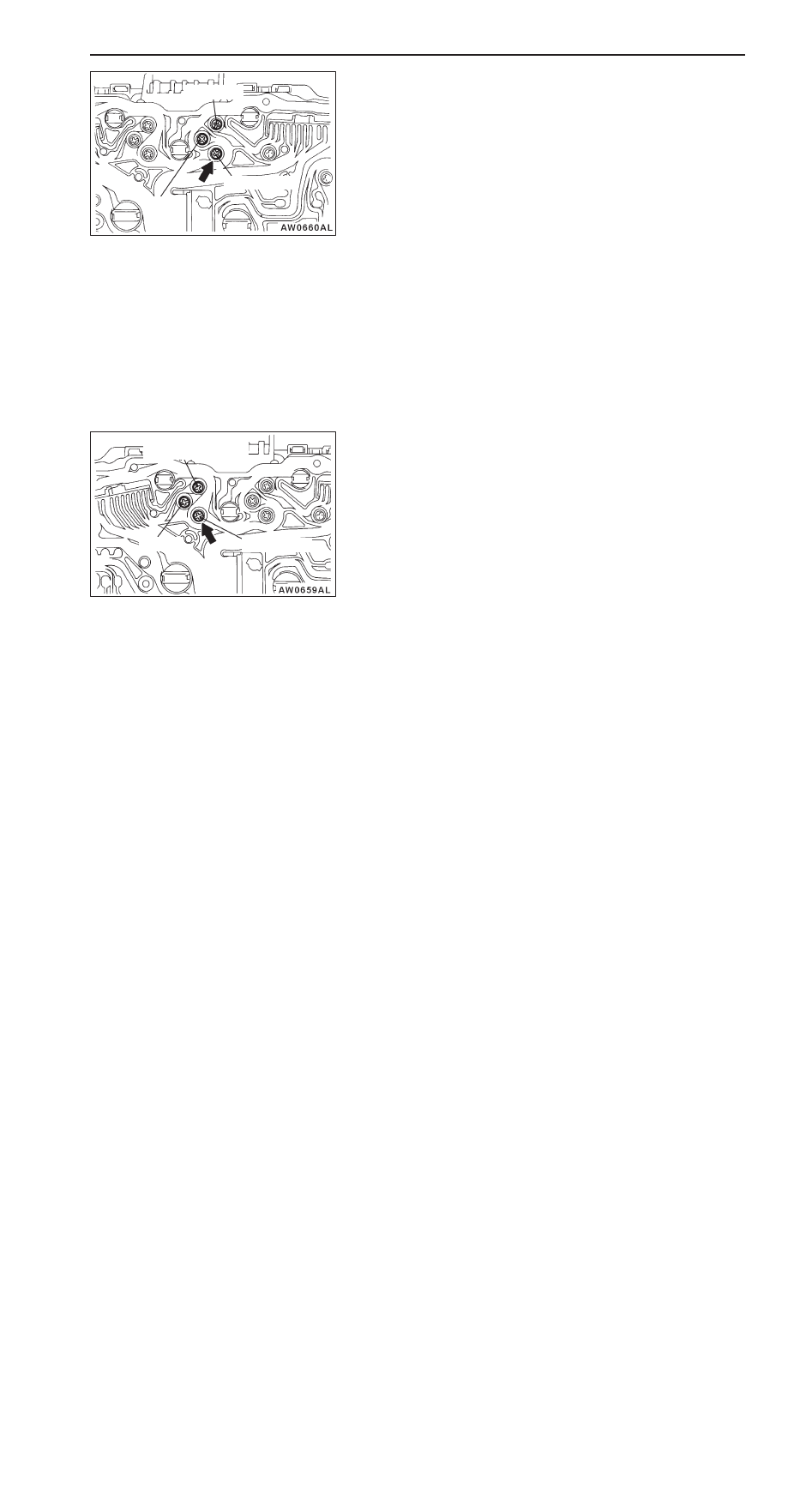

54

Engine coolant temperature gauge – Earth:
232.9

Caution
When inserting the testing probe into the power supply
terminal, be careful not to touch the printed board.

Power supply

Fuel gauge

Earth

Engine coolant
temperature gauge

Earth

Power supply

CHASSIS ELECTRICAL –

Outside Thermo Sensor

54A-29

OUTSIDE THERMO SENSOR

SERVICE SPECIFICATIONS

Items

Standard value

Internal resistance of outside thermo sensor

At 25

_

Approx. 1,700

OUTSIDE THERMO SENSOR

REMOVAL AND INSTALLATION

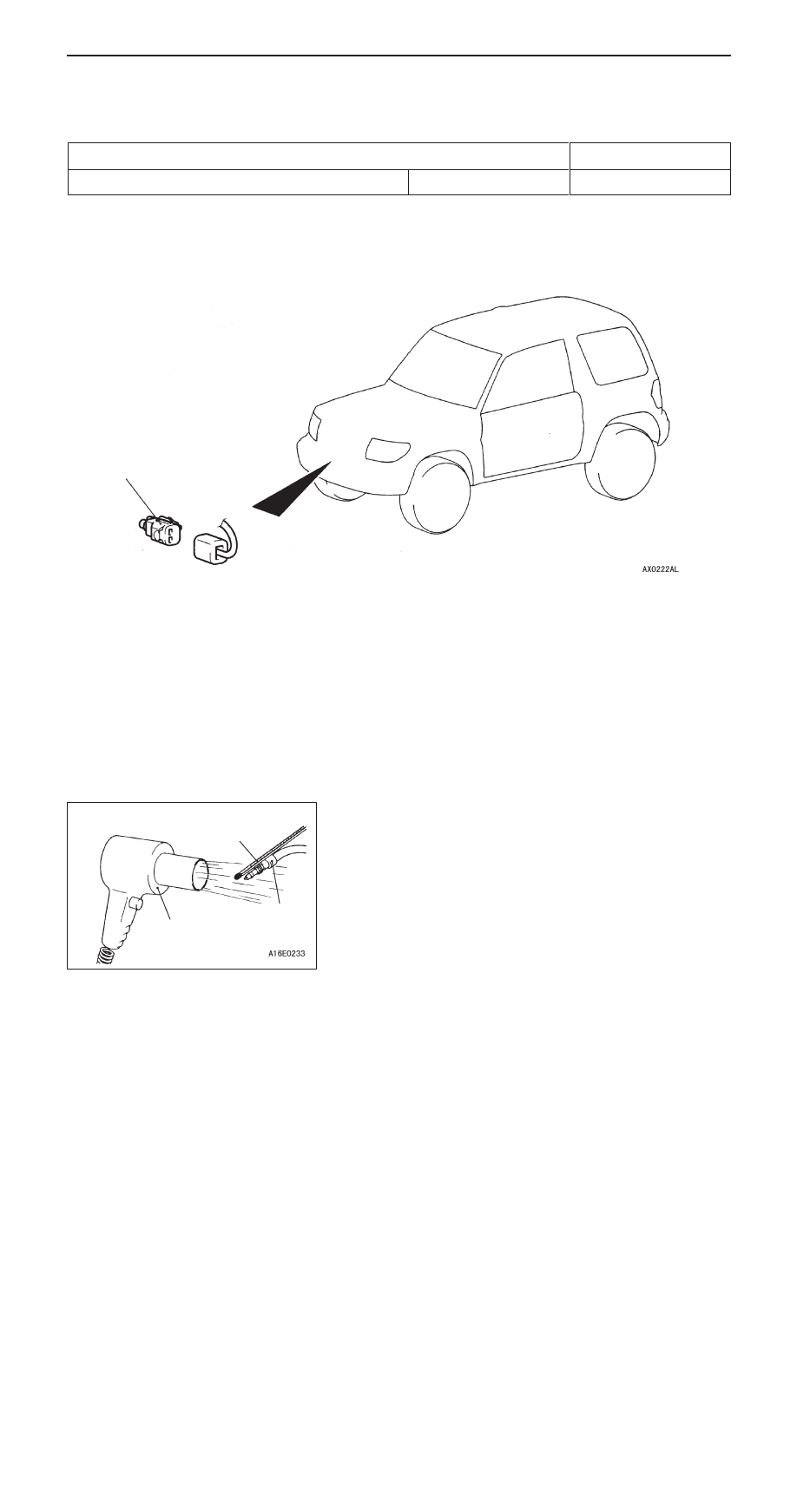

Outside thermo sensor

INSPECTION

OUTSIDE THERMO SENSOR INTERNAL RESISTANCE
CHECK

Check the internal resistance of the outside thermo sensor
are at the standard value at temperatures of 25

_

C.

Standard value:

Approx. 1,700

 (at 25

_

C)

Thermometer

Dryer

Sensor

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-30

HEADLAMP, FRONT TURN-SIGNAL LAMP AND
FRONT FOG LAMP

SERVICE SPECIFICATIONS

Items

Standard value

Limit

Headlamp aiming for low
beam

Vertical direction

60 mm below horizontal (H)

beam

Horizontal direction

Position where the 15

_

 sloping section

intersects the vertical line (V)

Headlamp intensity   cd

30,000 or more

Front fog lamp aiming

Vertical direction

100 mm below horizontal (H)

Horizontal direction

Parallel to direction of vehicle travel

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Removal of switch garnish

TROUBLESHOOTING

The headlamp, turn-signal lamp and front fog lamp are controlled by the smart wiring system (SWS).
For troubleshooting, refer to GROUP 54B – Troubleshooting.

CHASSIS ELECTRICAL –

Headlamp, Front Turn-signal Lamp and Front Fog Lamp

54A-31

ON-VEHICLE SERVICE

HEADLAMP AIMING

<USING A BEAM SETTING EQUIPMENT>

1.

The headlamps should be aimed with the proper beam
setting equipment, and in accordance with the equipment
manufacture’s instructions.

NOTE
If there are any regulations pertinent to the aiming of
headlamps in the area where the vehicle is to be used,
adjust so as to meet those requirements.

2.

Alternately turn the adjusting screw to adjust the headlamp
aiming. (Refer to P.54A-32.)

<USING A SCREEN>

1.

Inflate the tyres to the specified pressures and there should
be no other load in the vehicles other than driver or
substituted weight of approximately 75 kg placed in driver’s
position.

2.

Put the headlamp leveling switch in “0” position.

3.

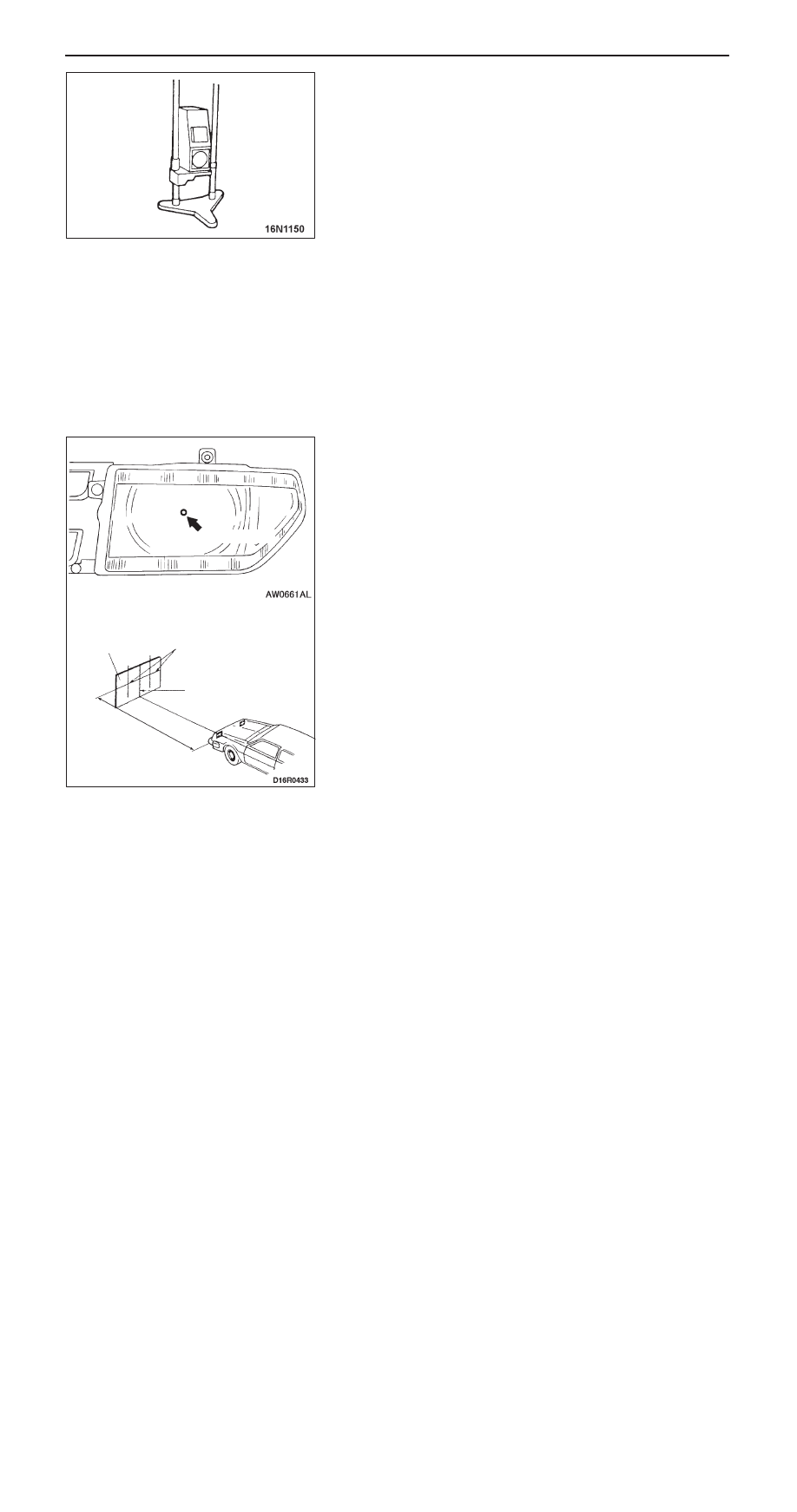

Set the distance between the screen and the centre marks
of the headlamps as shown in the illustration.

Screen

5 m

Headlamp centre line

Vehicle centre line

Lamp centre
