BODY  –

Door

BODY  –

Door

42-8

ON-VEHICLE SERVICE

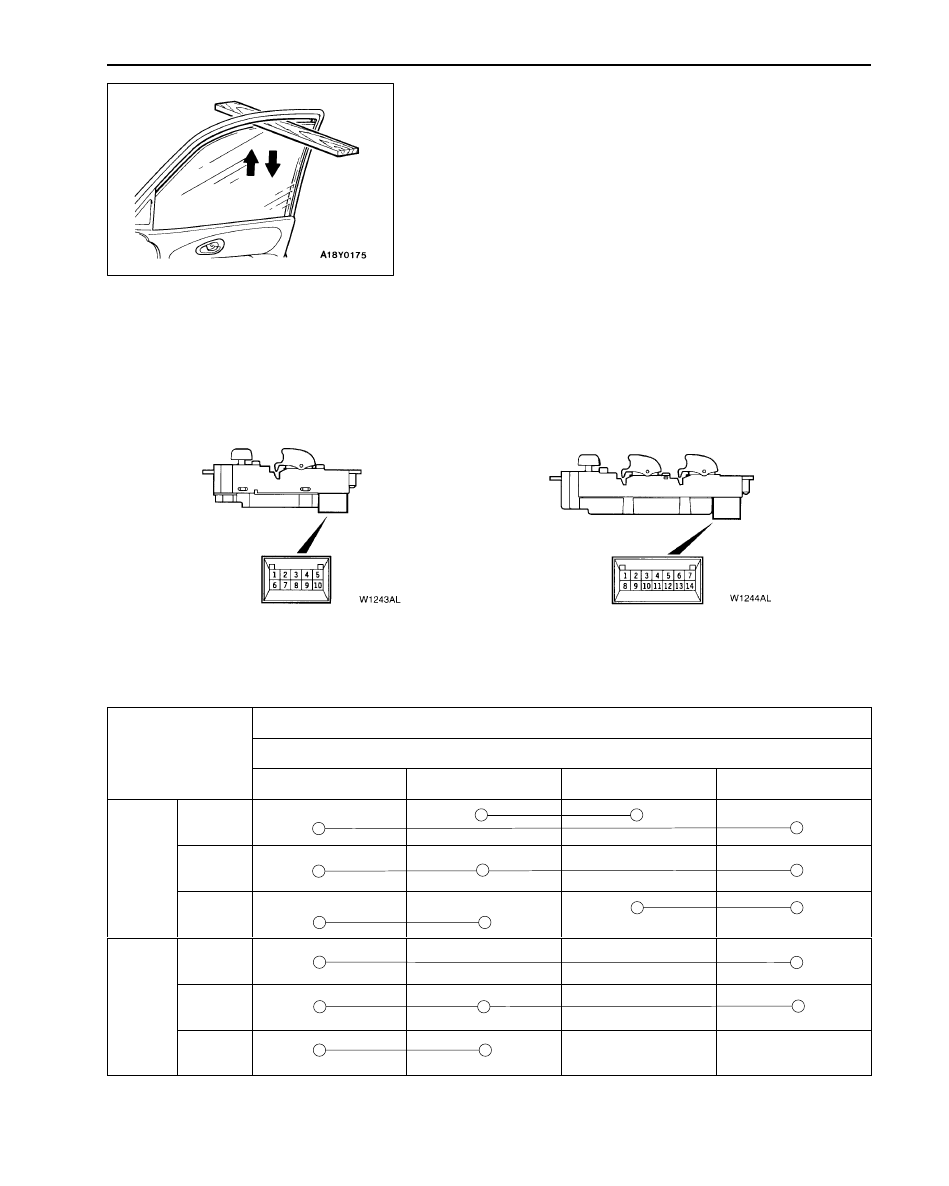

POWER WINDOW SAFETY MECHANISM
CHECK <FRONT DRIVER’S SIDE POWER
WINDOW>

1.

Place a wooden board about 10 mm thick as shown. Then,
raise the window glass.

2.

Check that the window lowers by about 150 mm when
the window clamps the board. If this doesn’t happen, do
troubleshooting. (Refer to GROUP 54B.)

DOOR TRIM AND WATERPROOF FILM

INSPECTION

POWER WINDOW MAIN SWITCH CONTINUITY CHECK

<3-door models>

<5-door models>

<3-door models>

Switch position

Terminal No.

Passenger side

3

4

5

9

Unlock

UP

OFF

DOWN

Lock

UP

OFF

DOWN

BODY  –

Door

BODY  –

Door

42-9

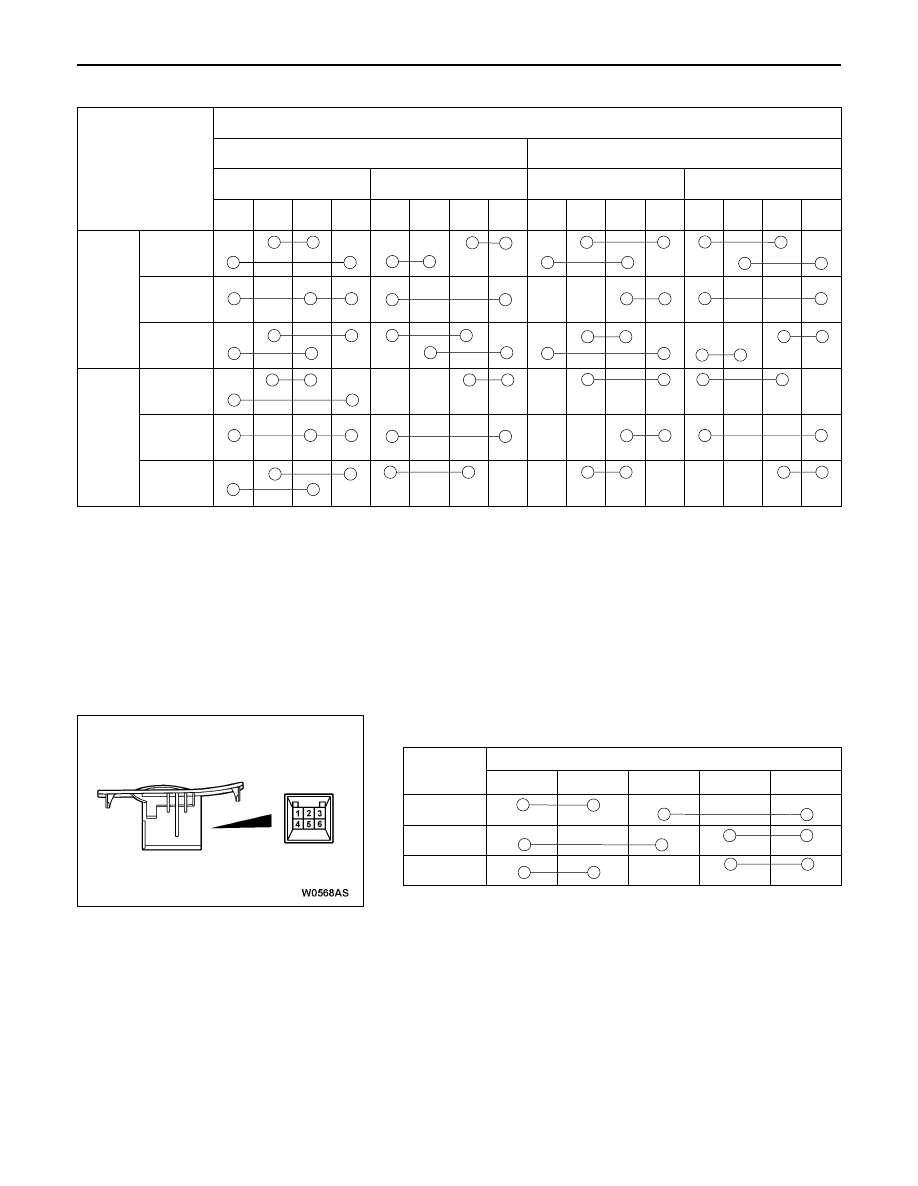

<5-door models>

Switch position

Terminal No.

Front door

Rear door

Driver side

Passenger side

Driver side

Passenger side

3

5

7

8

1

3

5

14

3

5

6

13

2

3

5

9

Un-
lock

UP

OFF

DOWN

Lock

UP

OFF

DOWN

POWER WINDOW SUB SWITCH CONTINUITY CHECK

Switch

iti

Terminal No.

position

1

2

4

5

6

UP

OFF

DOWN

DOOR GLASS AND REGULATOR

INSPECTION

POWER WINDOW MOTOR CHECK

1.

Connect the battery directly to the motor terminals.

2.

Check that the motor rotates smoothly.

3.

Reconnect the battery to the motor terminals vice versa.

4.

Check that the motor rotates in the reverse direction.

5.

If malfunction is present, replace the window regulator assembly.

NOTES

SERVICE BULLETIN

QUALITY INFORMATION ANALYSIS

OVERSEAS SERVICE DEPT. MITSUBISHI MOTORS CORPORATION

SERVICE BULLETIN

No.: ESB-00E51-501

Date

:

 2001-08-28

<Model>

<M/Y>

Subject:

CORRECTION TO MAINTENANCE
PROCEDURE FOR BACK DOOR GLASS

00-10

Group:

EXTERIOR

Draft No.: 00SY091416

CORRECTION

INTERNATIONAL
CAR
ADMINISTRATION
OFFICE

O. Kai - E.V.P. & G.M.

After Sales Service Dept.

(EC)PAJERO PININ/
MONTERO iO
(H60, H70)

1. Description:

This Service Bulletin informs you that correction has been made to the maintenance procedure for
back door glass.

2. Applicable Manuals:

Manual

Pub. No.

Language

Page(s)

’00 PAJERO PININ

CKRE00E1

(English)

Workshop Manual Chassis

CKRF00E1

(French)

CKRG00E1

(German)

CKRD00E1

(Dutch)

CKRI00E1

(Italian)

’00 MONTERO iO
Workshop Manual Chassis

CKRS00E1

(Spanish)

42-16, 17
