BODY  –

Sunroof

42-24

DISASSEMBLY AND REASSEMBLY

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

11

15

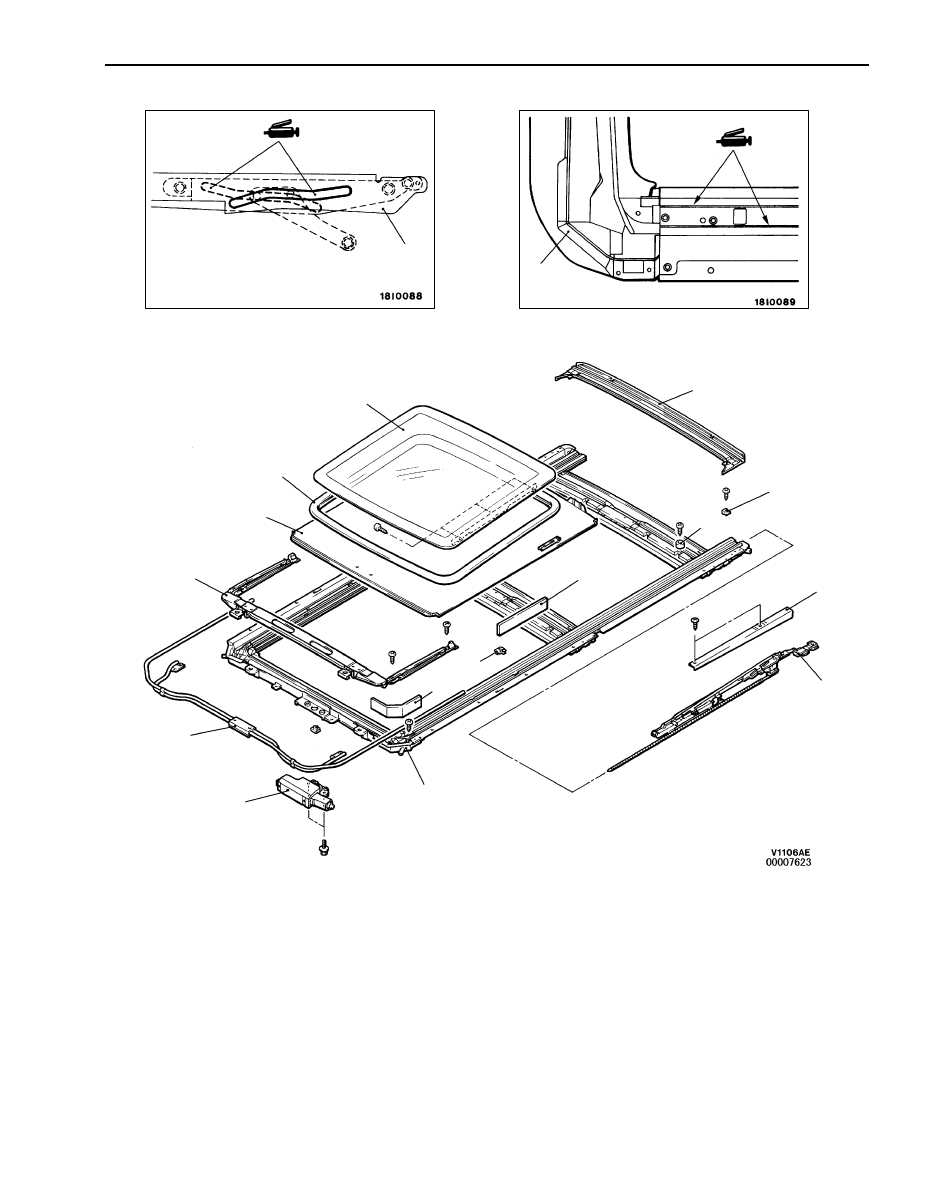

Disassembly steps

1. Roof lid glass assembly
2. Weatherstrip
3. Sunroof motor
4. Roof wind deflector panel
5. Roof drip channel
6. Panel stopper
7. Sunshade assembly
8. Guide rail stopper

9. Cable guide casing

10. Side deflector

11. Drive cable assembly

12. Seal
13. Seal
14. Clamp
15. Guide rail sub assembly

42-1

BODY

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . .

OUTLINE OF CHANGES

2

. . . . . . . . . . . . . . . . . .

DOOR

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

2

. . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

8

. . . . . . . . . . . . . . . . . .

Power Window Safety Mechanism
Check

8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DOOR TRIM AND WATERPROOF
FILM

8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DOOR GLASS AND REGULATOR

9

. . . . . . . .

BODY  –

General/Door

42-2

GENERAL

OUTLINE OF CHANGES

The following service procedures have been added. The other items are the same as before.

D

Troubleshooting

D

On-vehicle service

D

Door trim and waterproof film inspection

D

Door glass and regulator inspection

DOOR

TROUBLESHOOTING

The central door locking is controlled by the Smart Wiring System (SWS). For troubleshooting, refer to
GROUP 54B –  Troubleshooting.

DIAGNOSIS FUNCTION

INPUT SIGNAL CHECK POINTS <VEHICLES WITH ETACS-ECU>

1.

Connect the MUT-

II

 or a voltmeter to the diagnosis connector to check input signal. (Refer to GROUP

00  –  How to Use Troubleshooting/Inspection Service Points.)

2.

The following input signals can be checked:
Door lock actuator

D

LOCK

D

UNLOCK

NOTE
If all the input signals cannot be check by using the MUT-

II

, the diagnosis circuit may be defective.

INSPECTION CHART FOR TROUBLE SYMPTOMS

POWER WINDOWS

Symptom

Inspection
procedure

Reference
page

None of power window switches can operate any of windows.

1

42-3

Power window main switch can not operate any of windows. (However, each power
window sub-switch can operate window.)

2

42-4

Power window main switch can not operate driver’s window. (However, power window
main switch can operate window except driver’s window.)

3

42-4

Power window main switch can not operate passenger’s window. (However,
passenger’s power window sub-switch can operate passenger’s window.)

4

42-5

Power window main switch can not operate rear door windows. (However, rear power
window sub-switches can operate rear door windows.)

5

42-5

Passenger’s power window sub-switch can not operate passenger’s window.
(However, power window main switch can operate passenger’s window.)

6

42-6

Rear power window sub-switches can not operate rear door windows. (However,
power window main switch can operate rear door windows.)

7

42-7

BODY  –

Door

42-3

INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS

Inspection Procedure 1

None of power window switches can operate any of
windows.

Probable cause

Power window relay, power window relay drive circuit or ETACS-ECU may be defective.

D

Malfunction of power window relay

D

Malfunction of ETACS-ECU

D

Malfunction of junction block

D

Malfunction of wiring harness or connector

OK

Check trouble symptoms.

NG

Check the harness wire between fusible
link No.4 and junction block.

OK

Check trouble symptoms.

NG

Replace the junction block.

OK

Replace the ETACS-ECU.

OK

Check continuity at power window relay
connector C-71 and junction block con-
nector C-74.

D

Disconnect the connector and
measure at harness side.

D

Continuity between terminal 4 of
C-71 and terminal 1 of C-74
OK: Continuity

NG

Check the following connectors:
C-71, C-74

NG

Repair

OK

Measure at ETACS-ECHO connector
C-82.

D

Disconnect the connector and
measure at harness side.

D

Voltage between 8 and body earth
OK: System voltage

NG

Check the following connectors:
C-71, C-72, C-82

NG

Repair

Check power window relay continuity.

NG

Replace

Check trouble symptoms.

Repair

NG

OK

Replace the junction block.

NG
