BODY  –

Sunroof

42-20

SUNROOF

TROUBLESHOOTING

The timer does not operate for 30 seconds after the
ignition switch is turned to LOCK (OFF) position. (When
the ignition switch is turned on, the sunroof operates.)

Probable cause

The sunroof-ECU has a timer function which operates during 30 seconds after the
ignition switch is turned to LOCK (OFF) position. If the timer does not operate,
the cause may be a malfunction of the ETACS-ECU, sunroof-ECU or of the wiring
harness or connector.



Malfunction of wiring harness or connector



Malfunction of sunroof-ECU



Malfunction of the ETACS-ECU

No

NG

Measure at the sunroof-ECU connector
D-06 and ETACS-ECU connector C-83.



Disconnect the connector and
measure at the harness side.



Continuity between 10 (for D-06) and
21 (for C-83)
OK: Continuity

NG

Replace the ETACS-ECU.

Replace the sunroof-ECU.

Check the following connectors:
C-83, C-02, C-43, D-06

NG

OK

Check trouble symptoms.

Check the harness wire between the
ETACS-ECU and the sunroof-ECU, and
repair if necessary.

NG

Repair

OK

Does the central door locking system
operate properly?

Yes

Carry out the troubleshooting regarding
the central door locking system.

Carry out the troubleshooting regarding
the ETACS–ECU.

No

Is a diagnosis code sent to the
ETACS-ECU?

MUT-II

 input signal check



Ignition switch (IG1)



Front door switch (driver’s side)

Check the input signal circuits.

Check trouble symptoms.

NG

NG

Yes

OK

BODY  –

Sunroof

42-21

SUNROOF

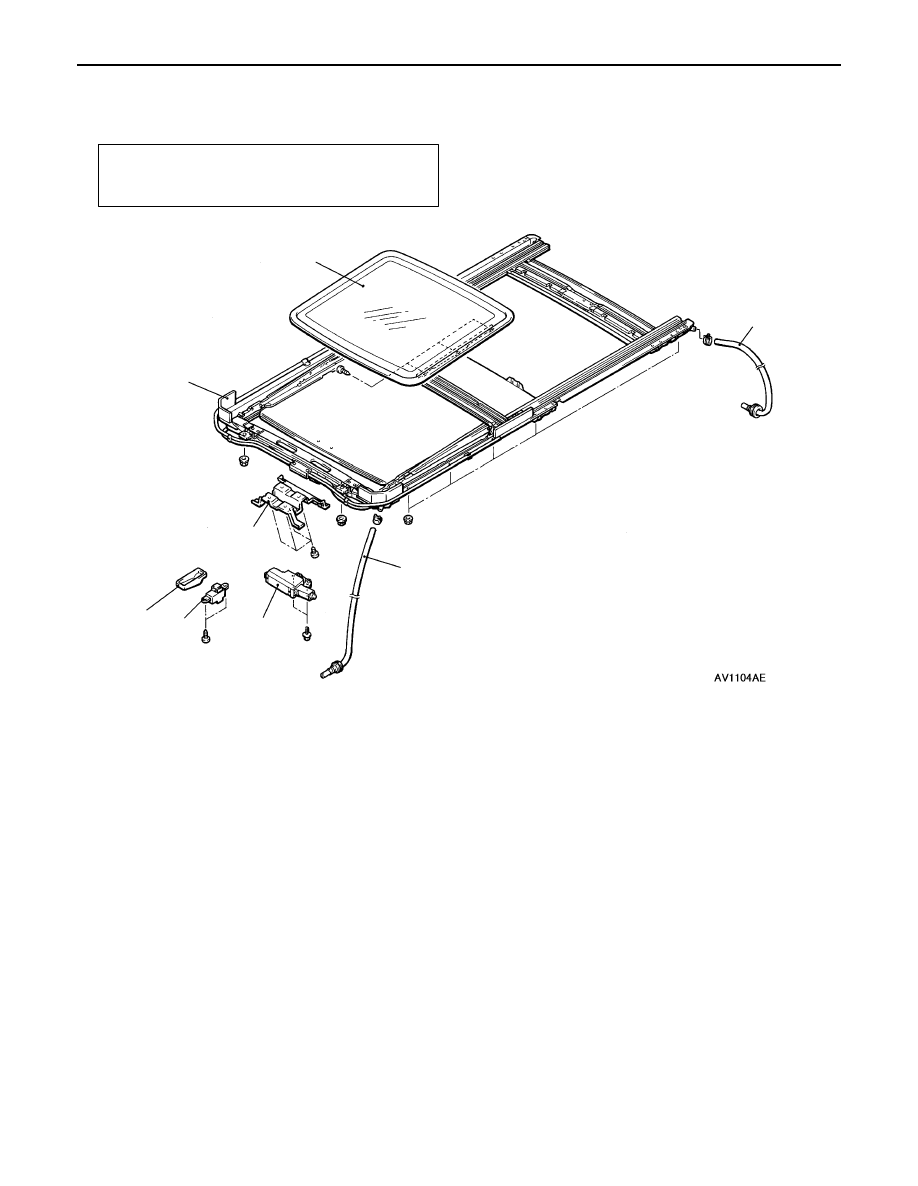

REMOVAL AND INSTALLATION

Post-installation Operation



Sunroof Water Test



Sunroof Fit Adjustment

1

2

3

4

5

6

7

4

1. Roof lid glass assembly

Sunroof switch removal steps

2. Sunroof switch cover
3. Sunroof switch

Drain hose removal steps



Headlining



Splash shield (Rear drain hose)



Cowl side trim and instrument lower
panel



Engine-ECU, throttle valve control
relay and throttle valve controller
(Driver’s-side drain hose)



A



A



4. Drain hose

Sunroof motor assembly removal
steps



Headlining



B



B



5. Sunroof motor assembly

Sunroof assembly removal steps



Headlining



A



A



4. Drain hose
6. Room lamp bracket
7. Sunroof assembly

BODY  –

Sunroof

42-22

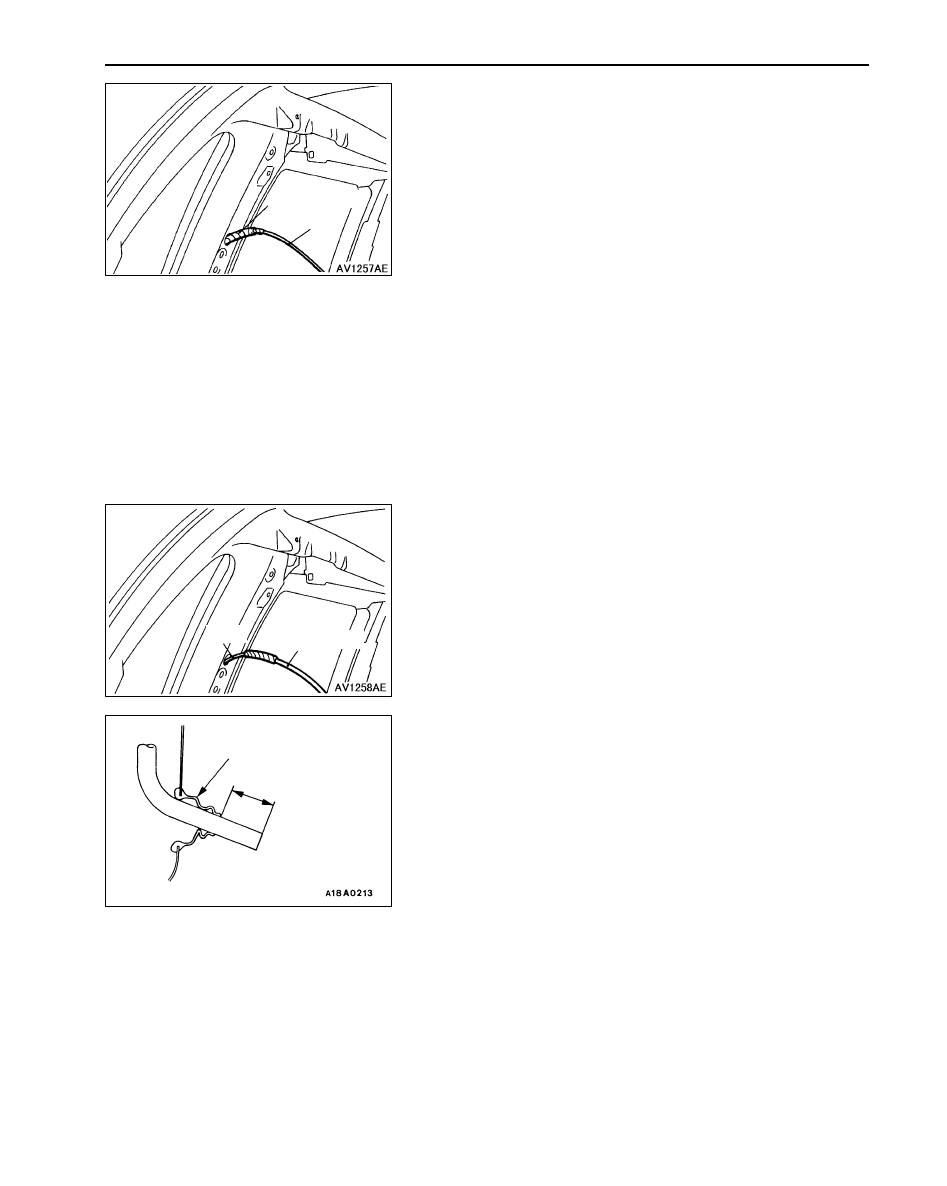

REMOVAL SERVICE POINTS



A



DRAIN HOSE REMOVAL

Tie a cord to the end of the drain hose, and wind tape around
it so that there is no unevenness. Then pull the drain hose
out from the passenger compartment.



B



SUNROOF MOTOR ASSEMBLY REMOVAL

Caution
Always close the roof lid glass fully before removing the
sunroof motor. If the fully-closed positions of the roof
lid glass and the sunroof motor are not the same, the
sunroof will not operate properly.

NOTE
If there is a problem with the sunroof motor so that the roof
lid glass cannot close fully, use an Allen key to turn the gear
section of the sunroof motor to fully close the roof lid glass.

INSTALLATION SERVICE POINTS



A



DRAIN HOSE INSTALLATION

1.

Tie the cord that was used during removal to the end
of the drain hose, and wind tape around it so that there
is no unevenness.

2.

Pull the cord to pull through the drain hose

3.

Install the grommet, and then position the drain hose so
that it protrudes from the grommet as shown in the
illustration.

Drain hose

Cord

Cord

Drain hose

Grommet

20–30 mm

BODY  –

Sunroof

42-23



B



SUNROOF MOTOR ASSEMBLY INSTALLATION

If the fully-closed position of the sunroof motor assembly is
incorrect, set the sunroof motor to the fully-closed position
by the following procedure, and then install the sunroof motor.
1.

Remove the sunroof motor assembly with the connector
still connected.

2.

Set the roof lid glass to the fully-closed position.

3.

Continue to push the sunroof close switch until the sunroof
motor stops turning. Then install the sunroof motor
assembly.

NOTE
Sunroof-ECU will initialize when the sunroof motor stops.
