Door

42-16

REAR DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

Pre-removal Operation
Door Trim Removal (Refer to P.42-9.)

Post-installation Operation



Door Inside Handle Play Check



Door Outside Handle Play Check



Door Trim Installation (Refer to P.42-9.)

6 Nm

4

3

2

1

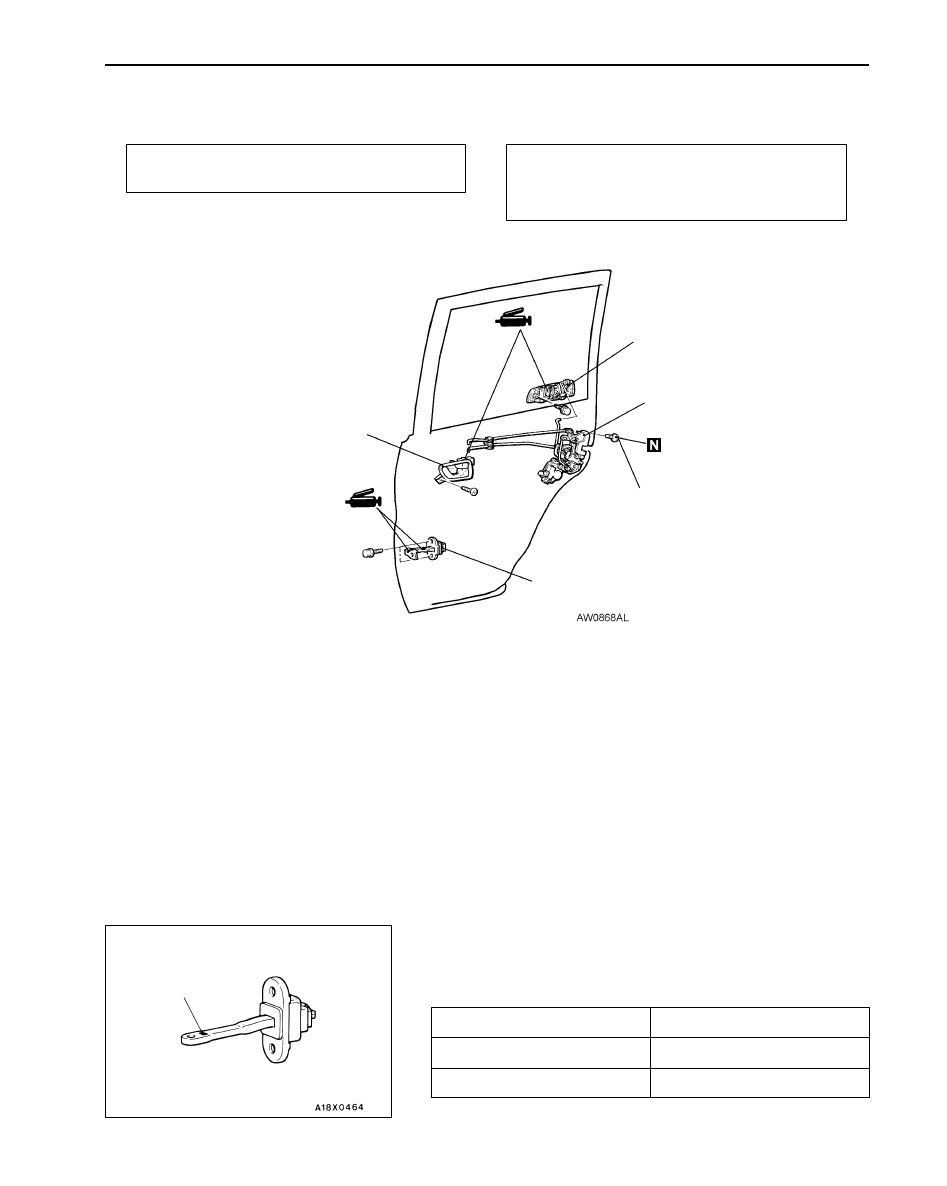

Door handle and door latch
assembly removal steps



B



1. Door inside handle



Waterproof film (Refer to P.42-9.)

2. Door outside handle
3. Door latch assembly

Door check removal steps



Waterproof film (Refer to P.42-9.)



A



4. Door check

INSTALLATION SERVICE POINTS



A



DOOR CHECK INSTALLATION

Install with the following identification marks upward.

Items

Identification mark

Left door

26L

Right door

26R

Identification mark

BODY  –

Door

42-17



B



DOOR INSIDE HANDLE INSTALLATION

1.

Install the inside lock cable to the door inside handle as
follows:
(1) Install the inner cable end in the inside lock cable

to the clip in the door inside handle.

(2) Turn the inside lock knob to the door lock position.
(3) Install the outer cable end to the door inside handle

securely.

(4) Install the clip to the inner cable.

2.

Install the inside handle rod to the door inside handle.

3.

Install the door inside handle to the door.

INSPECTION

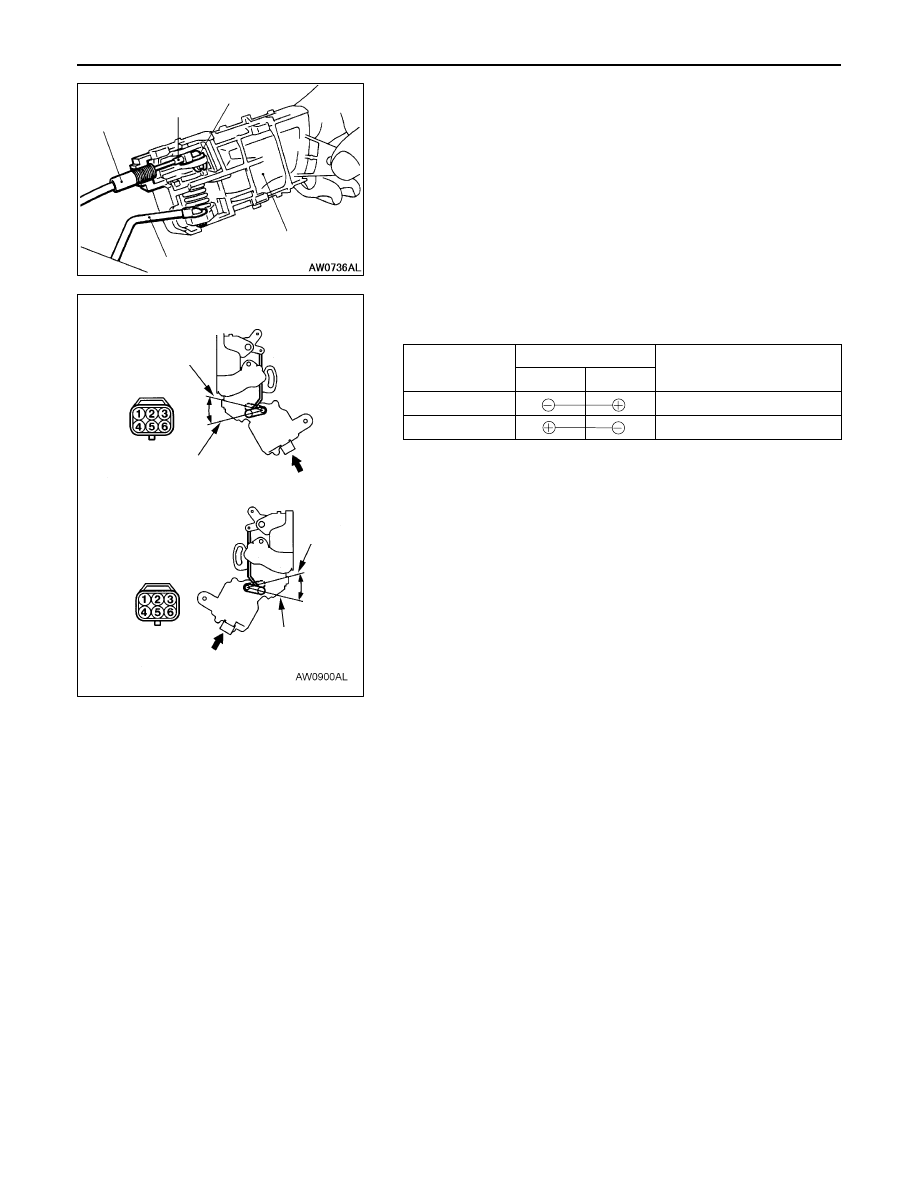

DOOR LOCK ACTUATOR CHECK

Rod position

Terminal No.

Rod operation

2

3

LOCK

LOCK to UNLOCK

UNLOCK

UNLOCK to LOCK

Outer
cable end

Inner cable

Clip

Door inside handle

Inside handle rod

<Left side>

View A

Unlock

<Right side>

View B

Unlock

Lock

A

B

Lock

BODY  –

Door

42-18

WINDOW GLASS RUNCHANNEL AND DOOR OPENING
WHETHERSTRIP

REMOVAL AND INSTALLATION

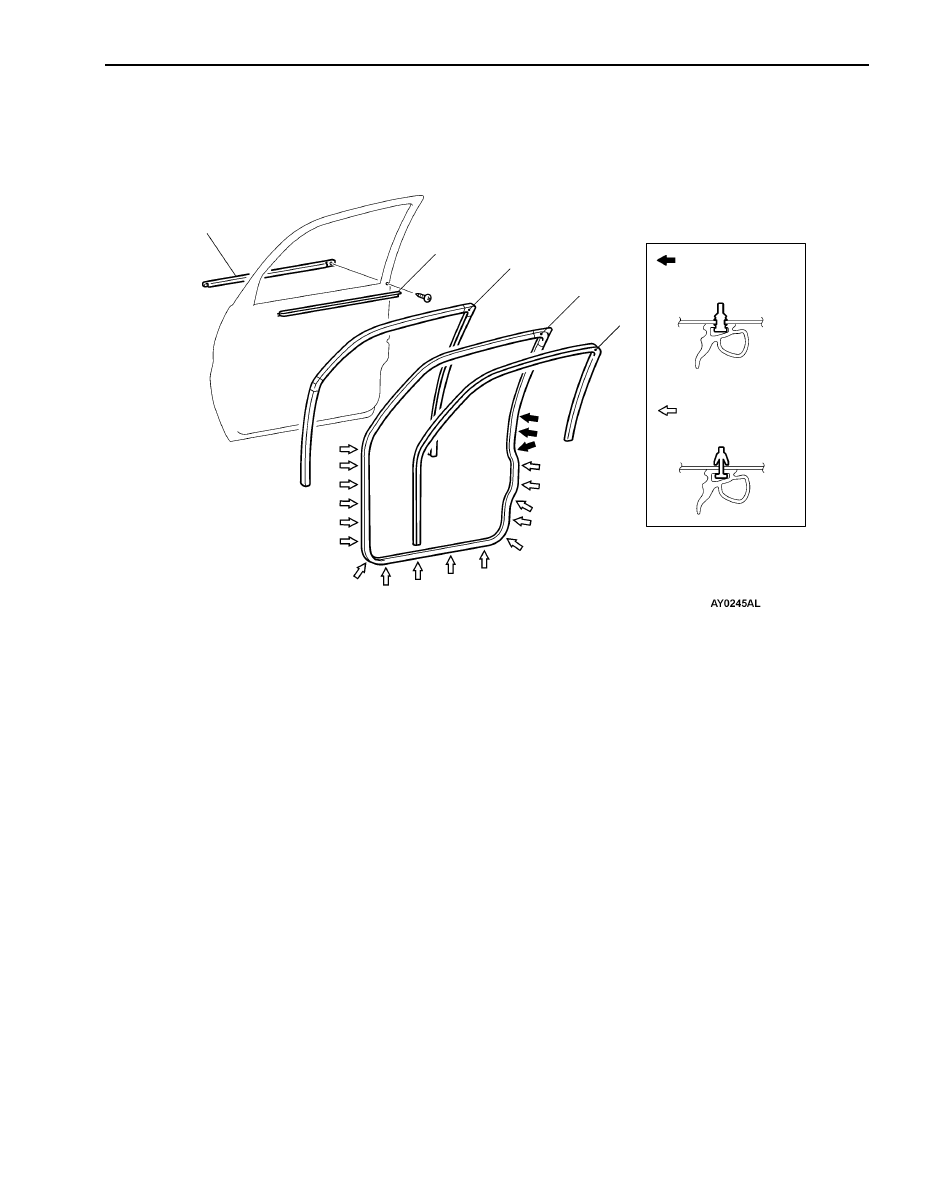

<FRONT DOOR>

Sectional view of

clip position

Sectional view of

clip position

5

4

3

2

1

Door inner opening weatherstrip
removal steps



Scuff plate (Refer to GROUP 52A.)



Cowl side trim (Refer to GROUP 52A.)



Center pillar lower trim (Refer to
GROUP 52A.)

1. Door inner opening weatherstrip

Door outer opening weatherstrip
removal



A



2. Door outer opening weatherstrip

Door window glass runchannel
removal steps

3. Door window glass runchannel
4. Door window glass lower

runchannel

Door beltline moulding removal
steps



Outside rear view mirror

5. Door beltline moulding

BODY  –

Door

42-19

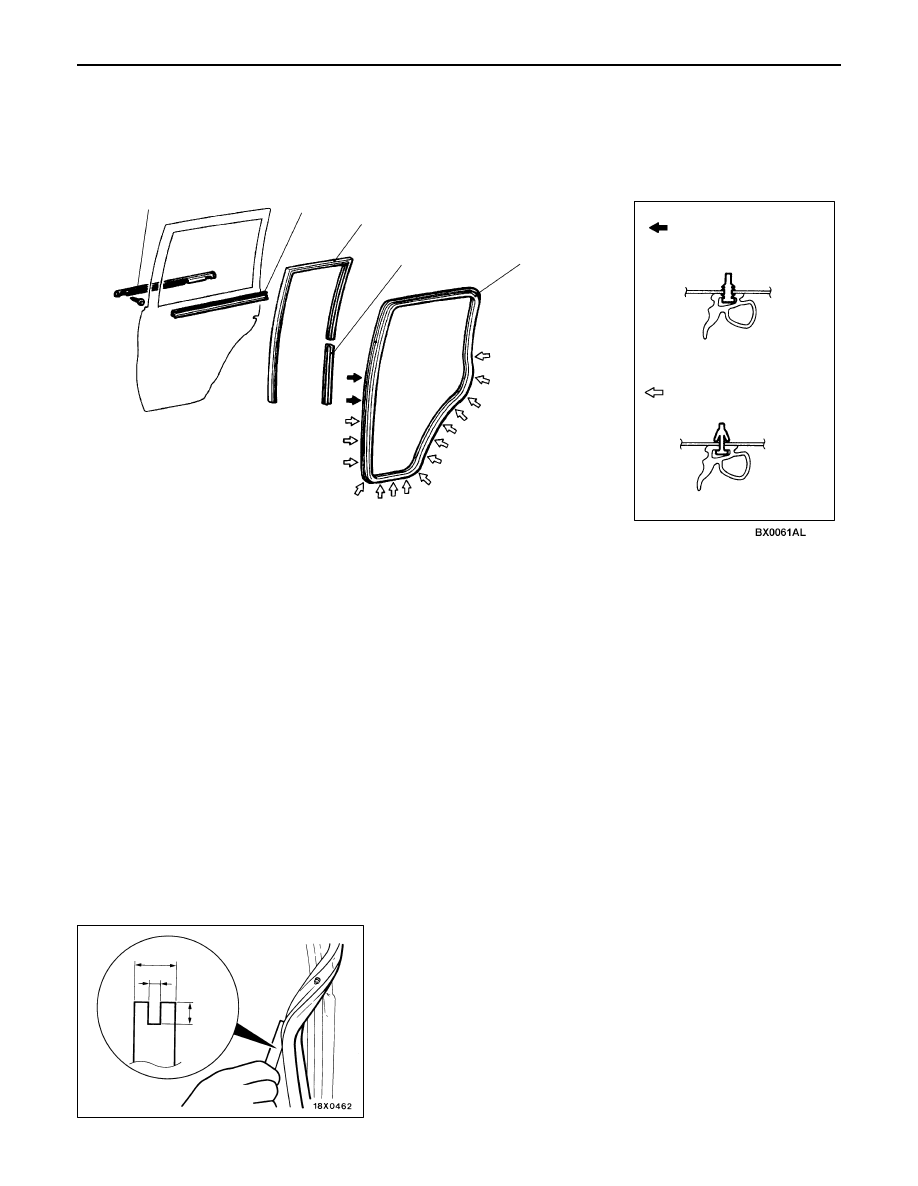

<REAR DOOR>

Sectional view of

clip position

Sectional view of

clip position

5

4

3

2

1



A



1. Door outer opening weatherstrip

Door window glass runchannel
removal steps

2. Door window glass runchannel



Door lower sash (Refer to P.42-13.)

3. Door window glass lower

runchannel

Door beltline inner weatherstrip
removal steps



Door trim (Refer to P.42-9.)

4. Door beltline inner weatherstrip

Door beltline moulding removal

5. Door beltline moulding

REMOVAL SERVICE POINT



A



DOOR OUTER OPENING WEATHERSTRIP
REMOVAL

Make a tool as shown and remove the door opening
weatherstrip

.

15 mm

4 mm

8 mm

Thickness
1mm
