STEERING –

Power Steering Oil Hoses

37A-33

4

9

10

12  Nm

8

57  Nm

15  Nm

34  Nm

12 Nm

2

3

6

5

1

<L.H. drive vehicles>

<R.H. drive vehicles>

1

4

9

10

12  Nm

8

57  Nm

12  Nm

34  Nm

12 Nm

2

3

6

5

7

15  Nm

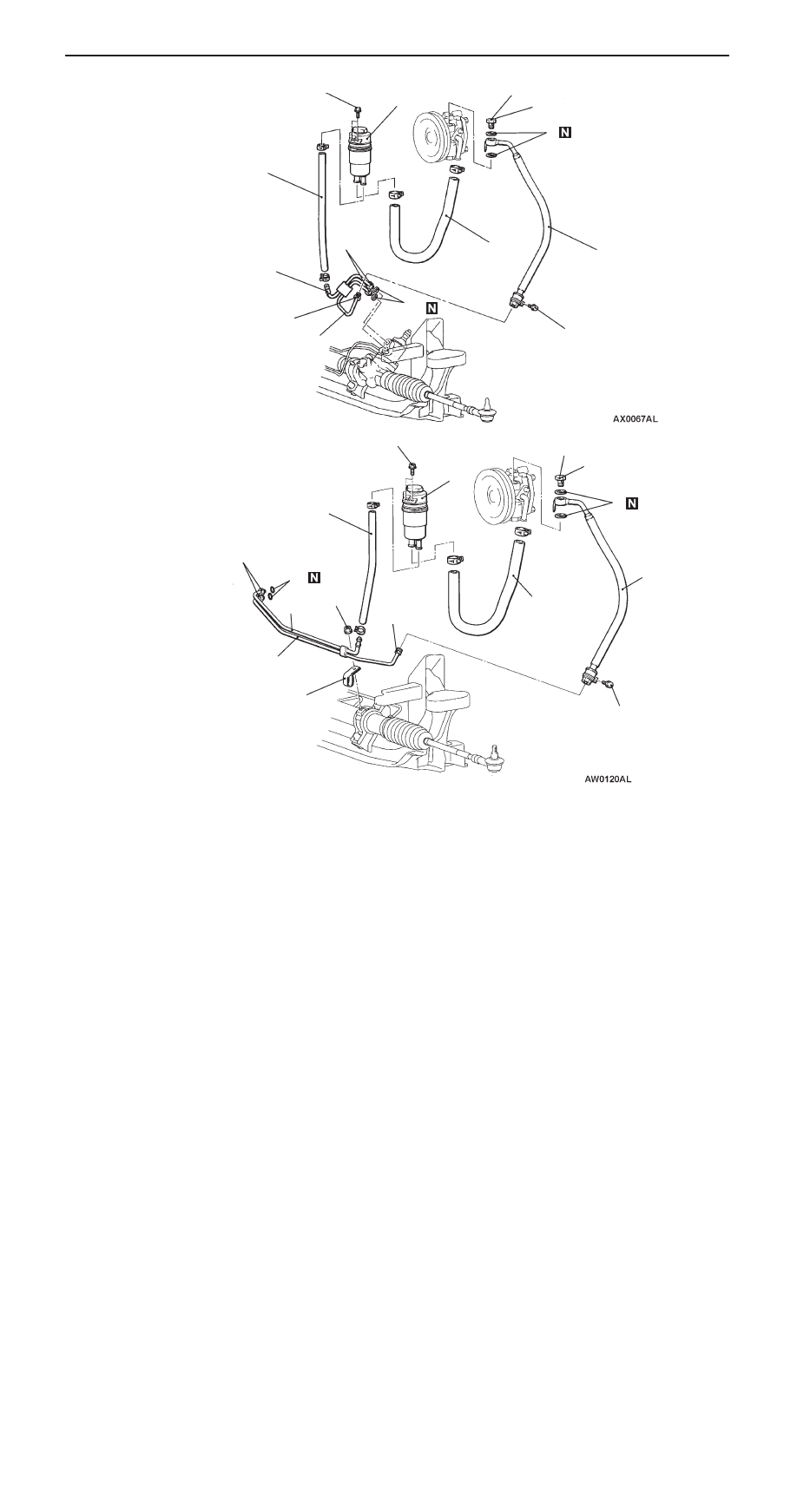

Removal steps

"

C

A

1. Return hose

"

B

A

2. Suction hose
3. Oil reservoir

D

Splash shield (Refer to P.37A-15, 16.)

4. Eye bolt

"

A

A

5. Pressure hose

6. Gasket
7. Clip
8. Return tube
9. Pressure tube

10. O-ring

STEERING –

Power Steering Oil Hoses

37A-34

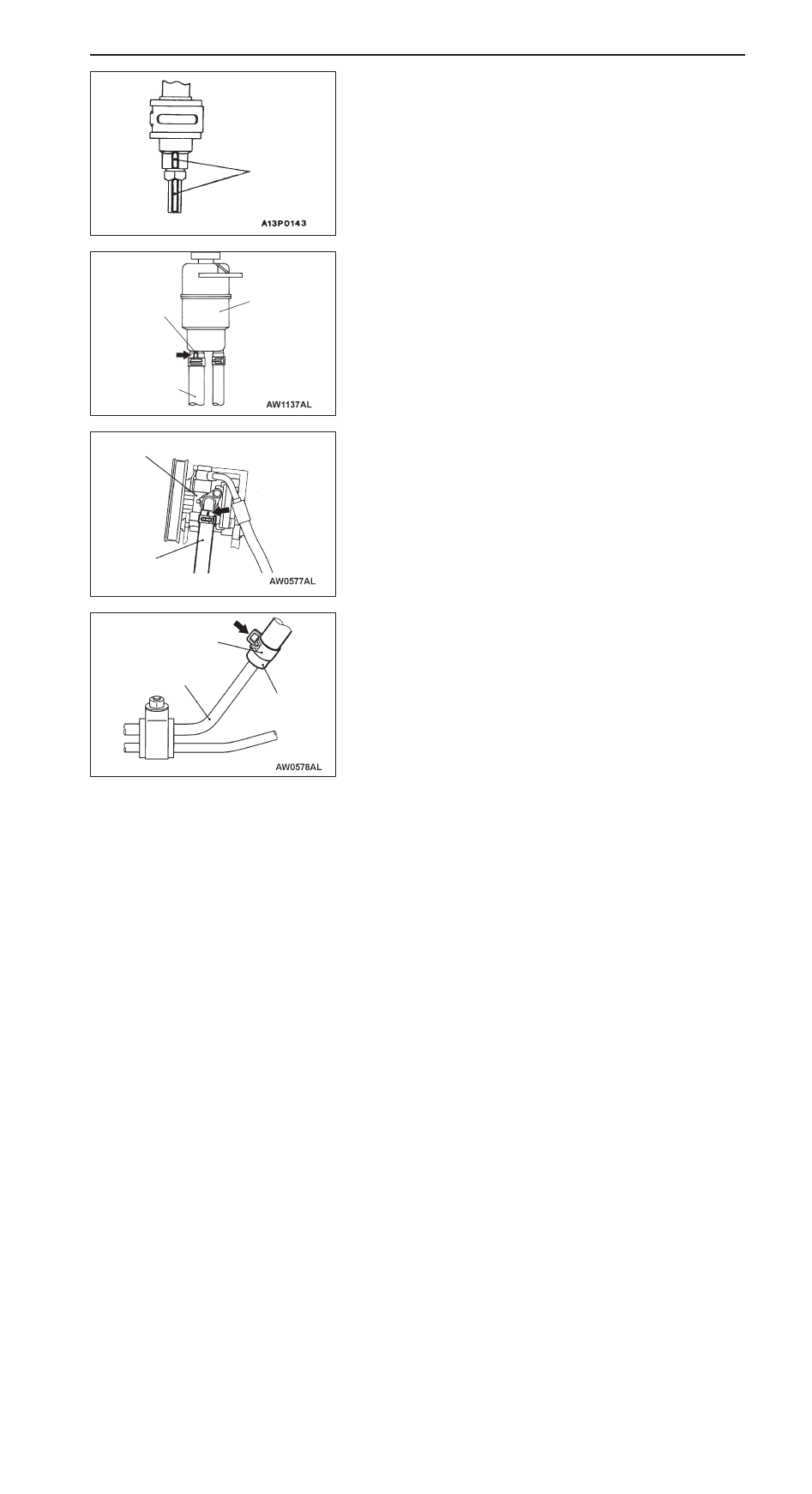

INSTALLATION SERVICE POINTS

"

A

A

PRESSURE HOSE INSTALLATION

Install with the marks on the pressure hose and pressure
tube aligned.

"

B

A

SUCTION HOSE INSTALLATION

1.

Install with the mark at the end of the hose (oil reservoir
side) and the alignment mark on the oil reservoir aligned.

2.

Install so that the mark at the end of the hose(oil pump
side) is positioned as shown.

"

C

A

RETURN HOSE INSTALLATION

Install so that the hose clip claws are placed as shown.

Mating mark

Oil reservoir

Alignment
mark on
oil reservoir

Suction hose

Oil pump

Suction hose

Return tube

Hose clip

Return hose
