STEERING –

Power Steering Gear Box and Linkage

37A-17

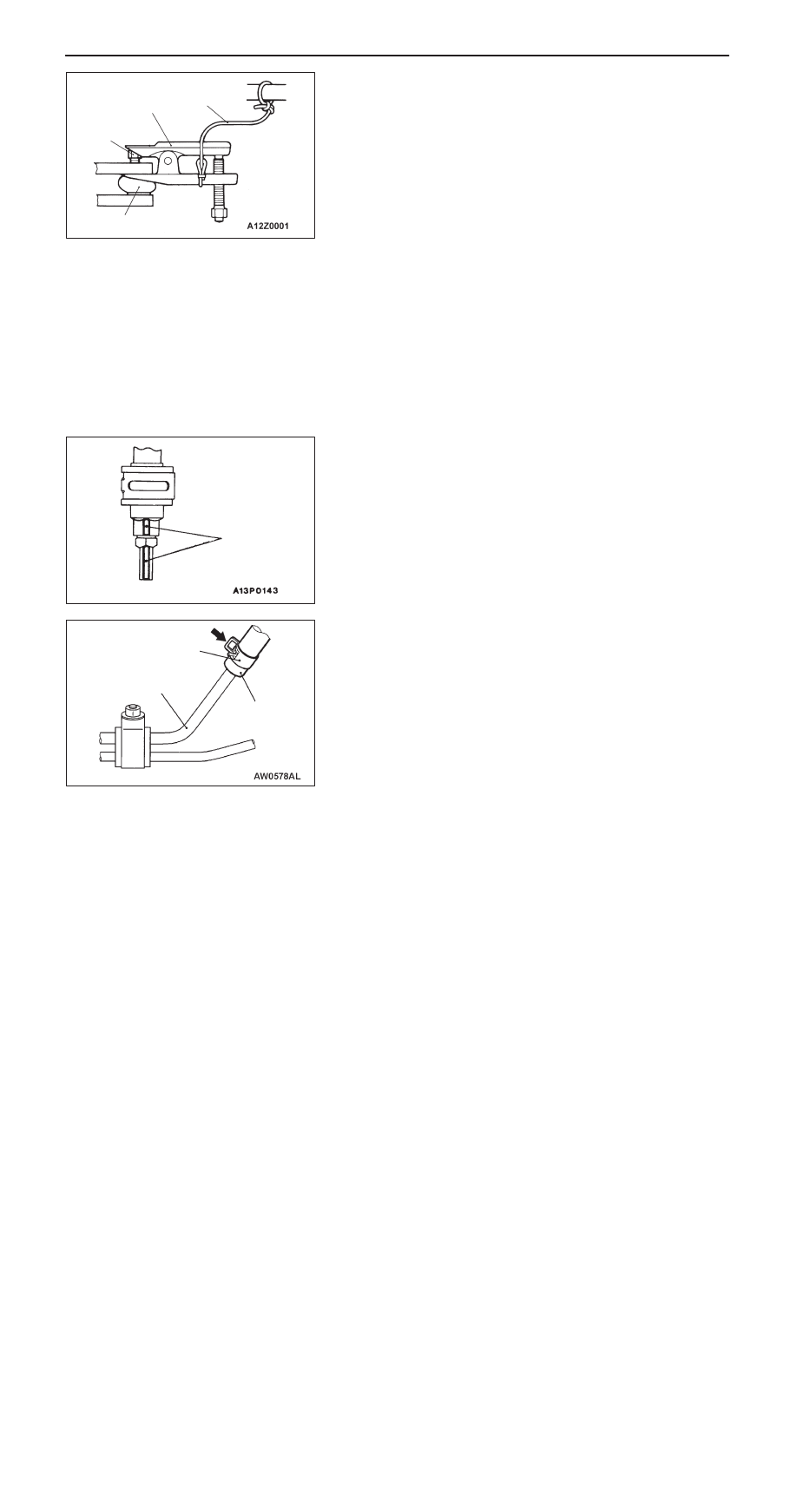

REMOVAL SERVICE POINTS

A

A

"

TIE ROD END AND KNUCKLE DISCONNECTION

Caution
(1) In order not to damage the ball joint thread, the tie

rod end mounting nut must be only loosened but not
removed from the ball joint. Be sure to use the special
tool.

(2) Tie the special tool with a cord so as not to fall off.

A

B

"

STEERING GEAR BOX AND LINKAGE REMOVAL

Caution
Do not damage the boots when removing the steering
gear box and linkage.

INSTALLATION SERVICE POINTS

"

A

A

PRESSURE HOSE CONNECTION

Connect the pressure hose and pressure tube with their mating
marks aligned.

"

B

A

RETURN HOSE CONNECTION

Connect the return hose so that the claws of the hose clip
are positioned as shown.

Cord

Ball joint

Nut

MB990635,
MB991113 or
MB991406

Mating marks

Hose clip

Return tube

Return hose

STEERING –

Power Steering Gear Box and Linkage

37A-18

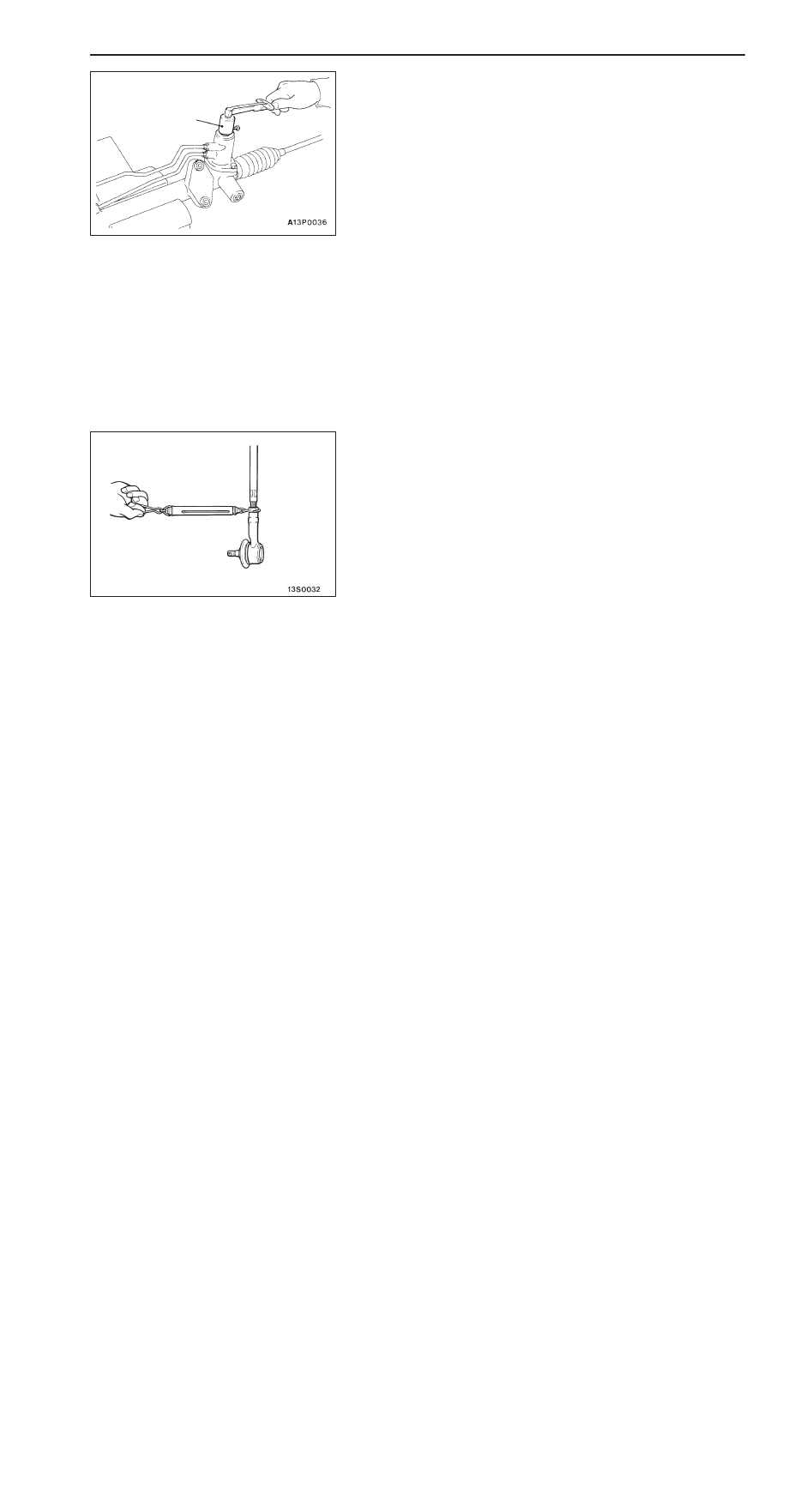

INSPECTION

GEAR BOX PINION TOTAL ROTATION TORQUE CHECK
1.

Using the special tool, turn the pinion gear at a speed
of one rotation per 4 to 6 seconds to measure total rotation
torque.

Standard values:

Total rotation torque: 0.6 – 1.5 Nm
Torque fluctuation: 0.5 Nm or less

NOTE
(1) Remove the bellows from the rack housing before

measuring.

(2) Measure the total rotation torque by turning the special

tool left and right 180

_

 from the neutral position.

2.

If the standard values are not met, adjust the pinion total
rotation torque. (Refer to P.37-26.)

3.

In case the adjustment is impossible, disassemble and
check the components, and repair if necessary.

Caution
Secure the steering gear box and linkage in their
mounting positions only. Otherwise, deformation or
damage could result.

TIE ROD SWING RESISTANCE CHECK

1.

Swing the tie rod 10 times hardly.

2.

With the tie rod end downwards as shown, use a spring
scale to measure swing resistance (swing torque).

Standard value: 5 – 17 N (1.5 – 4.9 Nm)

3.

If the measured value is above the standard value, replace
the tie rod.

4.

If below, check the ball joint for looseness or ratcheting.
The tie rod is still serviceable when the ball joint swings
smoothly.

TIE ROD END BALL JOINT DUST COVER CHECK

1.

Check the dust cover for cracks or damage by pushing
it with finger.

2.

If the dust cover is cracked or damaged, replace the tie
rod end. (Refer to P.37A-19, 20.)

NOTE
A cracked or damaged dust cover may damage the ball
joint. Replace the dust cover when it is damaged during
service work.

MB991006

STEERING –

Power Steering Gear Box and Linkage

37A-19

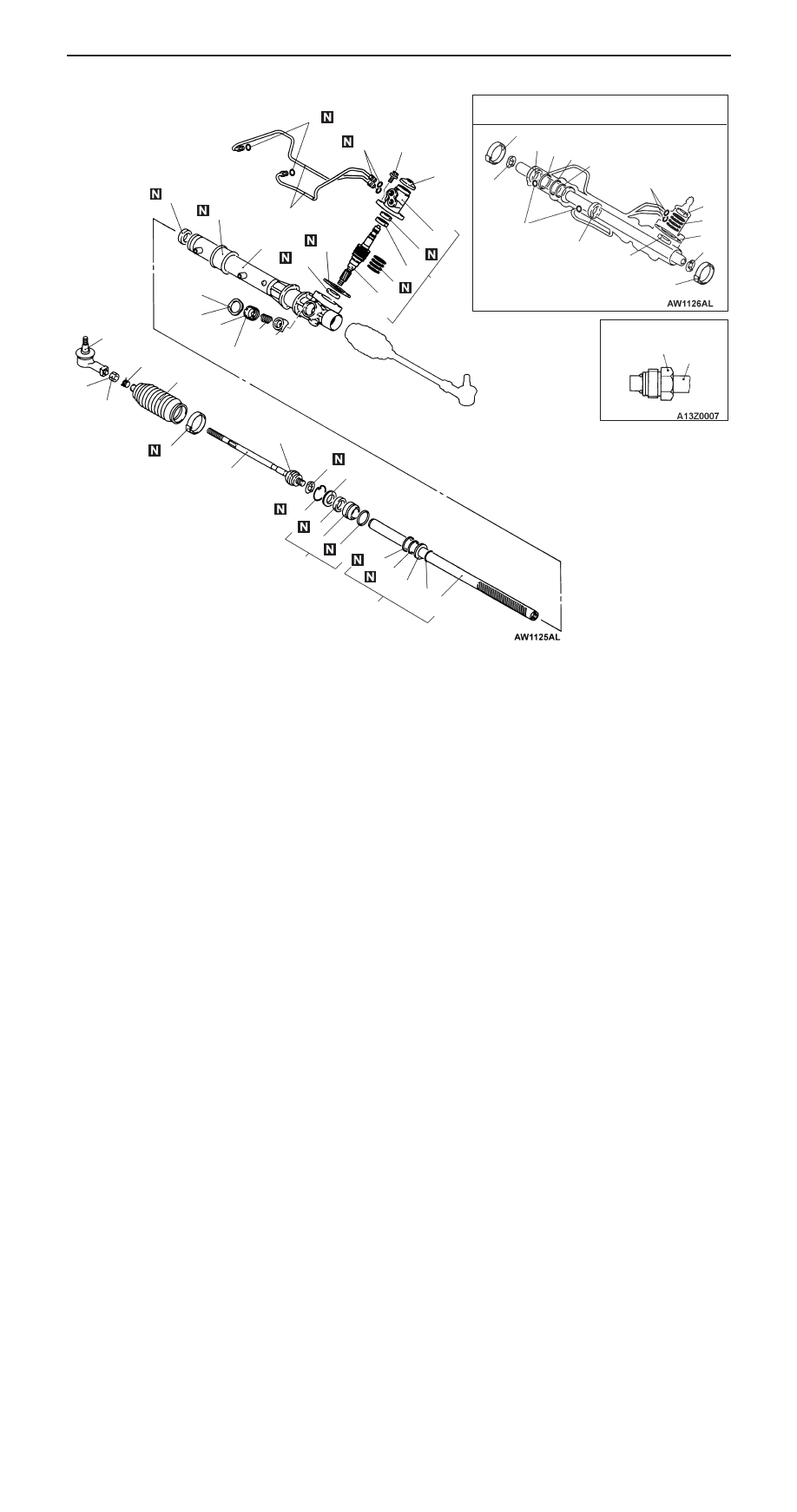

DISASSEMBLY AND REASSEMBLY

2

6

2

25 Nm

88 Nm

7

1

27

8

9

33

1

11

10

22  Nm³ć30_

29

30

25

16

14

24

35

37

34

15

17

18

19

20

21

29

30

2

9

15

9

6

27

34

35

17

26

19

2

59  Nm

Steering gear seal set

Flare nut

6

9

13 Nm

<L.H. drive vehicles>

13

36

31

32

23

22

26

28

5

3

49 – 59 Nm

4

12

Disassembly steps

1. Feed pipe
2. O-ring

"

M

A

3. Locking nut

"

M

A

4. Tie rod end
5. Clip

"

L

A

6. Band
7. Bellows

"

K

A

8. Tie rod

"

K

A

9. Tab washer

"

J

A D

Total pinion torque adjustment

"

I

A

10. Locking nut

A

A

" "

I

A

11. Rack support cover

12. Rack support spring
13. Rack support
14. Valve assembly

A

B

" "

H

A

15. Lower oil seal

A

B

"

16. Pinion and valve assembly

A

C

" "

G

A

17. Seal ring

A

D

" "

F

A

18. Upper bearing

A

D

" "

F

A

19. Upper oil seal
20. Valve housing
21. Dust cover

A

E

" "

E

A

22. Circlip

A

F

"

23. Rack stopper

A

F

" "

D

A

24. Rack bushing assembly

A

F

" "

D

A

25. Rack bushing

A

F

" "

D

A

26. Oil seal

A

F

"

27. O-ring

A

F

" "

C

A

28. Rack assembly
29. Piston ring
30. O-ring
31. Circlip
32. Pistion
33. Rack
34. Gasket

A

G

" "

B

A

35. Oil seal

"

A

A

36. Gear housing mounting rubber
37. Gear Housing

STEERING –

Power Steering Gear Box and Linkage

37A-20

6

2

25 Nm

88 Nm

7

1

27

12

8

9

33

1

11

10

22  Nm³ć30_

29

30

25

16

14

35

37

34

15

17

18

19

20

21

19

2

59  Nm

Steering gear seal set

Flare nut

13 Nm

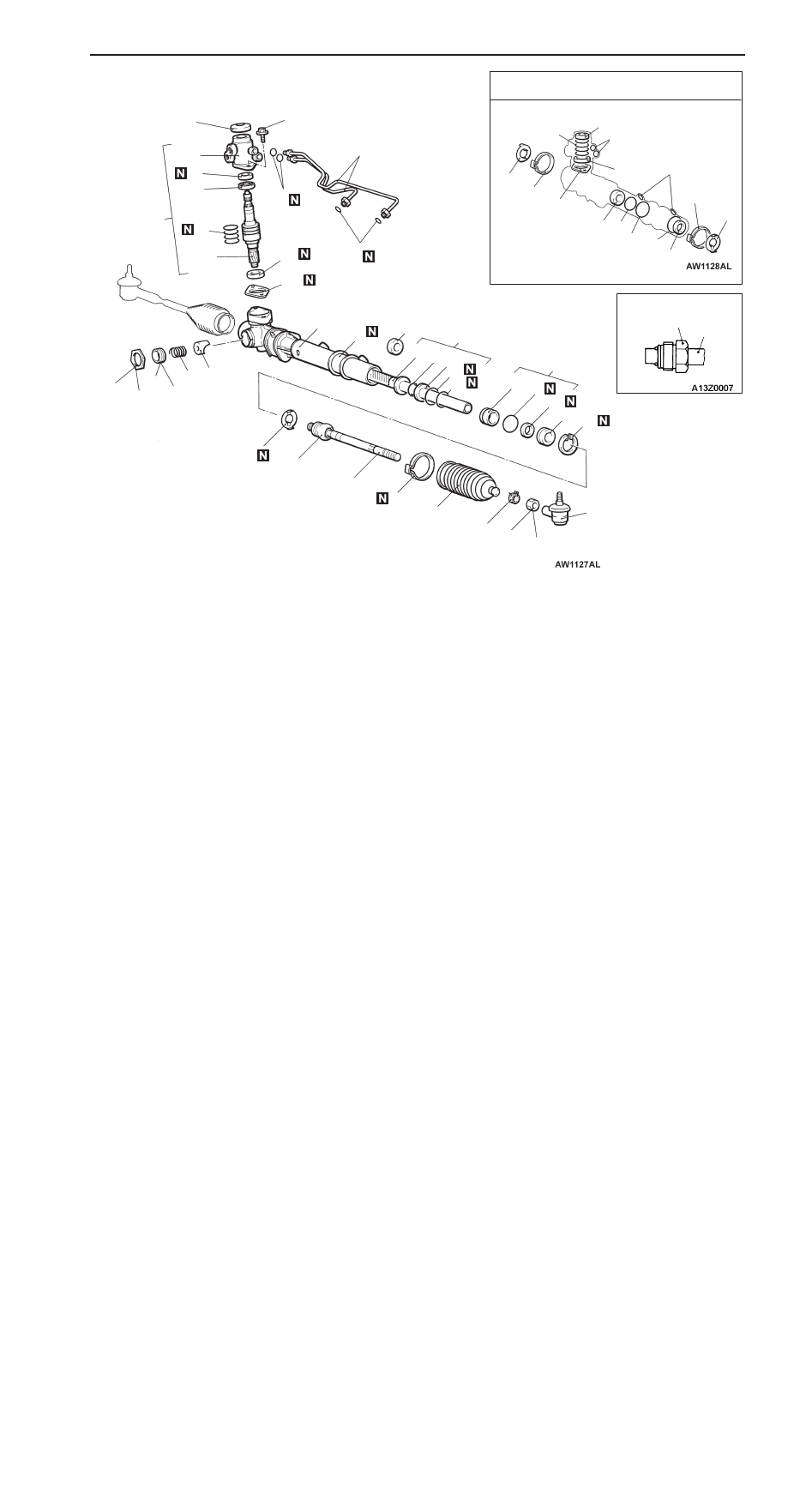

<R.H. drive vehicles>

13

36

31 32

23 22

26

5

3

49 – 59 Nm

4

7

28

24

9

17

2

6

34

15

2

6

9

35

30

29

27

26

Disassembly steps

1. Feed pipe
2. O-ring

"

M

A

3. Locking nut

"

M

A

4. Tie rod end
5. Clip

"

L

A

6. Band
7. Bellows

"

K

A

8. Tie rod

"

K

A

9. Tab washer

"

J

A D

Total pinion torque adjustment

"

I

A

10. Locking nut

A

A

" "

I

A

11. Rack support cover

12. Rack support spring
13. Rack support
14. Valve assembly

A

B

" "

H

A

15. Lower oil seal

A

B

"

16. Pinion and valve assembly

A

C

" "

G

A

17. Seal ring

A

D

" "

F

A

18. Upper bearing

A

D

" "

F

A

19. Upper oil seal
20. Valve housing
21. Dust cover

A

E

" "

E

A

22. Circlip

A

F

"

23. Rack stopper

A

F

" "

D

A

24. Rack bushing assembly

A

F

" "

D

A

25. Rack bushing

A

F

" "

D

A

26. Oil seal

A

F

"

27. O-ring

A

F

" "

C

A

28. Rack assembly
29. Piston ring
30. O-ring
31. Circlip
32. Pistion
33. Rack
34. Gasket

A

G

" "

B

A

35. Oil seal

"

A

A

36. Gear housing mounting rubber
37. Gear Housing
