FRONT AXLE –

Differential Carrier/Vacuum Pipes

26-13

7.

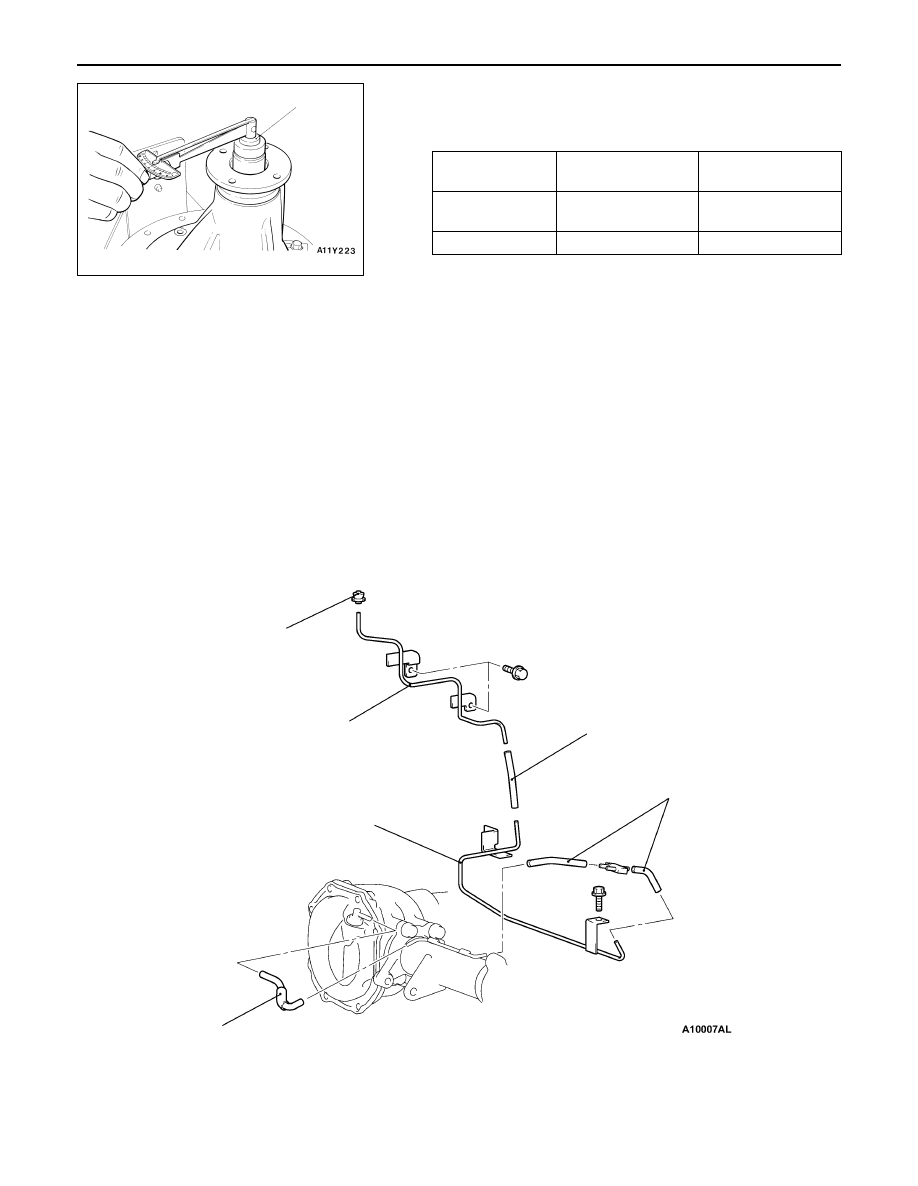

Measure the drive pinion rotation torque (with the oil seal)
by using the special tool.

Standard value:

Bearing division

Bearing lubrication

Rotation torque
N·m

New

None (With
anti-rust agent)

0.98 –  1.27

New/reused

Gear oil applied

0.49 –  0.58

8.

If the drive pinion rotation torque is not within the standard
value, check the tightening torque of the companion flange
self-locking nut and the oil seal installation condition.

VACUUM PIPES

REMOVAL AND INSTALLATION

4

2

3

1

1

1

Removal step

1. Vacuum hose
2. Vacuum pipe assembly

3. Vacuum pipe assembly
4. Breather cap

MB990326

NOTES

REAR AXLE

Click on the applicable bookmark to selected the required model year

27-1

REAR AXLE

CONTENTS

GENERAL INFORMATION

2

. . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

3

. . . . . . . . . . . . . . . . .

LUBRICANTS

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEALANTS AND ADHESIVES

4

. . . . . . . . . . . . . .

SPECIAL TOOLS

4

. . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

6

. . . . . . . . . . . . . . . . . . . . .

Rear Axle Total Backlash Check

6

. . . . . . . . . . . . . . .

Gear Oil Level Check

7

. . . . . . . . . . . . . . . . . . . . . . . . .

Wheel Bearing Axial Play Check

7

. . . . . . . . . . . . . . .

Axle Housing Oil Seal Replacement

7

. . . . . . . . . . . .

AXLE ASSEMBLY

9

. . . . . . . . . . . . . . . . . . . . . . . . . .

AXLE SHAFT

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIFFERENTIAL CARRIER

15

. . . . . . . . . . . . . . . . .
