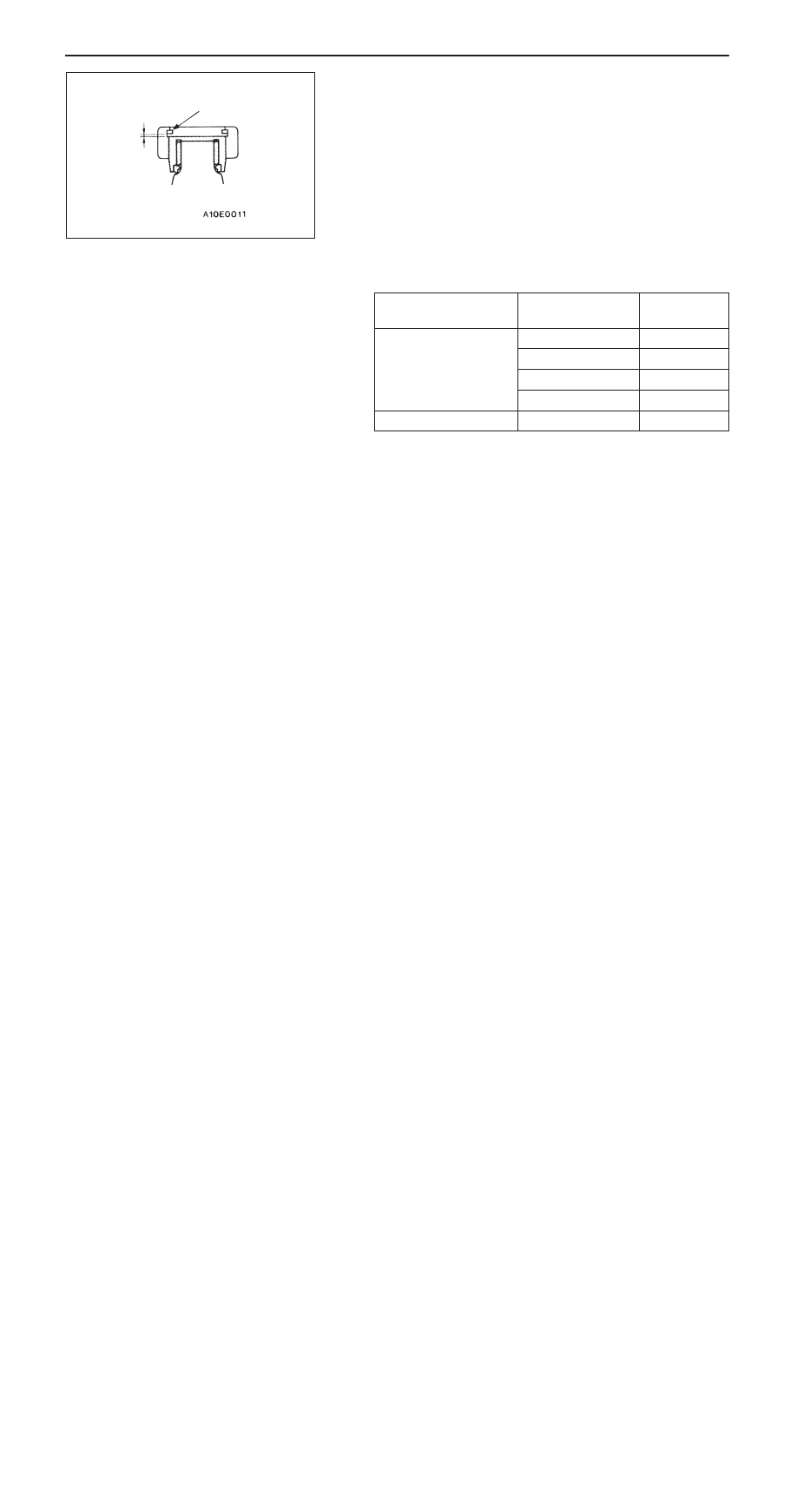

PROPELLER SHAFT – Propeller Shaft

25-7

3.

Install the snap ring on the opposite side and measure the
clearance of the snap ring groove with a thickness gauge.

Standard value:

Front propeller shaft (A) 0 – 0.06 mm
Rear propeller shaft (A) 0.02 – 0.06 mm

Caution
Always use snap rings of the same thickness on both
sides.

4.

If the standard value(s) are not met, use other snap rings
to adjust the clearance.

Items

Thickness mm

Identification
colour

Front propeller shaft,
R

ll

h ft

1.28

Rear propeller shaft

1.31

Yellow

1.34

Blue

1.37

Purple

Rear propeller shaft

1.40

Brown

Snap ring

A

NOTES

PROPELLER SHAFT –

General/Service Specifications

25-1

GROUP 25

PROPELLER SHAFT

GENERAL

OUTLINE OF CHANGE

Specifications for 5 door models have been added.

SERVICE SPECIFICATIONS

Items

Standard value

Limit

Propeller shaft runout mm

Front

0.5

Rear

0.4

Length of rear propeller shaft mm

790

 ±

1.5

Clearance of snap ring
groove mm

Front

0 – 0.06

groove mm

Rear

0.02 – 0.06

PROPELLER SHAFT – General/Service Specifications

25-1

GROUP 25

PROPELLER SHAFT

GENERAL

OUTLINE OF CHANGE

Specifications for 1800-MPI models have been added.

SERVICE SPECIFICATIONS

Items

Standard value

Limit

Propeller shaft runout mm

Front

0.5

Rear

0.4

Length of rear propeller shaft mm

642.5

 ±

1.5 <3 door models>

814.5

 ±

1.5 <5 door models>

Clearance of snap ring
groove mm

Front

0 – 0.06

groove mm

Rear

0.02 – 0.06
