MANUAL TRANSMISSION –

General/General Information

22-1

GROUP 22

MANUAL TRANSMISSION

GENERAL

OUTLINE OF CHANGE

Due to the addition of the vehicles with the 4G93-MPI engine, the V5M21 type transmission has been
adopted. This transmission is basically the same as that of the vehicles with 4G94 engine except for
the following items.

D

A full-time 4WD model has been added.

D

Due to the adoption of a full-time 4WD, the transfer control lever and the 4WD indicator control unit
have been discontinued.

GENERAL INFORMATION

TRANSFER

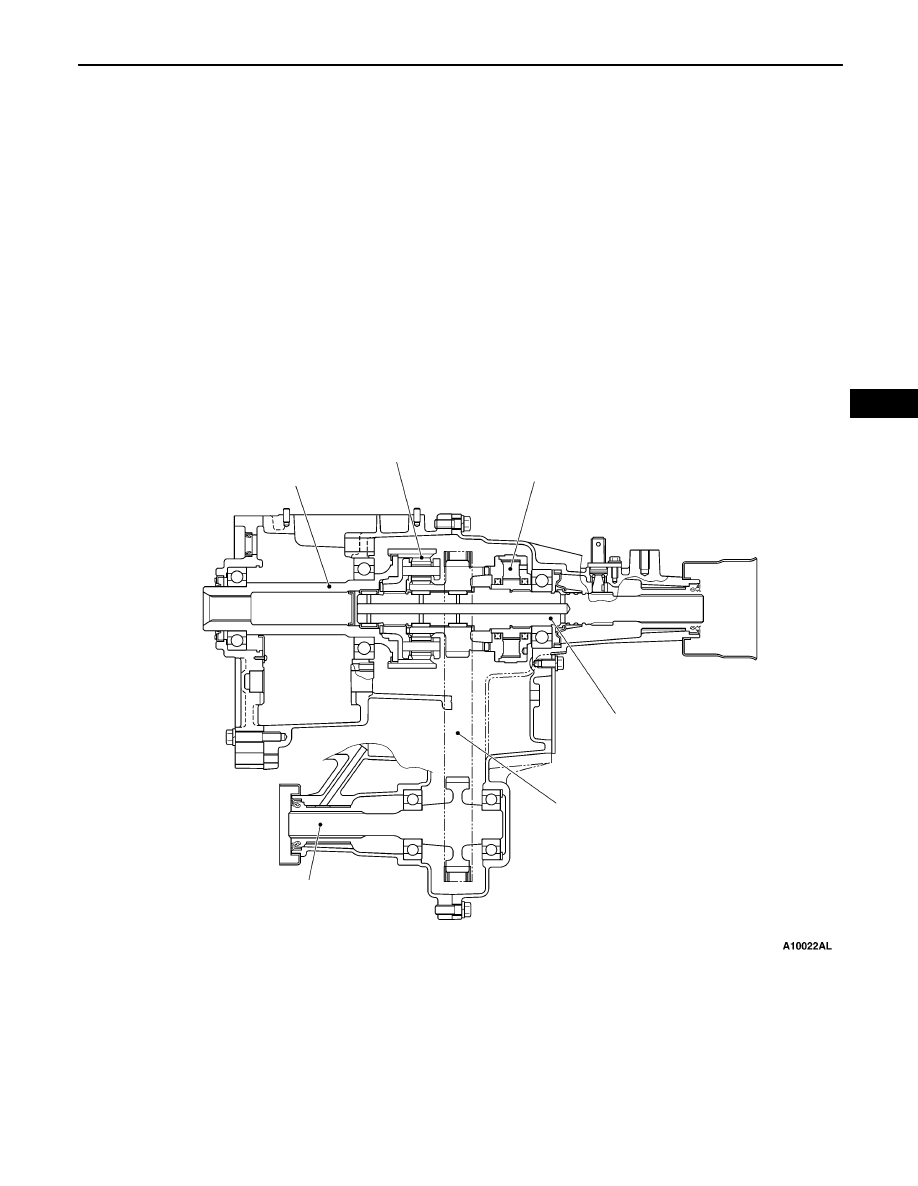

SECTIONAL VIEW

Input shaft

Center differential
(planetary gear type)

Viscous coupling unit

Rear output shaft

Random chain

Front output shaft

MANUAL TRANSMISSION –

General Information

22-2

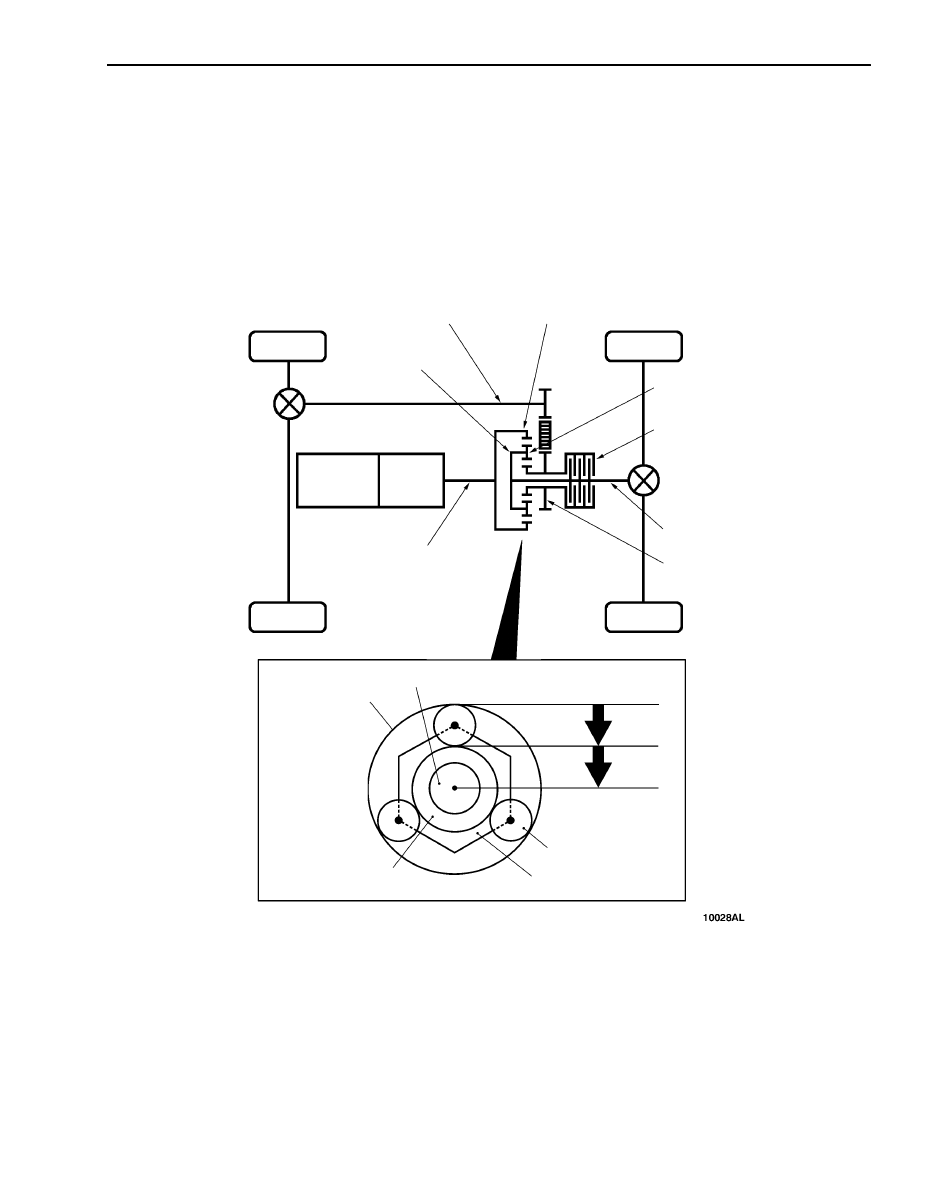

CENTRE DIFFERENTIAL (PLANETARY GEAR TYPE)

The planetary gear type has been adopted for the center differential.
Driving power transmitted from the transmission to the input shaft passes on the pinion gear of the center
differential. Then, driving power is transmitted to the front output shaft via the drive sprocket and to the
rear output shaft via the pinion carrier.
The drive sprocket and the pinion carrier are driven by the pinion gear simultaneously while 50% of driving
power is distributed to the drive sprocket (front output shaft) and the remaining 50% of driving power
is distributed to the pinion carrier (rear output shaft).
VCU is installed between the drive sprocket and the rear output shaft so that driving power can be properly
distributed if there are any discrepancies in driving power between the front output shaft and the rear
output shaft.

Front output shaft

Center differential

Pinion carrier

Pinion gear

VCU

Rear output shaft

Drive sprocket

Input shaft

Engine

T/M

50 %

50 %

Rear output shaft

Input shaft

Pinion carrier

Pinion gear

Drive sprocket

AUTOMATIC

TRANSMISSION
