AUTOMATIC TRANSMISSION –

Service Specifications/
Lubricants/Sealants and Adhesives

23-2

SERVICE SPECIFICATIONS

Items

Standard value

Clearance between inner cable stopper and dust cover end surface mm

0.8 – 1.5

Input shaft speed sensor resistance (at 20

_

C)

Ω

620

$

 60

Output shaft speed sensor resistance (at 20

_

C)

Ω

430

$

 43

A/T fluid temperature sensor resistance

Ω

at 25

_

C

1,100

at 120

_

C

57

Coil resistance of solenoid valve No.1 (at 25

_

C)

Ω

13

$

 2

Coil resistance of solenoid valve No.2 (at 25

_

C)

Ω

13

$

 2

Coil resistance of solenoid valve No.3 (at 25

_

C)

Ω

13

$

 2

Stall speed r/min

2,320 – 2,620

Line pressure kPa

at idle speed

D range

373 – 422

R range

520 – 579

at stall speed

D range

765 – 863

R range

1,383 – 1,628

LUBRICANTS

Items

Specified lubricant

Quantity

ȏ

Transmission fluid

DEXRON

II

or equivalent

7.2

Transfer oil

Hypoid gear oil SAE 75W-90 or
75W-85W conforming to API GL-4

2.3

SEALANTS AND ADHESIVES

Items

Specified sealant

Remarks

Transfer control lever gasket

3M ATD Part No.8660 or equivalent

Semi-drying sealant

Transfer control lever assembly
installation bolt

3M Stud Locking No.4170 or
equivalent

Anaerobic sealant

AUTOMATIC TRANSMISSION –

Special Tools

23-3

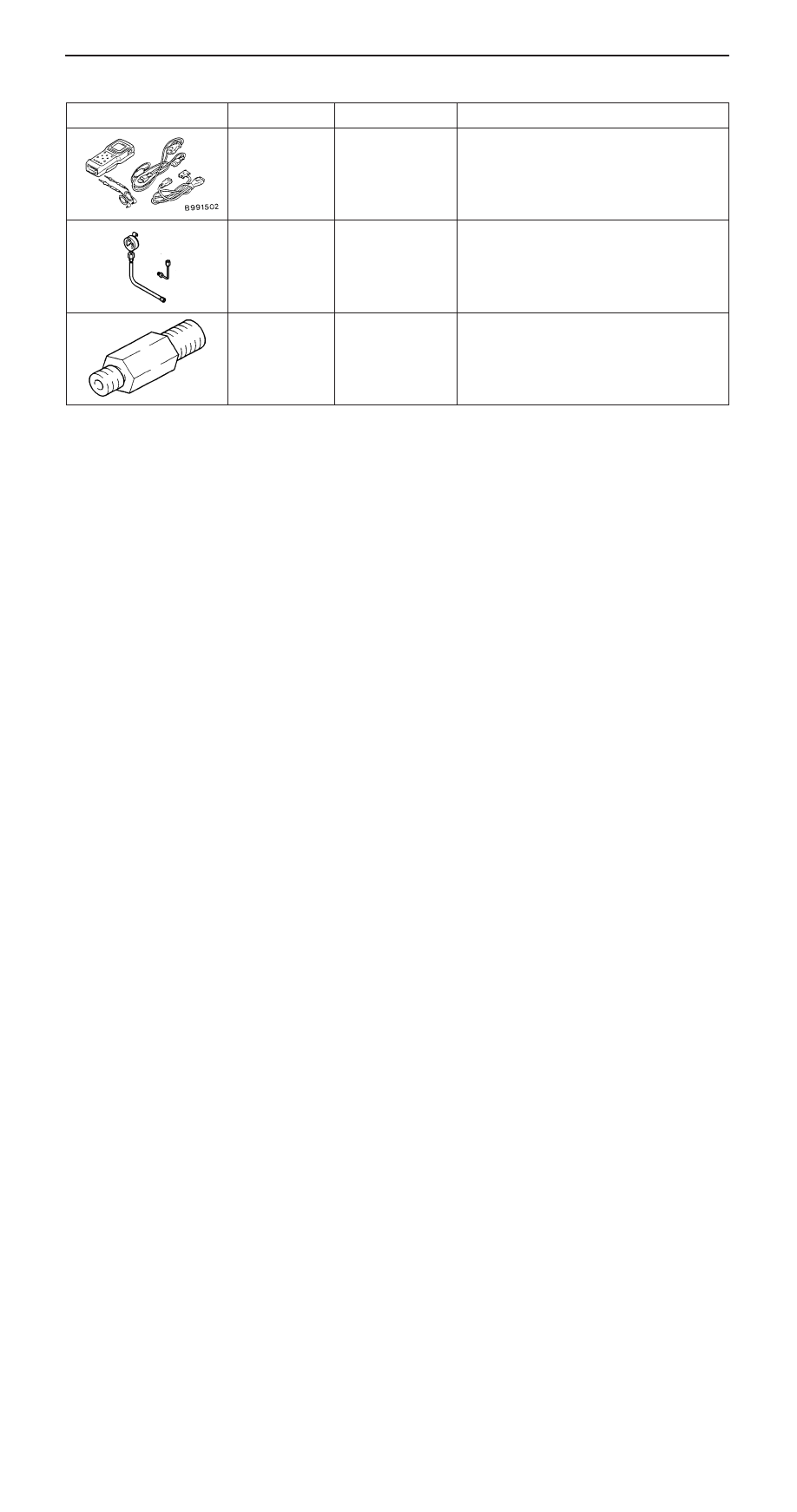

SPECIAL TOOLS

Tool

Number

Name

Use

MB991502

MUT-

II

 sub

assembly

Checking of the diagnosis code

MD998330
(including
MD998331)

Oil pressure gauge
(2,942 kPa)

Measurement of oil pressure

MD998920

Adapter

Connection of oil pressure gauge

AUTOMATIC TRANSMISSION –

Troubleshooting <A/T>

23-4

TROUBLESHOOTING <A/T>

STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING

Gathering information from custom-
er.

Check trouble symptoms.

Read the diagnosis code (GROUP
00 – How to Use Troubleshooting/In-
spection Service Points.)

Communication with
MUT-

II

 not possible

Inspection procedure No. 1 in
Inspection Chart For Trouble
Symptoms (Refer to P.23-16.)

Diagnosis code
displayed

Erase the diagnosis code (GROUP
00 – How to Use Troubleshooting/In-
spection Service Points.)

Carry out the essential service
(Refer to P.23-34.)

Road test (Refer to P.23-6.)

Abnormality exists (no diagnosis code)

No abnormality

Recheck diagnosis codes which
were read before the road test.

Abnormality exists
(diagnosis code
present)

Diagnosis
code displayed

No diagnosis
code displayed

To INSPECTION CHART FOR
DIAGNOSIS CODES
(Refer to P.23-9.)

To INSPECTION CHART FOR
TROUBLE SYMPTOMS
(Refer to P.23-15.)

Search for cause.

Found

Not found

Repair

Confirmation test (road test)

NG

NG

INTERMITTENT MALFUNCTION
(GROUP 00 – Points to Note for
Intermittent Malfunctions.)

OK

Completed

OK

Check automatic transmission fluid

NG

Replace automatic transmission
fluid.

OK

NO diagnosis code displayed

AUTOMATIC TRANSMISSION –

Troubleshooting <A/T>

23-5

DIAGNOSIS FUNCTION

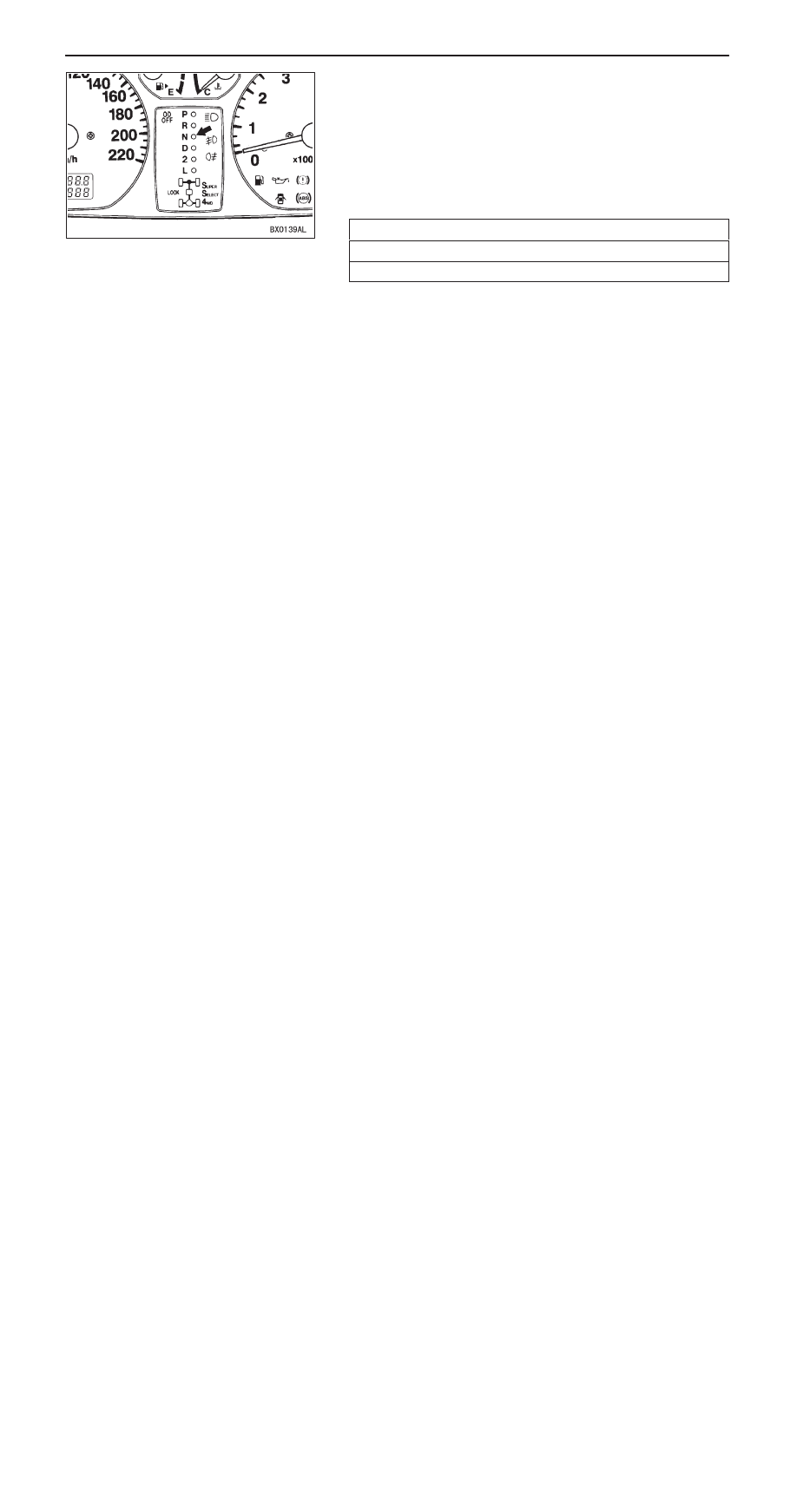

N RANGE LAMP

The N range lamp flashes at a frequency of approximately
1 Hz if there is an abnormality in any of the items in the
table below which are related to the A/T system. Check the
diagnosis code output if the N range lamp is flashing at a
frequency of approximately 1 Hz.

N range lamp flashing items

Input shaft speed sensor

Output shaft speed sensor

Each solenoid valve

Caution
If the N range lamp is flashing at a frequency of
approximately 2 Hz (faster than at 1 Hz), it means that
the A/T fluid temperature is too high. Stop the vehicle
in a safe place and wait until the N range lamp switches
off.

METHOD OF READING THE DIAGNOSIS CODE

Use the MUT-

II

 or the N range lamp to take a reading of

the diagnosis codes. (Refer to GROUP 00 – How to Use
Troubleshooting/Inspection Service Points.)
