GENERAL –

How to Use Troubleshooting/Inspection Service Points

00-11

INSPECTION SERVICE POINTS FOR A BLOWN
FUSE

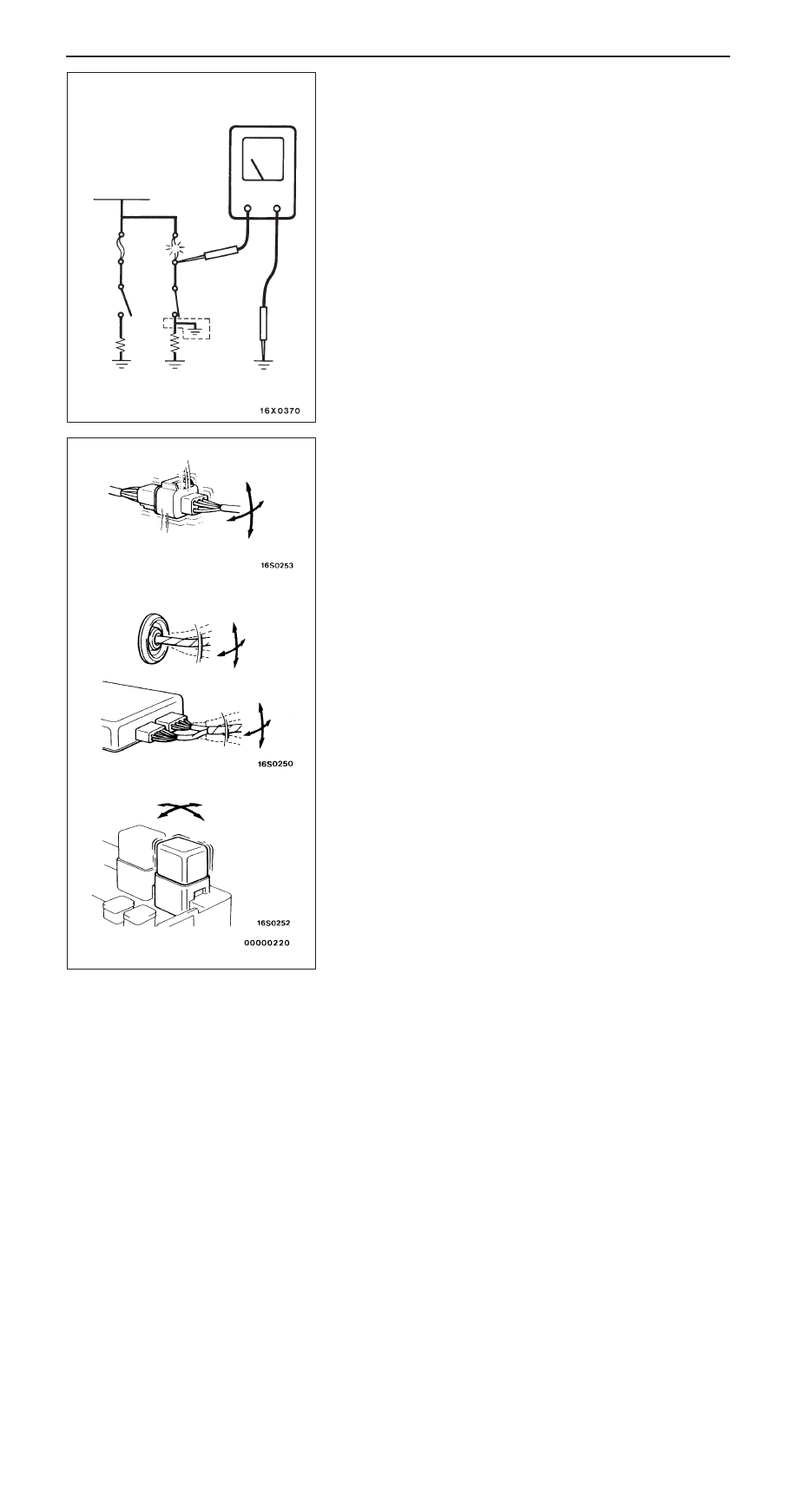

Remove the fuse and measure the resistance between the
load side of the fuse and the earth. Set the switches of all
circuits which are connected to this fuse to a condition of
continuity. If the resistance is almost 0

Ω

 at this time, there

is a short somewhere between these switches and the load.
If the resistance is not 0

Ω

, there is no short at the present

time, but a momentary short has probably caused the fuse
to blow.

The main causes of a short circuit are the following.

Harness being clamped by the vehicle body
Damage to the outer casing of the harness due to wear
or heat
Water getting into the connector or circuitry
Human error (mistakenly shorting a circuit, etc.)

POINTS TO NOTE FOR INTERMITTENT
MALFUNCTIONS

Intermittent malfunctions often occur under certain conditions,
and if these conditions can be ascertained, determining the
cause becomes simple. In order to ascertain the conditions
under which an intermittent malfunction occurs, first ask the
customer for details about the driving conditions, weather
conditions, frequency of occurrence and trouble symptoms,
and then try to recreate the trouble symptoms. Next, ascertain
whether the reason why the trouble symptom occurred under
these conditions is due to vibration, temperature or some other
factor. If vibration is thought to be the cause, carry out the
following checks with the connectors and components to
confirm whether the trouble symptom occurs.
The objects to be checked are connectors and components
which are indicated by inspection procedures or given as
probable causes (which generates diagnosis codes or trouble
symptoms.)

Gently shake the connector up, down and to the left and
right.
Gently shake the wiring harness up, down and to the
left and right.
Gently rock each sensor and relay, etc. by hand.
Gently shake the wiring harness at suspensions and other
moving parts.

NOTE
If determining the cause is difficult, the flight recorder function
of the MUT-

II

 can also be used.

Battery

Fuse

Load
switc
h

Load

Connector
inspection

0

Ω

GENERAL –

Vehicle Identification

00-12

VEHICLE IDENTIFICATION

VEHICLE INFORMATION CODE PLATE

LOCATION

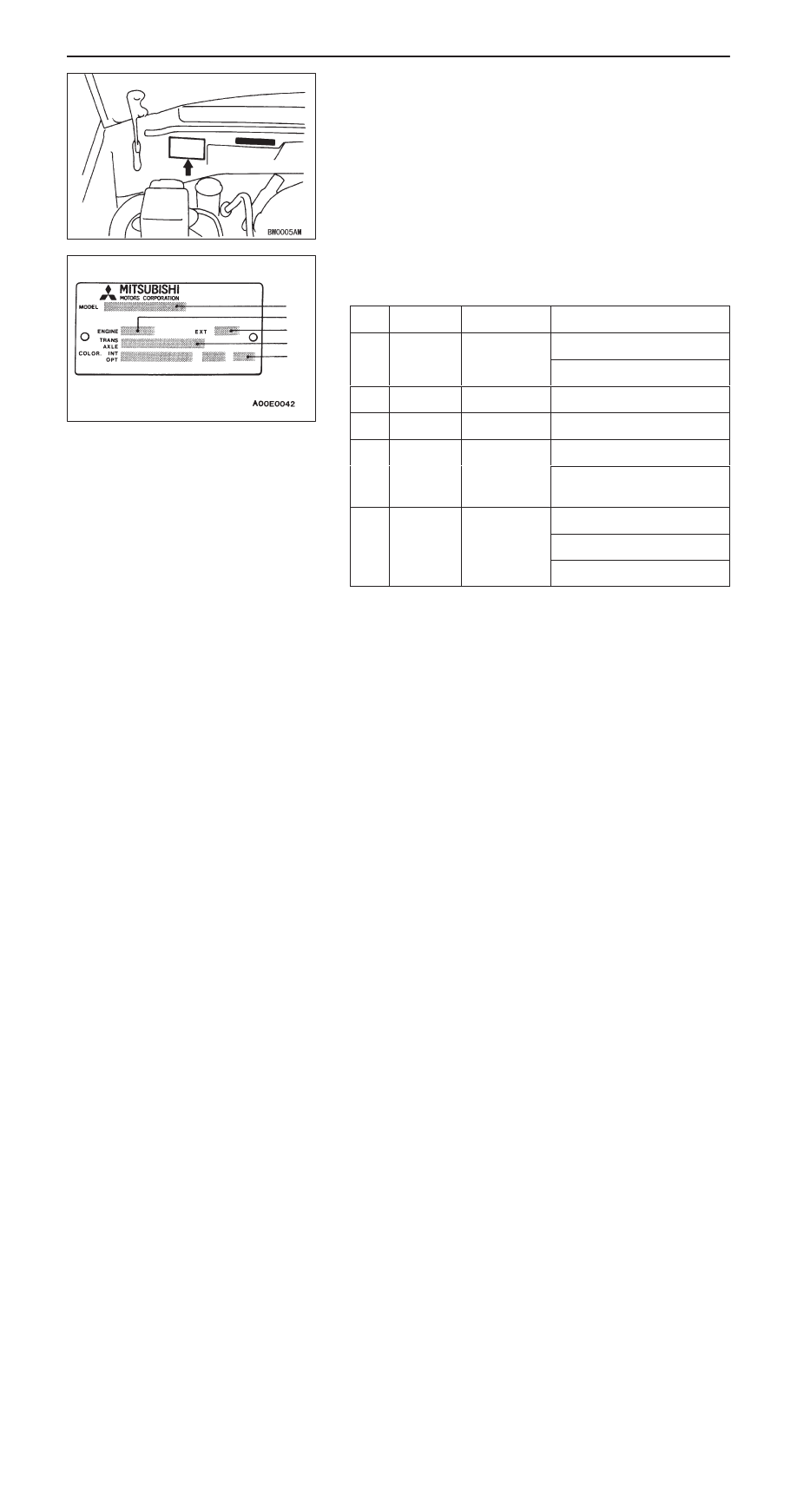

Vehicle information code plate is riveted on the toeboard inside
the engine compartment.

CODE PLATE DESCRIPTION

The plate shows model code, engine model, transmission
model, and body colour code.

No.

Item

Contents

Contents

1

MODEL

H66W
LNUEL

H66W: Vehicle model

LNUEL

LNUEL: Model series

2

ENGINE

4G93

Engine model

3

EXT

A01A

Exterior code

4

TRANS
AXLE

V5M21
4875

W5M21: Transmission code

AXLE

4875

4875: Rear differential

reduction

5

COLOR
INT OPT

A01 11T 03V

A01: Body colour code

INT OPT

11T: Interior code

03V: Equipment code

For monotone colour vehicles, the body colour code shall
be indicated. For two-tone or three-way two-tone colour
vehicles, each colour code only shall be indicated in series.

1

2
3

4
5

GENERAL –

Vehicle Identification

GENERAL –

Vehicle Identification

00-13

MODELS

Model code

Engine model

Transmission model

Fuel supply system

H66

WMNJCLA

4G93-DOHC (1,834 m

ȏ

)

V5M21 <5M/T>

GDI

WMNJCRA

WMRJCLA

V4AW4 <4A/T>

WMRJCRA

MODEL CODE

No.

Items

Contents

1

Development

H6:

MITSUBISHI PAJERO
PININ Short wheelbase

2

Engine type

6:

1,800 m

ȏ

 petrol engine

3

Sort

W:

Wagon

4

Body style

M:

3-door

5

Transmission type

N:

5-speed manual
transmission

R:

4-speed automatic
transmission

6

Trim level

J:

GL

7

Specification engine
feature

C:

GDI-DOHC

8

Steering wheel location

L:

Left hand

R:

Right hand

9

Destination

A:

For Europe

1

2 3 4 5 6 7 8 9

GENERAL –

Vehicle Identification

00-14

CHASSIS NUMBER

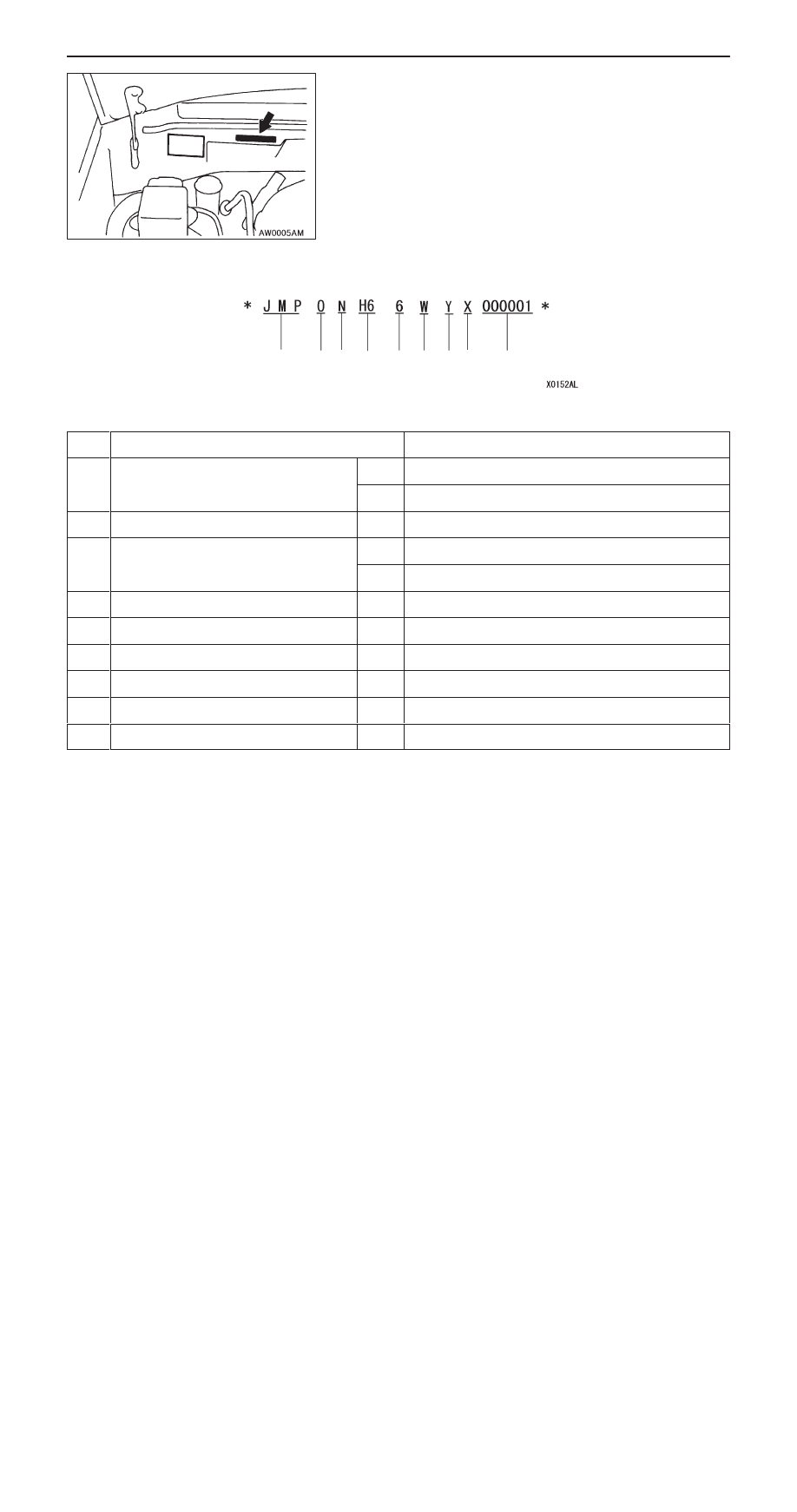

The chassis number is stamped on the toeboard inside the
engine compartment.

1

2 3

4

5

6

7 8

9

No.

Items

Contents

1

Steering wheel location

JMP

Left hand drive

JMR

Right hand drive

2

Body style

0

Standard roof

3

Transmission type

N

5-speed manual transmission

R

4-speed automatic transmission

4

Development order

H6

PAJERO PININ Short wheelbase

5

Engine

6

4G93: 1,834 m

ȏ

 petrol engine

6

Sort

W

Wagon

7

Model year

Y

2000

8

Plant

X

Ooe Plant of Pininfarina Works

9

Serial number

–

–
