STEERING  –

Power Steering Hoses <1900>

37A-3

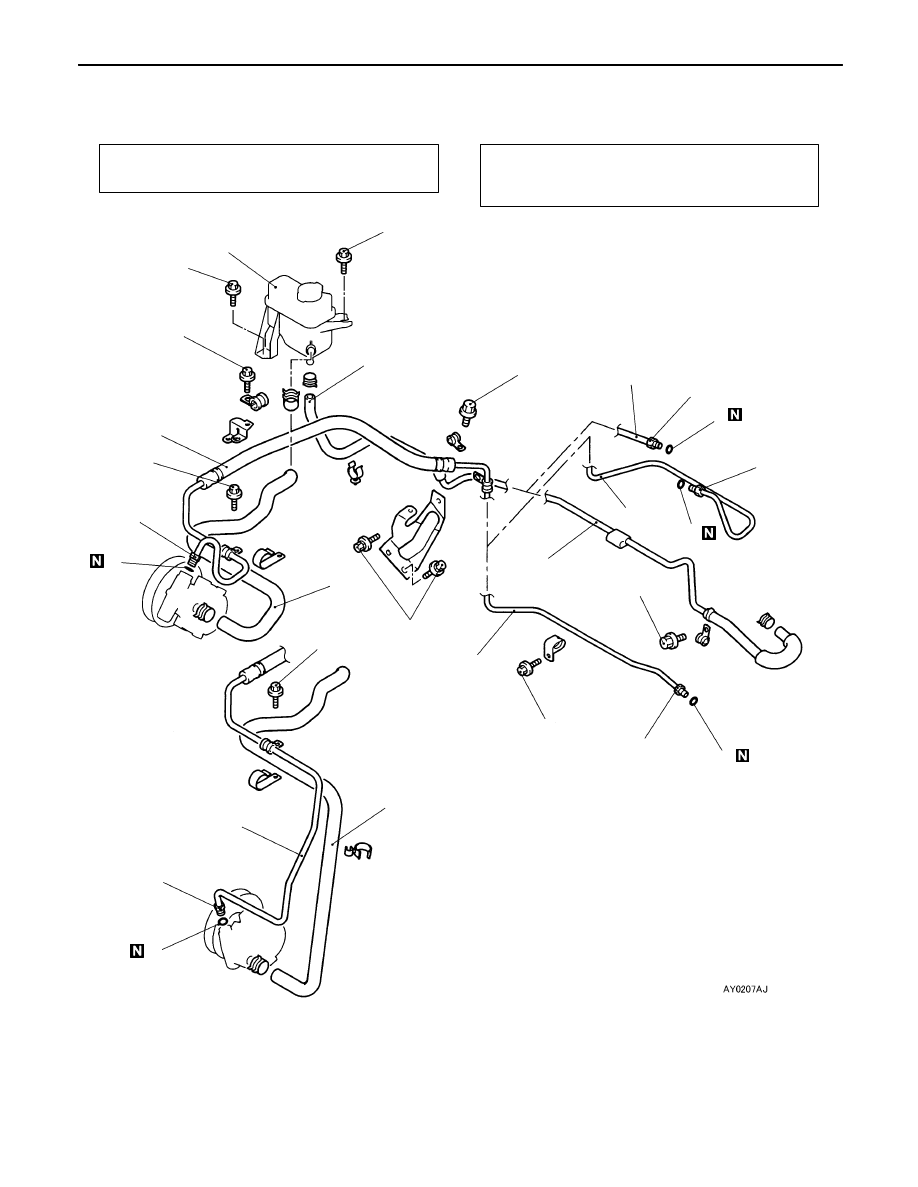

POWER STEERING HOSES <1900>

REMOVAL AND INSTALLATION

Pre-removal Operation
Power Steering Fluid Draining

Post-installation Operation



Power Steering Fluid Supplying



Power Steering Fluid Line Bleeding

1

2

3

5

6

6

5

6

5

1

6

5

4

3

8 Nm

8 Nm

10 Nm

10 Nm

25 Nm

13 Nm

13 Nm

10 Nm

26 Nm

10 Nm

10 Nm

26 Nm

10 Nm

13 Nm

3

<R.H. drive vehicles>

<L.H. drive vehicles>

<Vehicles with A/C>

<Vehicles without A/C>

Removal steps

1. Suction hose
2. Oil reservoir
3. Return hose

4. O-ring
5. Pressure hose
6. O-ring

NOTES

EXTERIOR  –

General/Front Bumper <For Diesel>/Moulding

51-1

GROUP 51

EXTERIOR

GENERAL

OUTLINE OF CHANGES



Service adjustment procedures have been changed to correspond to the addition of a dynamic damper
to the front bumper structural parts. <Diesel vehicles>



Service adjustment procedures have been changed to correspond to changes to the side protector
mouldings.



Service adjustment procedures have been changed to correspond to the addition of a DI–D mark
and changes to the application position for the GDI mark.

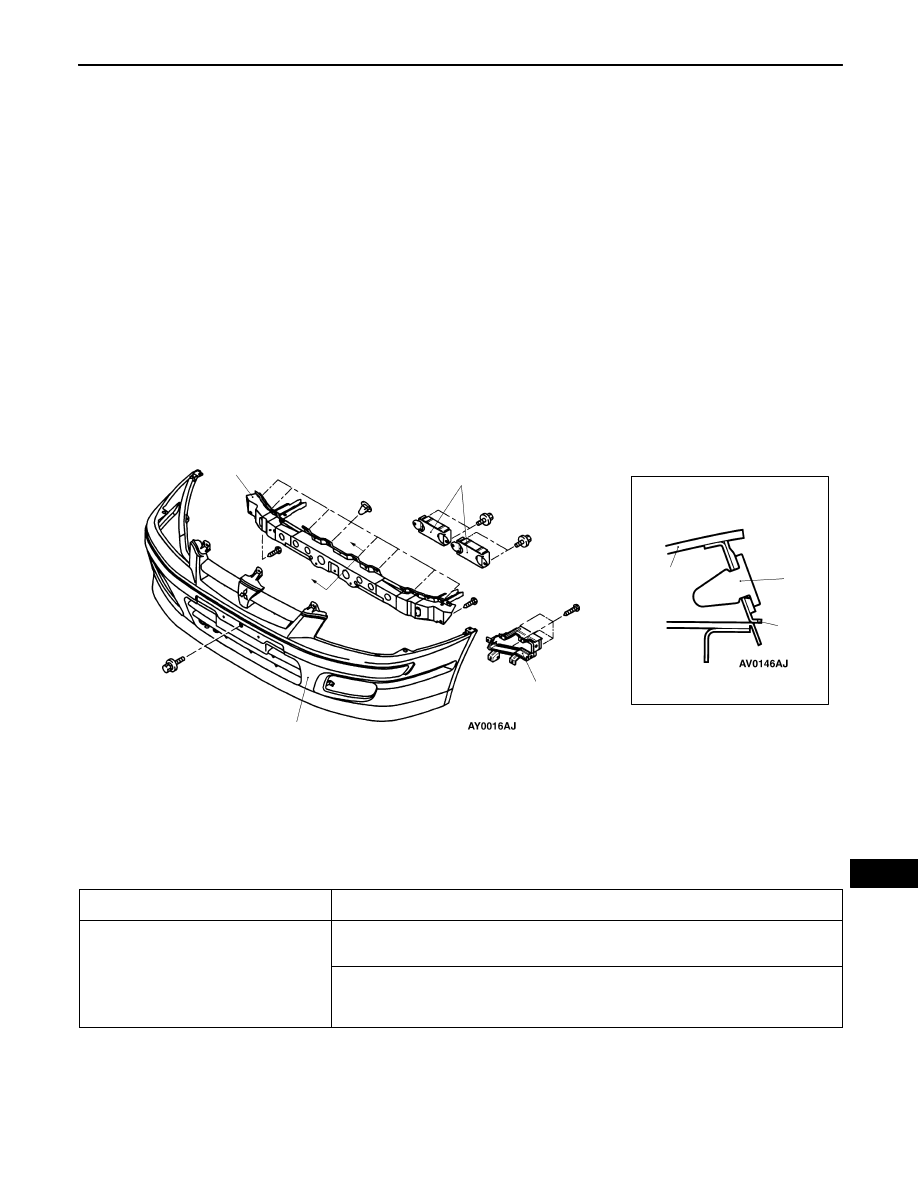

FRONT BUMPER <FOR DIESEL>

DISASSEMBLY AND REASSEMBLY

Section A–A

2

4

1

4

3

Clip

A

A

3

Disassembly steps

1. Front fog lamp bracket assembly
2. Dynamic damper

3. Bumper reinforcement
4. Bumper face

MOULDING

SEALANT AND ADHESIVE

Items

Specified sealant and adhesive

Side protect moulding to body panel

Adhesive tape:
3M ATD part No. 6382 or equivalent [12 mm wide and 0.8 mm thick]

Primer:
3M ATD part No.8608 Super Fast Urethane Primer or equivalent and 3M ATD
part No. 8609 Super Fast Urethane Primer or equivalent

EXTERIOR  –

Moulding

51-2

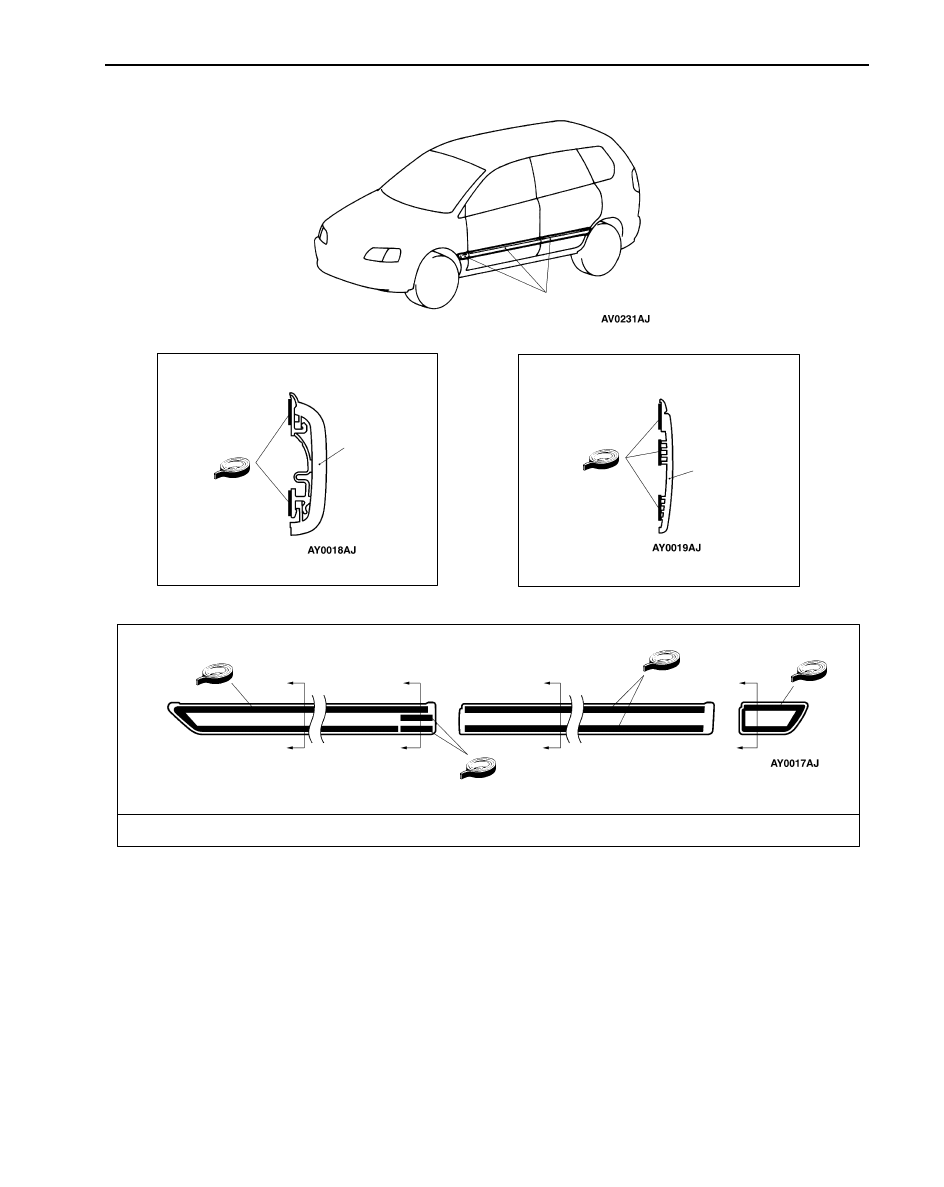

REMOVAL AND INSTALLATION

Section A–A

Section B–B

A

A

B

B

1

1

1

Adhesive tape: double-sided tape [12 mm wide and 0.8 mm thick]

A

A

A

A



A



A



1. Side protector moulding

NOTE
For service point, refer to Basic Manual.
