Mitsubishi Space Star. Manual - part 138

EXTERIOR  –

Marks

51-3

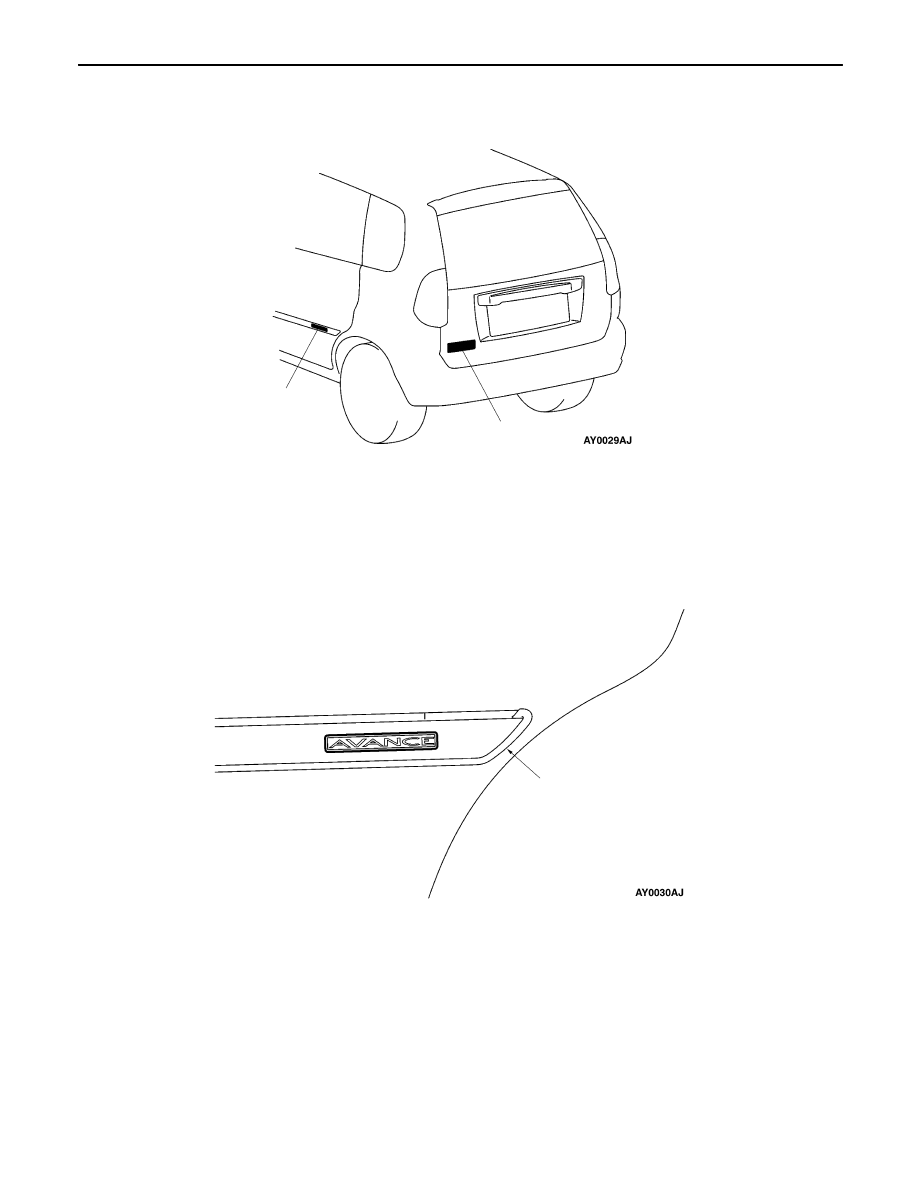

MARKS

REMOVAL AND INSTALLATION

2

1



A



1. GRADE mark



A



2. GDI or DI–D mark

INSTALLATION SERVICE POINT



A



MARK INSTALLATION

(1) GRADE MARK

Side protect  moulding

<COMFORT, SPORT, ADVANCE, FAMILY>

EXTERIOR  –

Marks

51-4

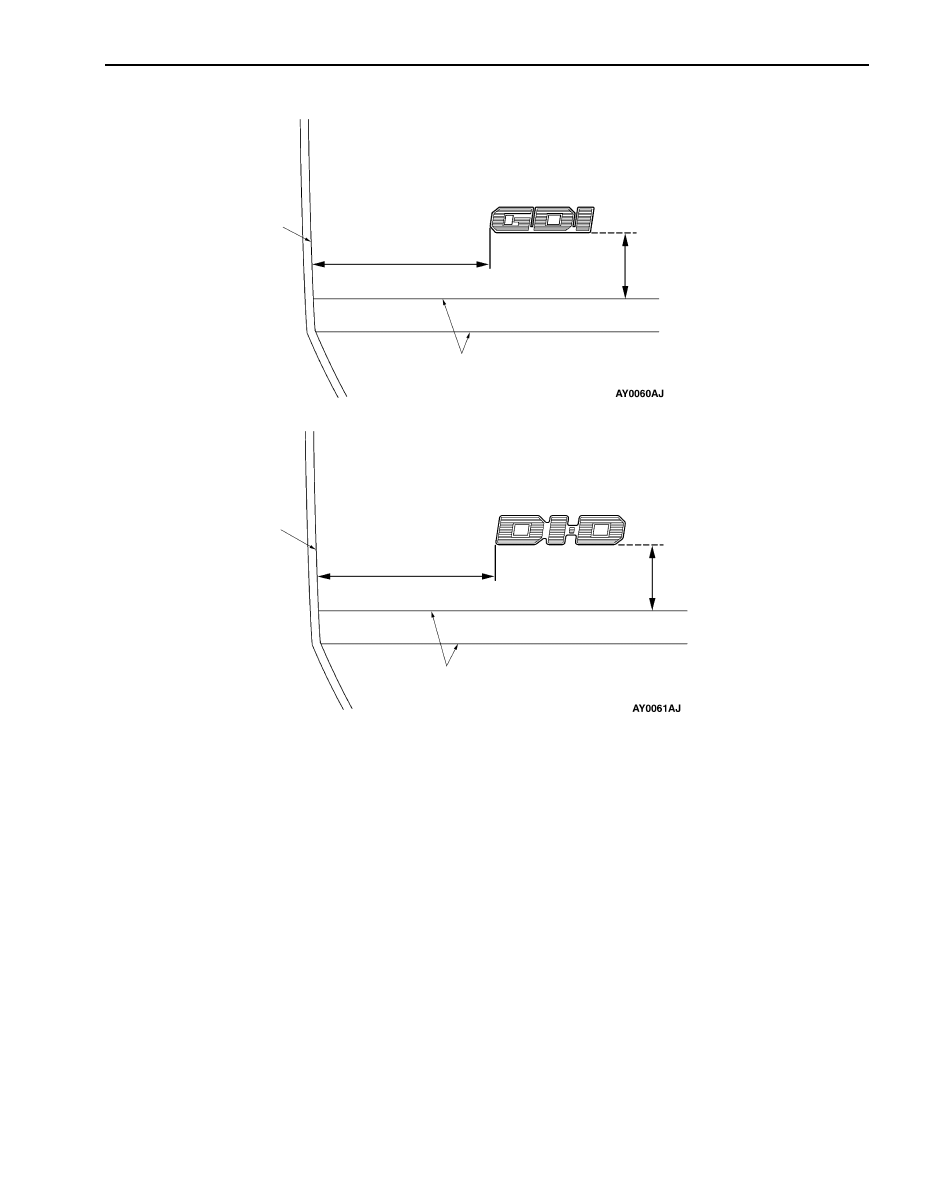

(2)  GDI OR DI–D MARK

Trunk lid end line

124

±

 1 mm

45

±

 1 mm

Trunk lid press line

<GDI MARK>

<DI–D MARK>

Trunk lid end line

124

±

 1 mm

45

±

 1 mm

Trunk lid press line

1.

Clean the mark installation surfaces on the body with
unleaded petrol.

2.

Peel off the backing paper from the reverse side of the
marks, and then attach the marks to the vehicle body
so that they fit properly into position.

Caution
When attaching the marks, the surrounding
temperature should be 20 – 38



C and the air should

be completely free from dust.
If the surrounding temperature is lower than 20



C,

the marks and the places on the body where the marks
are to be attached should be heated to 20 – 38



C.

CHASSIS ELECTRICAL –

Combination Meter

54-1

GROUP 54

CHASSIS ELECTRICAL

COMBINATION METER <F9Q1>

OUTLINE OF CHANGE



Inspection procedures for the tachometer have been added in vehicles with F9Q1 engine.



The change in the mounting position for the engine coolant temperature gauge to correspond to the
adoption of the F9Q1 engine has been communicated. Other troubleshooting procedures are the same
as for vehicles with petrol engine.

SERVICE SPECIFICATIONS

Item

Standard value

Tachometer display error   r/min

When engine speed is 700 r/min

±

120

When engine speed is 2,000 r/min

– 175 + 225

When engine speed is 3,000 r/min

– 175 + 300

When engine speed is 4,000 r/min

– 225 + 375

When engine speed is 5,000 r/min

– 225 + 425

When engine speed is 6,000 r/min

– 225 + 475

TROUBLESHOOTING

Troubleshooting procedures other than the engine coolant
temperature gauge unit mounting position are the same as
for vehicles with petrol engine. Refer to the ’99 SPACE START
Workshop Manual (BASIC) (Pub. No. CMXE99E1).

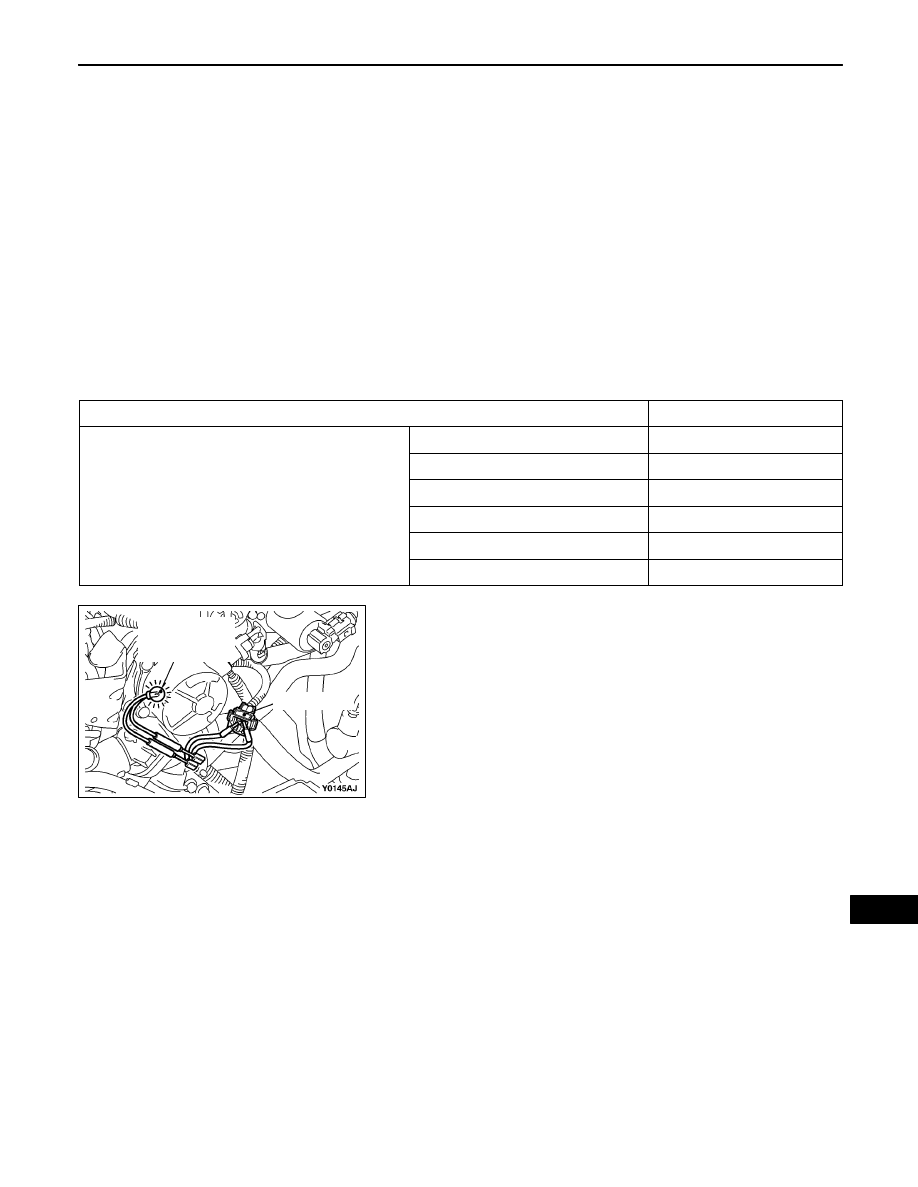

ON-VEHICLE SERVICE

TACHOMETER CHECK

1.

Insert a paper clip (Gem clip) into the harness-side engine
speed sensor terminal and connect it to an engine
tachometer.

2.

Compare the engine speedometer reading at various
engine speeds with the tachometer reading, and check
that the error is within the standard range.

Test lamp
 (12 V/3.4 W –
12 V/7.0 W)

Connector

CHASSIS ELECTRICAL –

Combination Meter

54-2

Standard value:

Engine speed   r/min

Tachometer display error   r/min

700

±

120

2,000

– 175 + 225

3,000

– 175 + 300

4,000

– 225 + 375

5,000

– 225 + 425

6,000

– 225 + 475
