FUEL SUPPLY –

Fuel Tank <F9QT>

13C-3

FUEL TANK <F9QT>

REMOVAL AND INSTALLATION

Pre-removal Operation



Draining the Fuel

Post-installation Operation



Refilling the Fuel



Checking for Fuel Leaks

3 Nm

5.0 Nm

49 Nm

8

5

3

2

6

1

1

13

12

10

11

14

1

4

15

7

7

9

16

9

49 Nm

49 Nm

30 Nm

30 Nm

30 Nm

5 Nm

5 Nm

3 Nm

3 Nm

3 Nm

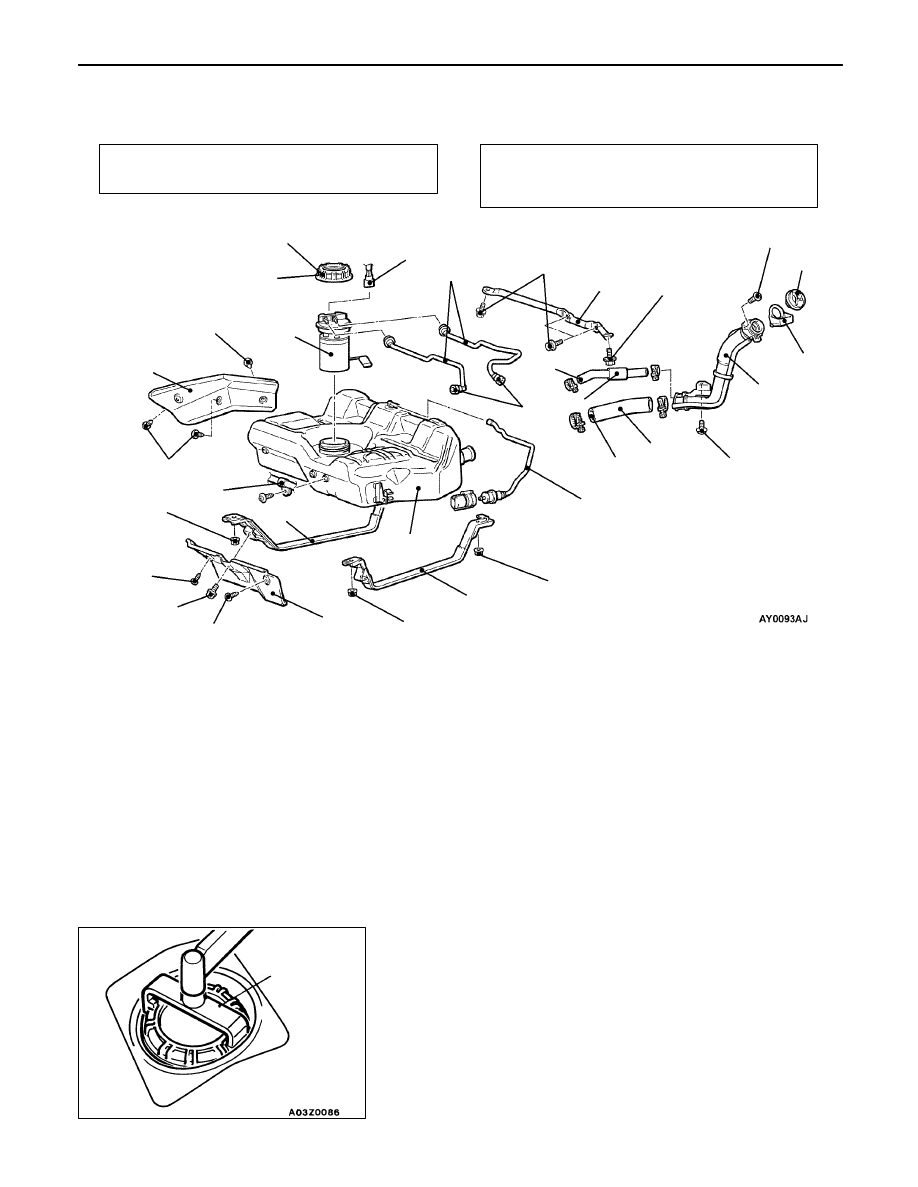

Removal steps

1. Fuel hoses connection
2. Harness clamp
3. Toe control link support bar
4. Band (RH)
5. Fuel pump module connector
6. Fuel tank assembly
7. Heat protector
8. Band (LH)

9. Fuel hoses



A



B



10. Cap



A



11. Fuel pump module

12. Fuel filler cap
13. Fuel rubber drain
14. Filler neck assembly
15. Leveling hose
16. Filler hose

REMOVAL SERVICE POINT



A



CAP REMOVAL

MB996009

FUEL SUPPLY –

Fuel Tank <F9QT>

13C-4

INSTALLATION SERVICE POINTS



A



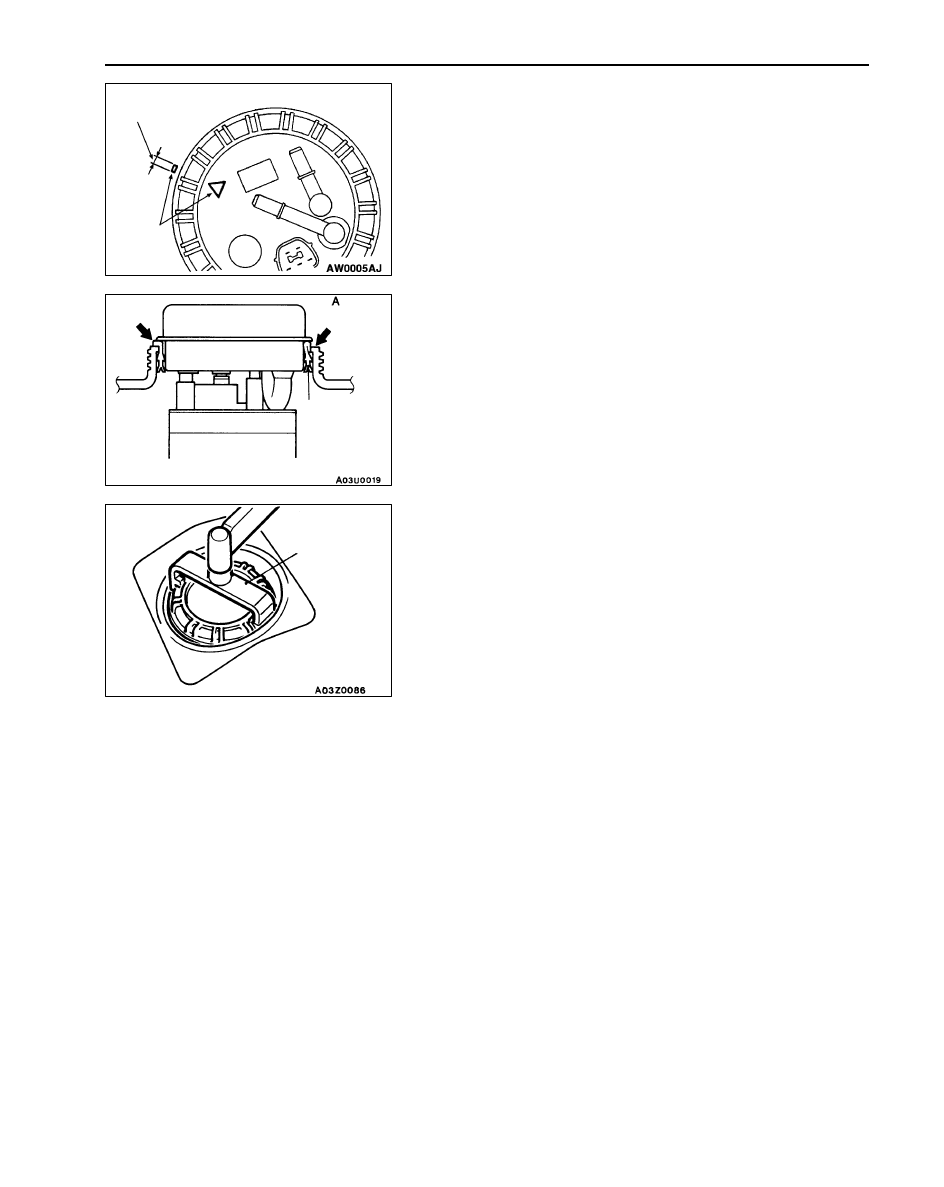

FUEL PUMP MODULE INSTALLATION

1.

Check to be sure that the fuel tank packing is not damaged
or deformed, and then securely install the packing to the
fuel tank.

Caution
If the packing is installed to the fuel pump module,
packing lip will be damaged when installing the fuel
pump module to the fuel tank and the fuel leak will
result.

NOTE
If the packing is damaged or deformed, replace the
defective packing with a new packing.

2.

Apply soapy water to the inside of the packing. Align the
mating marks on the fuel tank and fuel pump module
as shown in the illustration, and then install the fuel pump
module to the fuel tank.

Caution
(1) Do not tilt the fuel pump module when installing.
(2) The packing should not be folded over as shown

by (A) in the illustration.



B



CAP INSTALLATION

Apply soapy water to the cap thread, and the use the special
tool as the same manner as for removal to tighten the cap
to the specified torque.

Tightening torque: 49 Nm

Caution
Prevent the fuel pump module from turning with the cap
when tightening the cap.

Mating range

Mating
marks

OK

(Not good)

Packing

MB996009
