GDI  –

General/General Information

13A-3

GENERAL

OUTLINE OF CHANGES

Due to the changes shown below, the service procedures regarding the different description from the
previous version have been established.



On-board Diagnostics System has been adopted to expand the diagnostic items and to change diagnosis
code numbering system.



Fuel pressure regulator (high-pressure) incorporate fuel pump (high-pressure) has been adopted.



An oxygen sensor (rear) has been added.



A ignition failure sensor has been added.



Lead cables of the crank angle sensor have been contained in the timing belt cover.



An accelerator pedal position sensor attached to the accelerator pedal has been adopted.



An engine-ECU has been changed.(Change of terminal layout) <Vehicles with M/T>



An engine-A/T-ECU has been adopted. <Vehicles with A/T>

GENERAL INFORMATION

SELF-DIAGNOSIS FUNCTION

Following functions have been added.



The engine-ECU records the engine operating condition when the diagnosis code is set.
This data is called “freeze frame” data.
This data can be read by using the MUT-

II

, are can then be used in simulation tests for troubleshooting.

GENERAL SPECIFICATIONS

Items

Specifications

Engine-ECU <M/T>

Identification No.

E2T72675

Engine-A/T-ECU <A/T>

Identification No.

E2T77572

GDI  –

General Information

13A-4

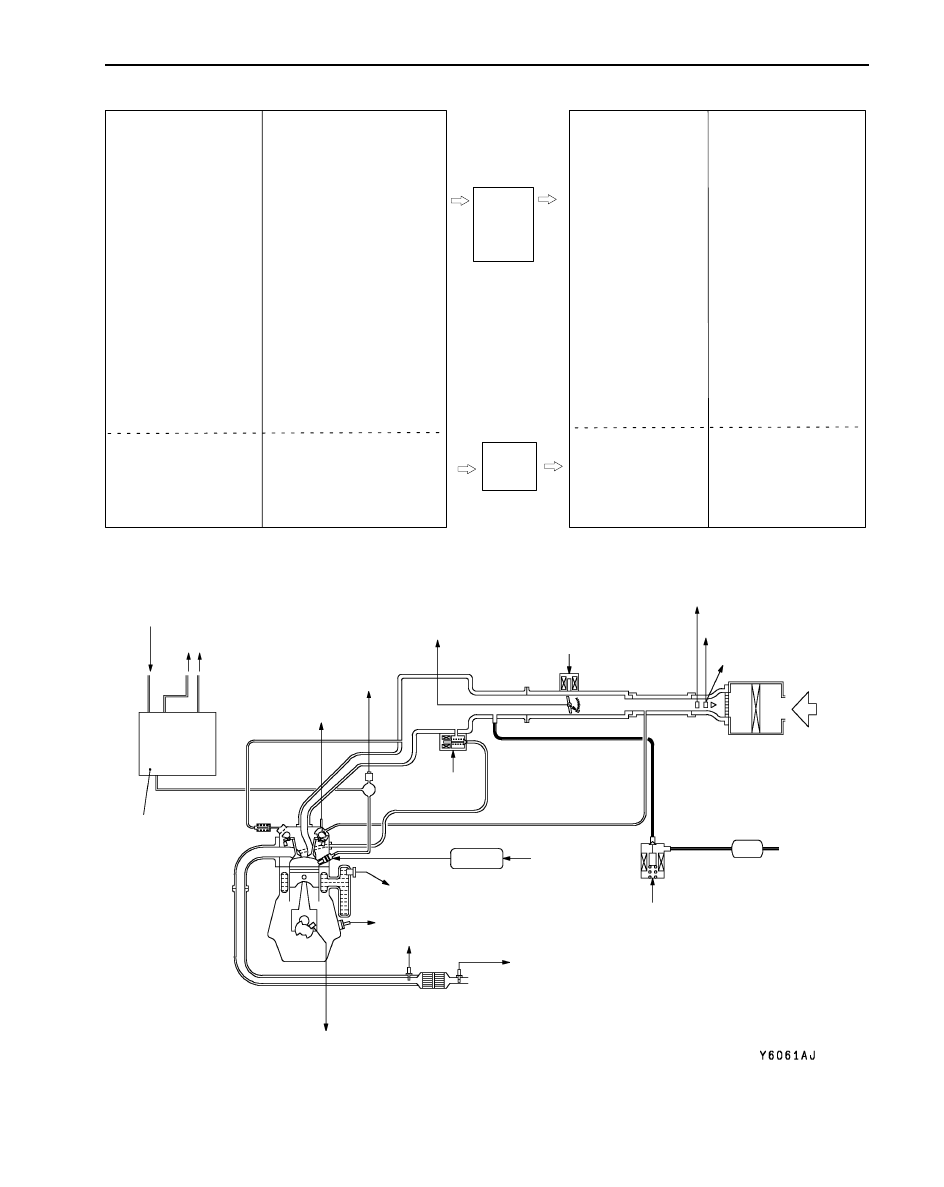

GASOLINE DIRECT INJECTION SYSTEM DIAGRAM



Engine-ECU<M/T>



Engine-A/T-ECU
<A/T>



1 Oxygen sensor

(front)



2 Oxygen sensor

(rear)



3 Air flow sensor



4 Intake air tempera-

ture sensor



5 Throttle position

sensor (2nd chan-
nel)



6 Camshaft position

sensor



7 Crank angle sensor



8 Barometric pres-

sure sensor



9 Engine coolant  tem-

perature sensor



10 Detonation sensor



11 Fuel pressure  sen-

sor



1 Injector driver

(injector)



2 EGR valve

(stepper motor)



3 Purge control

solenoid valve



Power supply



Ignition switch-IG



Ignition switch-ST



Accelerator pedal position
sensor (1st channel)



Accelerator pedal position
switch



Vehicle speed sensor



A/C switch 1



A/C switch 2



M/T oil temperature
sensor <M/T>



Inhibitor switch <A/T>



Power steering fluid
pressure switch



Alternator FR signal



Stop lamp switch



Small lamp switch



Clutch switch <M/T>



Brake vacuum sensor



Injector open circuit check
signal



Throttle valve controller



Engine control relay



Fuel pump relay



Injector driver relay



Throttle control
servo relay



A/C relay



Ignition coil



Fan controller



Engine warning
lamp



GDI ECO indicator
lamp



Diagnosis output



Alternator G termi-
nal



Throttle valve
controller



Oxygen sensor
heater

Engine-
ECU
<M/T> or
engine-
A/T-ECU
<A/T>



Power supply



Ignition switch-IG



Accelerator pedal position
sensor (2nd channel)



Engine-ECU <M/T>



Engine-A/T-ECU <A/T>

Throttle
valve
controller



4 Throttle valve

control servo



12 Throttle position

sensor (1st channel)

Fuel pump
(high-pressure)

To fuel tank



6 Camshaft

position sensor



2 Oxygen sensor (rear)



9 Engine coolant temperature sensor



1 Injector

driver



3 Purge control

solenoid valve



4 Intake air temperature sensor



8 Barometric pressure

sensor



3 Air flow sensor

Injector

Canister

From fuel pump
(low-pressure)



5 Throttle position sensor (2nd channel)



12 Throttle position sensor (1st channel)



4 Throttle control servo



7 Crank angle sensor



2 EGR valve



1 Oxygen sensor (front)



11 Fuel pressure sensor



10 Detonation sensor

GDI  –

Service Specifications

13A-5

SERVICE SPECIFICATIONS

Items

Standard value

Adjustment voltage of accelerator pedal position sensor
(1st and 2nd channel)   V

0.985 – 1.085

Resistance of accelerator pedal position sensor
(1st and 2nd channel)   k

Ω

3.5 – 6.5

Fuel pressure

High-pressure side   MPa

4 – 6.9

Low-pressure side   kPa

Approximately 329

Oxygen sensor output voltage (during revving)   V

0.6 – 1.0

Oxygen sensor heater resistance (at 20



C)

Ω

Front

4.5 – 8.0

Rear

11 – 18

GDI  –

Troubleshooting

13A-6

TROUBLESHOOTING

DIAGNOSIS FUNCTION

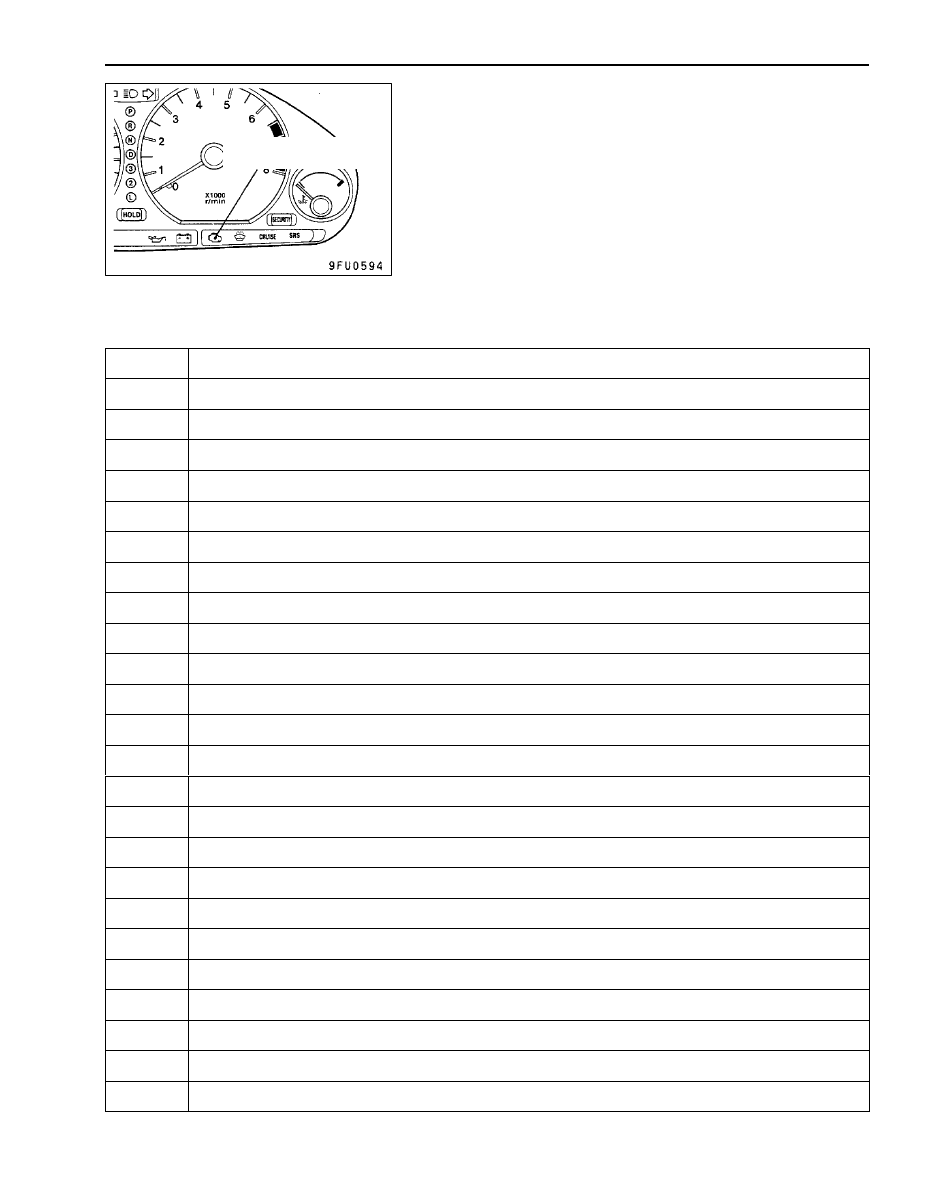

ENGINE WARNING LAMP (CHECK ENGINE LAMP)

If an abnormality occurs in any of the following items related
to the GDI system, the engine warning lamp will illuminate
or flash. If the lamp remains illuminated or if the lamp illuminates
while the engine is running, check the diagnosis code output.
However, the warning lamp will illuminate as bulb check for
five seconds whenever the ignition switch is turned to the
ON position.

Engine warning lamp inspection items

Code No.

Diagnosis item

–

Engine-ECU <M/T> or engine-A/T-ECU <A/T>

P0100

Air flow sensor system

P0105

Barometric pressure sensor system

P0110

Intake air temperature sensor system

P0115

Engine coolant temperature sensor system

P0120



Throttle position sensor (1st channel) system

P0125

Feedback system

P0130

Oxygen sensor (front) system <sensor 1>

P0135

Oxygen sensor heater (front) system <sensor 1>

P0136

Oxygen sensor (rear) system <sensor 2>

P0141

Oxygen sensor heater (rear) system <sensor 2>

P0170

Abnormal fuel system

P0190



Abnormal fuel pressure

P0201

No. 1 injector system

P0202

No. 2 injector system

P0203

No. 3 injector system

P0204

No. 4 injector system

P0220



Accelerator pedal position sensor (1st channel) system

P0225



Throttle position sensor (2nd channel) system

P0300



Ignition coil (power transistor) system

P0301

No. 1 cylinder misfire detected

P0302

No. 2 cylinder misfire detected

P0303

No. 3 cylinder misfire detected

P0304

No. 4 cylinder misfire detected

Engine warning lamp
(check engine lamp)
