ENGINE <F9Q1> –

Engine Assembly

11C-23

18

19

20

21

60 Nm

60 Nm

10 Nm

54 Nm

90 Nm*



B



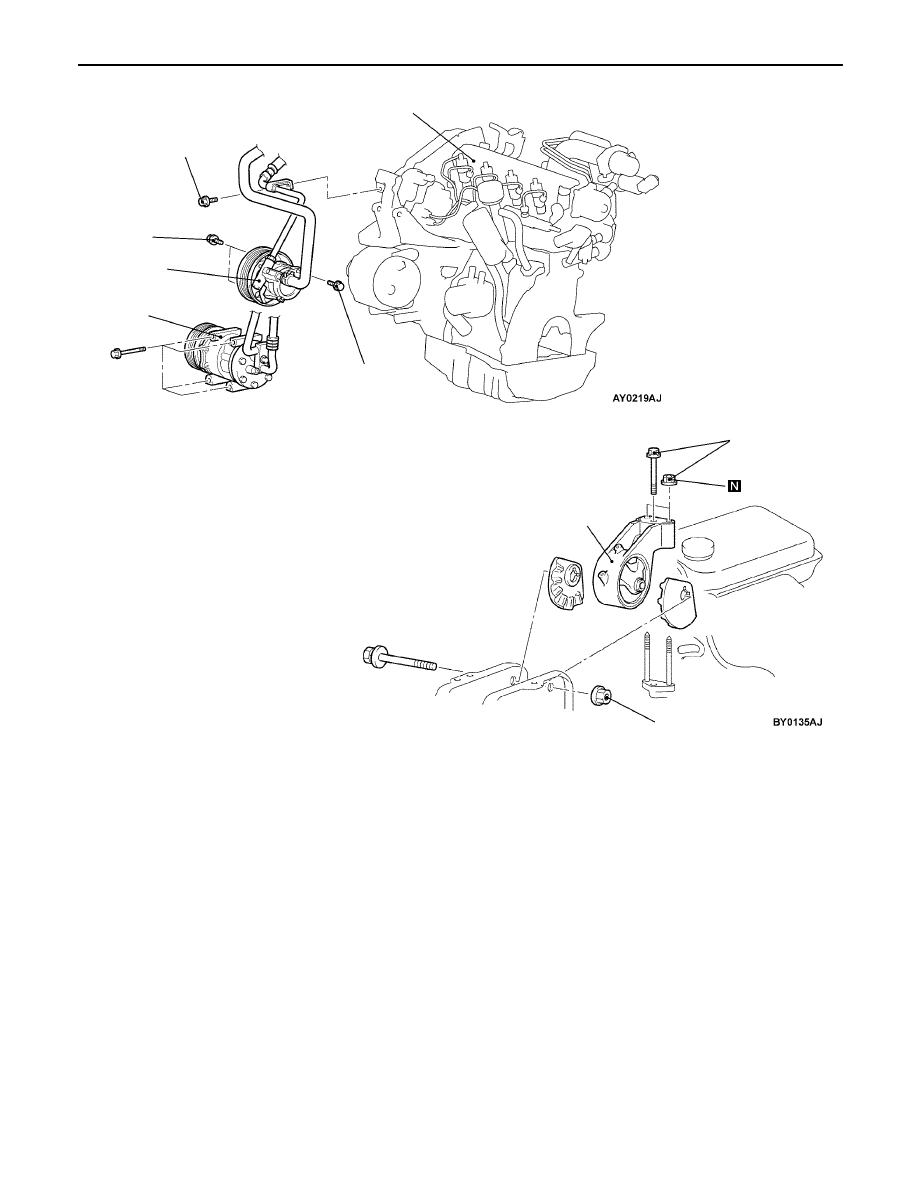

18. Power steering oil pump



C



19. A/C compressor



Transmission assembly
(Refer to GROUP 22.)



D



B



20. Engine mount bracket



E



A



21. Engine assembly

REMOVAL SERVICE POINTS



B



FUEL RETURN HOSE CONNECTION/FUEL
SUPPLY HOSE CONNECTION REMOVAL

After disconnecting the fuel return hose and the fuel supply
hose, put the cover at the end of the fuel line to prevent the
foreign objects from entering.



B



POWER STEERING OIL PUMP REMOVAL

Remove the power steering oil pump from the engine with
the hose attached.

NOTE
Place the removed power steering oil pump where it will not
be a hindrance when removing and installing the engine
assembly, and tie it with a cord.

ENGINE <F9Q1> –

Engine Assembly

ENGINE <F9Q1> –

Engine Assembly

11C-24



C



A/C COMPRESSOR REMOVAL

Disconnect the A/C compressor connector and remove the
compressor from the compressor bracket with the hose still
attached.

NOTE
Place the removed A/C compressor where it will not be a
hindrance when removing and installing the engine assembly,
and tie it with a cord.



D



ENGINE MOUNT BRACKET REMOVAL

1.

Support the engine with a garage jack.

2.

Remove the special tool which was attached when the
transmission assembly was removed.

3.

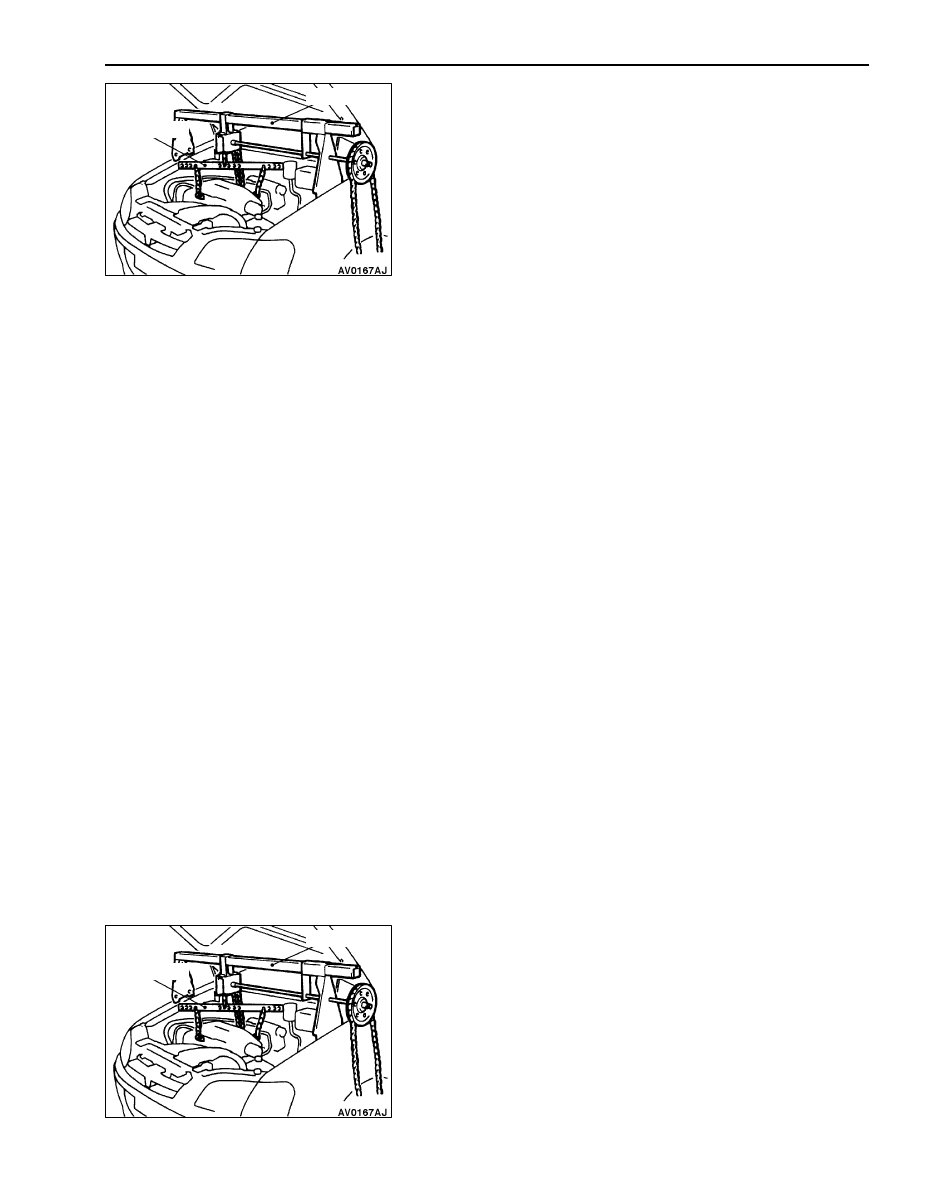

Hold the engine assembly with a chain block or similar
tool.

4.

Place a garage jack against the engine oil pan with a
piece of wood in between, jack up the engine so that
the weight of the engine is no longer being applied to
the engine mount bracket, and then remove the engine
mount bracket.



E



ENGINE ASSEMBLY REMOVAL

After checking that all cables, hoses and harness connectors,
etc., are disconnected from the engine, lift the chain block
slowly to remove the engine assembly upward from the engine
compartment.

INSTALLATION SERVICE POINTS



A



ENGINE ASSEMBLY INSTALLATION

Install the engine assembly, checking that the cables, hoses,
and harness connectors are not clamped.



B



ENGINE MOUNT BRACKET INSTALLATION

1.

Place a garage jack against the engine oil pan with a
piece of wood in between, and install the engine mount
bracket while adjusting the position of the engine.

2.

Support the engine with the garage jack.

3.

Remove the chain block and support the engine assembly
with the special tool.

MB991453

MZ203827

MB991453

MZ203827

12-1

ENGINE

LUBRICATION

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outline of Change

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICANT <F9QT>

2

. . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE <F9QT>

2

. . . . . . . . . . . . .

Engine Oil Inspection

2

. . . . . . . . . . . . . . . . . . . . . . . . .

Engine Oil Replacement

2

. . . . . . . . . . . . . . . . . . . . . . . .

Oil Filter Replacement

3

. . . . . . . . . . . . . . . . . . . . . . . . .

General/Lubricant <F9QT>/
On-vehicle Service <F9QT>

ENGINE LUBRICATION –

12-2

GENERAL

OUTLINE OF CHANGE

The following service procedures have been established to correspond to the addition of the F9QT diesel
engine. Other service procedures are the same as before.

LUBRICANT <F9QT>

Items

Engine oil

Quantity  L

Oil filter

CCMC classification For SERVICE PD2,
ACEA classification For SERVICE B2-96 or B3-96

0.14

Total quantity

ACEA classification For SERVICE B2-96 or B3-96

5.04

ON-VEHICLE SERVICE <F9QT>

ENGINE OIL INSPECTION

1.

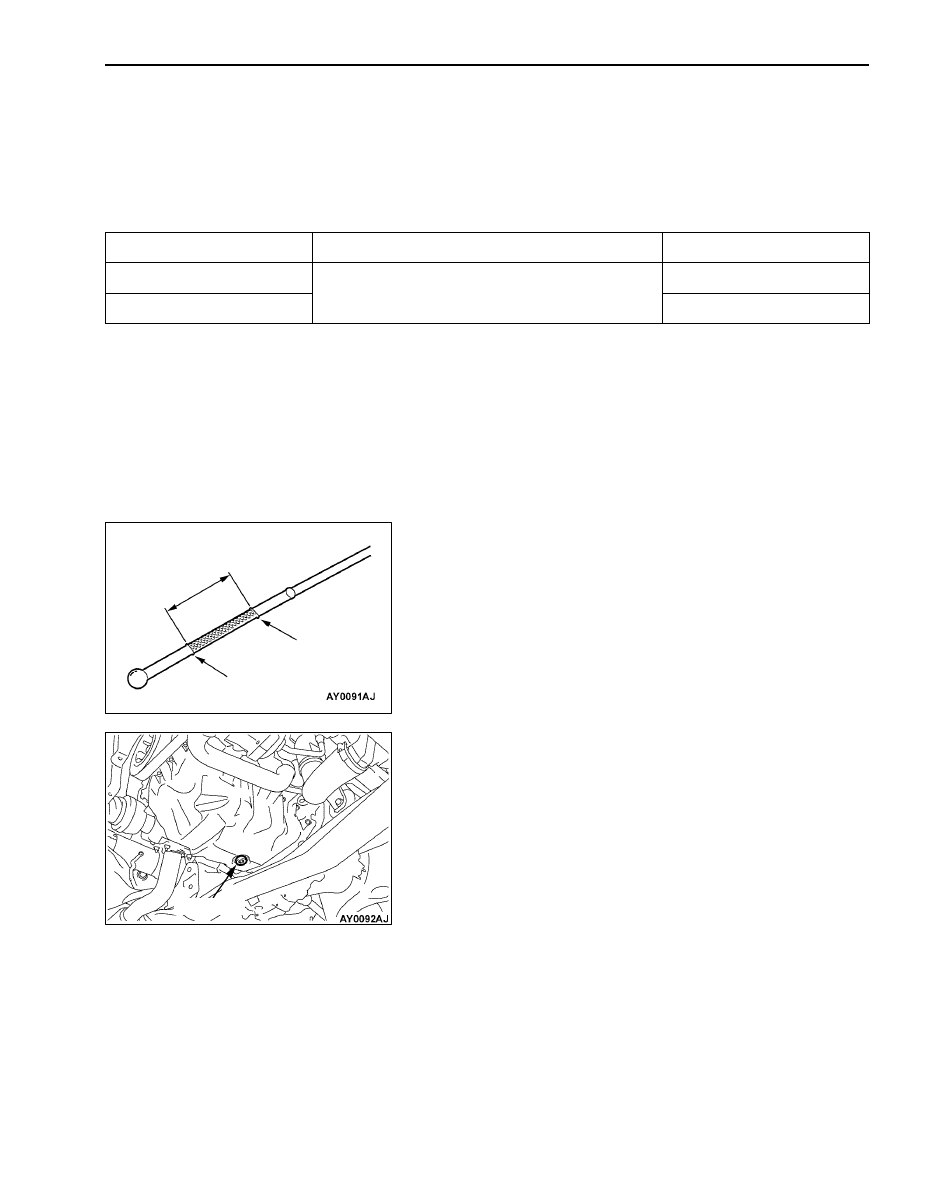

Pull out the level gauge slowly and check that the oil
level is in the illustrated range.

2.

Check that the oil is not excessively dirty, that there is
no coolant or gasoline mixed in, and that it has sufficient
viscosity.

ENGINE OIL REPLACEMENT

1.

Start the engine and allow it to warm up until the
temperature of the coolant reaches 80



C to 90



C.

2.

Remove the engine oil filler cap.

3.

Remove the under cover.

4.

Remove the drain plug to drain oil.

Caution
Use care as oil could be hot.

5.

Fit the drain plug after oil has been drained completely.

NOTE
Tightening torque: 25 Nm

6.

Refill with specified quantity of oil.

Specified Engine Oil:

CCMC classification For SERVICE PD2
ACEA classification For SERVICE B2-96 or B3-96

Total quantity (Includes volume inside oil filter):

5.04 L

7.

Install the engine oil filler cap.

8.

Check oil level.

Good

MAX

MIN

Drain plug
