ENGINE <4G9> – Engine Assembly

11A-15

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation



Engine Cover Removal and Installation
(Refer to P.11A-5.)



Prevention of Fuel Discharge <before removal only>



Air Bleeding the High Pressure Fuel Path
<after installation only>
[Refer to GROUP 13A – Fuel Pump (High pressure).]



Fuel Leak Check <after installation only>



Drive Belt Tension Adjustment



Under Cover Removal and Installation



Air Cleaner Removal and Installation



Hood Removal and Installation



Radiator Assembly Removal (Refer to GROUP 14.)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

5 . 0  N m

9 . 0  N m

16

17

18

19

20

7 . 0  N m

5 . 0  N m

9 . 0  N m

9 . 0  N m

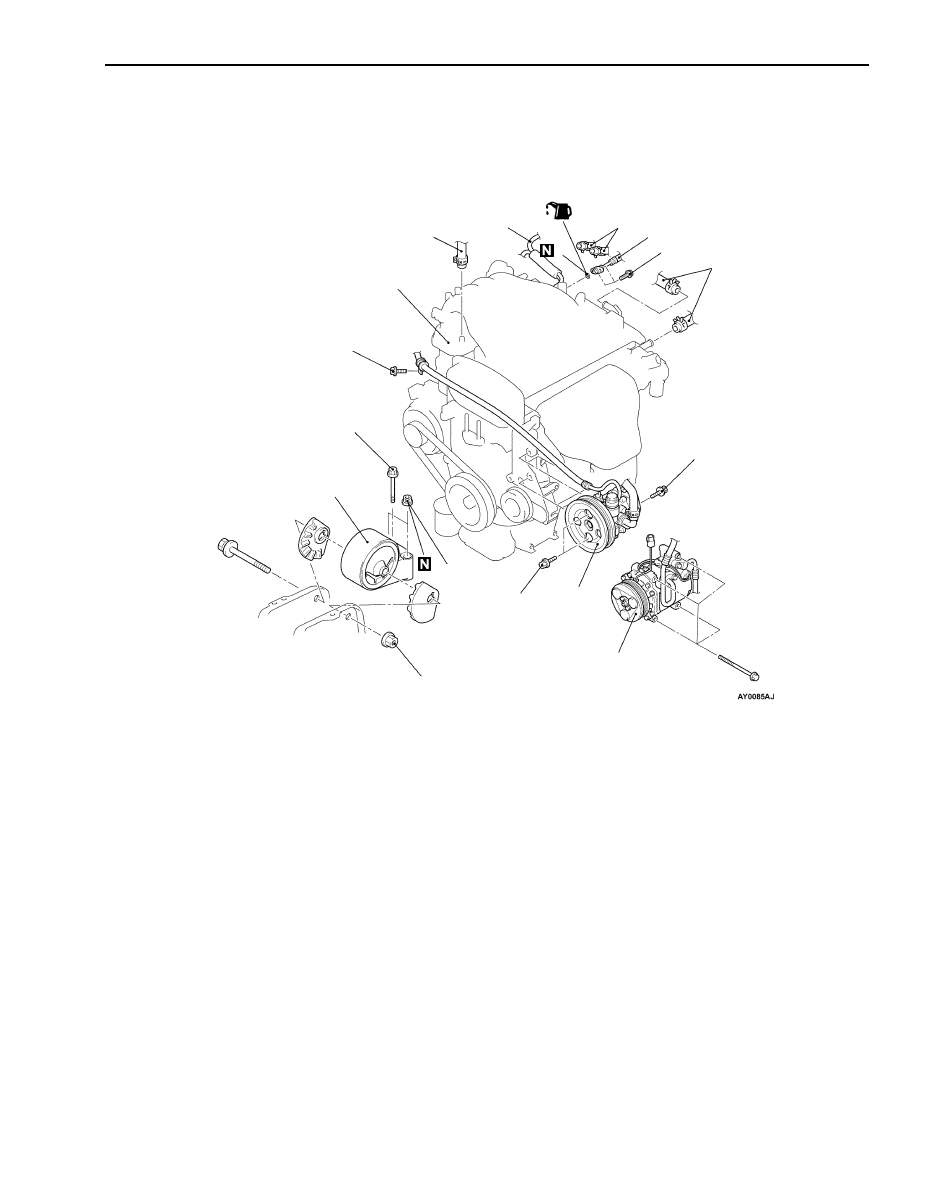

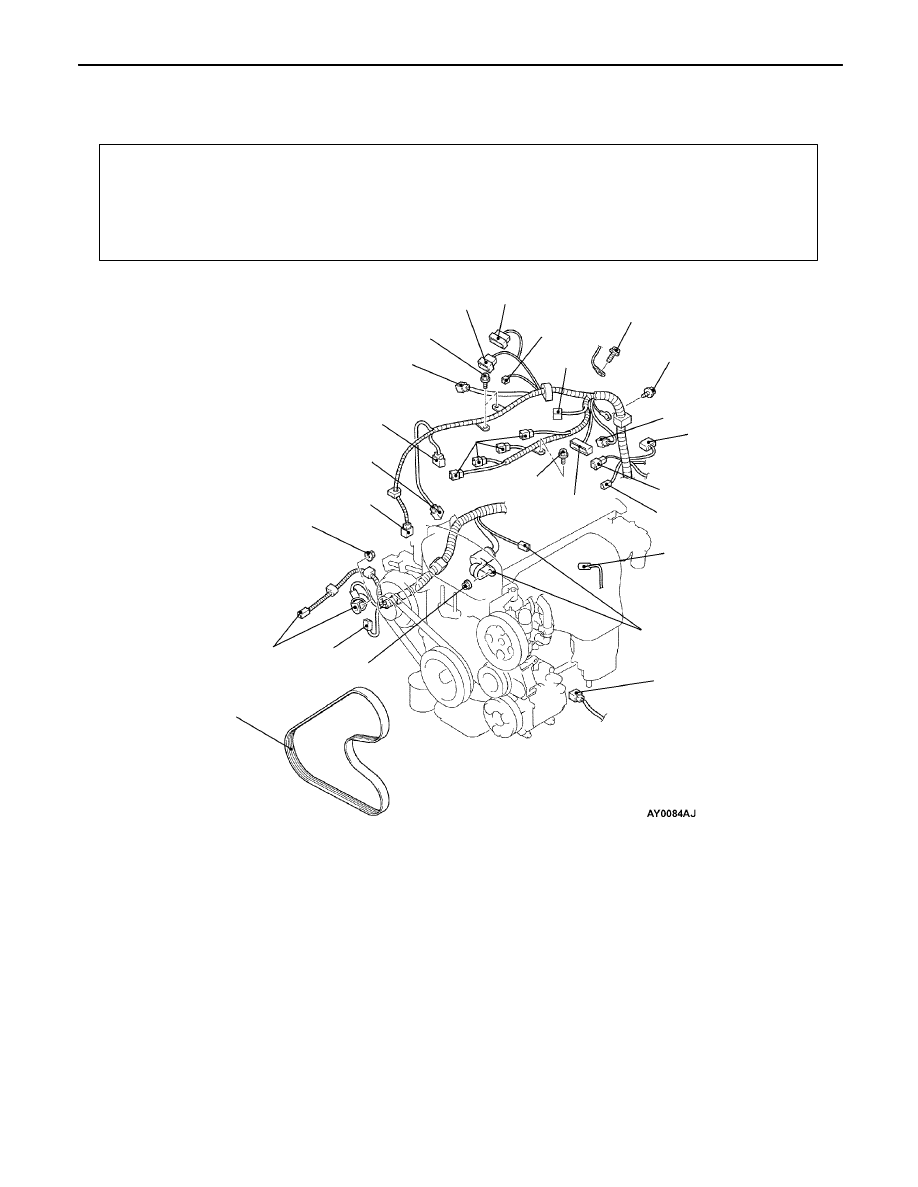

Removal steps

1. Crank angle sensor connector
2. Fuel pressure sensor
3. Oxygen sensor (front) connector
4. Control wiring harness and EGR

wiring harness combination connec-
tor

5. Purge control solenoid valve con-

nector

6. Throttle position sensor connector
7. Throttle valve control servo connec-

tor

8. Control wiring harness and injector

wiring harness combination connec-
tor

9. Ignition coil connector

10. Ignition failure sensor connector

11. Camshaft position sensor connector

12. Engine coolant temperature sensor

connector

13. Engine coolant temperature gauge

unit connector

14. Detonation sensor connector
15. Power steering oil pressure switch

connector

16. A/C compressor connector
17. Alternator connector
18. Engine oil pressure switch connec-

tor

19. Starter connector
20. Drive belt (Power steering and A/C)

ENGINE <4G9> – Engine Assembly

11A-16

Caution
Mounting locations marked by * should be provisionally tightened, and then fully tightened when
the body is supporting the full weight of the engine.

5 7  N m

25

26

27

28

29

30

24

9 8  – 11 8 N m *

2 2  N m

2 2  N m

5 . 0  N m

1 2  N m

(Engine Oil)

22

23

21

6 7  N m



A



21. Power steering oil pump



B



22. A/C compressor
23. Brake booster vacuum hose

connection

24. Vacuum hose connection
25. Heater hoses connection



D



26. Fuel return hoses connection



C



27. High-pressure fuel hose connection



C



28. O-ring



Transmission assembly
(Refer to ’99 SPACE STAR Workshop
Manual.)
(Refer to GROUP 23. <A/T>)



C



B



29. Engine mount Bracket



D



A



30. Engine assembly

ENGINE <4G9> – Engine Assembly

11A-17

REMOVAL SERVICE POINTS



A



POWER STEERING OIL PUMP REMOVAL

Remove the power steering oil pump from the engine with
the hose attached.

NOTE
Place the removed power steering oil pump where it will not
be a hindrance when removing and installing the engine
assembly, and tie it with a cord.



B



A/C COMPRESSOR REMOVAL

Disconnect the A/C compressor connector and remove the
compressor from the compressor bracket with the hose still
attached.

NOTE
Place the removed A/C compressor where it will not be a
hindrance when removing and installing the engine assembly,
and tie it with a cord.



C



ENGINE MOUNT BRACKET REMOVAL

1.

Support the engine with a garage jack.

2.

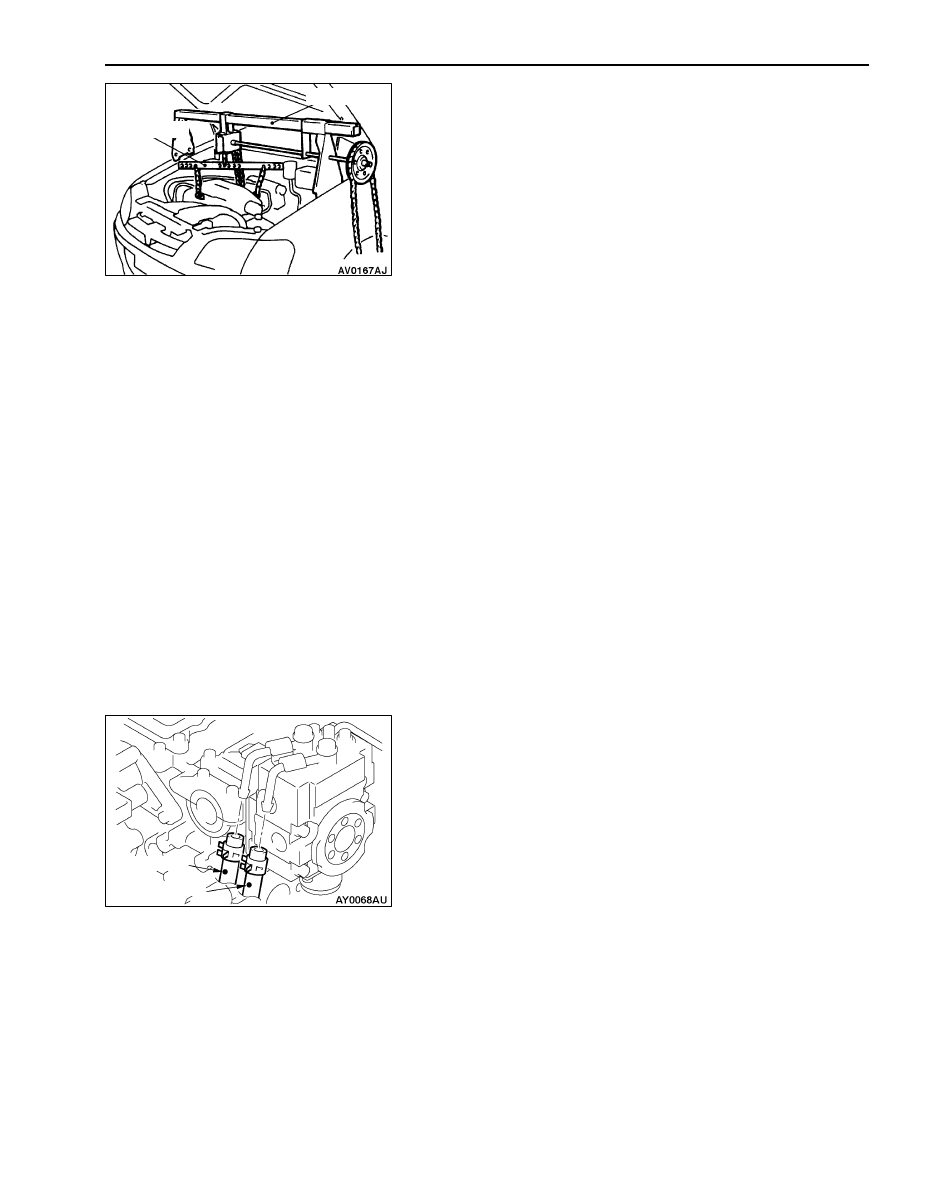

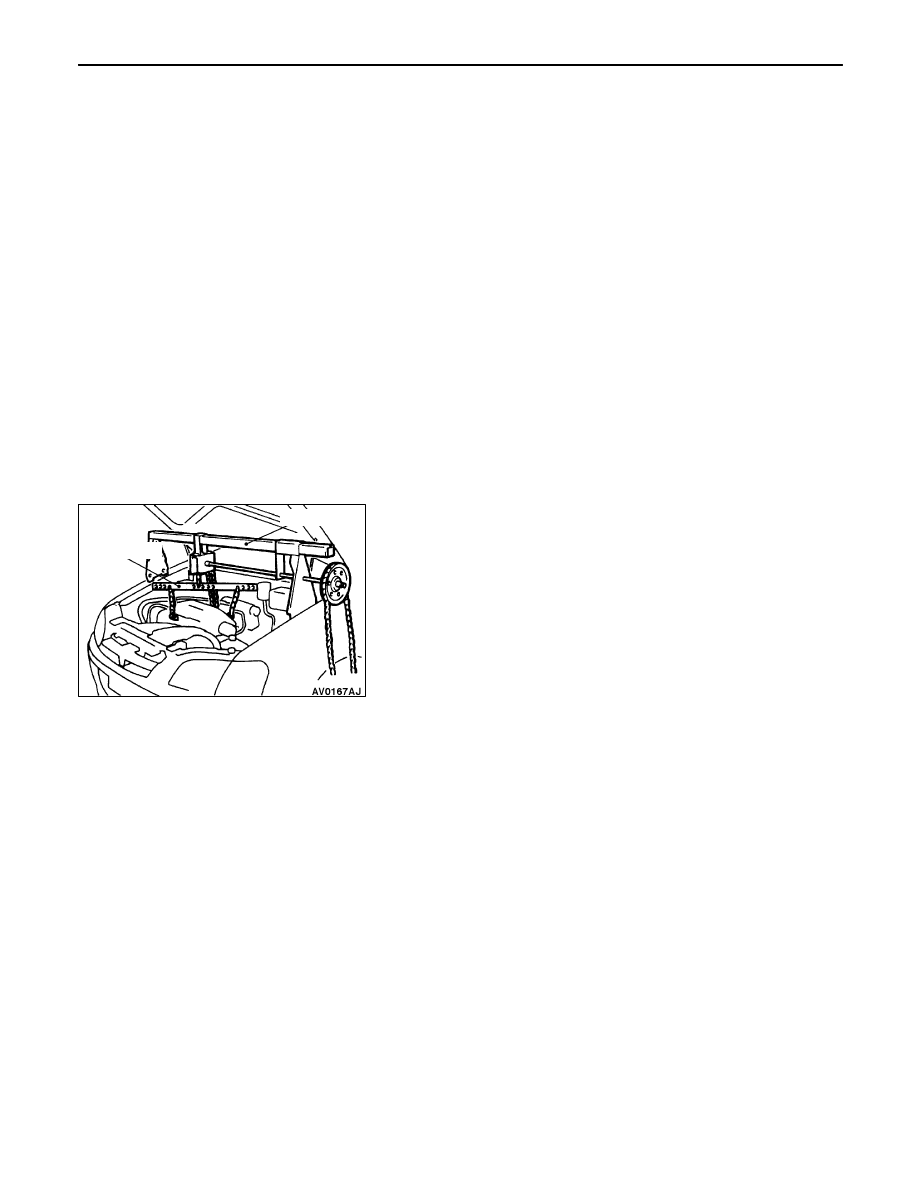

Remove the mechanical hanger (recommended tool) which
was attached when the transmission assembly was
removed.

3.

Hold the engine assembly with a chain block or similar
tool.

4.

Place a garage jack against the engine oil pan with a
piece of wood in between, jack up the engine so that
the weight of the engine is no longer being applied to
the engine mount bracket, and then remove the engine
mount bracket.



D



ENGINE ASSEMBLY REMOVAL

After checking that all cables, hoses and harness connectors,
etc., are disconnected from the engine, lift the chain block
slowly to remove the engine assembly upward from the engine
compartment.

INSTALLATION SERVICE POINTS



A



ENGINE ASSEMBLY INSTALLATION

Install the engine assembly, checking that the cables, hoses,
and harness connectors are not clamped.

MB991453

MZ203827

ENGINE <4G9> – Engine Assembly

11A-18



B



ENGINE MOUNT BRACKET INSTALLATION

1.

Place a garage jack against the engine oil pan with a
piece of wood in between, and install the engine mount
bracket while adjusting the position of the engine.

2.

Support the engine with the garage jack.

3.

Remove the chain block and support the engine assembly
with the mechanical hanger (recommended tool).



C



O-RING/HIGH-PRESSURE FUEL HOSE
INSTALLATION

1.

Apply a small amount of new engine oil to the O-ring.

Caution
Do not let any engine oil get into the delivery pipe.

2.

While turning the high-pressure fuel hose to the right and
left, install the delivery pipe, while being careful not to
damage the O-ring. After installing, check that the hose
turns smoothly.

3.

If the hose does not turn smoothly, the O-ring is probably
being clamped. Disconnect the high-pressure fuel hose
and check the O-ring for damage. After this, re-insert the
delivery pipe and check that the hose turns smoothly.

4.

Tighten to the specified torque.

Specified torque: 5.0 Nm



D



FUEL RETURN HOSES INSTALLATION

Install so that the identification marks of the fuel return hoses
are at the positions shown in the illustration.

MB991453

MZ203827

Blue mark

White mark
