Since the catalytic converter internal-type exhaust manifold and the auto-lash adjuster are adopted, and
intake manifold and the ignition system are changed, the following service adjustment procedures are
made. Otherwise, the procedures are the same as that of the existing models.

GENERAL INFORMATION

Items

4G13

Auto-lash adjuster

Equipped

SERVICE SPECIFICATIONS

Items

Standard value

Limit

Basic ignition timing

BTDC

–

Cylinder head bolt shank length mm

–

103.2

SEALANT

Items

Specified sealant

Remarks

Camshaft position sensor support

MITSUBISHI GENUINE PART
MD970389 or equivalent

Semi-drying sealant

ENGINE <4G1> – Special Tools

11B-3

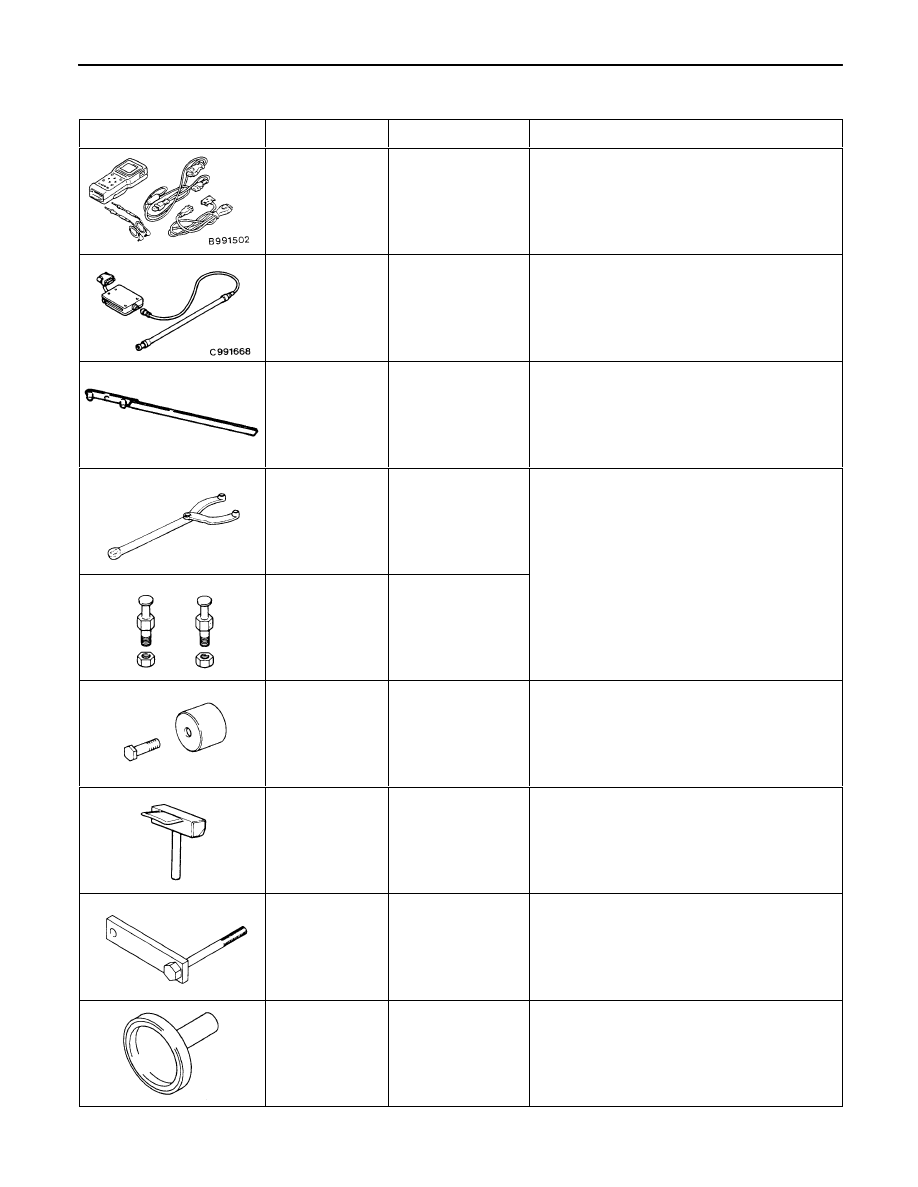

SPECIAL TOOLS

Tool

Number

Name

Use

MB991502

MUT-II sub
assembly

Measuring the drive belt tension

Checking the idle speed

MB991668

Belt tension meter
set

Measuring the drive belt tension
(used together with MUT-II)

MD998747

Crankshaft pulley
holder

Holding the crankshaft pulley

MB990767

End yoke holder

Holding the camshaft sprocket

MD998719 or
MD998754

Crankshaft pulley
holder pin

MD998713

Camshaft oil seal
installer

Press-in of the camshaft oil seal

MD998727

Oil pan remover

Removing the oil pan

MD998781

Fly wheel stopper

Securing the flywheel

MD998718

Crankshaft rear oil
seal installer

Press-fitting the crankshaft rear oil seal

ENGINE <4G1> – Special Tools/On-vehicle Service

11B-4

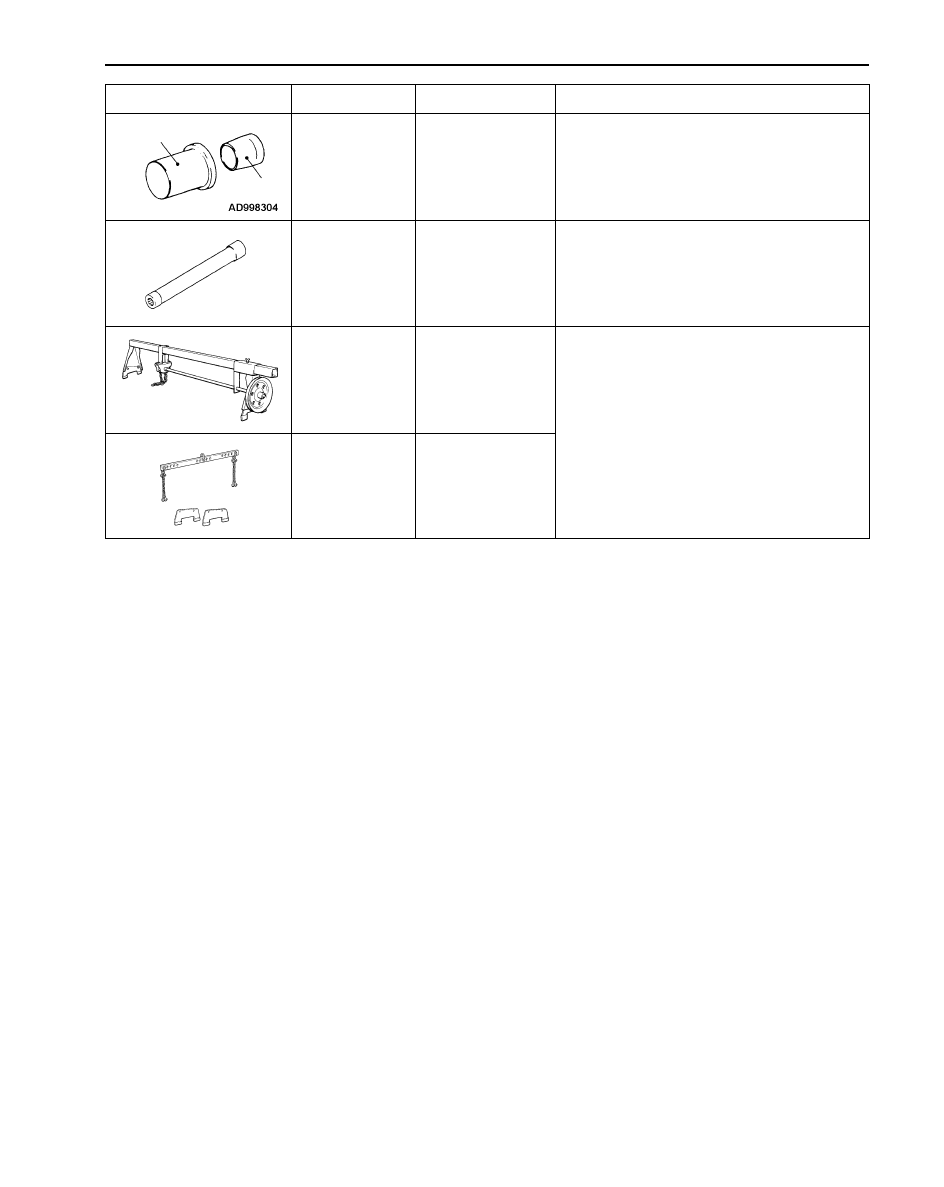

Tool

Use

Name

Number

A: MD998304
B: MD998305

A: Crankshaft front
oil seal installer
B: Crankshaft front
oil seal guide

Press-fitting the crankshaft front oil seal

MB991653

Cylinder head bolt
wrench

Cylinder head bolt removal and installation

GENERAL
SERVICE
TOOL
MZ203827

Engine lifter

Supporting the engine assembly during
removal and installation of the transmission

MB991453

Engine hanger as-
sembly

ON-VEHICLE SERVICE

IGNITION TIMING CHECK

Set the vehicle to the pre-inspection condition.

After turning the ignition switch to the LOCK (OFF) position,
connect the MUT-II to the diagnosis connector.

Connect a timing light.

Start the engine and run it at idle.

Select item No. 22 on the MUT-II and take a reading of the
engine speed. Check that the idle speed is at the standard
value.

Standard value: 750

100 r/min

Select item No. 17 (actuator test function) on the MUT-II,
and set the ignition timing to the basic ignition timing.

Check the basic ignition timing.

Standard value: 5

BTDC

If the basic ignition timing is outside the standard value
range, check the MPI system while referring to GROUP 13B
– Troubleshooting.

Press the CLEAR key on the MUT-II to cancel the basic
ignition timing setting mode by the actuator test function.

Caution
If the mode is not cancelled, the basic ignition timing
setting mode will remain active for 27 minutes, and
problems with engine operation may result if the
vehicle is driven during this period.
