Mitsubishi Space Star. Manual - part 4





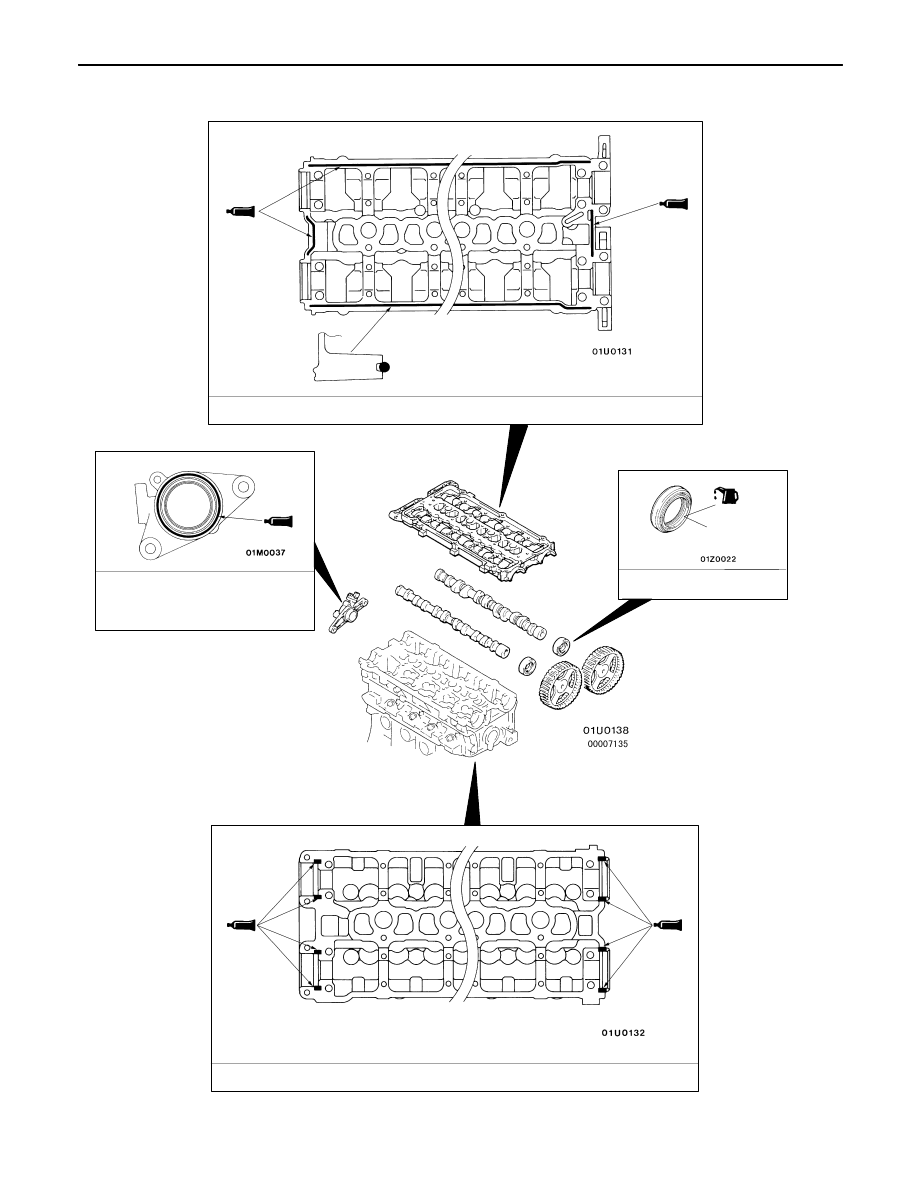

ENGINE <4G9> – Camshaft and Camshaft Oil Seal

11A-7

Lubrication points

<Seen from underneath
beam camshaft cap>

Sealant: 3M ATD Part No.8660 or equivalent

Sealant:
MITSUBISHI GENUINE PART
MD970389 or equivalent

Engine oil

Lip section

<Seen from above cylinder head>

Sealant: 3M ATD Part No.8660 or equivalent

φ

3mm

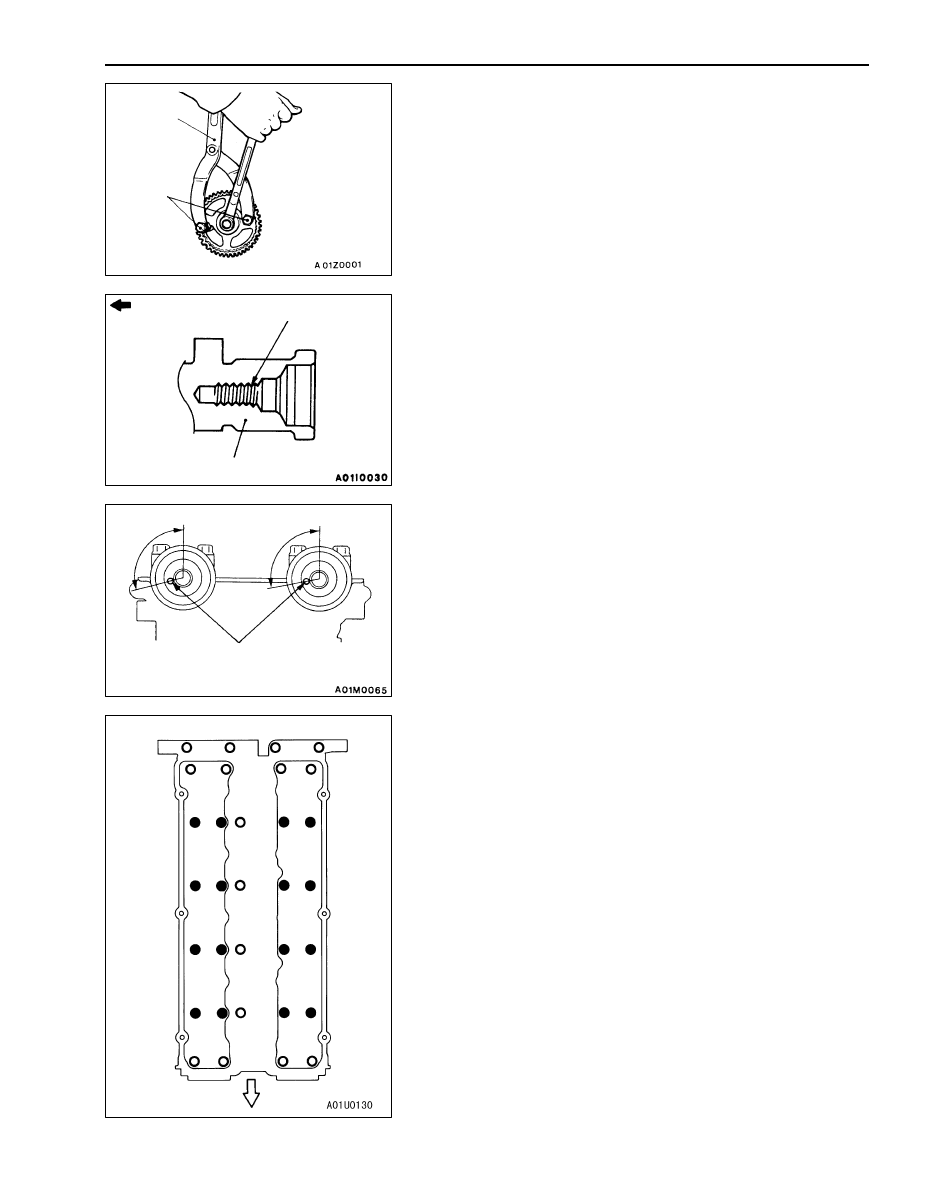

ENGINE <4G9> – Camshaft and Camshaft Oil Seal

11A-8

REMOVAL SERVICE POINT



A



CAMSHAFT SPROCKET REMOVAL

INSTALLATION SERVICE POINTS



A



CAMSHAFT INSTALLATION

1.

Apply engine oil to journals and cams of the camshafts.

2.

Install the camshafts on the cylinder head.

Caution
Be careful not to confuse the intake camshaft with
the exhaust one. There is a screw hole for the cam
position sensing cylinder mounting bolt on the
exhaust-side camshaft.



B



BEAM CAMSHAFT CAP INSTALLATION

1.

Place the camshaft dowel pin as shown in the illustration.

2.

Tighten the beam camshaft cap mounting bolts to the
specified torque in the order shown in the illustration.

Tightening torque:



 : 10 – 12 Nm



 : 21 – 25 Nm

MB990767

MD998719

Exhaust camshaft

Screw hole

Camshaft sprocket side

Approx.
106



Approx.
101



Dowel pin

Intake side

Exhaust side

Intake side

Exhaust
side

Front of engine

28

27

31

32

20 19

23 24

12 11

15 16

3

8

7

5

6

1

14 13

9

10

2

22 21

17 18

4

30 29

25 26

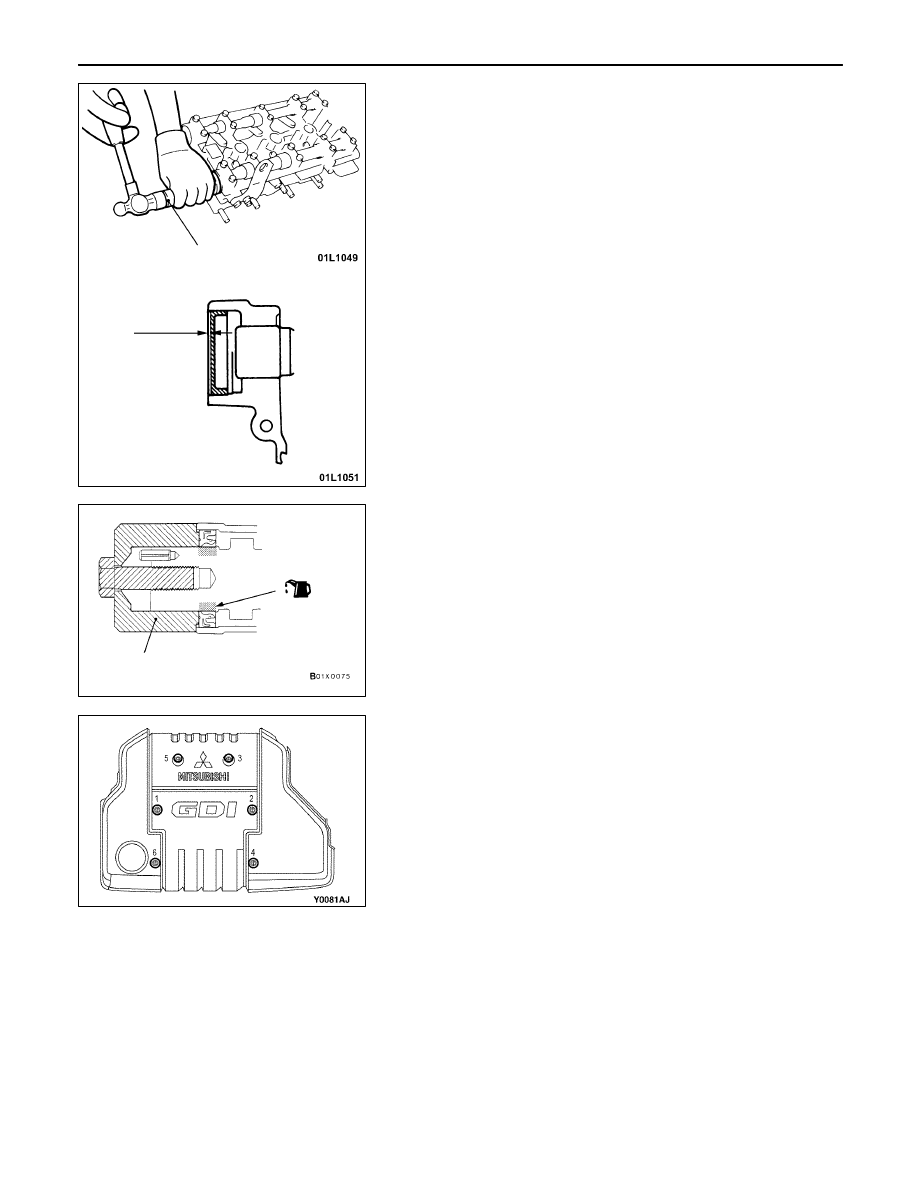

ENGINE <4G9> – Camshaft and Camshaft Oil Seal

11A-9



C



CIRCULAR PACKING INSTALLATION

Use the special tool to press-fit the circular packing as shown
in the illustration.



D



CAMSHAFT OIL SEAL INSTALLATION

1.

Apply engine oil to the entire circumference of the oil seal
lip.

2.

Press-fit the oil seal as shown in the illustration.



E



CAMSHAFT SPROCKET INSTALLATION

Use the special tool to secure the camshaft sprocket in the
same way as during removal, and then tighten the bolt to
the specified torque.



F



ENGINE COVER INSTALLATION

1.

Temporarily tighten the mounting bolt in the order of the
numbers shown in the illustration so that the engine cover
can move easily by hand.

2.

Tighten the mounting bolt to the specified torque in the
order of the numbers shown in the illustration.

Tightening torque: 3.0 Nm

MD998762

Press-fitting
depth 2 mm

MD998713

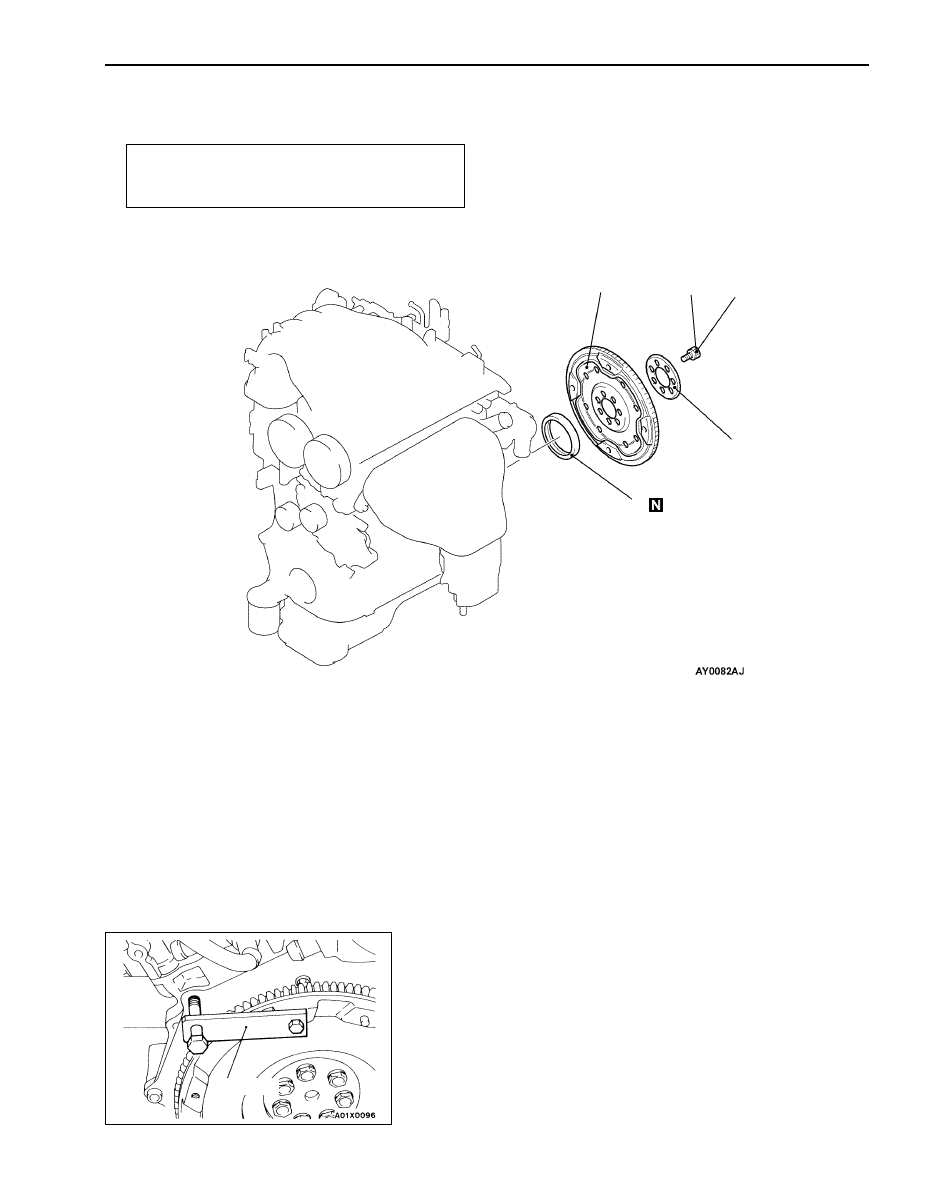

ENGINE <4G9> – Crankshaft Rear Oil Seal <A/T>

11A-10

CRANKSHAFT REAR OIL SEAL <A/T>

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation



Transmission Assembly Removal and Installation
(Refer to GROUP 23.)

1

2

3

4

9 3  –  1 0 3  N m

Removal steps



A



B



1. Drive plate bolts



B



2. Adapter plate



B



3. Drive plate



A



4. Crankshaft rear oil seal

REMOVAL SERVICE POINT



A



DRIVE PLATE BOLTS REMOVAL

Use the special tool to secure the drive plate, and remove
the bolts.

MD998781
