Mitsubishi Lancer. Manual - part 168

ABS

CIRCUIT DIAGRAMS

90-318

ABS <RHD>  (CONTINUED)

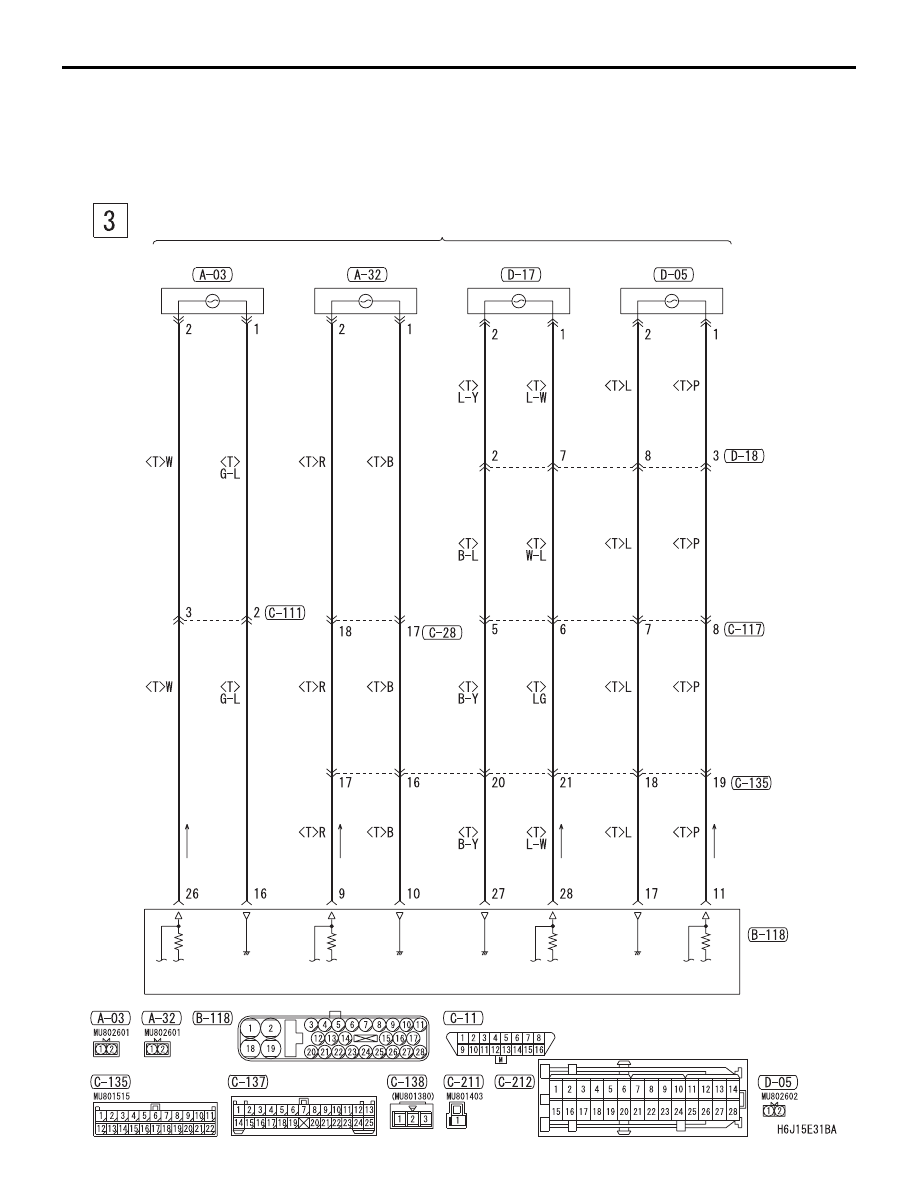

WHEEL SPEED SENSOR

(FRONT: LH)

(FRONT: RH)

(REAR: LH)

(REAR: RH)

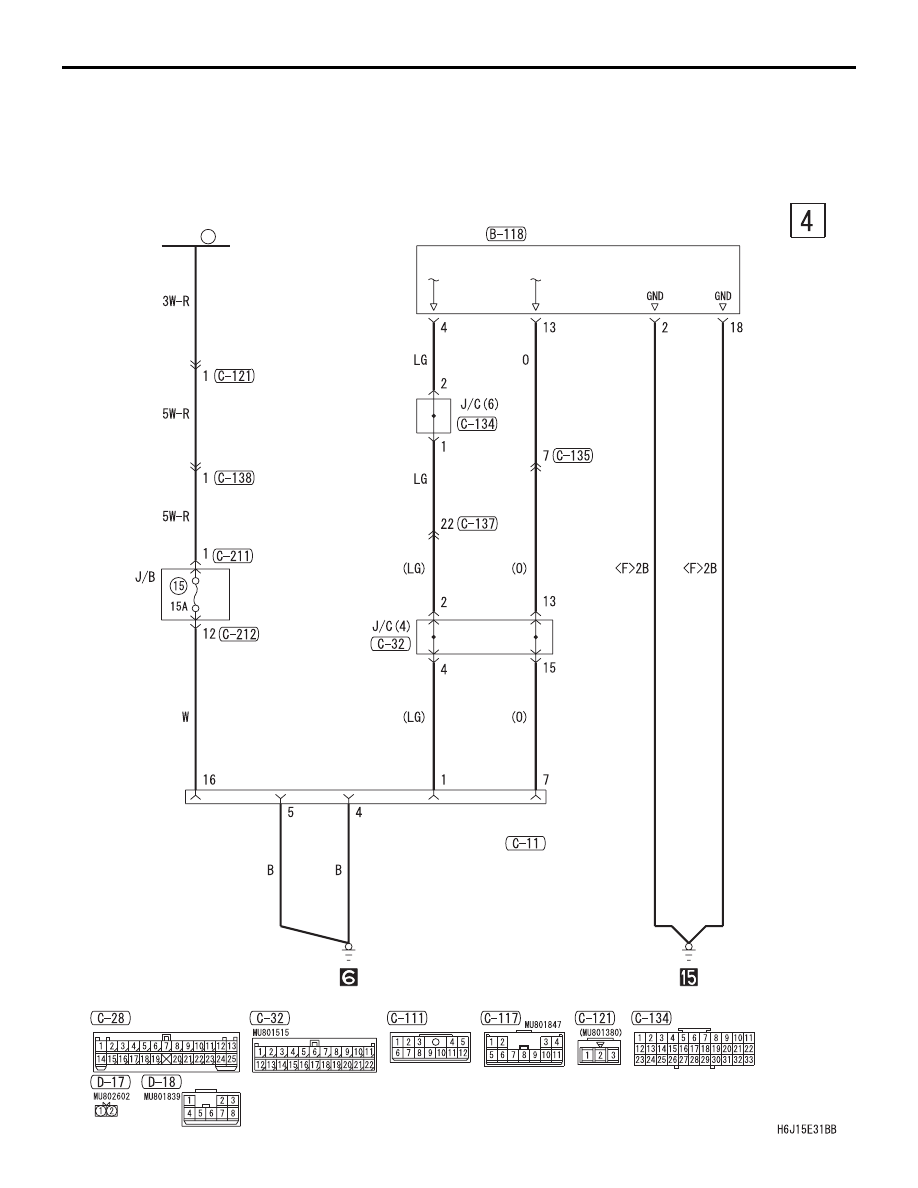

ABS-ECU

FRONT
SIDE

ABS

CIRCUIT DIAGRAMS

90-319

1

FUSIBLE
LINK

ABS-ECU

DIAGNOSIS
CONNECTOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

HEATED SEAT

CIRCUIT DIAGRAMS

90-320

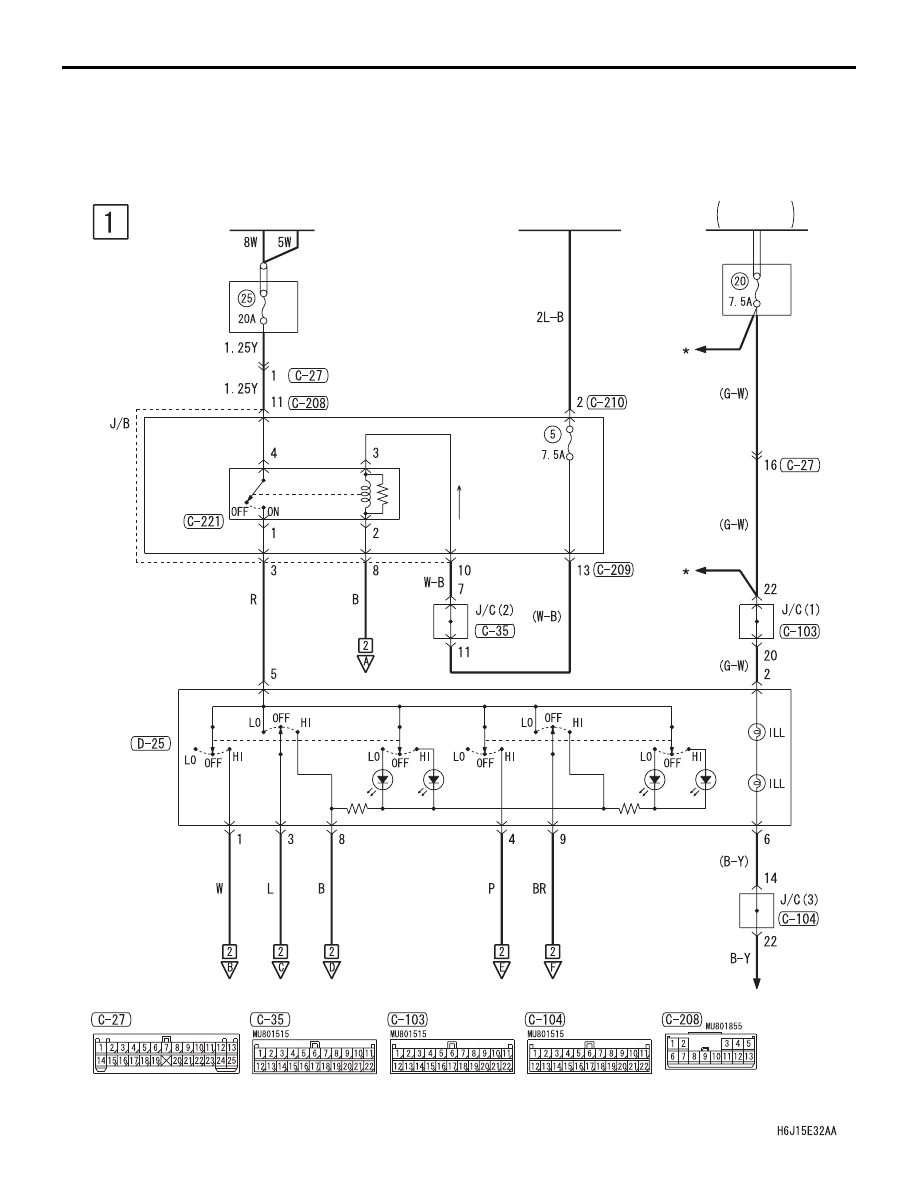

HEATED SEAT

M1901010700730

BATTERY

IGNITION
SWITCH (IG2)

HEATED
SEAT
SWITCH

RELAY
BOX

RELAY
BOX

RHEOSTAT

HEATED
SEAT
RELAY

FRONT-ECU

TAIL LAMP
RELAY

HEATED SEAT

CIRCUIT DIAGRAMS

90-321

HEATED SEAT
SWITCH

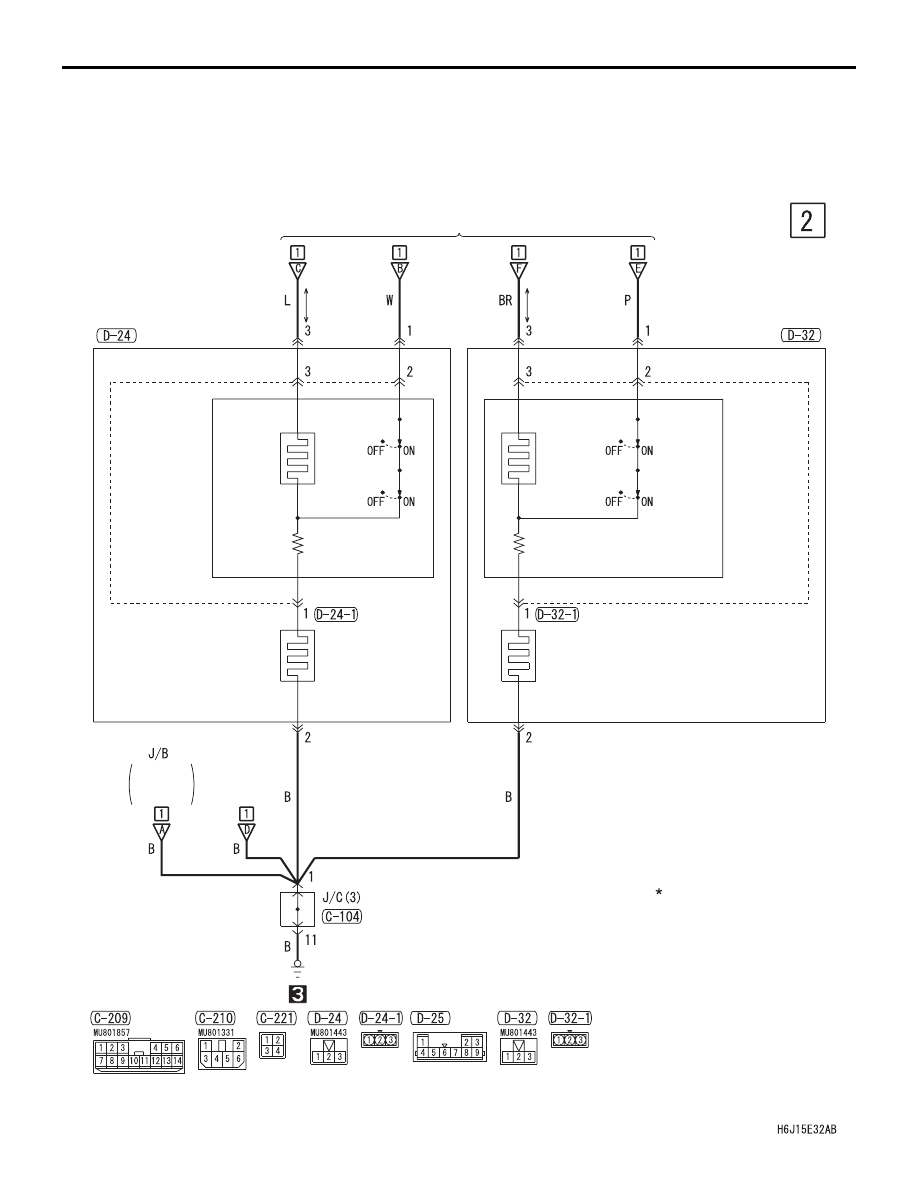

HEATED SEAT
ASSEMBLY (LH)

HEATED SEAT
ASSEMBLY (RH)

SEAT
CUSHION
HEATER

SEAT
CUSHION
HEATER

SEAT
BACK
HEATER

THERMOSTAT

THERMOSTAT

THERMOSTAT

THERMOSTAT

SEAT
BACK
HEATER

HEATER

HEATER

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

NOTE

:

HEATED
SEAT
RELAY

HEATED
SEAT
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
