Mitsubishi Lancer. Manual - part 126

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

CIRCUIT DIAGRAMS

90-150

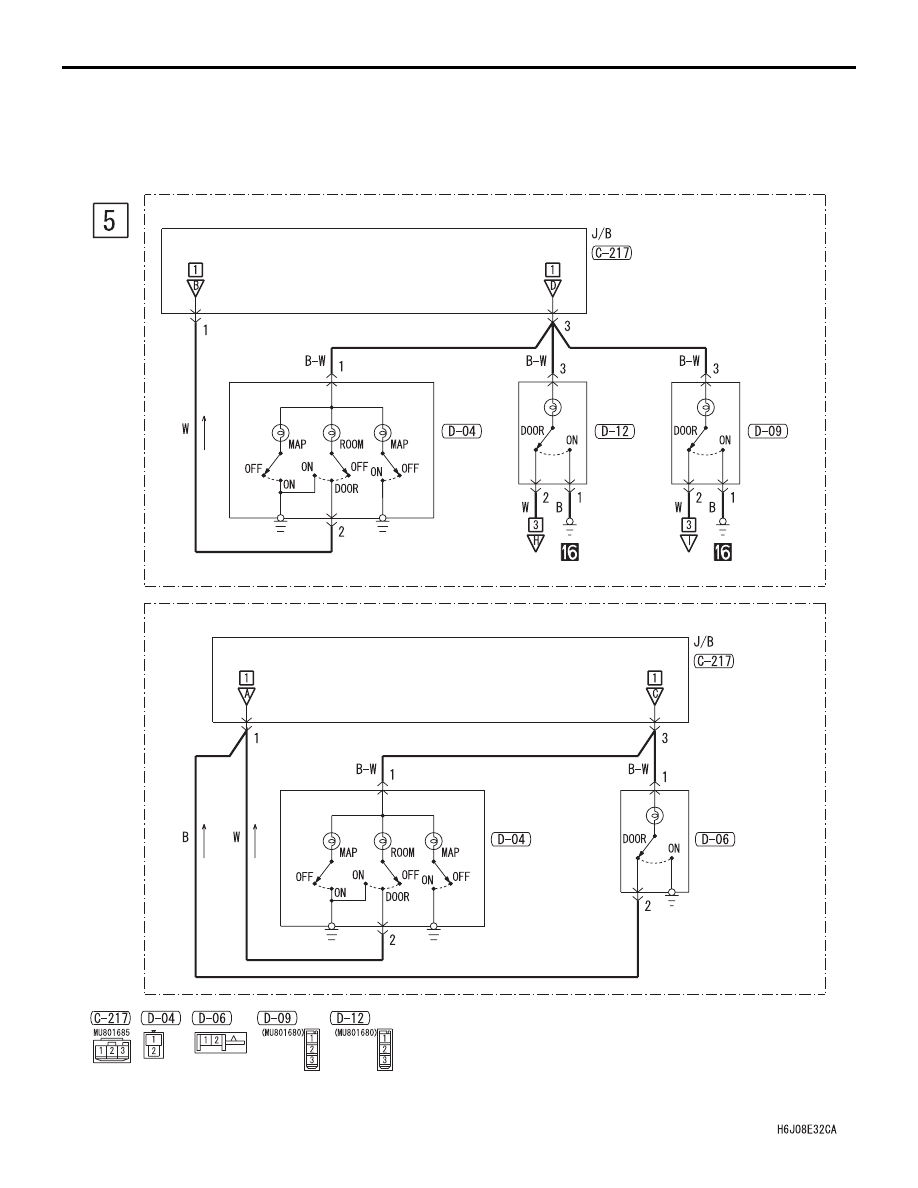

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP <WAGON (LHD)> (CONTINUED)

REAR
PERSONAL
LAMP (LH)

REAR
PERSONAL
LAMP (RH)

FRONT
ROOM
LAMP

FRONT
ROOM
LAMP

REAR
ROOM
LAMP

ETACS-
ECU

ETACS-
ECU

ETACS-
ECU

ETACS-
ECU

<VEHICLES WITHOUT CURTAIN AIR BAG>

<VEHICLES WITH CURTAIN AIR BAG>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

CIRCUIT DIAGRAMS

90-151

NOTES

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

CIRCUIT DIAGRAMS

90-152

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP <WAGON (RHD)>

M1901017900166

IGNITION
SWITCH (ACC)

IGNITION
SWITCH (IG1)

RELAY
BOX

ETACS-ECU

INTERIOR LAMP CUT BACK-UP CIRCUIT

<VEHICLES
 WITH
 CURTAIN
 AIR BAG>

<VEHICLES
 WITHOUT
 CURTAIN
 AIR BAG>

<VEHICLES
 WITH
 CURTAIN
 AIR BAG>

<VEHICLES
 WITHOUT
 CURTAIN
 AIR BAG>

LUGGAGE
ROOM
LAMP

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

CIRCUIT DIAGRAMS

90-153

BATTERY

1

FUSIBLE
LINK

·FRONT FOG LAMP

·HEADLAMP LEVELLING
 SYSTEM

·HEADLAMP

·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD
 WIPER AND WASHER

POWER
SOURCE

WITHOUT
KEYLESS ENTRY

WITH
KEYLESS ENTRY

LOAD
DETERMINATION
CIRCUIT

KEEP RELAY

J/B SIDE

·REAR FOG LAMP

COMBINATION
METER
