POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-30

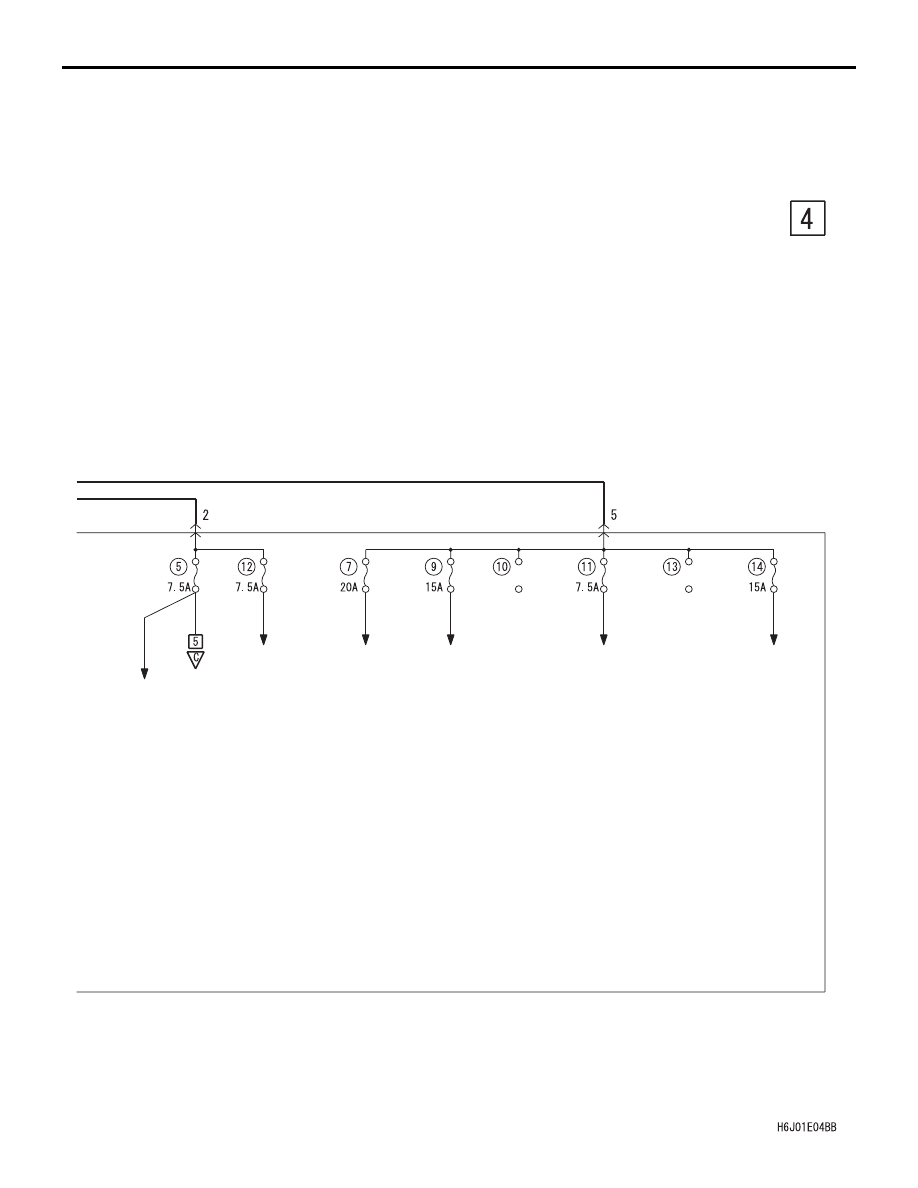

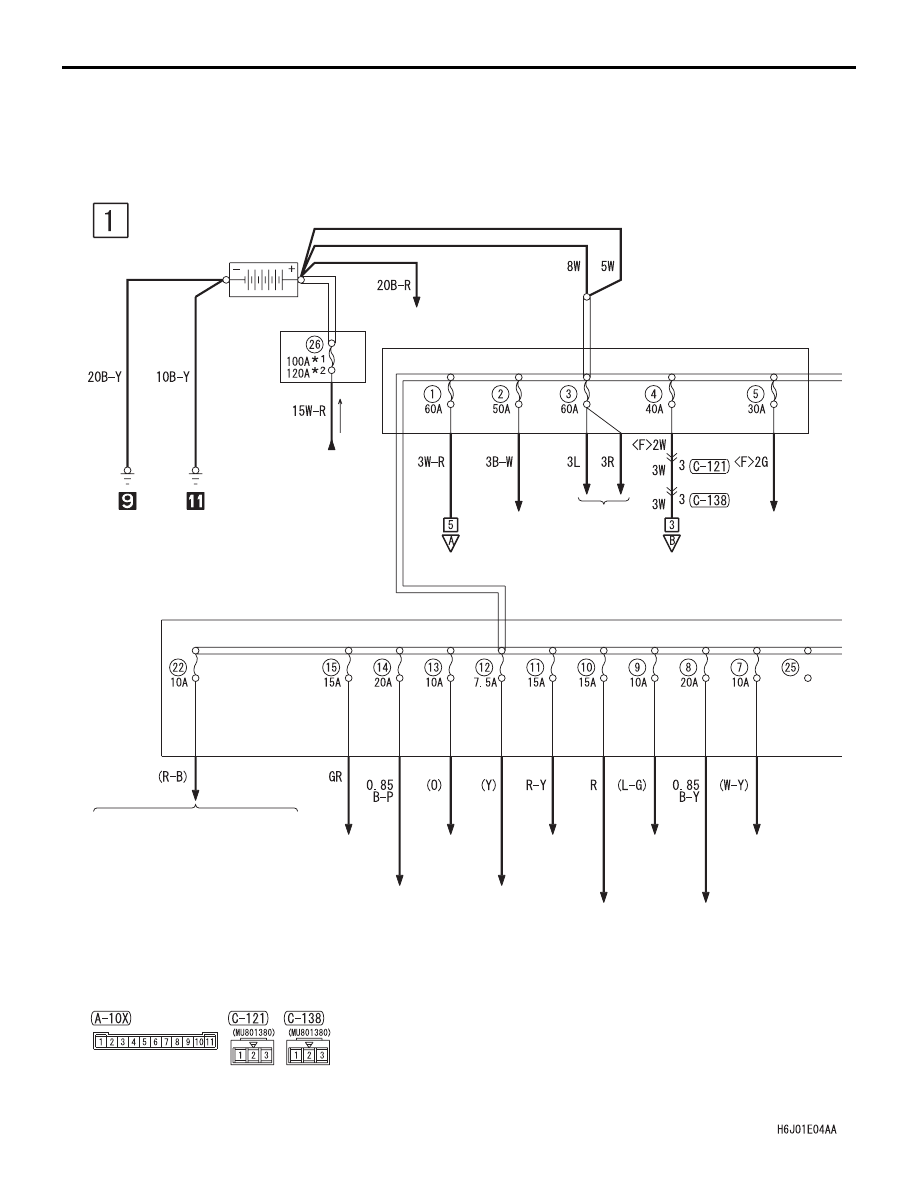

 POWER DISTRIBUTION SYSTEM <RHD>

M1901000402013

·CENTRAL DOOR
 LOCKING SYSTEM
·CLOCK
·FRONT FOG LAMP
·FUEL WARNING
 LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·INVECS-II 4A/T
·KEY REMINDER
 BUZZER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
 WASHER

·ROOM LAMP AND
 LUGGAGE COM-
 PARTMENT LAMP
·ROOM LAMP,
 PERSONAL LAMP
 AND LUGGAGE
 ROOM LAMP
·SPARE CONNECTOR
 (FOR AUDIO)
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

ENGINE
CONTROL
SYSTEM

INVECS-II
4A/T

TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP

CHARGING
SYSTEM

ACCESSORY
SOCKET

·ABS
·INVECS-II
 4A/T
·STOP LAMP

·AUTOMATIC AIR
 CONDITIONER
·HEATER
·MANUAL AIR
 CONDITIONER

·COOLING
 SYSTEM
·ENGINE
 CONTROL
 SYSTEM
·IGNITION SYSTEM
·IMMOBILIZER
 SYSTEM
·INVECS-II 4A/T

HORN

·AUTOMATIC AIR
 CONDITIONER
·COOLING
 SYSTEM
·MANUAL AIR
 CONDITIONER

ABS

POWER
WINDOWS

STARTING
SYSTEM

BATTERY

RELAY
BOX

FUSIBLE
LINK

RELAY
BOX

CHARGING
SYSTEM

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-31

·REAR FOG LAMP
·REAR WINDOW
 DEFOGGER AND DOOR
 MIRROR HEATER
·RHEOSTAT
·SPARE CONNECTOR
 (FOR AUDIO)
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP

·AUTOMATIC AIR
 CONDITIONER
·CIGARETTE LIGHTER
 AND ASHTRAY
 ILLUMINATION LAMP
·FRONT FOG LAMP
·HEATER
·HEADLAMP
 LEVELLING SYSTEM
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONER
·METER AND GAUGE

HEADLAMP
LEVELLING
SYSTEM

HEADLAMP

·FRONT FOG
 LAMP
·SPARE
 CONNECTOR
 (FOR FRONT
 FOG LAMP)

FRONT-ECU

HEADLAMP
RELAY: LO

HEADLAMP
RELAY: HI

TAIL LAMP
RELAY

HEADLAMP

TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

: 4G1
: 4G6

NOTE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-32

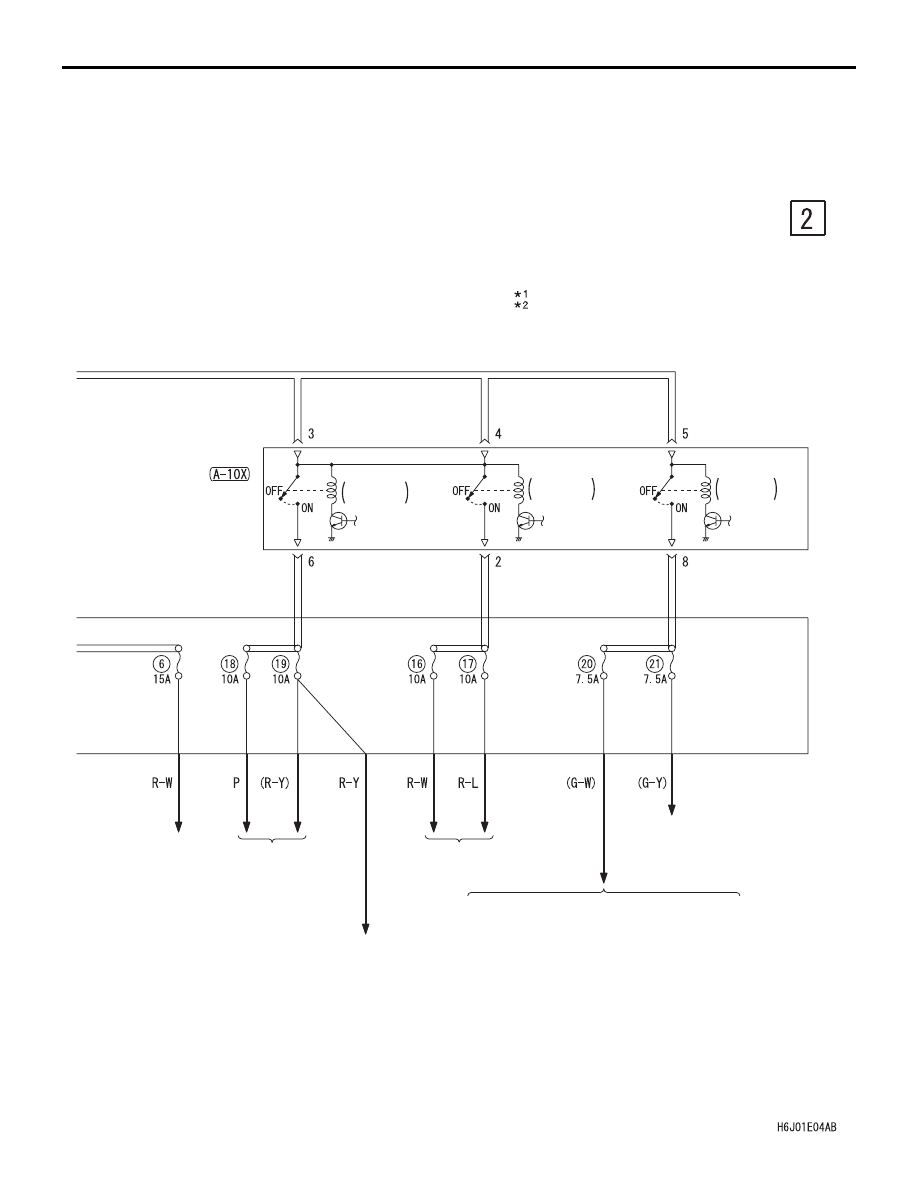

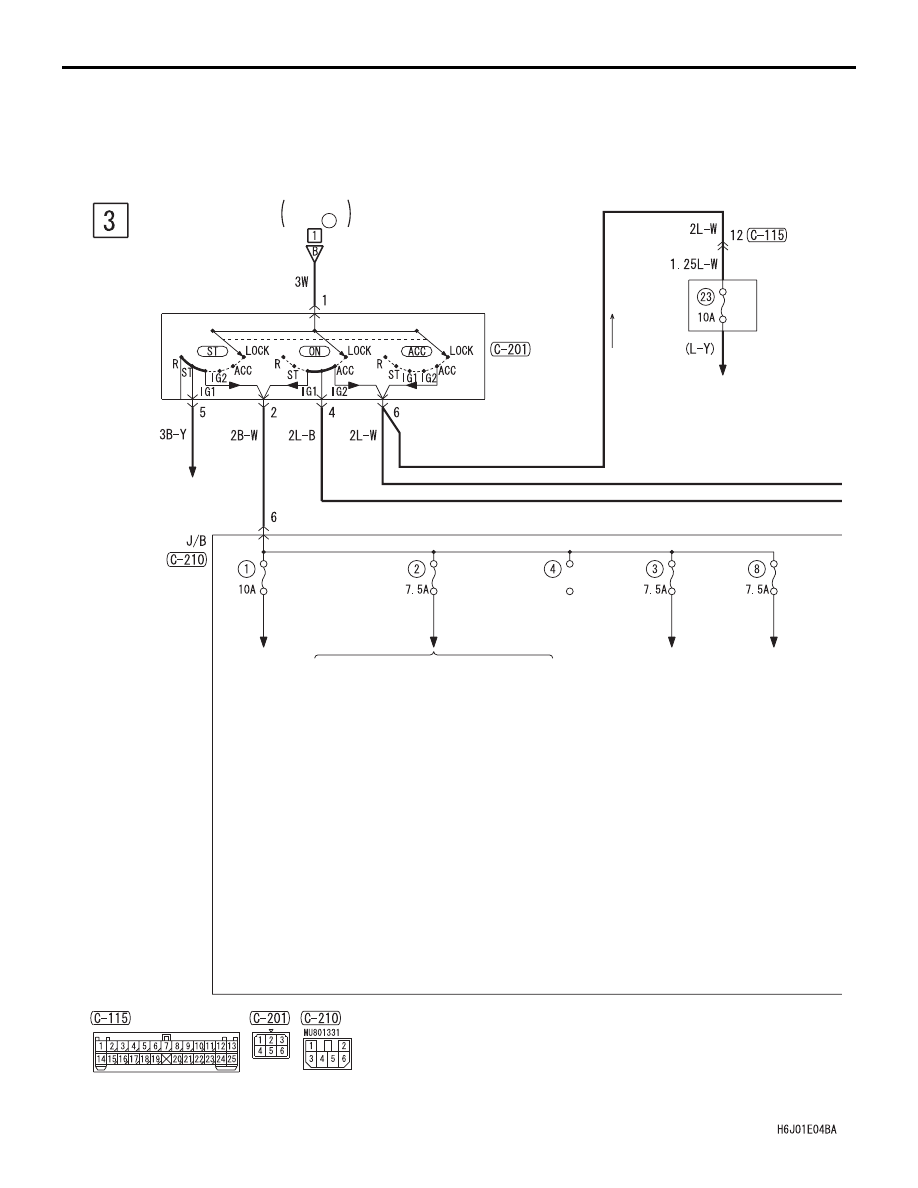

POWER DISTRIBUTION SYSTEM <RHD> (CONTINUED)

IGNITION
SWITCH

RELAY
BOX

·CLOCK
·ROOM LAMP AND LUGGAGE
 COMPARTMENT LAMP
·ROOM LAMP, PERSONAL LAMP
 AND LUGGAGE ROOM LAMP
·SPARE CONNECTOR
 (FOR AUDIO)

STARTING
SYSTEM

IGNITION
SYSTEM

·ENGINE
 CONTROL
 SYSTEM

·ENGINE CONTROL
 SYSTEM

·INVECS-II
 4A/T

·INVECS-II 4A/T

·INVECS-II 4A/T

·BACK-UP LAMP

·METER AND
 GAUGE
·REAR WIPER AND
 WASHER
·SUPPLEMENTAL
 RESTRAINT SYSTEM
 (SRS)

·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)

·WINDSHIELD
 WIPER AND WASHER

·ABS
·BRAKE WARNING
 LAMP
·CENTRAL DOOR
 LOCKING SYSTEM
·ENGINE CONTROL
 SYSTEM
·FRONT
 FOG LAMP
·FUEL WARNING
 LAMP
·HEADLAMP

·KEY REMINDER
 BUZZER
·METER AND
 GAUGE

·OIL PRESSURE
 WARNING LAMP
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER
 AND WASHER

·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

RELAY BOX

4

FUSIBLE
LINK

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-33

REAR WIPER
AND WASHER

·ACCESSORY
 SOCKET
·REMOTE
 CONTROLLED
 MIRROR

CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP

ABS

WINDSHIELD
WIPER AND
WASHER

·FRONT
 FOG LAMP
·HEADLAMP

·REAR
 FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

·HEADLAMP
 LEVELLING
 SYSTEM
·HEATER
·MANUAL AIR
 CONDITIONER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

·AUTOMATIC AIR
 CONDITIONER
