CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-22

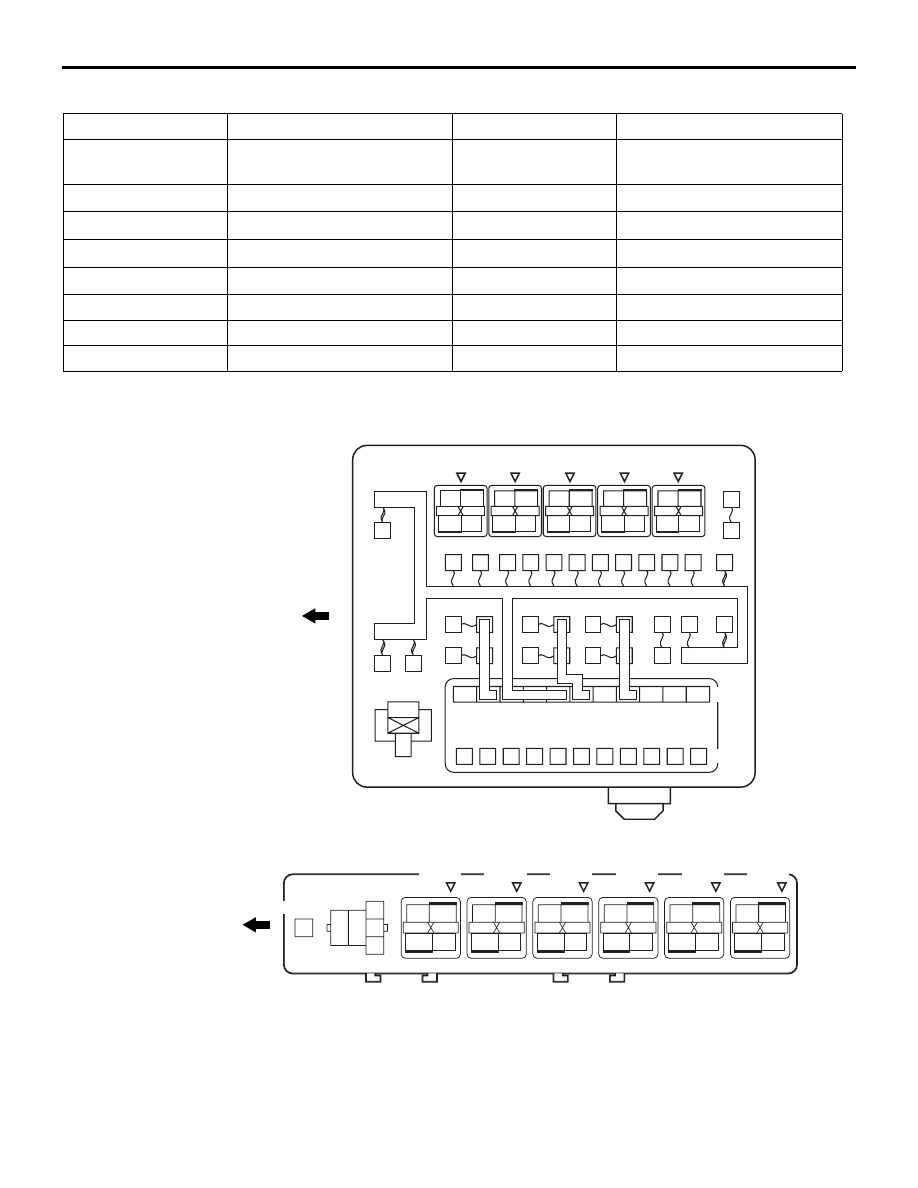

CENTRALIZED RELAY

NOTE:

.

•

The triangle mark on the relay housing should face that on the J/B and the relay box.

Connector No.

Name

Connector No.

Name

A-04X

Front fog lamp relay

B-10X

Engine speed detection
connector

A-05X

Horn relay

B-11X

−

A-06X

−

B-12X

−

A-07X

−

B-13X

−

A-08X

−

B-14X

Ignition coil relay

A-09X

Fan control relay

B-15X

A/T control relay

A-10X

Front-ECU

B-16X

Engine control relay

A-11X

Front-ECU

B-17X

A/C compressor relay

AC208462

Front of vehicle

A-09X

A-04X

A-05X

A-06X

A-07X

A-08X

1

1

2

2

3

3

4

4

(Relay box in engine compartment)

A-11X

A-10X

AP

AC208464 AJ

Front of vehicle

B-11X

1

2

3

4

B-12X

B-13X

B-14X

B-15X

B-16X

B-17X

B-10X

1

2

3

4

1

2

3

4

1

2

3

4

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-23

NOTES

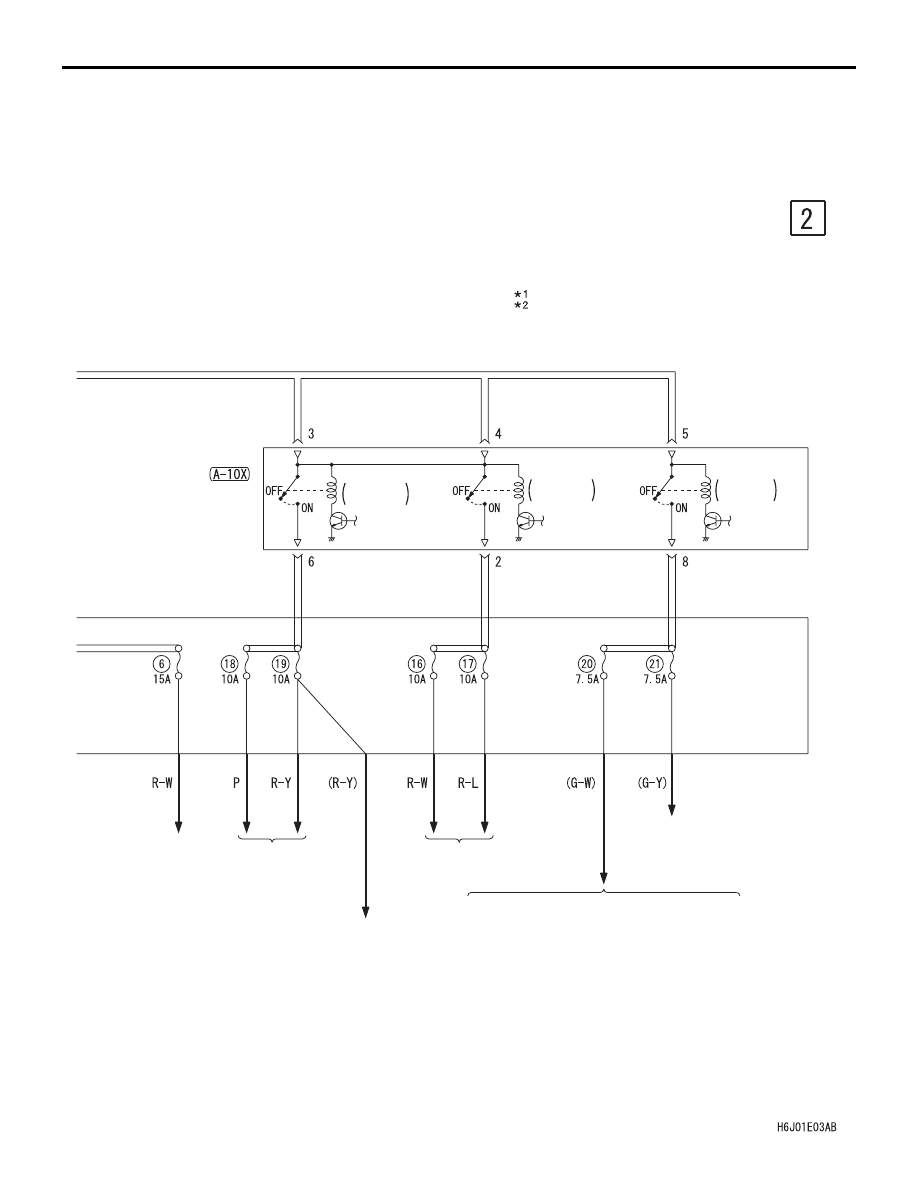

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-24

POWER DISTRIBUTION SYSTEM

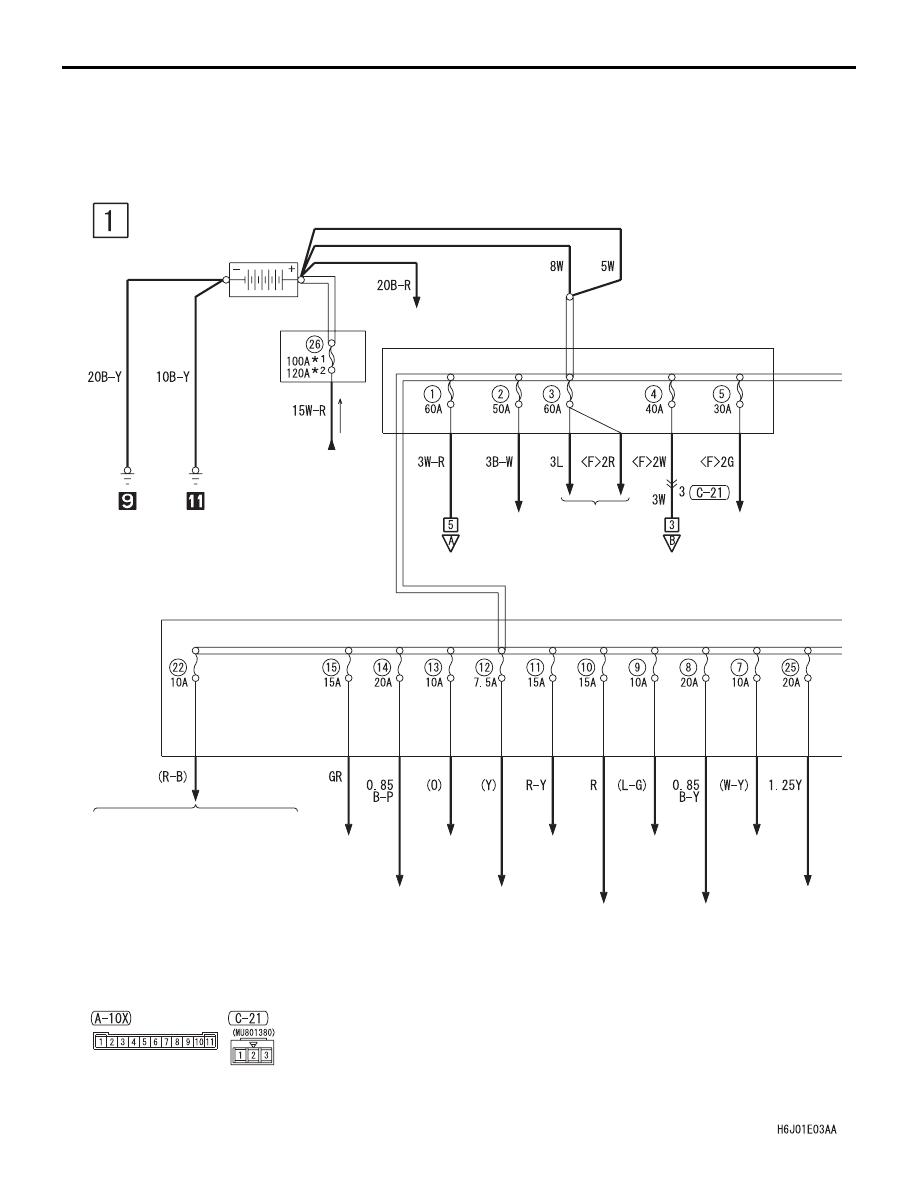

POWER DISTRIBUTION SYSTEM <LHD>

M1901000402002

·CENTRAL DOOR
 LOCKING SYSTEM
·CLOCK
·FRONT FOG LAMP
·FUEL WARNING
 LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·INVECS-II 4A/T
·KEY REMINDER
 BUZZER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
 WASHER

·ROOM LAMP AND
 LUGGAGE COM-
 PARTMENT LAMP
·ROOM LAMP,
 PERSONAL LAMP
 AND LUGGAGE
 ROOM LAMP
·SPARE CONNECTOR
 (FOR AUDIO)
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

ENGINE
CONTROL
SYSTEM

INVECS-II
4A/T

TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP

CHARGING
SYSTEM

ACCESSORY
SOCKET

·ABS
·INVECS-II
 4A/T
·STOP LAMP

·AUTOMATIC AIR
 CONDITIONER
·HEATER
·MANUAL AIR
 CONDITIONER

·COOLING
 SYSTEM
·ENGINE
 CONTROL
 SYSTEM
·IGNITION SYSTEM
·IMMOBILIZER
 SYSTEM
·INVECS-II 4A/T

HORN

·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM
·MANUAL AIR
 CONDITIONER

ABS

·CENTRAL DOOR
 LOCKING SYSTEM
·POWER WINDOWS

CHARGING
SYSTEM

STARTING
SYSTEM

BATTERY

RELAY
BOX

FUSIBLE
LINK

HEATED
SEAT

POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-25

·REAR FOG LAMP
·REAR WINDOW
 DEFOGGER AND DOOR
 MIRROR HEATER
·RHEOSTAT
·SPARE CONNECTOR
 (FOR AUDIO)
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP

·AUTOMATIC AIR
 CONDITIONER
·CIGARETTE LIGHTER
 AND ASHTRAY
 ILLUMINATION LAMP
·FRONT FOG LAMP
·HEATER
·HEADLAMP
 LEVELLING SYSTEM
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONER
·METER AND GAUGE

HEADLAMP
LEVELLING
SYSTEM

HEADLAMP

·FRONT FOG
 LAMP
·SPARE
 CONNECTOR
 (FOR FRONT
 FOG LAMP)

FRONT-ECU

HEADLAMP
RELAY: LO

HEADLAMP
RELAY: HI

TAIL LAMP
RELAY

HEADLAMP

TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

: 4G1
: 4G6

NOTE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
