DASH PANEL

CONFIGURATION DIAGRAMS

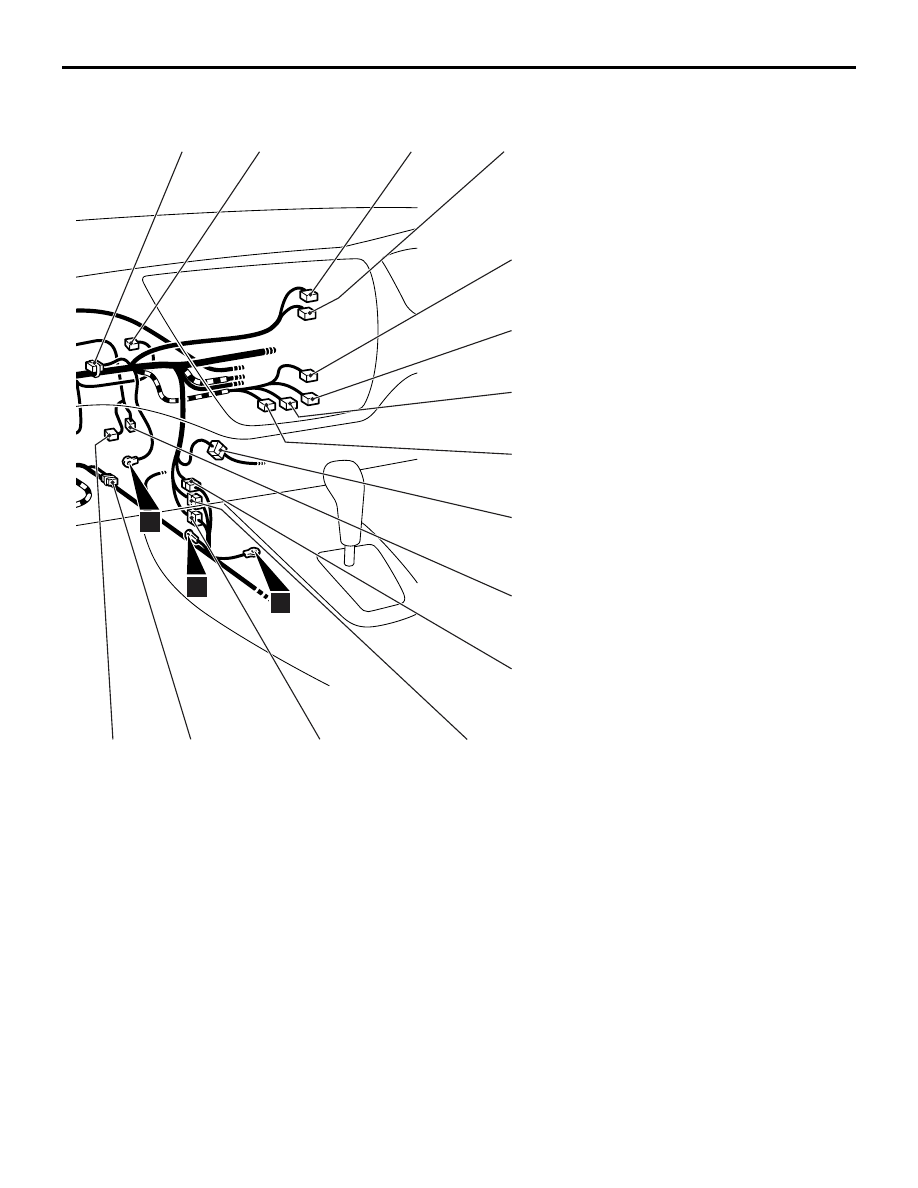

80-34

DASH PANEL <RHD> (CONTINUED)

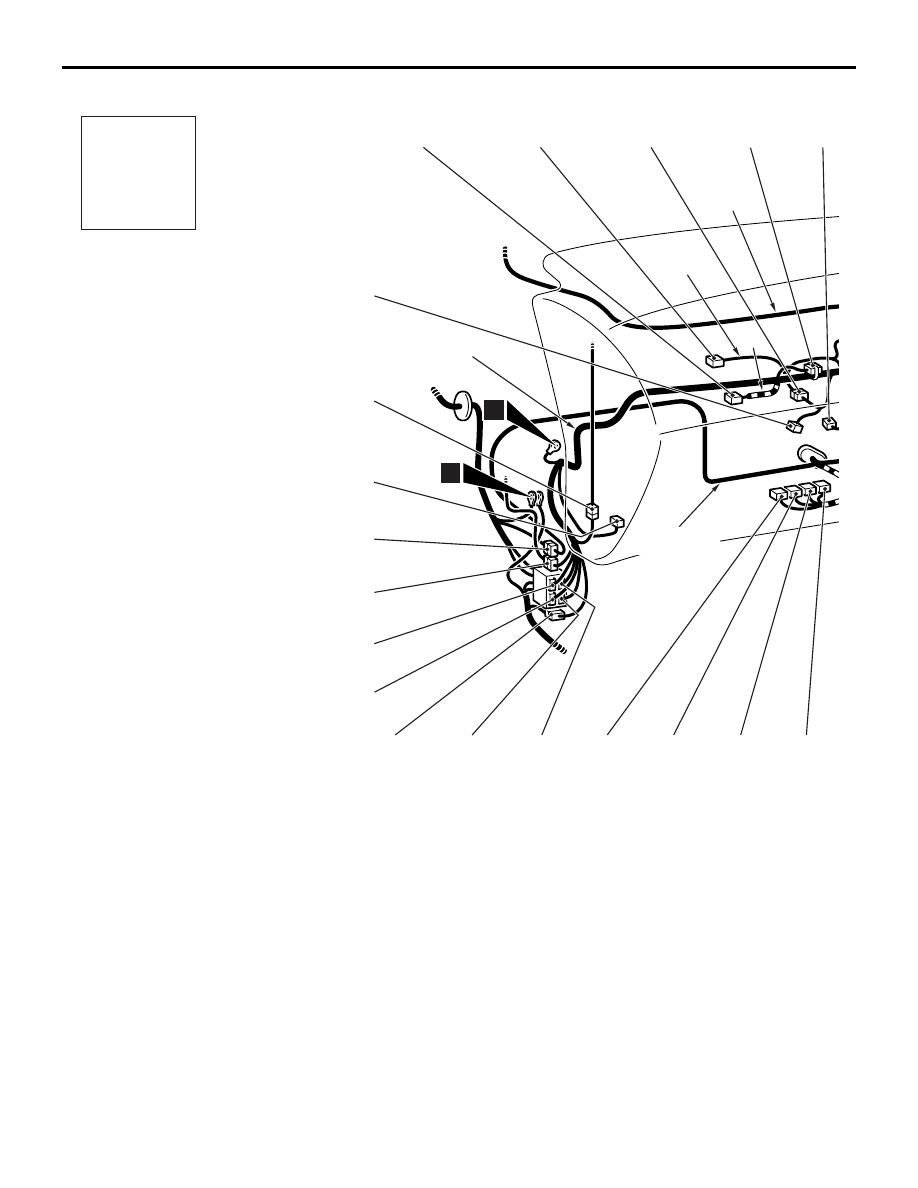

AC502057

Y

16

C-105

C-106
C-143

C-107

C-108

A/C wiring
harness

C-109

C-149

C-110
C-144

C-111

C-113

C-115

C-117

Instrument panel
wiring harness

Control wiring
harness

C-118

C-120

C-121

C-128
C-129

C-126
C-127

C-124
C-125

C-122
C-123

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

3

Connector
symbol

-101
thru
-149

C

Antenna
feeder
cable

AB

C-142

C-101 (4)

Hazard warning lamp switch

C-102 (4)

Clock

C-103 (22-GR) J/C (1)
C-105 (13)

J/C (5)

C-106 (7)

Instrument panel wiring harness and A/C
wiring harness combination <Manual
A/C>

C-107 (7)

Outside /Inside air selection damper
control motor

C-108 (2-R)

Air bag module (squib) <Passenger’s
side>

C-109 (4)

Resistor <<Manual A/C>

C-110 (2)

Blower motor <Manual A/C>

C-111 (12)

Front wiring harness (LH) and control
wiring harness combination

C-113 (16)

Instrument panel wiring harness and front
door wiring harness (LH) combination

C-115 (25)

Front wiring harness (LH) and instrument
panel wiring harness combination

C-117 (11-B

*

) Instrument panel wiring harness and floor

wiring harness (LH) combination

C-118 (6-L)

Instrument panel wiring harness and floor
wiring harness (LH) combination

C-120 (13)

Instrument panel wiring harness and floor
wiring harness (LH) combination

C-121 (3)

Front wiring harness (LH) and instrument
panel wiring harness combination

C-122 (35-GR) Engine-A/T-ECU <A/T>
C-123 (26-Y)

Engine-ECU <M/T>

C-124 (26-GR) Engine-A/T-ECU <A/T>
C-125 (16-Y)

Engine-ECU <M/T>

C-126 (28-GR) Engine-A/T-ECU <A/T>
C-127 (12-Y)

Engine-ECU <M/T>

C-128 (30-GR) Engine-A/T-ECU <A/T>
C-129 (22-Y)

Engine-ECU <M/T>

C-134 (33)

J/C (6)

C-135 (22-L)

Instrument panel wiring harness and
control wiring harness combination

AC502058

AB

5

14

15

C-103

C-102

C-101

C-148

C-147

C-138

C-146

C-137

C-140

C-139

C-136

C-135

C-134

C-145

C-141

C-136 (10-GR) Instrument panel wiring harness and

control wiring harness combination

C-137 (25)

Instrument panel wiring harness and
control wiring harness combination

C-138 (3)

Instrument panel wiring harness and
Instrument panel wiring harness
combination

C-139 (12-B)

A/C-ECU or heater control unit

C-140 (6)

Blower switch

C-141 (6)

Air mixing door control motor and
potentiometer <Automatic A/C>

C-142 (2)

Air thermo sensor <Automatic A/C>

C-143 (13)

Instrument panel wiring harness and A/C
wiring harness combination <Automatic
A/C>

C-144 (6)

Blower motor <Automatic A/C>

C-145 (6)

Mode selection damper control motor and
potentiometer <Automatic A/C>

C-146 (2)

Heater water temperature sensor
<Automatic A/C>

C-147 (20-B)

A/C-ECU <Automatic A/C>

C-148 (16-B)

A/C-ECU <Automatic A/C>

C-149 (2)

Instrument panel wiring harness and
tweeter wiring harness combination

DASH PANEL

CONFIGURATION DIAGRAMS

80-35

NOTE: The connector colour marked by

*

 is for the

female side.For the male side, the colour is grey.

DASH PANEL

CONFIGURATION DIAGRAMS

80-36

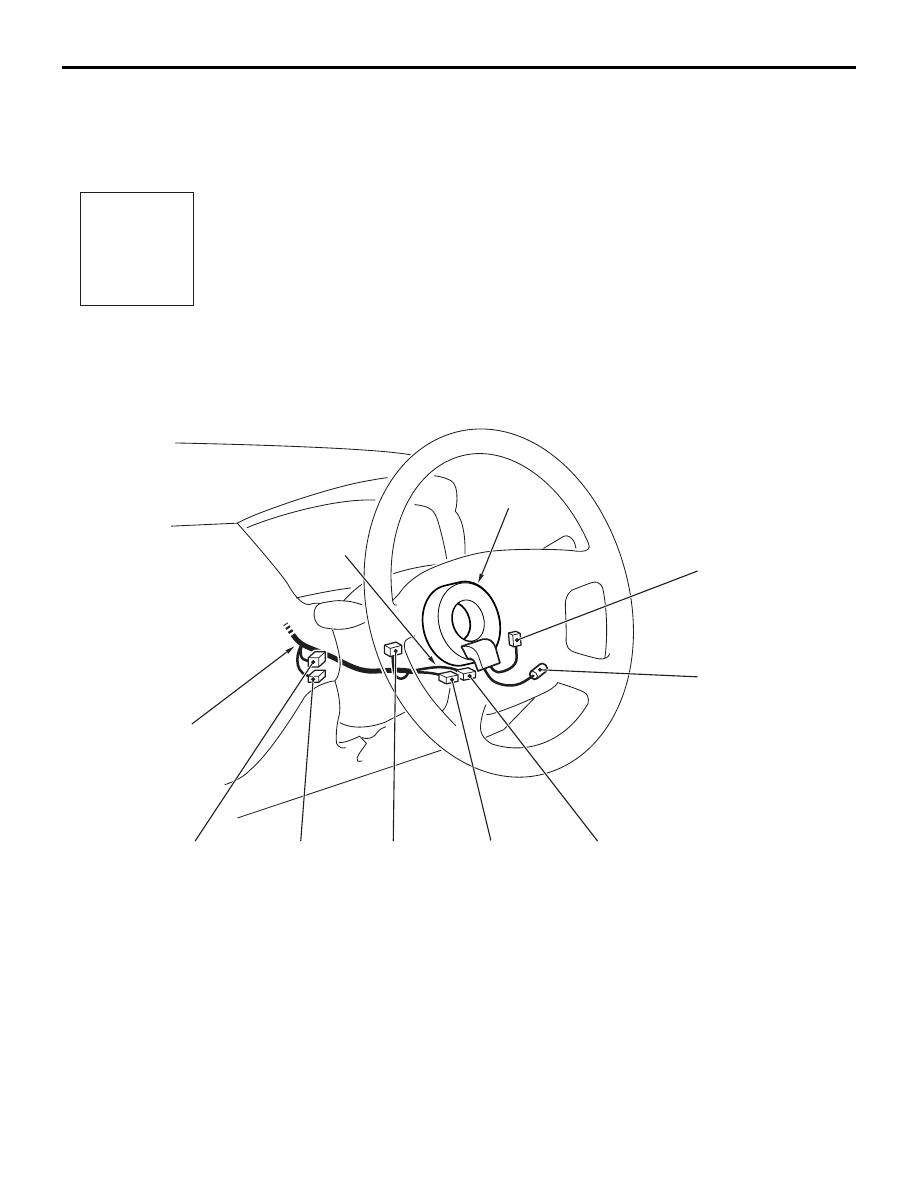

DASH PANEL <RHD> (CONTINUED)

AC206572

Connector
symbol

-201
thru
-227

C

AC

STEERING COLUMN

C-207

C-206

C-205

C-204

C-203

C-203

C-202

C-201

Instrument panel
wiring harness

Clock spring

Y

C-201 (6)

Ignition switch

C-202 (7)

Key reminder switch

C-203 (10)

Column switch

C-204 (6)

Clock spring

C-205 (4-Y)

Clock spring

C-206 (1)

Horn switch

C-207 (2)

Air bag module (squib) <Driver’s side>

C-208 (13)

Instrument panel wiring harness and J/B
combination

C-209 (14)

Instrument panel wiring harness and J/B
combination

C-210 (6)

Instrument panel wiring harness and J/B
combination

C-211 (1-B)

Instrument panel wiring harness and J/B
combination

C-212 (28)

Instrument panel wiring harness and J/B
combination

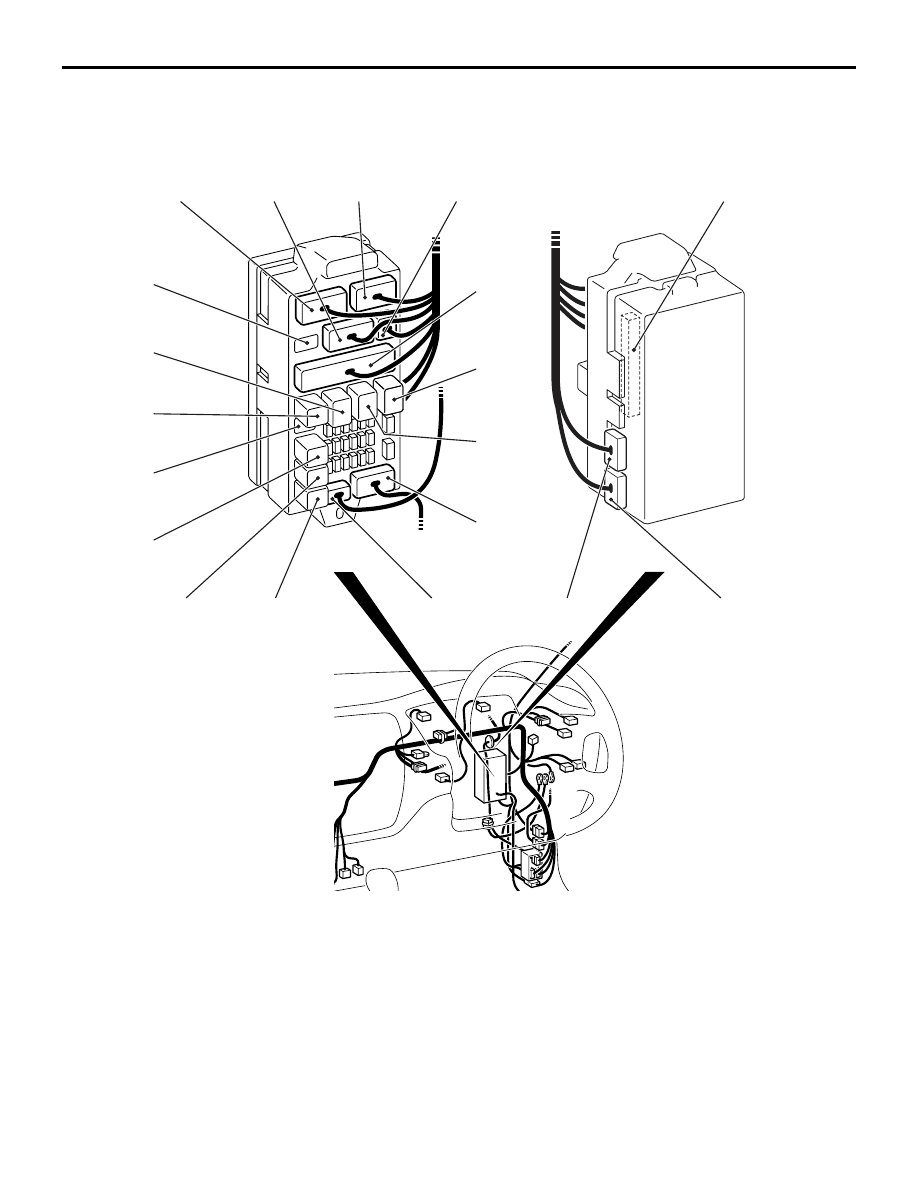

AC302011AC

(Front view)

(Rear view)

C-208

C-209

C-210

C-211

C-212

C-213

C-214

C-216

C-217

C-218

C-219

C-220

C-221

C-222

C-223

C-224

C-225

C-226

C-227

JUNCTION BLOCK

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-213 (5)

Rear window defogger relay

C-214 (5)

Blower relay

C-216 (15)

Floor wiring harness (RH) and J/B
combination

C-217 (3)

Roof wiring harness and J/B combination

C-218 (4)

Rear fog lamp relay

C-219 (4)

Accessory socket relay

C-220 (4)

Fuel pump relay (2)

C-221 (4)

No connection

C-222 (4)

Fuel pump relay (1)

C-223 (5)

Power window relay

C-224 (2)

No connection

C-225 (20)

ETACS-ECU

C-226 (24)

ETACS-ECU

C-227 (24-GR) ETACS-ECU
