Mitsubishi Lancer. Manual - part 81





DASH PANEL

CONFIGURATION DIAGRAMS

80-26

DASH PANEL

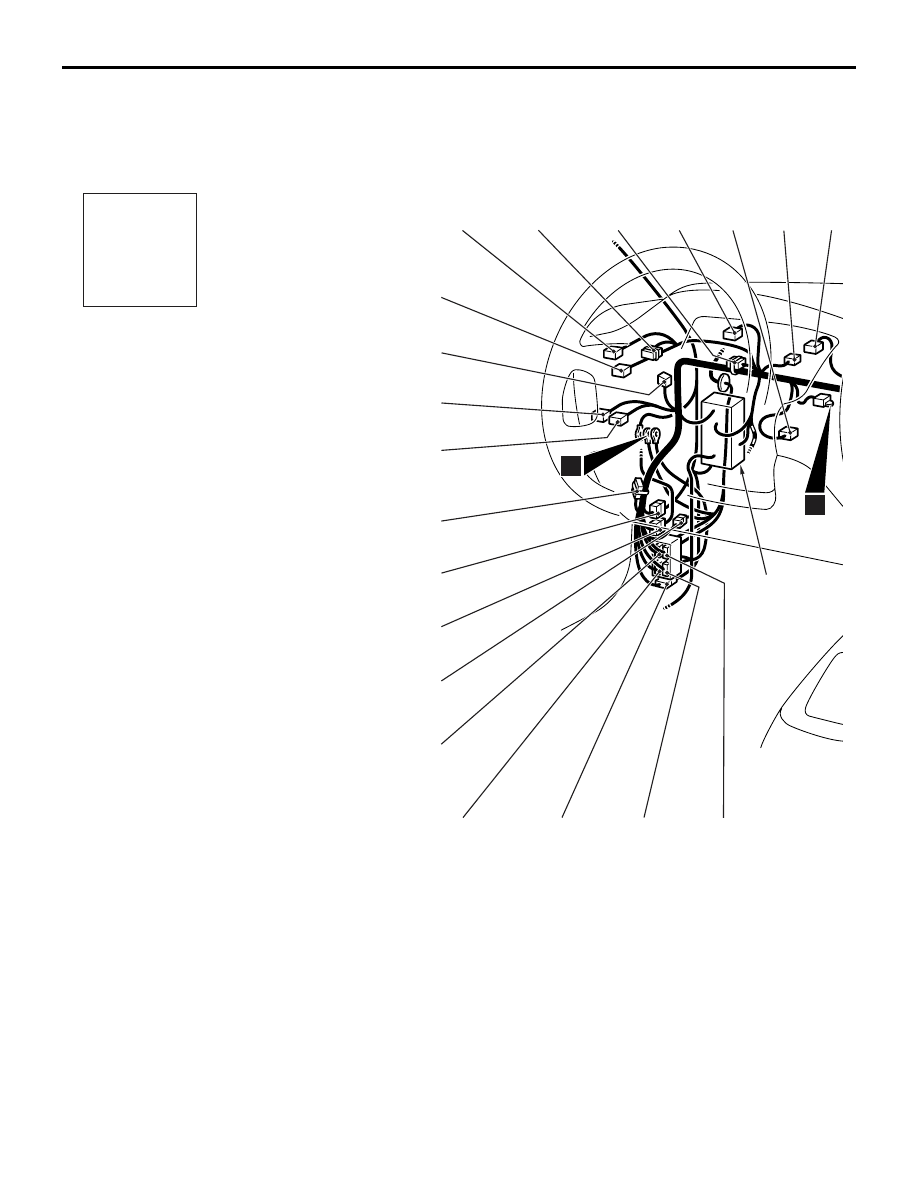

DASH PANEL <LHD>

M1801000601761

AC502051

16

C-38

C-06

C-05

C-02

C-01

C-34

C-32

C-31

C-29

C-40

C-27

C-25

C-24

C-22

C-21

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Connector
symbol

-01
thru
-40

C

C-04

C-03

C-36

C-33

C-35

6

J/B

AB

C-01

(6)

Fog lamp switch

C-02

(1)

Spare connector (for front fog lamp
switch)

C-03

(22-B)

J/C (5)

C-04

(21)

Combination meter

C-05

(4)

Stop lamp switch

C-06

(21-L)

Combination meter

C-08

(1-B)

Spare connector (for audio)

C-09

(14)

Spare connector (for audio)

C-10

(1)

Instrument panel wiring harness and
antenna feeder cable combination

C-11

(16-B)

Diagnosis connector

C-12

(33)

J/C (6)

C-13

(25)

Instrument panel wiring harness and
control wiring harness combination

C-14

(10-GR) Instrument panel wiring harness and

control wiring harness combination

C-15

(22-L)

Instrument panel wiring harness and
control wiring harness combination

C-19

(12)

Diagnosis connector

C-21

(3)

Front wiring harness (LH) and instrument
panel wiring harness combination

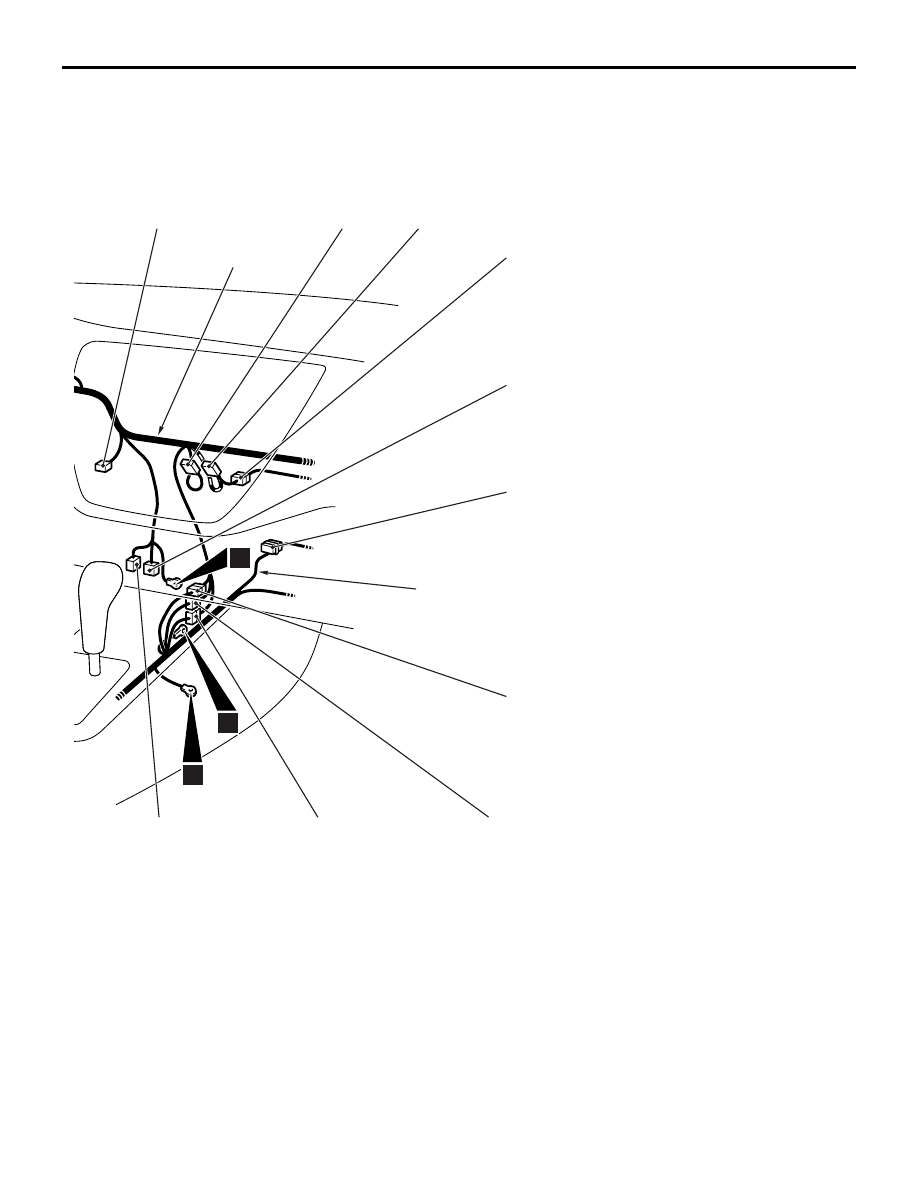

AC502052

AB

5

14

15

C-08

C-39

C-09

C-11

C-12

C-10

C-14

C-15

C-13

Instrument panel
wiring harness

Control wiring
harness

C-19

C-22

(13)

Instrument panel wiring harness and floor
wiring harness (LH) combination

C-24

(6-L)

Instrument panel wiring harness and roof
wiring harness combination

C-25

(11-B

*

) Instrument panel wiring harness and floor

wiring harness (LH) combination

C-27

(25)

Front wiring harness (LH) and instrument
panel wiring harness combination

C-29

(20)

Instrument panel wiring harness and front
door wiring harness (LH) combination

C-31

(6)

Instrument panel wiring harness and roof
wiring harness combination <Wagon>

C-32

(22-B)

J/C (4)

C-33

(6-L)

Rheostat

C-34

(6-GR) Headlamp levelling switch

C-35

(22-L)

J/C (2)

C-36

(11-B)

Remote controlled mirror switch

C-38

(5)

Photo sensor <Automatic A/C>

C-39

(2-B)

Inside air temperature sensor <Automatic
A/C>

C-40

(2)

Front wiring harness (LH) and instrument
panel wiring harness combination
<Automatic A/C>

DASH PANEL

CONFIGURATION DIAGRAMS

80-27

NOTE: The connector colour marked by

*

 is for the

female side. For the male side, the colour is grey for
Sedan, and milk white for Wagon.

DASH PANEL

CONFIGURATION DIAGRAMS

80-28

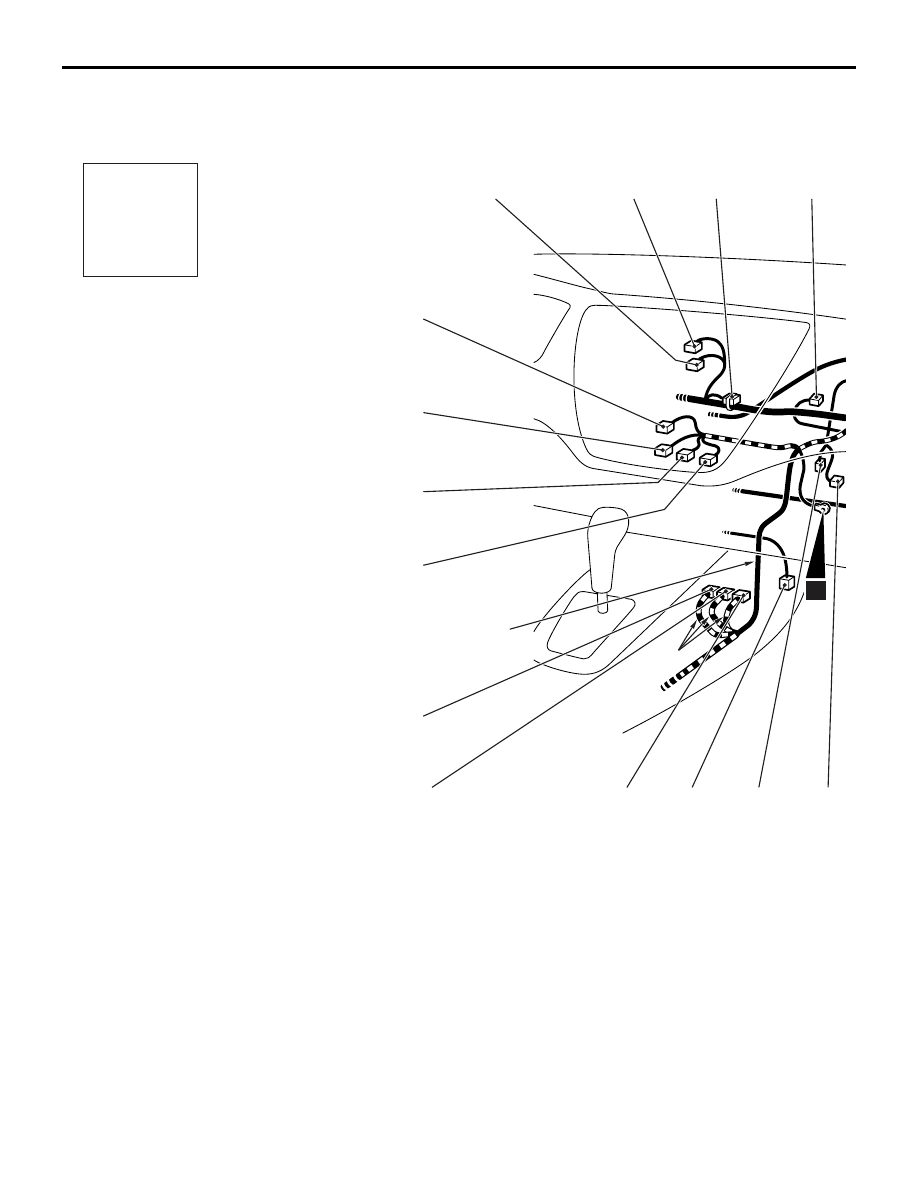

DASH PANEL <LHD> (CONTINUED)

AC502053

C-140

C-102

C-103

C-141

C-101

C-132

C-139

C-148

C-130

C-146

C-145

Y

4

Connector
symbol

-101
thru
-149

C

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Instrument panel
wiring harness

C-131

C-133

C-147

AB

C-101 (4)

Hazard warning lamp switch

C-102 (4)

Clock

C-103 (22-GR) J/C (1)
C-104 (22-GR) J/C (3)
C-106 (7)

Instrument panel wiring harness and A/C
wiring harness combination <Manual
A/C>

C-107 (7)

Outside /Inside air selection damper
control motor

C-108 (2-R)

Air bag module (squib) <Passenger’s
side>

C-109 (4)

Resistor <Manual A/C>

C-110 (2)

Blower motor <Manual A/C>

C-112 (16)

Instrument panel wiring harness and front
door wiring harness (RH) combination

C-114 (25)

Front wiring harness (RH) and instrument
panel wiring harness combination

C-116 (9-GR

*

) Instrument panel wiring harness and floor

wiring harness (RH) combination

C-119 (13)

Instrument panel wiring harness and floor
wiring harness (RH) combination

C-122 (35-GR) Engine-A/T-ECU <A/T>
C-123 (26-Y)

Engine-ECU <M/T>

C-124 (26-GR) Engine-A/T-ECU <A/T>
C-125 (16-Y)

Engine-ECU <M/T>

C-126 (28-GR) Engine-A/T-ECU <A/T>
C-127 (12-Y)

Engine-ECU <M/T>

C-128 (30-GR) Engine-A/T-ECU <A/T>
C-129 (22-Y)

Engine-ECU <M/T>

C-130 (4)

Engine control oxygen sensor (Rear)

C-131 (20-Y)

SRS-ECU

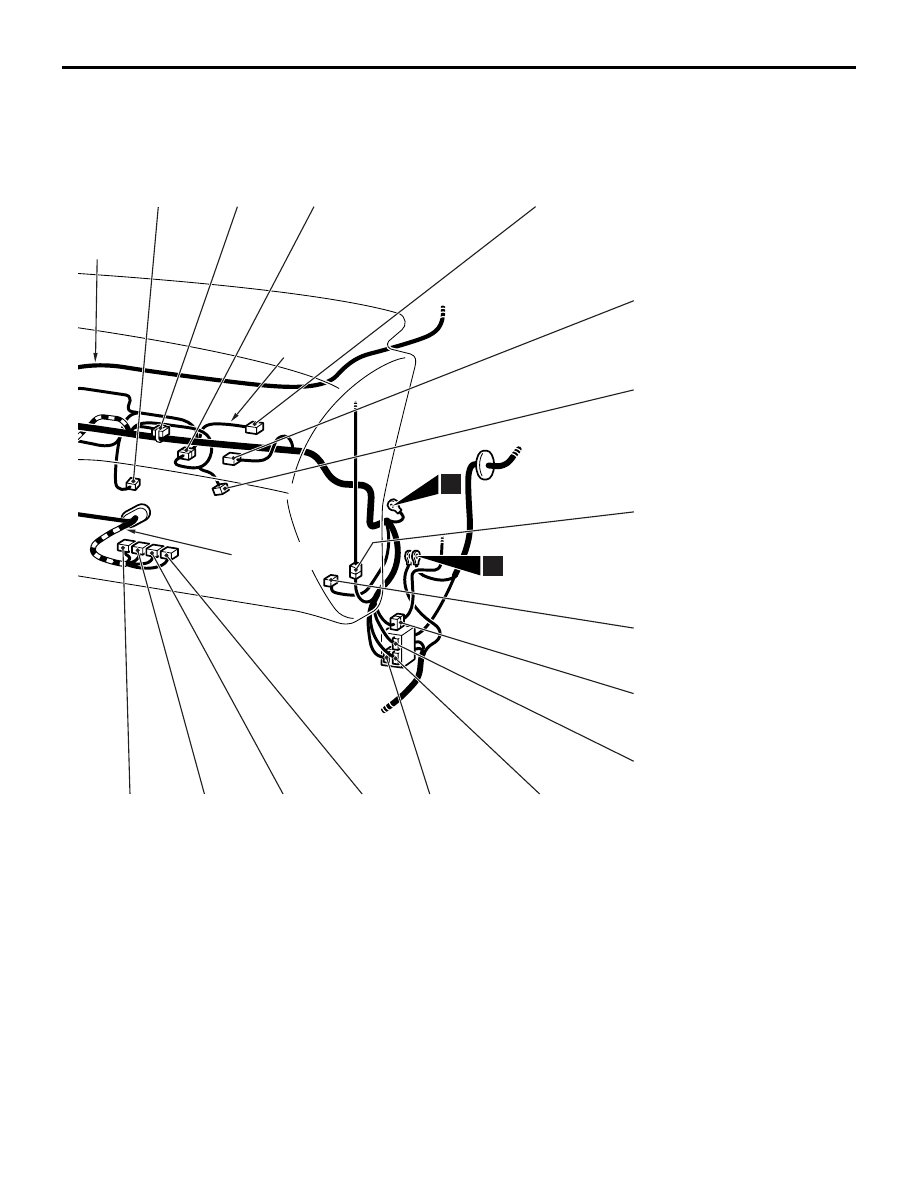

AC502054

C-142

AB

C-104

C-106
C-143

C-107

C-109

C-149

C-110
C-144

C-112

C-114

C-116

C-119

C-126
C-127

C-128
C-129

2

C-108

C-124
C-125

C-122
C-123

3

Control wiring
harness

A/C wiring
harness

Antenna
feeder
cable

C-132 (28-Y)

SRS-ECU

C-133 (20-Y)

SRS-ECU

C-139 (16-B)

A/C-ECU or heater control unit

C-140 (6)

Blower switch

C-141 (6)

Air mixing door control motor and
potentiometer <Automatic A/C>

C-142 (2)

Air thermo sensor <Automatic A/C>

C-143 (13)

Instrument panel wiring harness and A/C
wiring harness combination <Automatic
A/C>

C-144 (6)

Blower motor <Automatic A/C>

C-145 (6)

Mode selection damper control motor and
potentiometer <Automatic A/C>

C-146 (2)

Heater water temperature sensor
<Automatic A/C>

C-147 (20-B)

A/C-ECU <Automatic A/C>

C-148 (16-B)

A/C-ECU <Automatic A/C>

C-149 (2)

Instrument panel wiring harness and
tweeter wiring harness combination

DASH PANEL

CONFIGURATION DIAGRAMS

80-29

NOTE: The connector colour marked by

*

 is for the

female side.For the male side, the colour is grey for
Sedan, and milk white for Wagon.
