ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-14

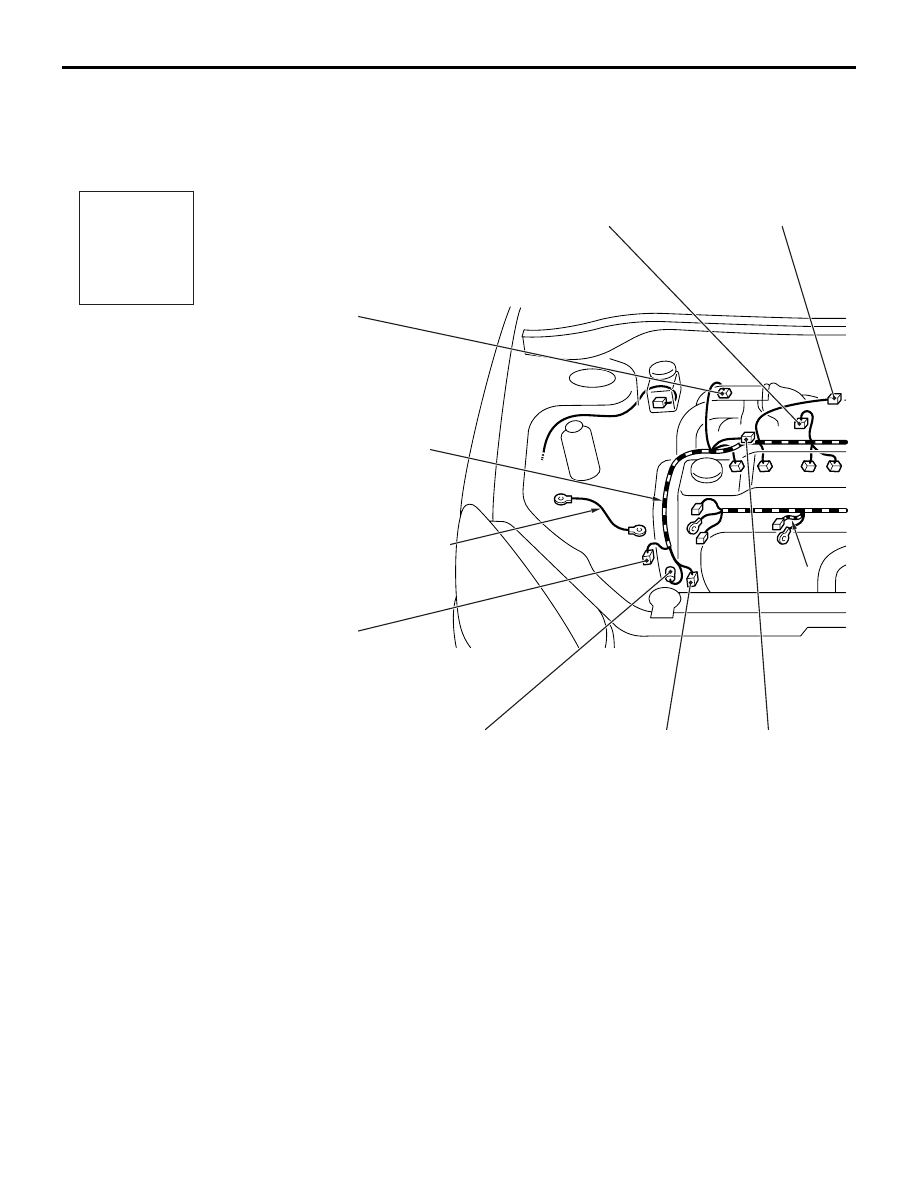

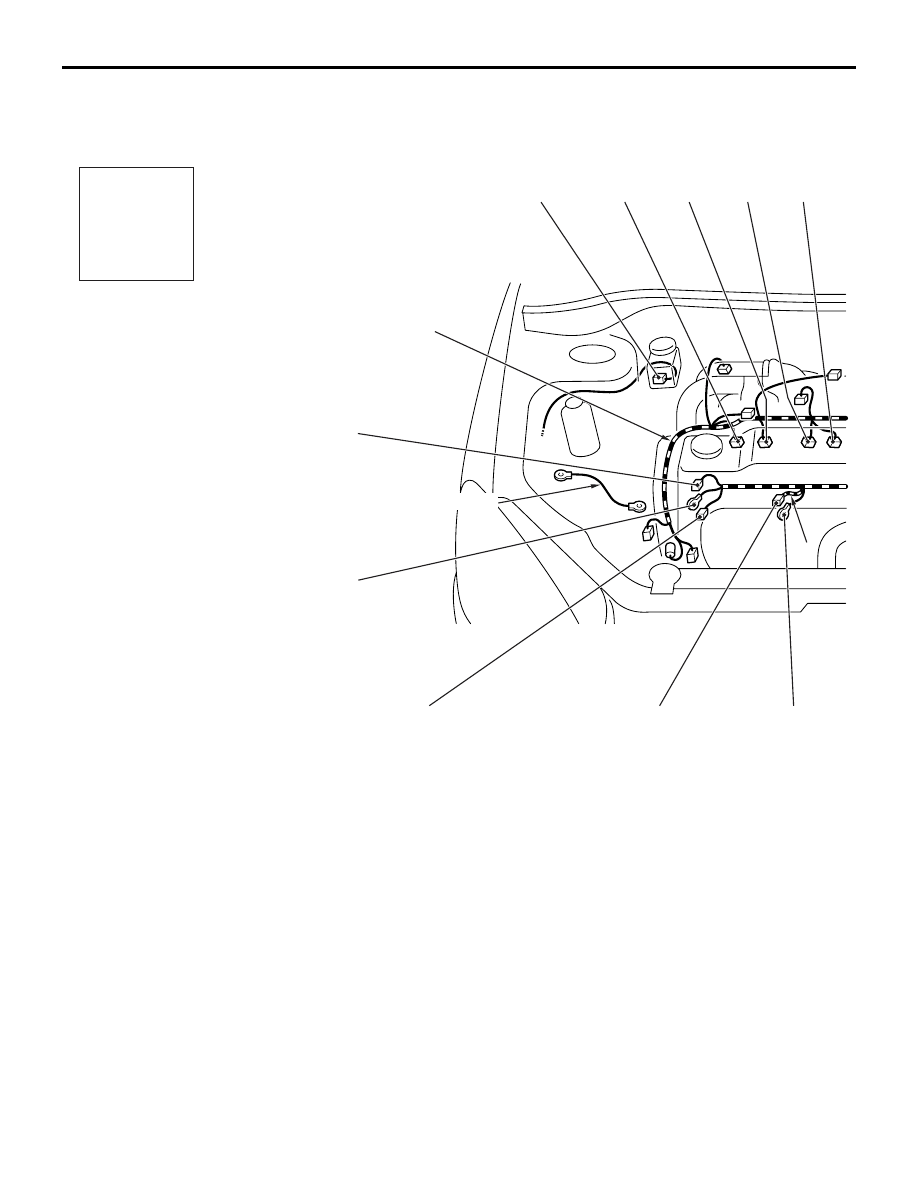

ENGINE AND TRANSMISSION <4G1-MPI (RHD)>

M1801000401950

AC301132

AD

B-02

B-03

B-04

B-05

B-22

B-23

B-24

B-25

B-26

Control wiring
harness

B-09

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

*

Connector
symbol

-01
thru
-26

B

Earth cable

B-01

(5-GR) Windshield wiper motor

B-02

(2-GR) Fuel injector 1

B-03

(2-GR) Fuel injector 2

B-04

(2-GR) Fuel injector 3

B-05

(2-GR) Fuel injector 4

B-06

(3-GR) Throttle body throttle sensor

B-07

(3-B)

Vehicle speed sensor <M/T>

B-09

(2-GR) Brake fluid level indicator switch

B-10X (1)

Engine speed detection connector

B-14X (4)

Ignition coil relay

B-15X (4)

A/T control relay

B-16X (4)

Engine control relay

AC301133

AB

9

10

11

13

B-06

B-07

B-01

B-10X
B-14X
B-15X
B-16X
B-17X

B-18

Battery wiring
harness

B-19

B-20

B-21

*

B-17X (4)

A/C compressor relay

B-18

(6-B)

Control wiring harness and battery wiring
harness combination

B-19

(10-GR) A/T control solenoid valve assembly

B-20

(10-B)

Inhibitor switch <A/T>

B-21

(4-B)

Engine control oxygen sensor (Front)

B-22

(1)

Starter

B-23

(1-B)

Starter

B-24

(1-B)

Engine oil pressure switch

B-25

(1)

Alternator

B-26

(4-GR) Alternator

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-15

NOTE: On A/T only, the standard routing positions
for the corrugated tube and wiring harness are
marked by*.

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-16

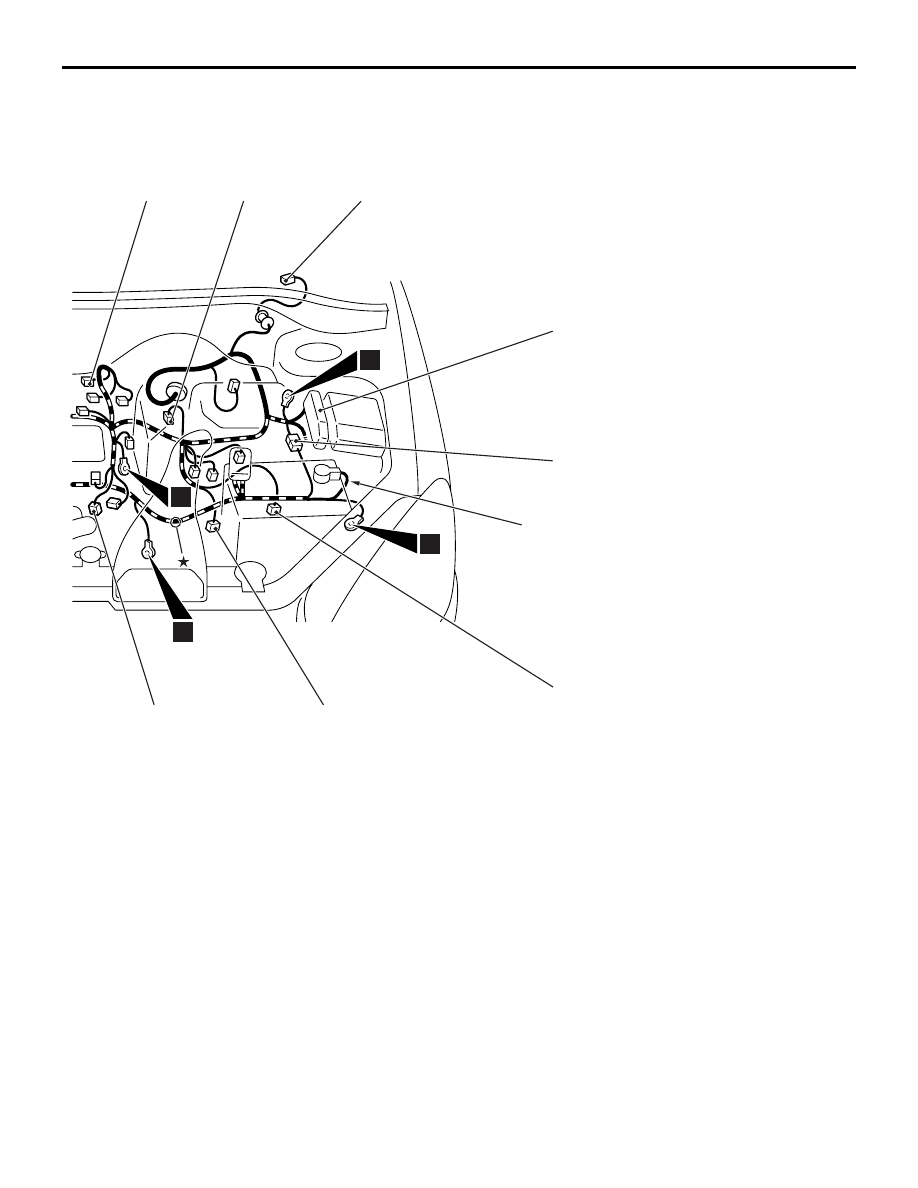

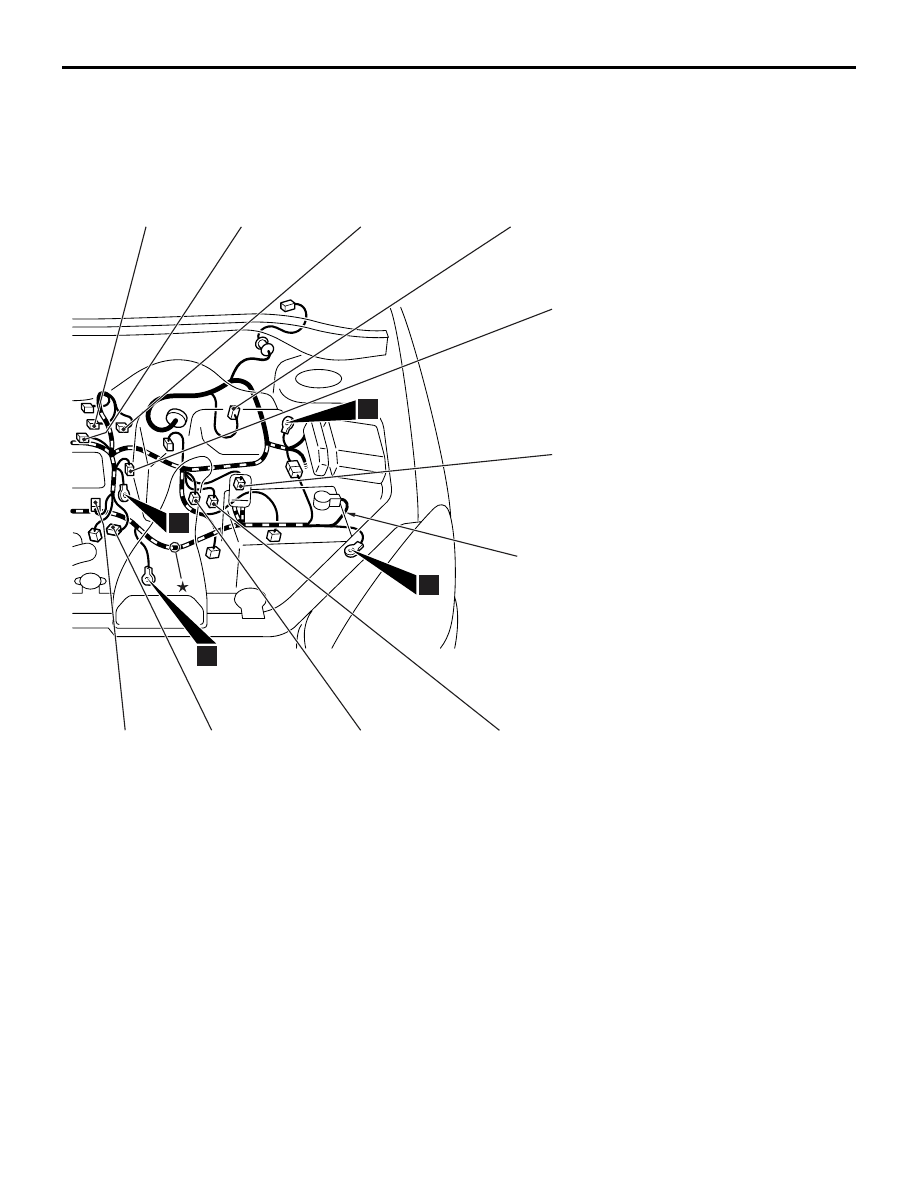

ENGINE AND TRANSMISSION <4G1-MPI (RHD)> (CONTINUED)

AC301132

AE

B-117

B-101

B-102

B-113

B-114

B-115

B-116

Earth cable

Control wiring
harness

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Connector
symbol

-101
thru
-118

B

*

B-101 (2-BR) Emission solenoid valve (EGR system)
B-102 (4-GR) Inlet manifold absolute pressure sensor
B-103 (6-B)

Throttle body idle speed control servo

B-104 (3-GR) Ignition coil 1
B-105 (2-B)

Emission solenoid valve (Purge control
system)

B-107 (3-B)

Camshaft position sensor

B-108 (3-GR) Output shaft speed sensor <A/T>
B-109 (3-B)

Input shaft speed sensor <A/T>

B-110 (2-B)

Back-up lamp switch <M/T>

AC301133

AC

9

10

11

13

B-103

B-104

B-105

B-107

B-108

Battery wiring
harness

B-109

B-110

B-111

*

B-112

B-118

B-111 (2-B)

Water temperature sensor unit

B-112 (1-B)

Water temperature gauge unit

B-113 (3-GR) Ignition coil 2
B-114 (1-B)

A/C compressor

B-115 (1)

Power steering fluid pressure switch

B-116 (3-B)

Engine crank angle sensor

B-117 (2-GR) Engine control detonation sensor

B-118 (28-GR) ABS-ECU

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-17

NOTE: On A/T only, the standard routing positions
for the corrugated tube and wiring harness are
marked by*.
