ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS
80-6
ENGINE COMPARTMENT

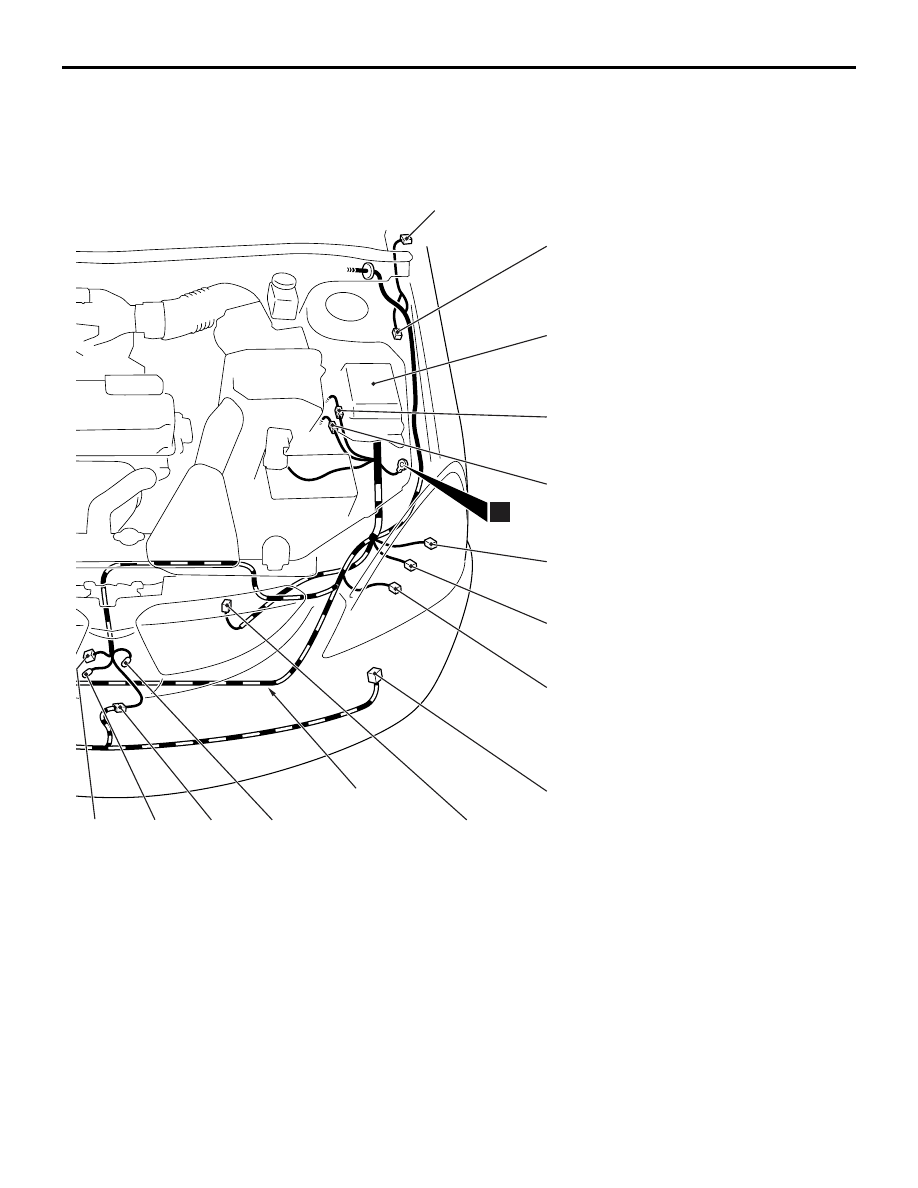

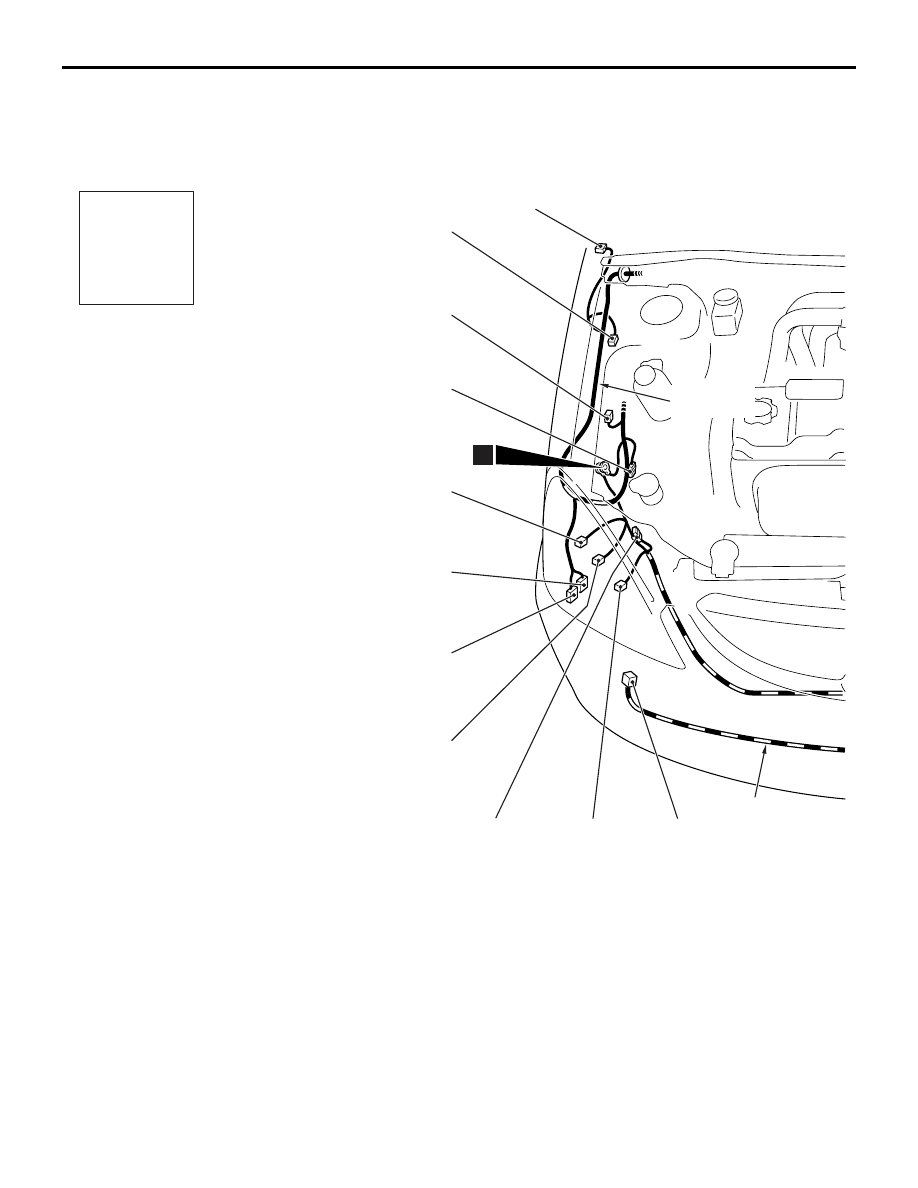

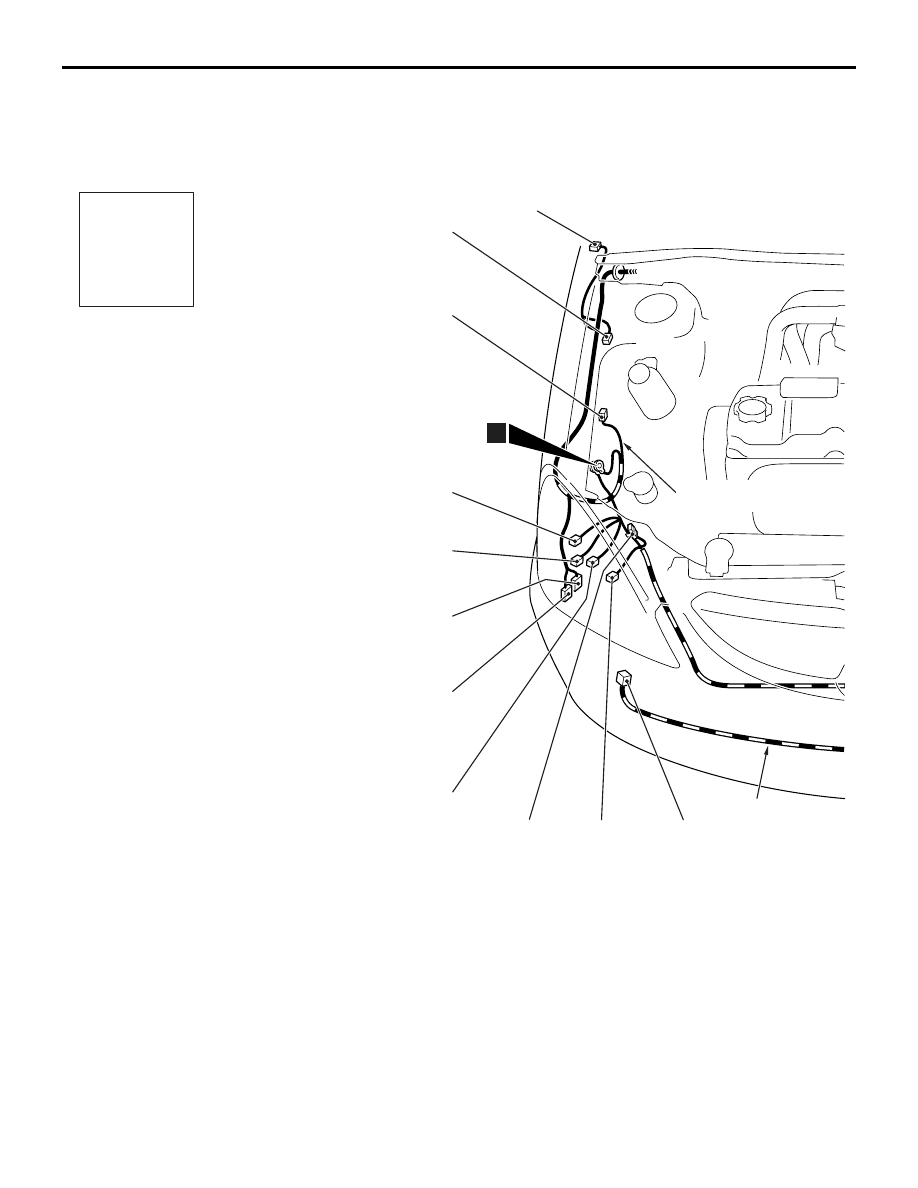

ENGINE COMPARTMENT <LHD>
M1801000302440
AC301123
Front wiring
harness (RH)
A-01
A-32
A-31
A-29
A-28
A-27
A-26
A-25
A-23
A-24
A-22
AC
1
Front bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
A
A-01
(2-GR) Side turn signal lamp (RH)
A-02
(2-GR) Side turn signal lamp (LH)
A-03
(2-B)
Wheel speed sensor (Front: LH)
A-04X (4)
Front fog lamp relay or spare connector
(for front fog lamp)
A-05X (4)
Horn relay
A-09X (4)
Fan control relay
A-10X (11)
Front-ECU
A-11X (11)
Front-ECU
A-12
(2-B)
Front wiring harness (LH) and control
wiring harness combination
A-13
(12-B)
Front wiring harness (LH) and control
wiring harness combination
A-14
(3-B)
Headlamp (LH)
A-15
(6-B)
Front combination lamp (LH)
A-16
(2)
Front turn signal lamp (LH)
