BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-30

DOOR

M4010015000127

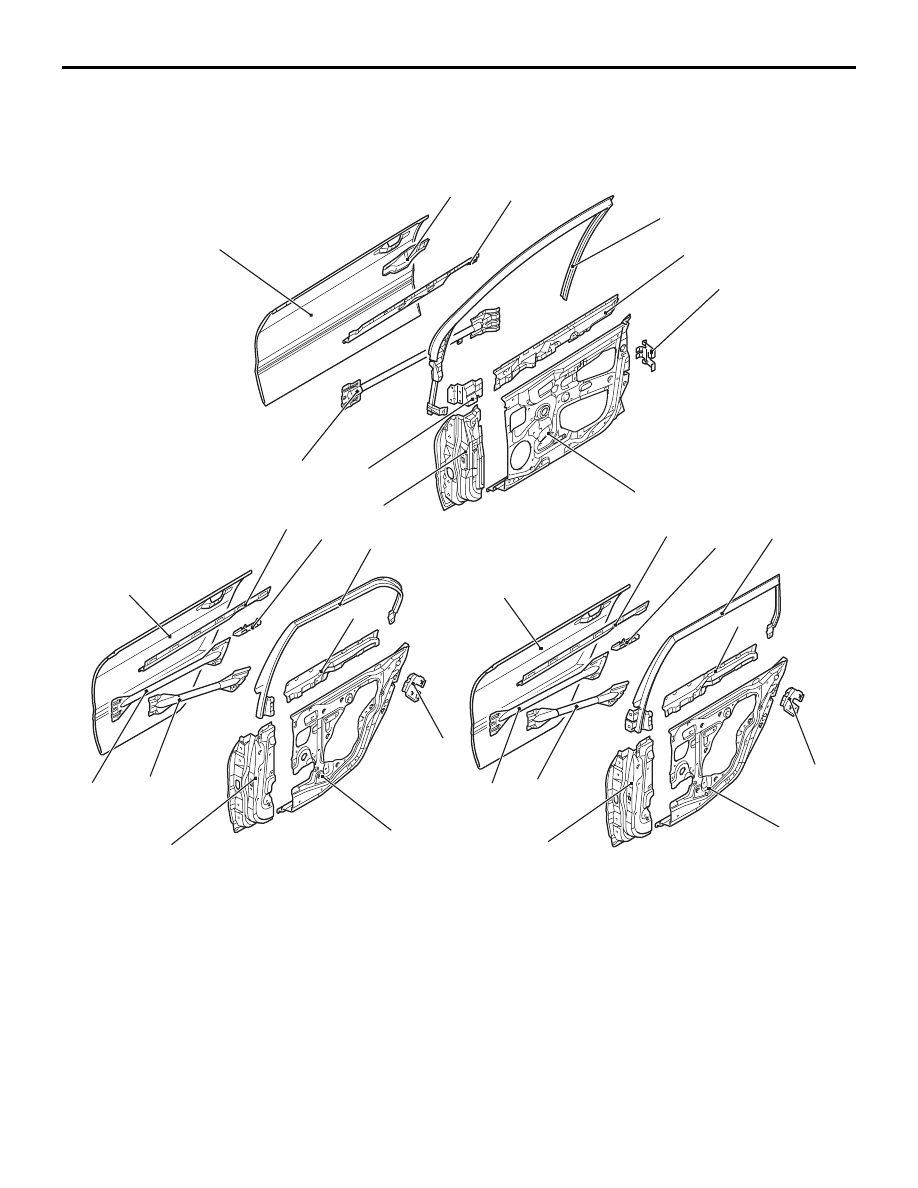

The front and back of the side door beam has been
made large to cope with the force from the front and
sides during collision.

AB300949

AB

<Sedan>

<Wagon>

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

12

13

14

15

16

17

18

19

20

11

Front door

Rear door

1.

Front door hinge panel

2.

Front door hinge reinforcement upper

3.

Front door side door beam

4.

Front door panel outer

5.

Front door outside handle reinforcement

6.

Front door belt line reinforcement outer

7.

Front door window sash

8.

Front door belt line reinforcement inner

9.

Front door latch reinforcement

10. Front door panel inner

11. Rear door hinge panel
12. Rear door side door beam
13. Rear door side door beam upper
14. Rear door panel outer
15. Rear door belt line reinforcement outer
16. Rear door belt line bracket
17. Rear door window sash
18. Rear door belt line reinforcement inner
19. Rear door latch reinforcement
20. Rear door panel inner

SILENCER APPLICATION LOCATIONS

BODY CONSTRUCTION

1-31

SILENCER APPLICATION LOCATIONS

M4010005000160

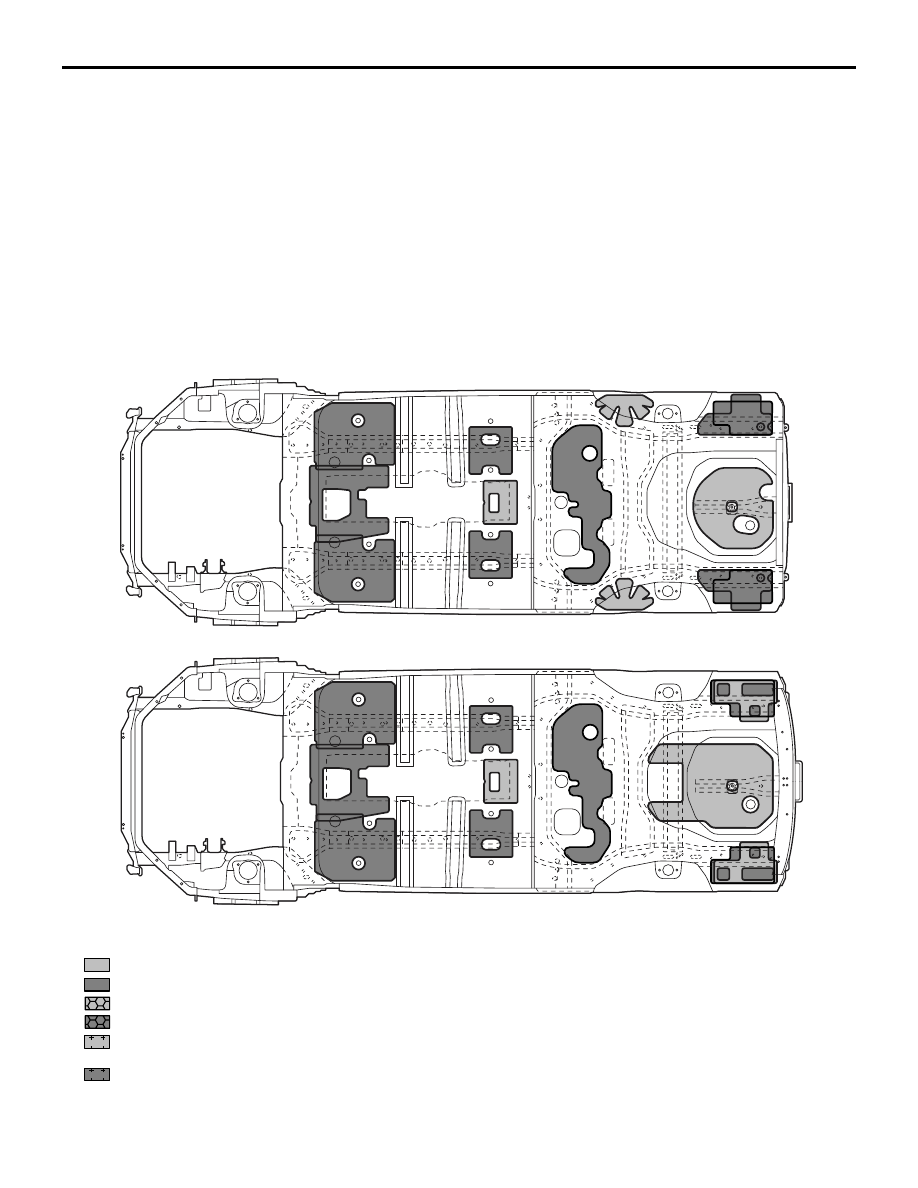

A silencer (MD-12, RSS and melting sheet) has been
adhered on the top part of the floor to improve
anti-vibration performance and to shut-out exhaust
gas heat.

NOTE:

.

•

MD-12 is a high performance sheet composed of
asphalt applied with mica and thermosetting resin
for improving anti-vibration performance.

•

RSS (Rubber Special Sheet) is a product name
of Nihon Tokushu Toryo Co., Ltd. The product
features the same performance as a steel sheet
sandwich type and refers to a heat cured resin
sheet that is moulded into a sheet with a uniform
thickness. It contains degenerating resin and filler
with asphalt and rubber as the main contents.

AB500777

;;;

;;;

;;;

;;;

;;;

;;

;;

;;

;;;

;

;

;

;

;

;;

;;

;;

;;

;;

;;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;

;;;

;;;

;;;

;;;

;;;

;;;

;;;

;;;

;;;

;;;

;;

;;

;;

;;

;;

;;

<Sedan>

<Wagon>

AB

 : 1.6 mm (0.063 in) thick MD-12 [Place a 1.6 mm (0.063 in) melting sheet.]

 : 1.6 mm (0.063 in) thick melting sheet

 : 3.2 mm (0.126 in) thick melting sheet [Place two 1.6 mm (0.063 in) melting sheet one on top of another.]

 : 6.0 mm (0.236 in) thick MD-12 [Place four 1.6 mm (0.063 in) melting sheet one on top of the next.]

NOTE: When you use melting sheet(s) in place of MD-12 or RSS during serving, follow the instructions enclosed by [  ].

 : 1.6 mm (0.063 in) thick melting sheet and  1.5 mm (0.059 in) thick RSS
   [Place two 1.6 mm (0.063 in) melting sheet one on top of another.]
 : 1.6 mm (0.063 in) thick melting sheet and  2.0 mm (0.079 in) thick RSS
   [Place three 1.6 mm (0.063 in) melting sheet one on top of the next.]

LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL

BODY CONSTRUCTION

1-32

LOCATIONS USING URETHANE FOAM AND FOAM

MATERIAL

M4010007000122

• Introduction of noise was prevented by inserting

urethane foam inside the centre pillar and quarter
inner (Wagon).

• By filling the top of the front pillar, bottom of the

front pillar, centre pillar, rear pillar and inside the
wheel house arch with acoustic foam materials,
penetration of noise is prevented.

• High-rigidity foam materials were added inside

the front sidemember (left side on LH drive vehi-
cles), rear floor sidemember, side sill and side
roof rail to heighten panel rigidity.

CAUTION

The foam materials may burn when heated.
Always observe the following instructions.

• Never use a gas burner or burn the areas

using foam materials.

• When cutting the parts using foam materials,

ensure to use tools (air saw, etc.) that do not
generate fire.

• If there are residual foam materials at body

side then weld after removing the foam mate-
rials from periphery of the welding area.

LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL

BODY CONSTRUCTION

1-33

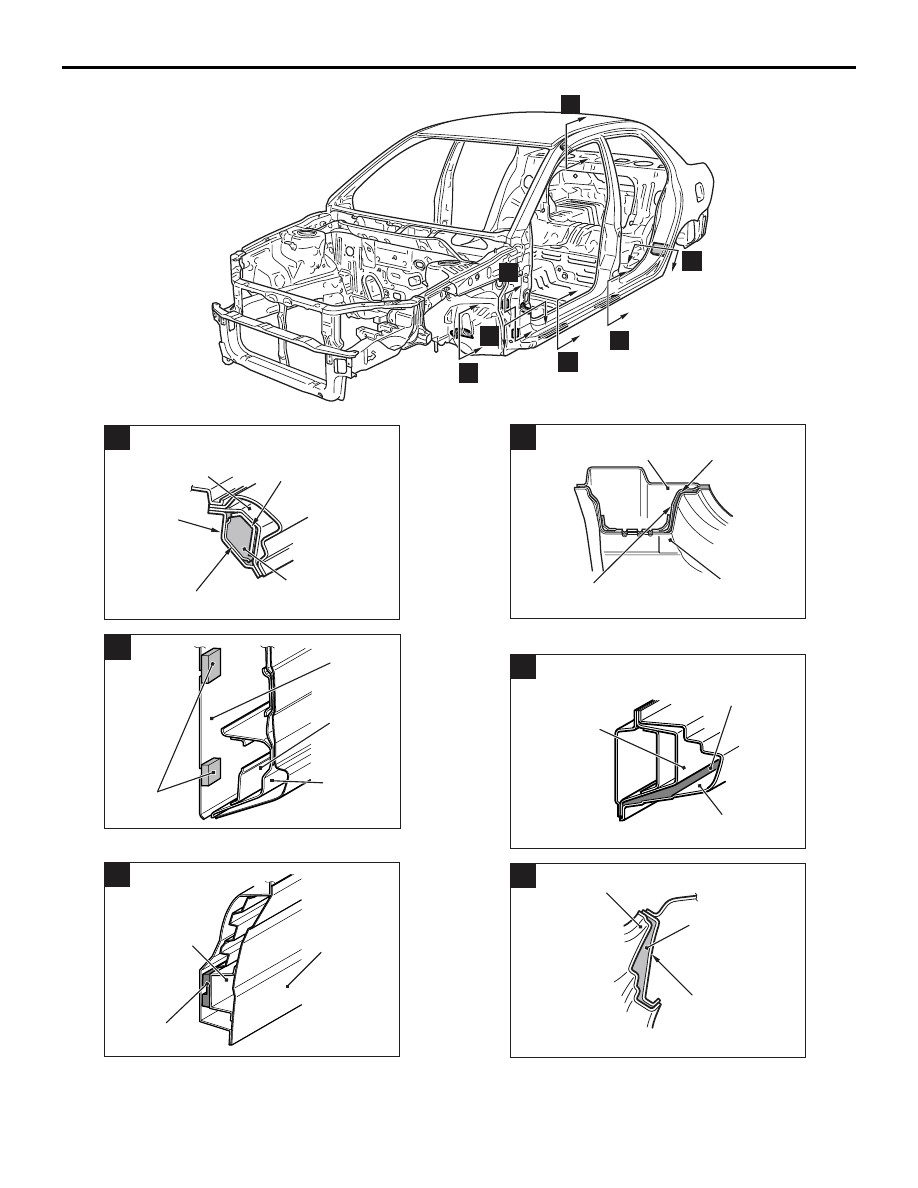

AB300701AB

<Sedan>

A

B

D

E

C

F

E

AB201973

AC

A

Front pillar inner
reinforcement (Driver's side)

Acoustic foam

Front pillar
reinforcement upper B
(Driver's side)

Front pillar
reinforcement
upper

Side roof
rail inner

AB300944

B

AB

Front pillar
inner lower

Acoustic foam

Side sill
outer
reinforce-
ment front

Side sill
reinforce-
ment
support
front

AB300943

AB

C

Sidemember
outer

High-rigidity
foam

Front sidemember
outer
reinforcement
rear B

AB300096AC

D

Front pillar
inner lower

Front pillar
reinforcement lower

Acoustic foam

Side outer panel

AB201975

AC

E

Side outer panel

Side sill
outer
reinforcement
front

High-rigidity foam

AB201976 AC

Side outer
panel

Quarter panel
inner

Acoustic foam

F
