REAR BODY

M4010012000128

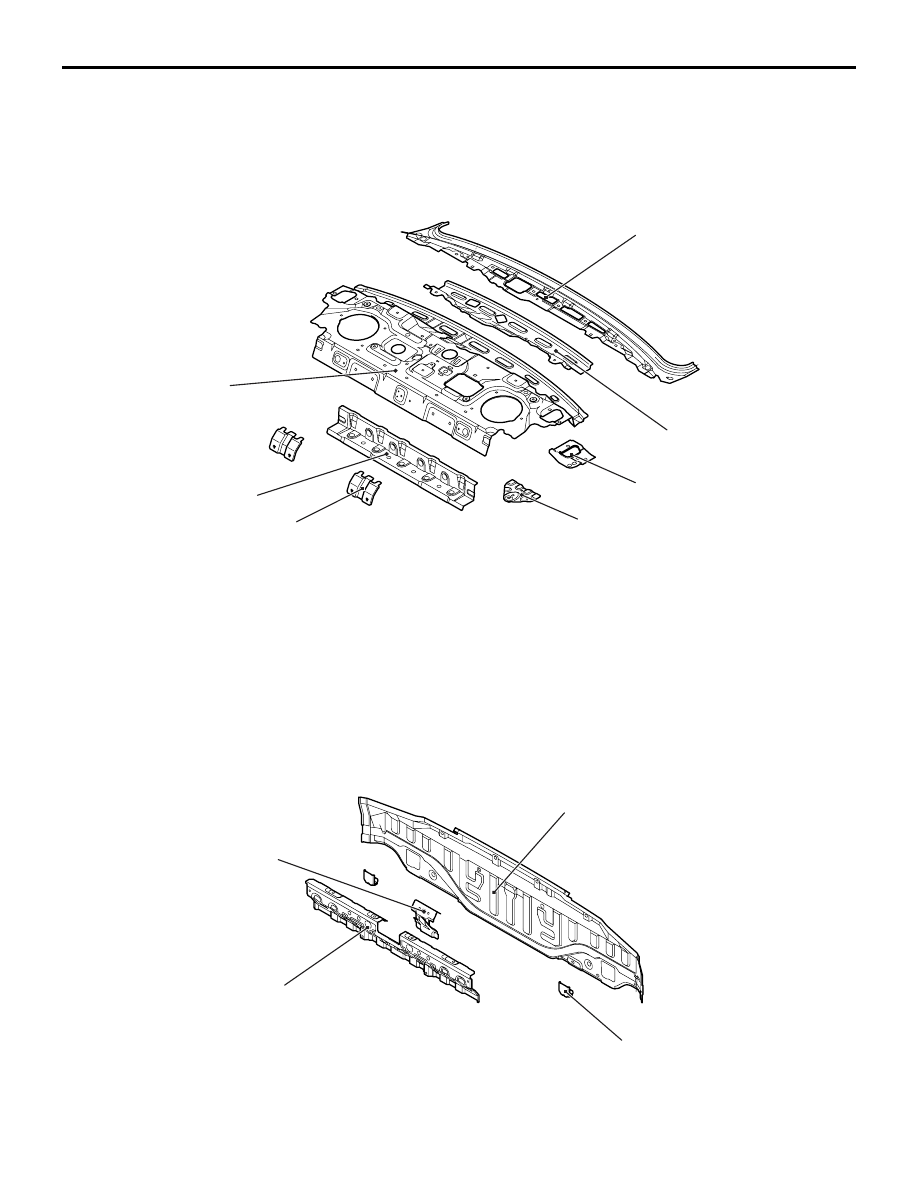

Rear Deck (Sedan)

Twisting rigidity has been improved by adding a rear
shelf extension to realize a closed cross section
structure.

Rear End Panel (Sedan)

AB300792

1

2

3

4

5

6

7

AB

1.

Rear seatback reinforcement

2.

Rear shelf extension

3.

Rear shelf panel

4.

Rear shelf reinforcement

5.

Rear shelf child-seat belt reinforcement

6.

Trunk lid hinge reinforcement

7.

Seat belt reinforcement

AB300793

AB

1

2

3

4

1.

Rear end panel inner

2.

Trunk lid striker reinforcement

3.

Rear end panel outer

4.

Rear bumper bracket

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-23

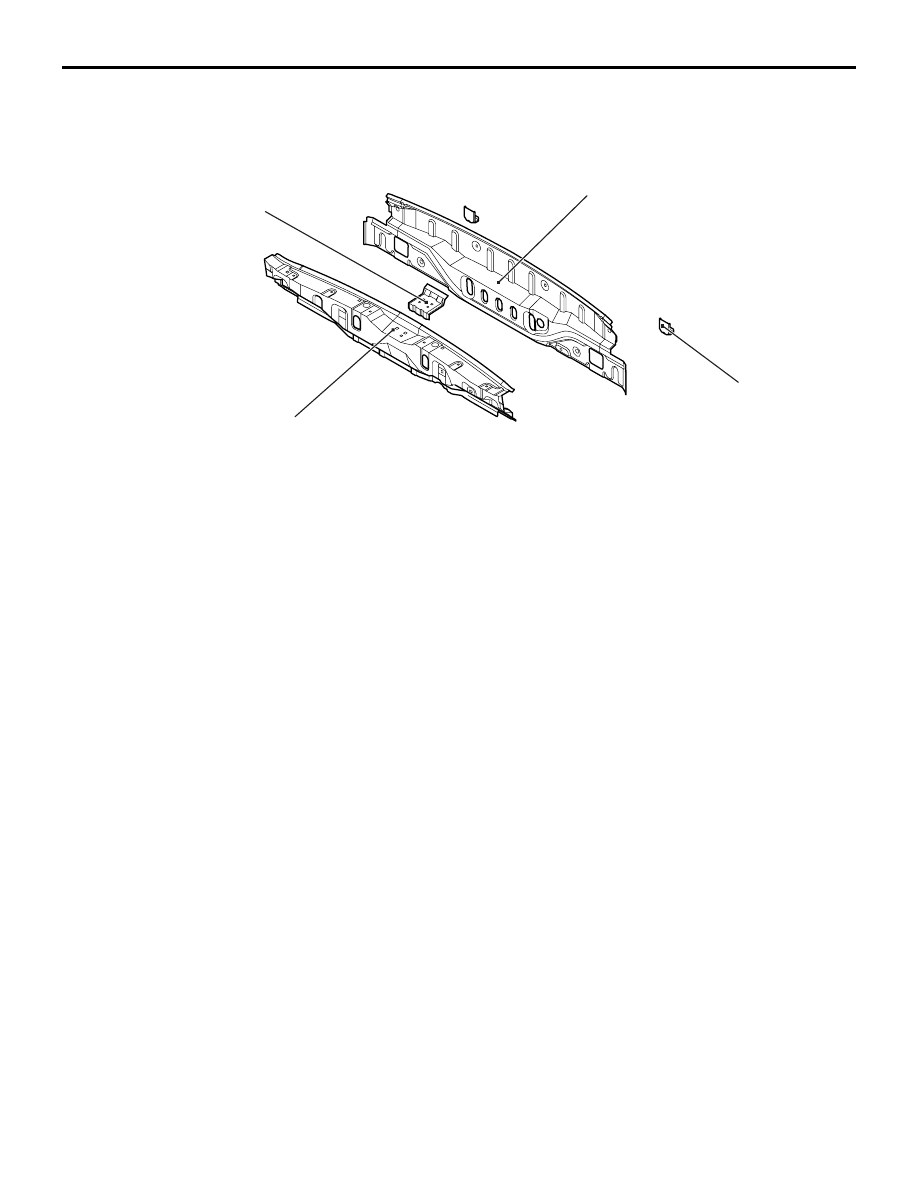

Rear End Crossmember (Wagon)

AB300794

1

2

3

4

AB

1.

Rear end crossmember inner

2.

Tailgate striker reinforcement

3.

Rear end crossmember outer

4.

Rear bumper bracket

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-24

ROOF

M4010013000132

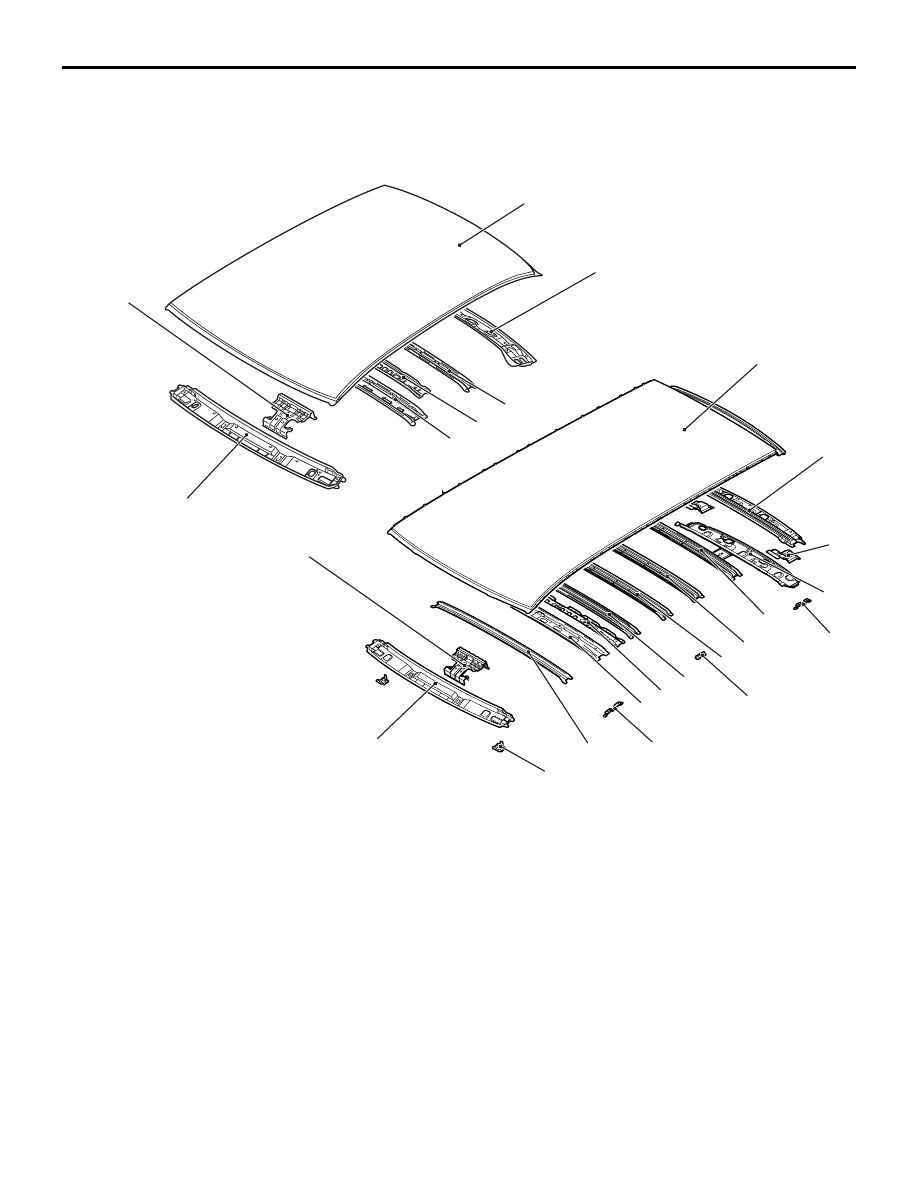

The roof bow has large cross-section and the roof
bow front reinforcement is used to improve collision
safety.

AB300969

AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

6

1

2

3

<Sedan>

<Wagon>

1.

Roof rail front

2.

Map lamp bracket

3.

Roof panel

4.

Roof rail rear

5.

Roof bow rear

6.

Roof bow front reinforcement

7.

Roof bow front

8.

Roof rail rear outer

9.

Tailgate hinge reinforcement

10. Roof rail rear inner
11. Roof rack reinforcement  rear (Vehicles with roof rail)

12. Roof bow E
13. Roof bow D
14. Roof bow F
15. Roof rack reinforcement centre (Vehicles with roof

rail)

16. Roof bow C
17. Roof bow B
18. Roof rack reinforcement front (Vehicles with roof rail)
19. Roof bow A
20. Sunvisor bracket

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-25

UNDER BODY

M4010014000135

Front Floor

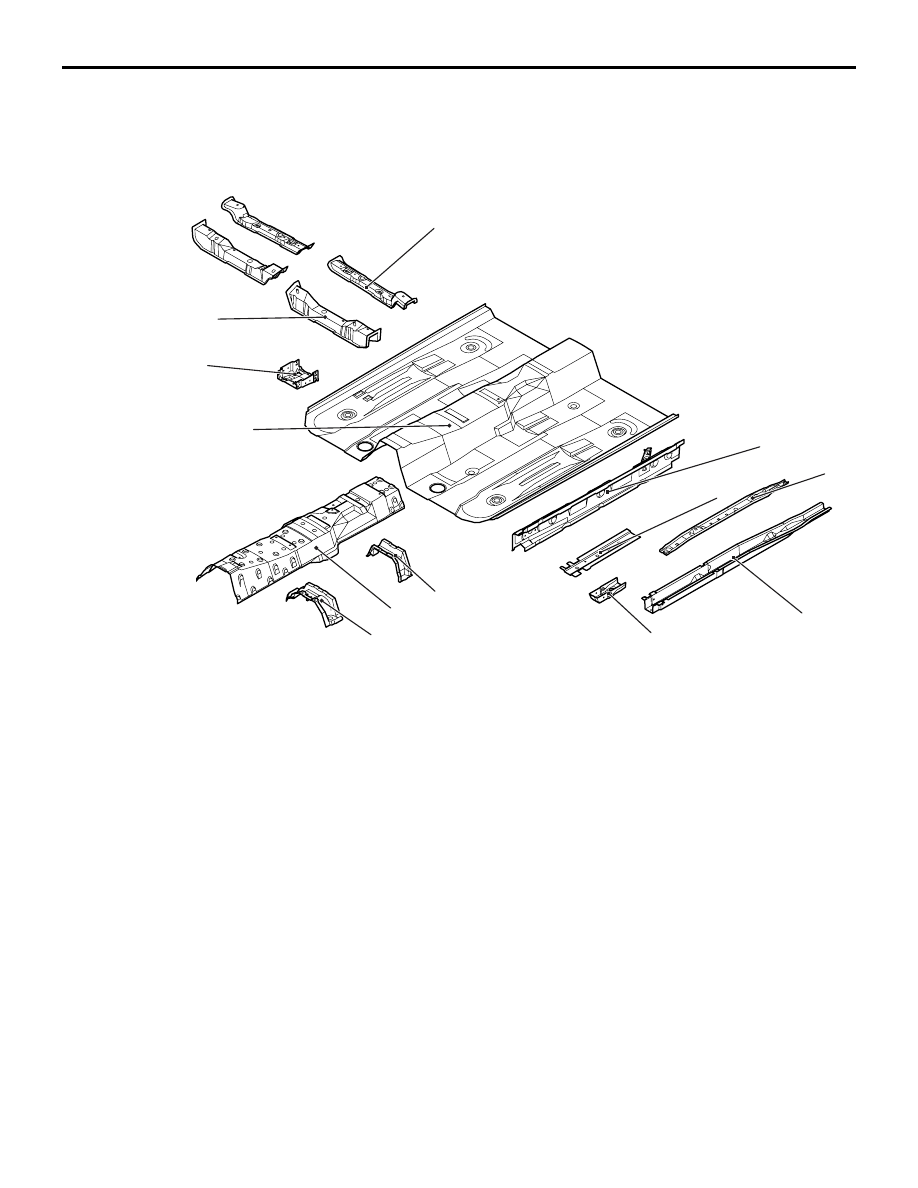

The cross section of the front floor sidemember has
been made large to improve safety in collision.

AB300846

AB

1

2

3

4

5

6

7

8

9

10

11

12

1.

Front floor pan

2.

Instrument panel centre reinforcement bracket

3.

Front floor crossmember front

4.

Front floor crossmember rear

5.

Front floor side sill inner

6.

Front floor sidemember reinforcement

7.

Front floor sidemember reinforcement rear (Driver’s
side)

8.

Front floor sidemember

9.

Front floor sidemember reinforcement front (Driver’s
side)

10. Backbone crossmember rear
11. Backbone reinforcement
12. Backbone crossmember front
