Mitsubishi Lancer. Manual - part 6





BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-18

SIDE BODY

M4010011000136

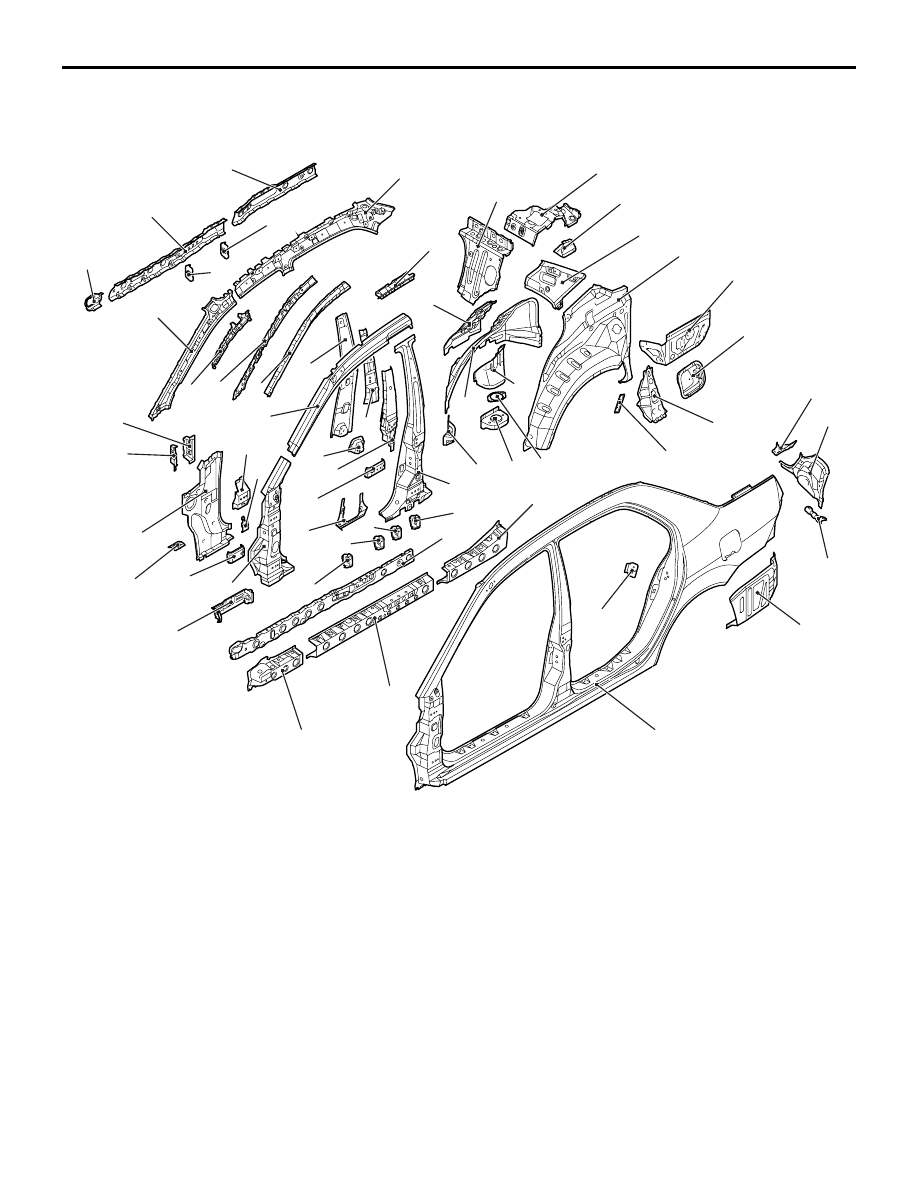

SIDE STRUCTURE

AB300787

AB

<Sedan>

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

1.

Side sill bulkhead front (Driver’s side)

2.

Front door hinge reinforcement lower

3.

Side sill to floor plate

4.

Front pillar inner lower

5.

Deck crossmember bracket front

6.

Deck crossmember bracket rear

7.

Front pillar reinforcement upper B (Driver’s side)

8.

Front pillar inner reinforcement (Driver’s side)

9.

Front pillar inner upper reinforcement (Driver’s side)

10. Front pillar inner upper
11. Side sill outer reinforcement support extension

(Right side on RH drive vehicles)

12. Side sill reinforcement support (Right side on RH

drive vehicles)

13. Side sill reinforcement support rear (Right side on

RH drive vehicles)

14. Side sill bulkhead G (Right side on RH drive

vehicles)

15. Side sill bulkhead F (Right side on RH drive

vehicles)

16. Roof side rail inner
17. Roof side rail reinforcement centre
18. Rear seat back brace
19. Rear shelf brace upper
20. Rear shelf brace lower
21. Rear pillar inner
22. Quarter panel inner
23. Rear floor side brace
24. Fuel filler neck bracket (Excluding the right side on

RH drive vehicles)

25. Rear pillar reinforcement
26. Rear sensor reinforcement
27. Quarter corner panel
28. Rear combination lamp housing
29. Rear bumper bracket
30. Quarter outer panel lower extension

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-19

31. Side outer panel
32. Striker reinforcement
33. Side sill reinforcement outer rear
34. Side sill reinforcement support rear (Excluding the

right side on RH drive vehicles)

35. Side sill outer reinforcement centre
36. Side sill outer reinforcement front
37. Front pillar reinforcement lower
38. Front door check reinforcement
39. Front door hinge reinforcement upper
40. Front pillar reinforcement upper
41. Centre pillar inner
42. Spring house panel
43. Spring house reinforcement
44. Rear wheel house inner panel
45. Spring house bracket plate

46. Spring house bracket
47. Side sill end plate
48. Centre pillar reinforcement
49. Side sill bulkhead E (Excluding the right side on RH

drive vehicles)

50. Side sill bulkhead D (Excluding the right side on RH

drive vehicles)

51. Side sill bulkhead C (Excluding the right side on RH

drive vehicles)

52. Side sill bulkhead B (Excluding the right side on RH

drive vehicles)

53. Centre pillar inner lower
54. Rear door hinge reinforcement lower
55. Rear door hinge reinforcement upper
56. Centre pillar plate inner
57. Centre pillar seat belt reinforcement

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-20

AB300789

AB

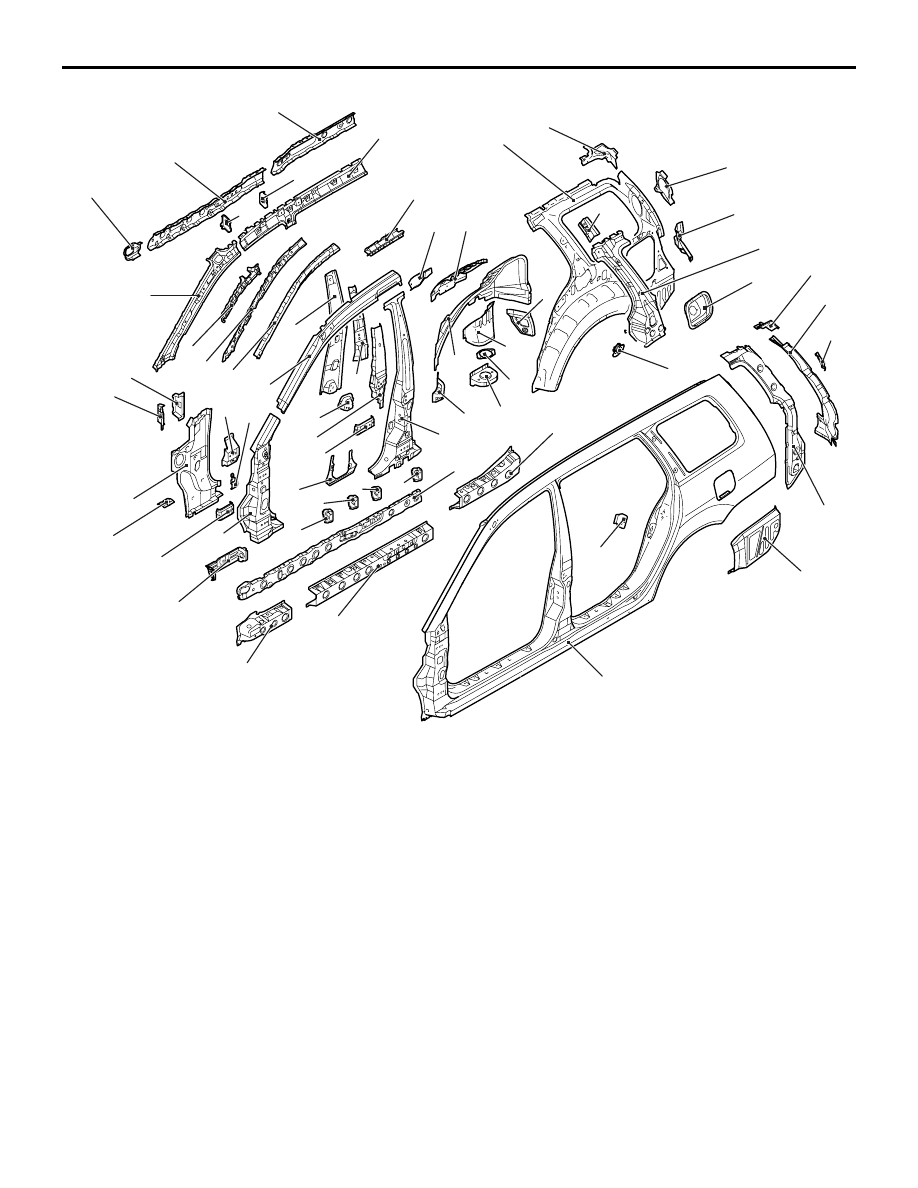

<Wagon>

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42 43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

1.

Side sill front bulkhead (Driver’s side)

2.

Front door hinge reinforcement lower

3.

Side sill to floor plate

4.

Front pillar inner lower

5.

Deck crossmember bracket front

6.

Deck crossmember bracket rear

7.

Front pillar reinforcement upper B (Driver’s side)

8.

Front pillar inner reinforcement (Driver’s side)

9.

Front pillar inner upper reinforcement (Driver’s side)

10. Front pillar inner upper
11. Side sill outer reinforcement support extension

(Right side)

12. Side sill reinforcement support (Right side on RH

drive vehicles)

13. Side sill reinforcement support rear (Right side on

RH drive vehicles)

14. Side sill bulkhead G (Right side on RH drive

vehicles)

15. Side sill bulkhead F (Right side on RH drive

vehicles)

16. Roof side rail inner
17. Roof side rail reinforcement centre

18. Quarter panel inner
19. Quarter inner extension upper
20. Seatbelt reinforcement upper
21. Speaker bracket
22. Quarter inner extension lower
23. Rear pillar reinforcement upper
24. Fuel filler neck bracket (Excluding the right side on

RH drive vehicles)

25. Seatbelt reinforcement
26. Quarter outer extension upper
27. Rear lamp housing
28. Gas spring reinforcement
29. Rear gate pillar reinforcement
30. Quarter outer panel lower extension
31. Side outer panel
32. Striker reinforcement
33. Side sill outer reinforcement rear
34. Side sill reinforcement support rear (Excluding the

right side on RH drive vehicles)

35. Side sill outer reinforcement centre
36. Side sill outer reinforcement front
37. Front pillar reinforcement lower

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-21

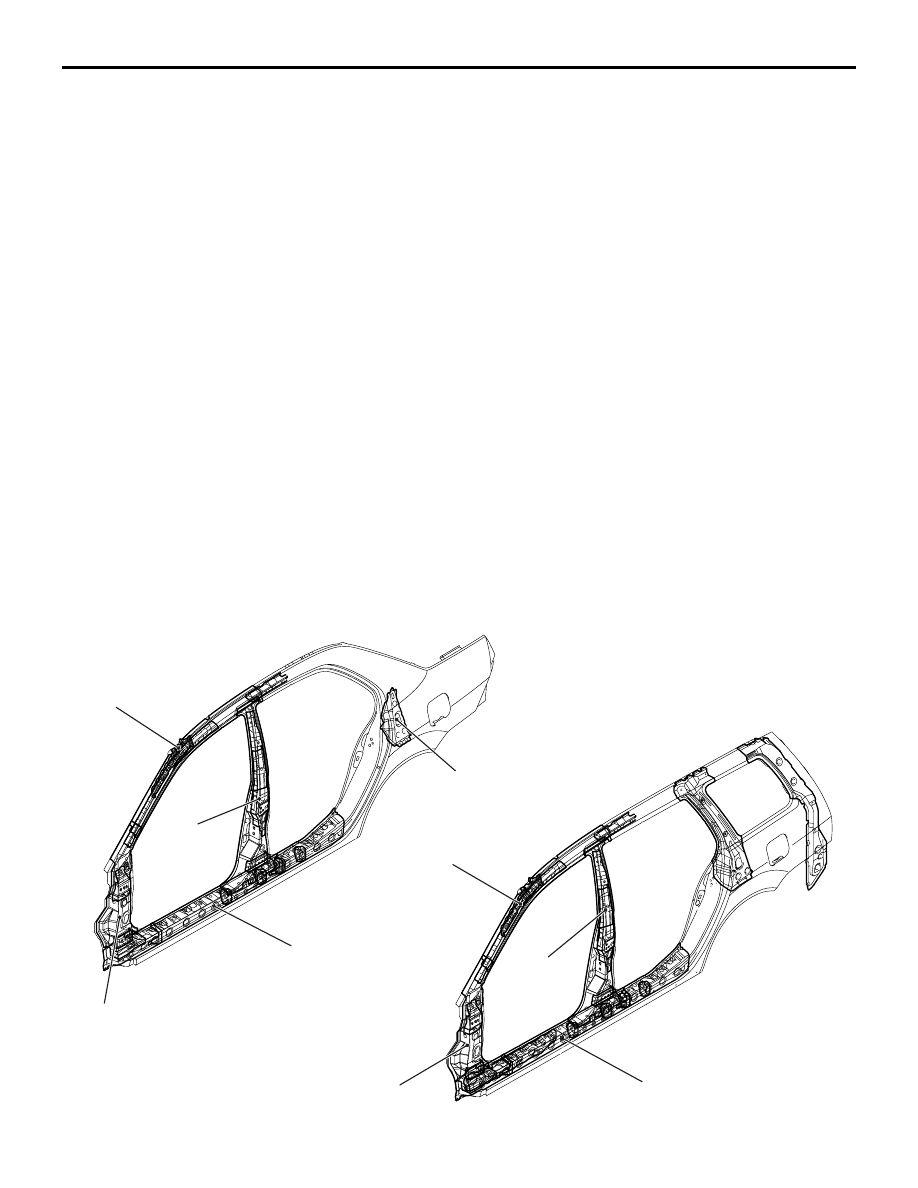

SIDE STRUCTURE REINFORCEMENT

1. The thickness of the reinforcements of the front

pillar and centre pillar has been increased to
improve collision safety.

2. The front pillar reinforcement upper, side outer

panel, and front roof rail have been joined to
improve twisting rigidity.

3. The side sill has been made thin by employing a

variable thickness steel sheet* for the centre pil-
lar reinforcement to improve safety in collision
and realize lightweight.

4. The cross section of the side sill outer reinforce-

ment has been made large to improve safety in
collision and body rigidity.

5. A rear pillar reinforcement has been added, and

the rear shelf and rear wheel house have been
joined to improve the twisting rigidity of the sus-
pension attaching portion.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

38. Front door check reinforcement
39. Front door hinge reinforcement upper
40. Front pillar reinforcement upper
41. Centre pillar inner
42. Rear wheel house reinforcement
43. Spring house panel
44. Wheel house extension inner
45. Spring house reinforcement
46. Rear wheel house inner panel
47. Spring house bracket plate
48. Spring house bracket
49. Side sill end plate
50. Centre pillar reinforcement

51. Side sill bulkhead E (Excluding the right side on RH

drive vehicles)

52. Side sill bulkhead D (Excluding the right side on RH

drive vehicles)

53. Side sill bulkhead C (Excluding the right side on RH

drive vehicles)

54. Side sill bulkhead B (Excluding the right side on RH

drive vehicles)

55. Centre pillar inner lower
56. Rear door hinge reinforcement lower
57. Rear door hinge reinforcement upper
58. Centre pillar plate inner
59. Centre pillar seatbelt reinforcement

AB300951AB

1,3

2

1

4

1

4

<Sedan>

<Wagon>

2

1,3

5
