MAINTENANCE, SERVICEABILITY

BODY CONSTRUCTION

1-10

MAINTENANCE, SERVICEABILITY

M4010003000164

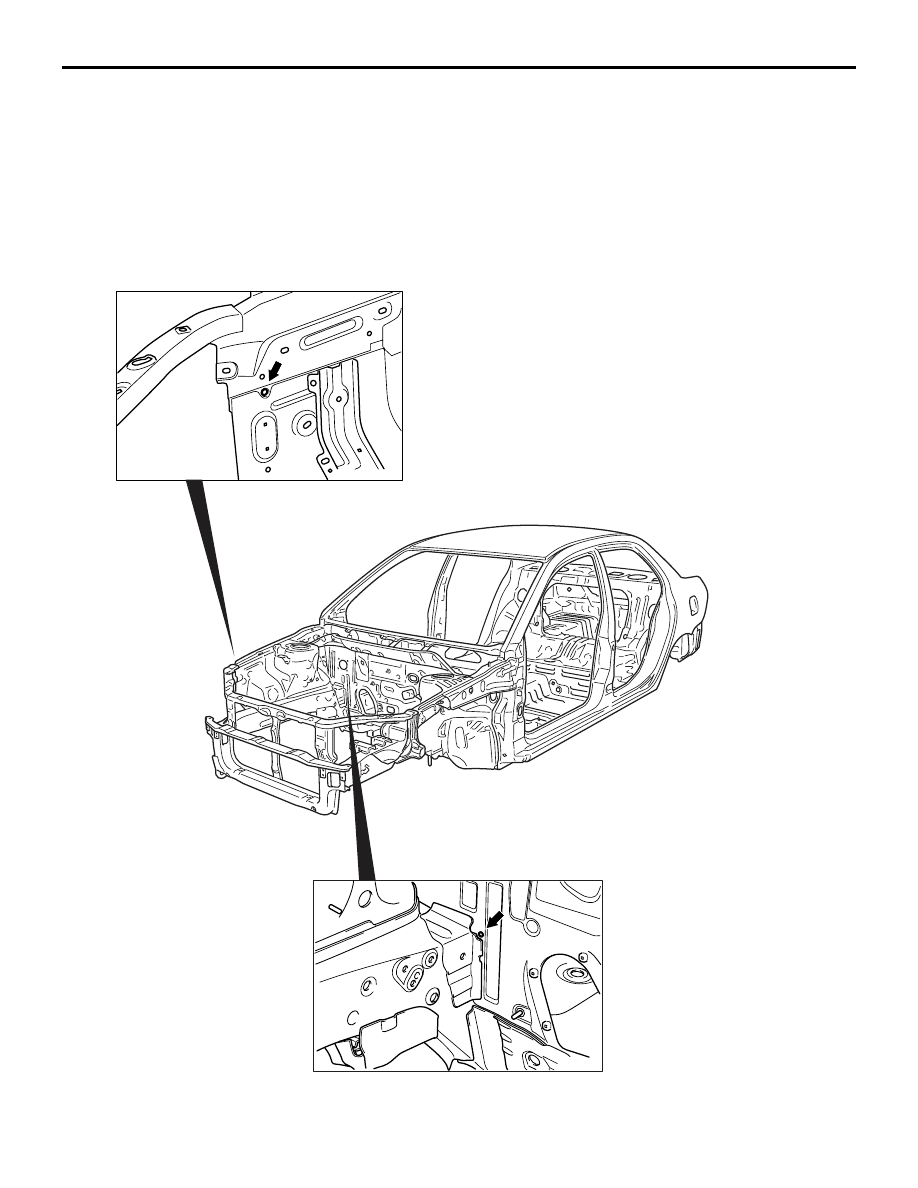

FENDER SHIELD

A positioning hole, marking and notch has been
added on the front fender shield, front upper frame
inner, front sidemember gusset rear and dash panel
to improve assembling workability when replacing
the panel.

AB300918 AB

MAINTENANCE, SERVICEABILITY

BODY CONSTRUCTION

1-11

SIDE STRUCTURE

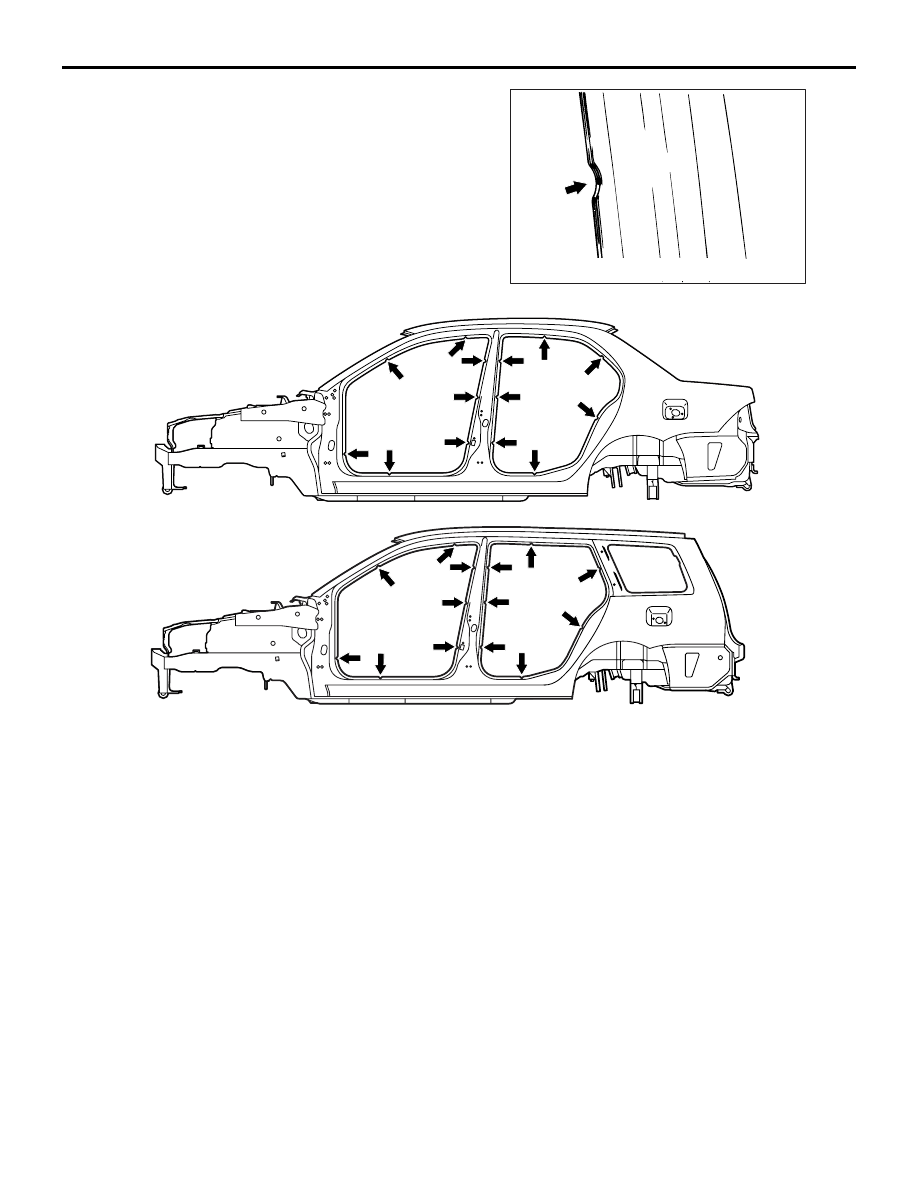

A panel positioning notch has been added on the
door opening to improve assembling workability
when replacing the panel.

AB200202 AC

Panel positioning notch

AB300922

<Sedan>

<Wagon>

AB

MAINTENANCE, SERVICEABILITY

BODY CONSTRUCTION

1-12

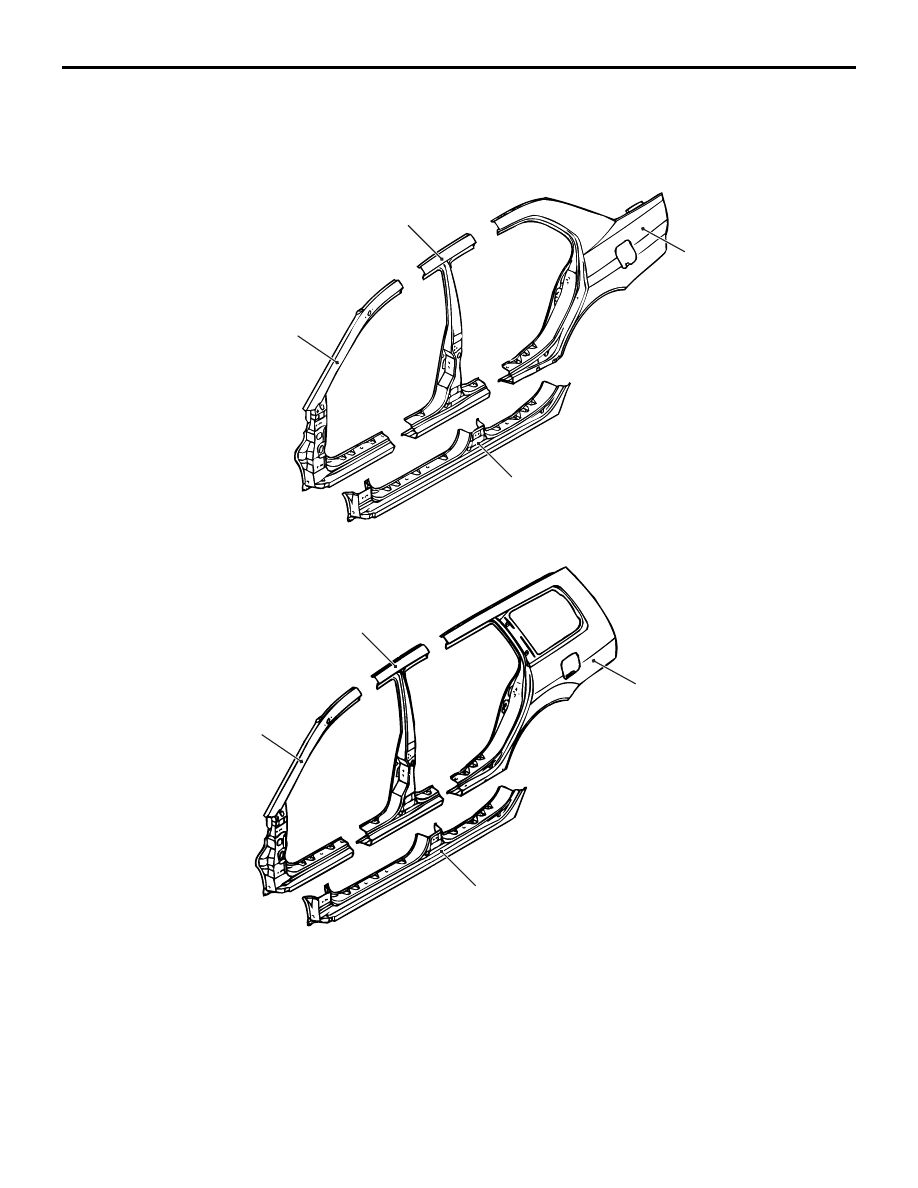

SIDE OUTER PANEL

The extra parts are supplied in 4 different cut forms
as a result of employing the integrated side-frame
side outer panel.

AB202026

Centre pillar outer

Front pillar outer

Side sill outer

Quarter outer

AB

<Sedan>

AB200271

Centre pillar outer

Front pillar outer

Side sill outer

Quarter outer

AB

<Wagon>

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-13

BODY CONSTRUCTION CHARACTERISTICS

FRONT BODY

M4010010000133

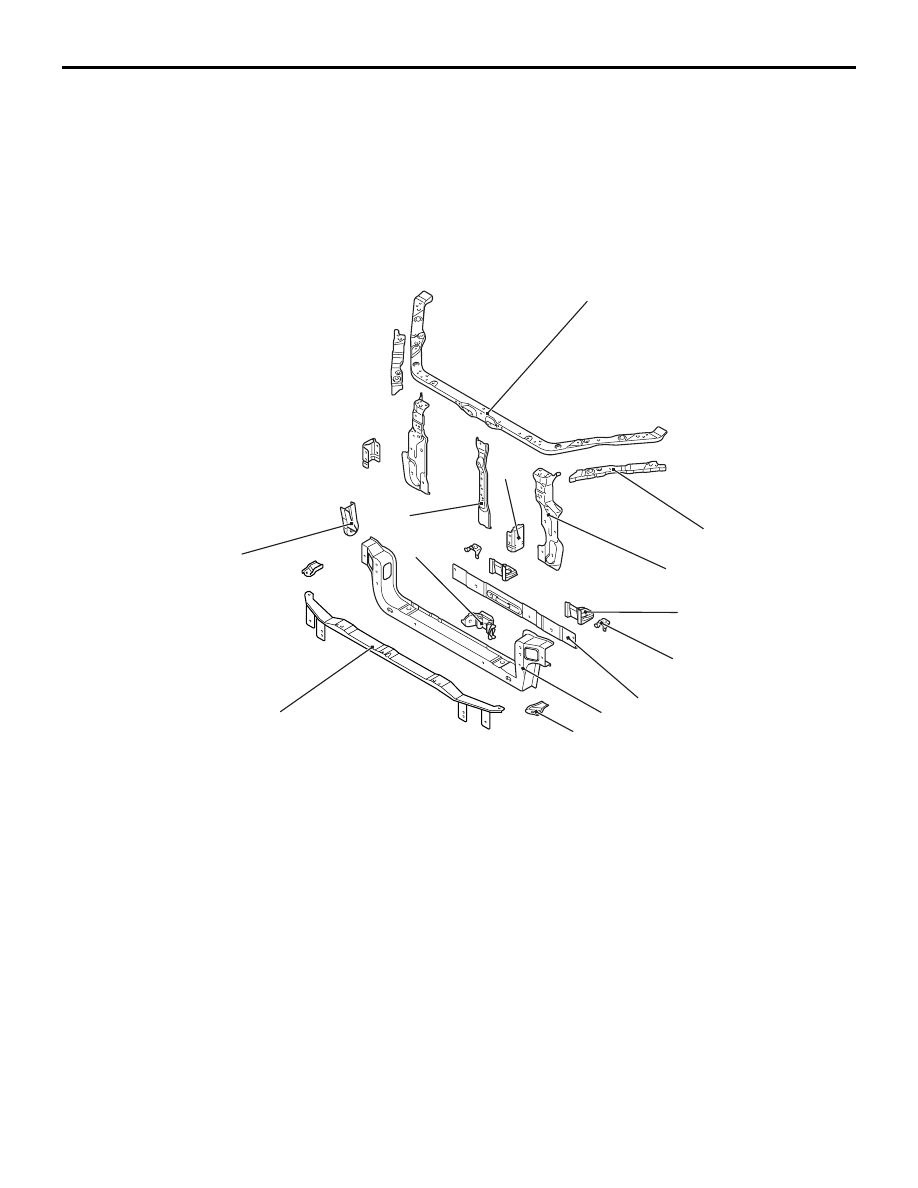

Headlamp Support

An uneven thickness steel sheet* in which the sheet
thickness is thicker on the shipping hook assembling
side was employed for the front end crossmember
outer to ensure rigidity of the shipping hook assem-
bling area and to provide lightweightness.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

AB300775AB

1

2

3

4

5

6

7

8

9

10

11

12

13

1.

Front bumper reinforcement

2.

Shipping hook

3.

Front end crossmember reinforcement

4.

Hood lock stay

5.

Front end crossmember inner reinforcement

6.

Front end upper bar

7.

Front end upper bar reinforcement

8.

Headlamp support side panel

9.

Radiator bracket

10. A/C condenser bracket
11. Front end crossmember inner
12. Front end crossmember outer
13. Front bumper clip bracket
