TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-19

JUDGEMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U1109
when no signals are received from the column switch
(column switch ECU).

PROBABLE CAUSES

• Faulty Lighting switch

• Malfunction of the LIN bus

DIAGNOSIS PROCEDURE

STEP 1. Connector check: C-301 ETACS-ECU
connector, C-201 column switch connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Resistance measurement at the C-201
column switch connector
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the C-201

column switch connector terminal No. 4 and the
body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Wiring harness check from C-201
column switch connector terminal No. 4 to body
earth
Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 4. Voltage measurement at the C-201
column switch connector.
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the voltage between the C-201 column

switch connector terminal No. 1 and the body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Wiring harness check between the C-201
column switch connector terminal No. 1 and the
C-317 ETACS-ECU connector terminal No. 10
Check the power supply line for open circuit and
short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 6. Check the wiring harness wires between
C-301 ETACS-ECU connector terminal No. 1 and
C-201 column switch connector terminal No. 3.
Check the communication lines for open circuit and
short circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-20

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the lighting switch <LHD> or wiper/

washer switch <RHD>.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the column switch and the ETACS-
ECU (Refer to GROUP 00

− How to Cope

with Intermittent Malfunction ).

Code No.U150B Column SW checksum error

JUDGMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U150B
when abnormal signals are received from the column
switch (column switch ECU).

PROBABLE CAUSES

• Faulty lighting switch

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the lighting switch.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the column switch and the ETACS-
ECU (Refer to GROUP 00

− How to Cope

with Intermittent Malfunction ).

Code No.U150C P/W SW (DR) checksum error

JUDGMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U150C
when abnormal signals are received from the power
window main switch.

PROBABLE CAUSES

• Faulty power window main switch

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the power window main switch.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the power window main switch and
the ETACS-ECU (Refer to GROUP 00

−

How to Cope with Intermittent Malfunction ).

Code No.U1511 Sunroof checksum error <Vehicles with sunroof>

JUDGMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U1511
when abnormal signals are received from the sun-
roof motor assembly.

PROBABLE CAUSES

• Faulty sunroof motor assembly

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-21

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the sunroof motor assembly.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the sunroof motor assembly and
the ETACS-ECU (Refer to GROUP 00

−

How to Cope with Intermittent Malfunction ).

Code No.U1512 Lighting control sensor checksum error <Vehicles with auto lamp>

JUDGMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U1512
when abnormal signals are received from the lighting
control sensor.

PROBABLE CAUSES

• Faulty lighting control sensor

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the lighting control sensor.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the lighting control sensor and the
ETACS-ECU (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction ).

Code No.U1514 Bit error (LIN)

JUDGMENT CRITERIA
The ETACS-ECU receives and sends data simulta-
neously. If the data contains a fault, the ETACS-ECU
will set diagnosis code No. U1514.

PROBABLE CAUSES

• Malfunction of the slave ECU

• Malfunction of the ETACS-ECU

• Electrical noise generated in the LIN bus lines

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

A diagnosis code other than No. U1514 is set. :

Replace the appropriate ECU.

Diagnosis code No. U1514 is set. :

Replace the

ETACS-ECU.

The diagnosis code is not set. :

The trouble can be

an intermittent malfunction (GROUP 00

−

How to Cope with Intermittent Malfunction ).

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-22

Code No.U1515 No-bus activity error (LIN)

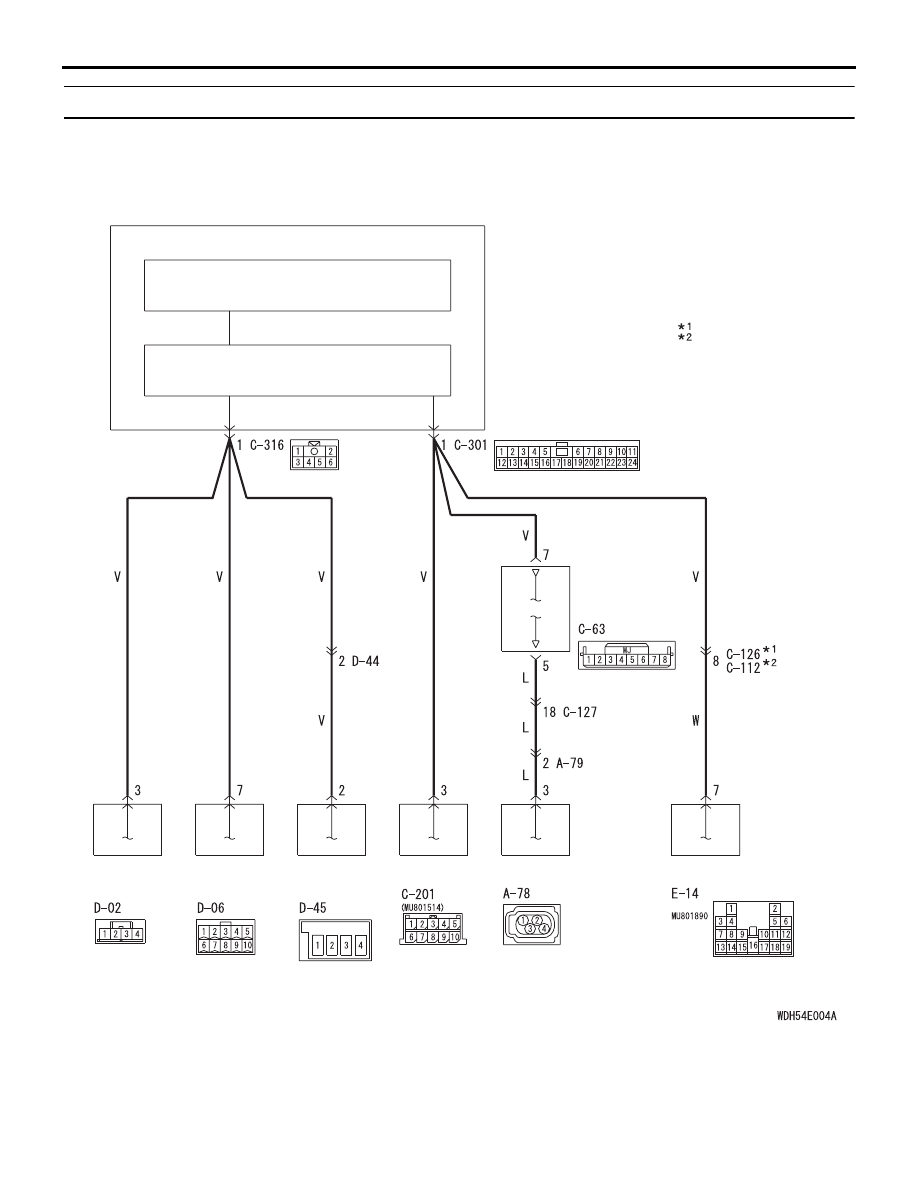

LIN Communication Circuit

LIN DRIVE CIRCUIT

ETACS-ECU

INTERFACE CIRCUIT

SUNROOF
MOTOR
ASSEMBLY

LIGHTING
CONTROL
SENSOR

COLUMN
SWITCH

SECURITY
ALARM
SENSOR

SECURITY
ALARM SIREN

LIN
CUTOFF
CONTROL
UNIT

POWER WINDOW
MAIN SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

RHD

:

LHD

:

NOTE
