TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-15

Code No.U1007 Security alarm sensor LIN timeout <Vehicles with security alarm sensor>

CAUTION

Before replacing the ECU, ensure that the communication circuit is normal.

INTERFACE
CIRCUIT

LIN DRIVE
CIRCUIT

ETACS-
ECU

FUSE

8

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

SECURITY ALARM
SENSOR

Security Alarm Sensor LIN Communication Circuit

ACA00886

AE

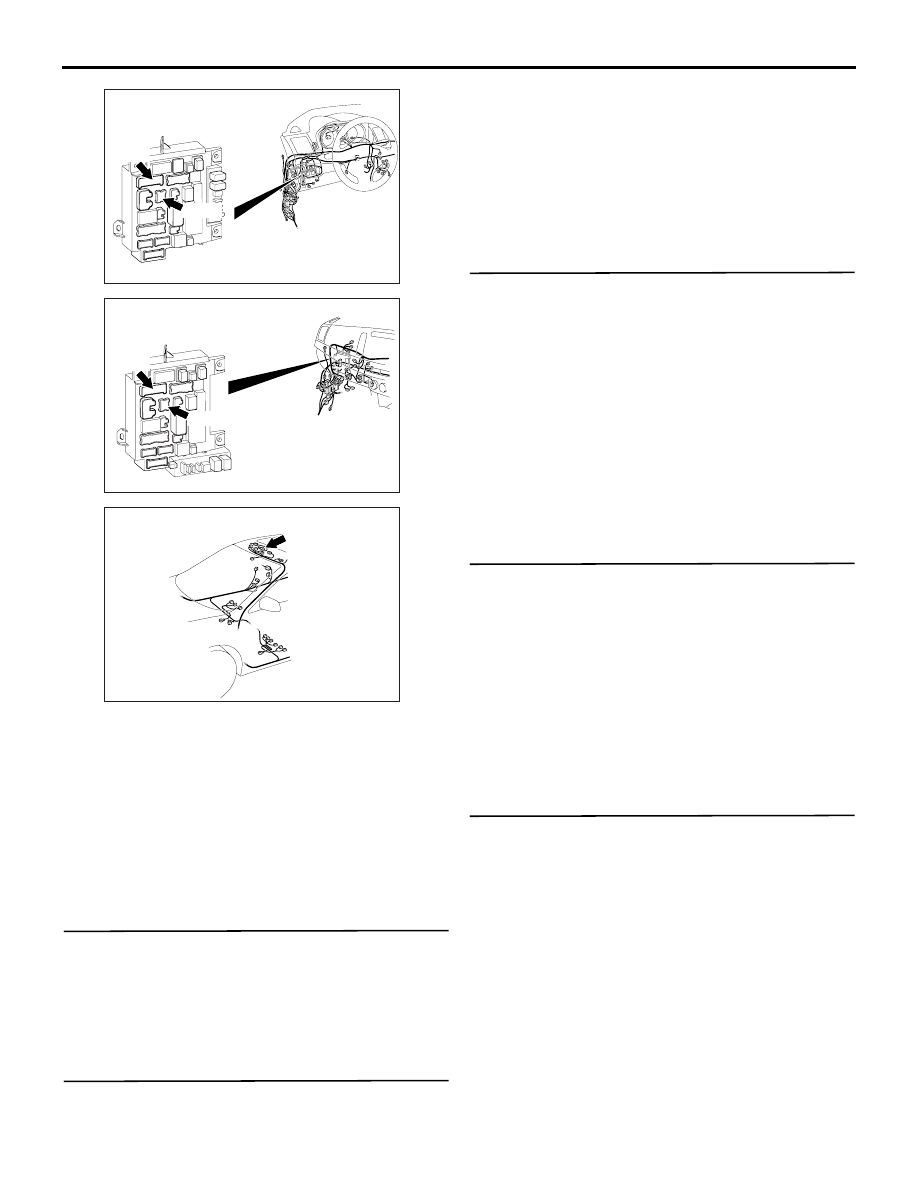

Connectors: C-316, C-317 <LHD>
ETACS-ECU

C-317

C-316

ACA00887

AE

Connectors: C-316, C-317 <RHD>
ETACS-ECU

C-317

C-316

ACA00898

AB

Connector: D-45

D-45 (B)

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-16

JUDGEMENT CRITERIA
The ETACS-ECU will set diagnosis code No. U1007
when no signals are received from the security alarm
sensor.

PROBABLE CAUSES

• Faulty security alarm sensor

• Malfunction of the LIN bus

DIAGNOSIS PROCEDURE

STEP 1. Connector check: C-316 and C-317
ETACS-ECU connectors, D-134 security alarm
sensor connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Resistance measurement at the D-45
security alarm sensor connector
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the D-45

security alarm sensor connector terminal No. 3
and the body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Wiring harness check from D-45 security
alarm sensor connector terminal No. 3 to body
earth
Check the earth wires for open circuit.
NOTE: Prior to the wiring harness inspection, check
intermediate connector D-44, and repair if necessary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 4. Voltage measurement at the D-45
security alarm sensor connector.
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the voltage between the D-45 security

alarm sensor connector terminal No. 1 and the
body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Wiring harness check between the D-45
security alarm sensor connector terminal No. 1
and the C-317 ETACS-ECU connector terminal
No. 10
Check the power supply line for open circuit and
short circuit.
NOTE: Prior to the wiring harness inspection, check
intermediate connector D-44, and repair if necessary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-17

STEP 6. Check the wiring harness wires between
C-316 ETACS-ECU connector terminal No. 1 and
D-45 security alarm sensor connector terminal
No. 2.
Check the communication lines for open circuit.
NOTE: Prior to the wiring harness inspection, check
intermediate connector C-130 and D-44, and repair if
necessary.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from the LOCK (OFF)

position to the ON position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the security alarm sensor.

NO :

A poor connection, open circuit, or other
intermittent malfunctions in the LIN bus lines
between the security alarm sensor and the
ETACS-ECU (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction ).

TROUBLESHOOTING

LOCAL INTERCONNECT NETWORK (LIN)

54B-18

Code No.U1109 Column SW LIN timeout

CAUTION

Before replacing the ECU, ensure that the communication circuit is normal.

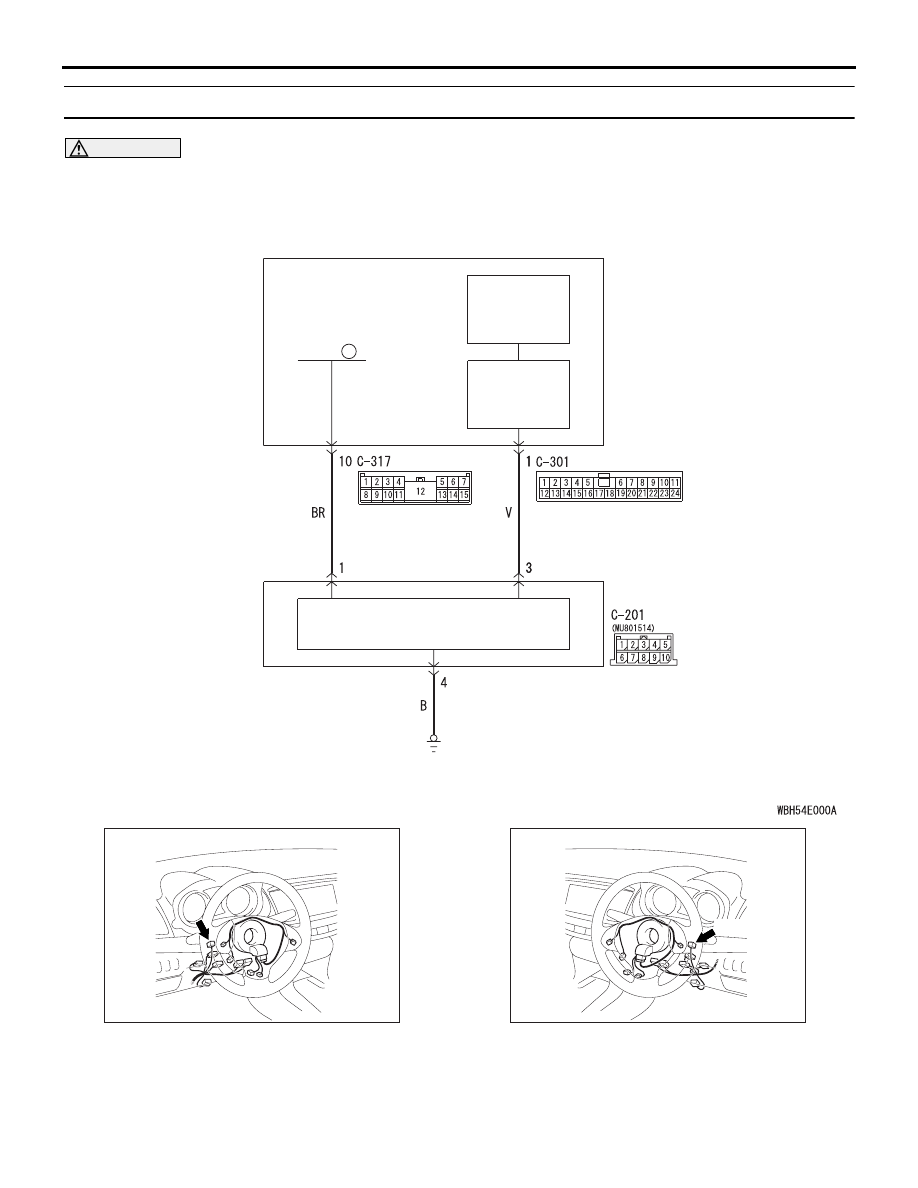

Column Switch LIN Communication Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ETACS-
ECU

INTERFACE
CIRCUIT

LIN DRIVE
CIRCUIT

FUSE

8

COLUMN
SWITCH

COLUMN-ECU

AC612708

Connector: C-201 <LHD>

AT

AC612716 AK

Connector: C-201 <RHD>

C-201
